5.0V Miniature Air Pump for Robotic Vacuum Cleaners

Compact Airflow Support for Smart Cleaning Devices

Robotic vacuum cleaners keep getting thinner and smarter, which means internal components also need to become smaller and more efficient. Large pumps often make the internal layout crowded and reduce battery efficiency during long cleaning cycles.

Parameter	Specification
Model No.	MXPM20-01
Voltage	DC5.0V
Max Current	＜250mA
Flow Rate	0.4-0.6L/min
Operating Temperature	5~45℃
Noise Level	＜60dB

The 5.0V Miniature Air Pump for Robotic Vacuum Cleaners is built for compact smart cleaning equipment that needs stable airflow in a limited space. With a flow range of 0.4-0.6L/min, the MXPM20-01 can support lightweight pneumatic functions while keeping overall power consumption low.

Low Current Design Helps Extend Battery Runtime

Portable cleaning equipment usually relies on battery power, so current control becomes very important. High power consumption can shorten operation time and increase heat inside the device.

Miniature Air Pump for Robotic Vacuum Cleaners

5.0V Miniature Air Pump for Robotic Vacuum Cleaners

The MXPM20-01 dc mini air pump keeps maximum current below 250mA, helping robotic vacuum systems maintain better energy efficiency during repeated use. This makes the pump suitable for intelligent household products designed for long-duration operation.

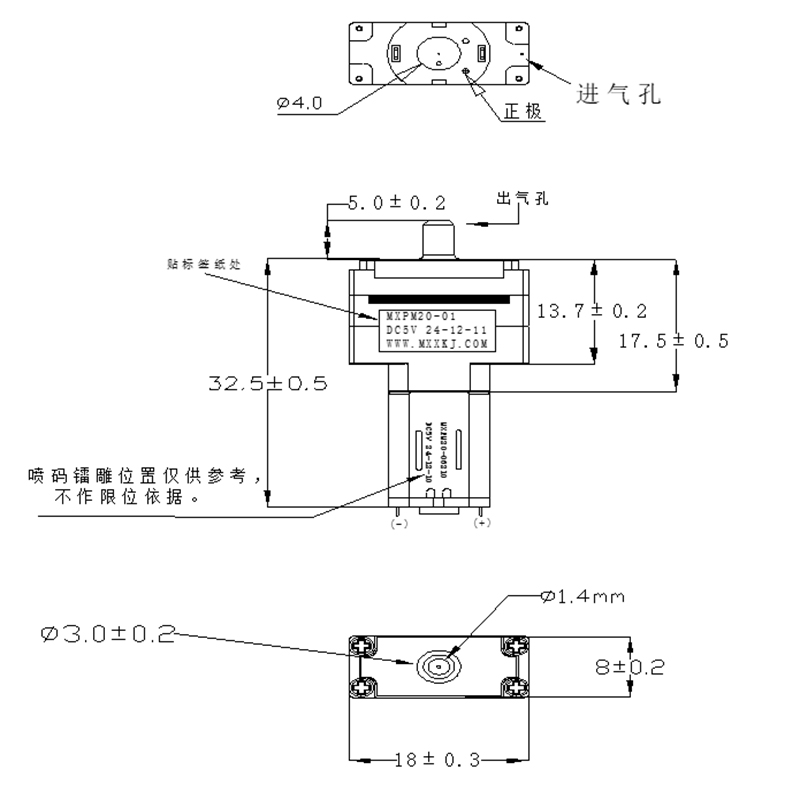

Product Dimensions：

small air pump it works well in products requiring lightweight airflow control without adding excessive power load.Its DC5.0V structure also supports easier integration into low-voltage electronic control systems and compact automation products.

Quiet Working Performance Improves User Experience

Noise control matters a lot for indoor smart appliances. Loud airflow systems can easily affect the user experience, especially in home environments where robotic vacuum cleaners may operate for extended periods.

Mingxinxiang The MXPM20-01 0.4-0.6L/min Miniature Air Pump keeps working noise below 60dB, helping equipment maintain quieter operation during cleaning cycles. Even in smaller product housings, the pump can still provide stable airflow performance while reducing vibration and operating sound.
