Customized Sand Production Solutions for Mechanized Sand Production Lines
Aggregate Crushing Line Project Overview
Project Scale: 500 tons per hour, meeting the large-scale manufactured sand production needs of sand and gravel plants and building materials projects.
Application Scenarios: Manufactured sand production from medium-to-soft materials such as limestone and bluestone, as well as hard rocks like granite and basalt; high-grade sand processing for sand and gravel plants; supply of high-end sand for high-strength concrete and highway subbases.
Key Challenges: Process mismatches leading to resource waste or insufficient production capacity; a one-size-fits-all configuration is ineffective; skipping the shaping step results in poor particle shape and lower selling prices; low-quality wear parts require replacement every few days, resulting in high wear costs; frequent breakdowns in conventional lines, with material blockages and bearing failures occurring in succession.
Solution Highlights: A proven process combining jaw crusher for primary crushing, hammer crusher for shaping, and the 3070 circular vibrating screen for grading. Material utilization is 10% higher than standard lines, with finished products featuring a rounded shape and minimal needle-like or flaky particles, making them suitable for direct supply to high-end applications such as high-strength concrete and highway subbases; Configurations are customized based on material hardness: medium-to-soft rock is processed in a single pass by the hammer crusher, while hard rock is handled via a combination of jaw crusher, cone crusher, and hammer crusher for shaping and grading; high-wear-resistant alloy jaw plates and hammer heads reduce wear rates by 35%, and the 16mm high-manganese steel welded frame improves resistance to impact deformation by 40%; The intelligent self-diagnostic system performs automatic pre-startup checks, predicting 85% of potential failures in advance. Failure points are reduced by 50% compared to standard lines, with an availability rate of no less than 97%; Equipment specifications are matched to specific needs to eliminate redundancy, reducing overall procurement costs by 20% compared to standard lines with equivalent capacity, with a payback period of 1.5 years.
Aggregate Crushing Line Process Flow
Raw material silo → Jaw crusher (primary crushing) → Hammer crusher (secondary crushing and shaping) → 3070 circular vibrating screen (multi-stage classification) → Qualified finished sand conveyed to storage.

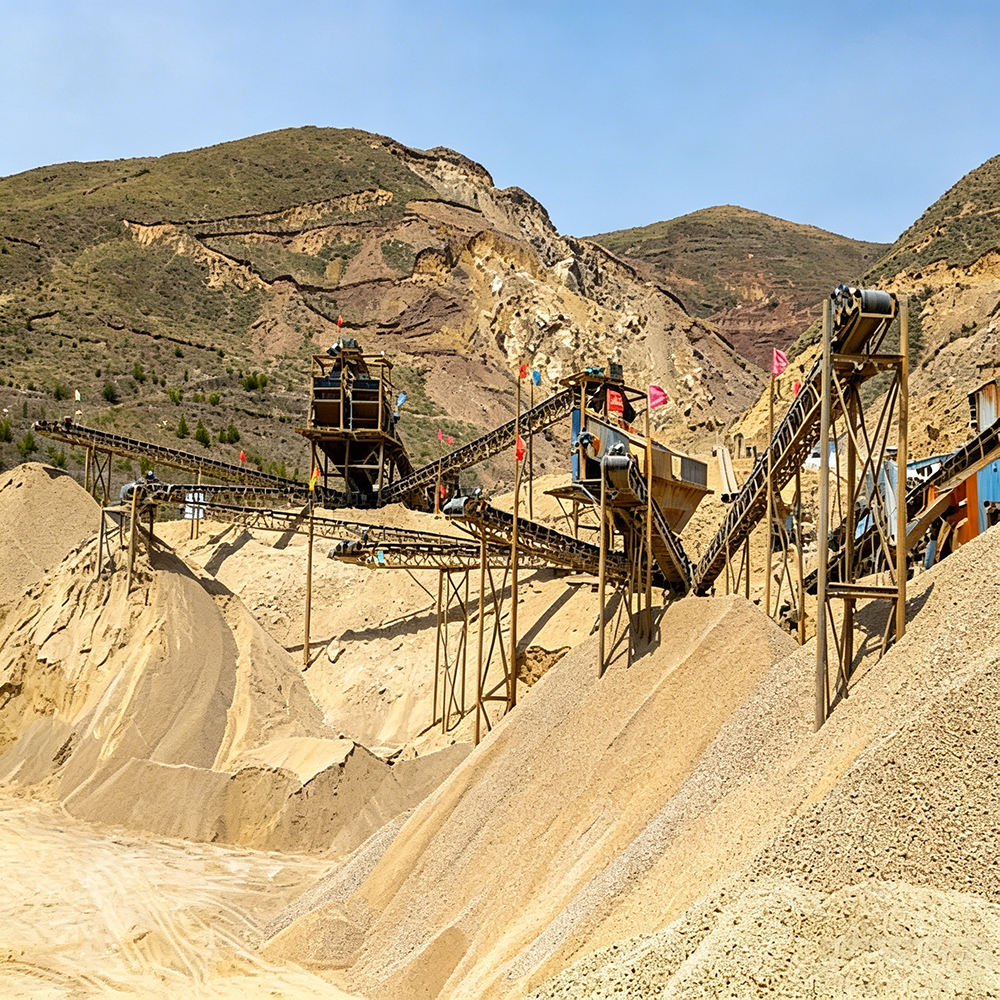

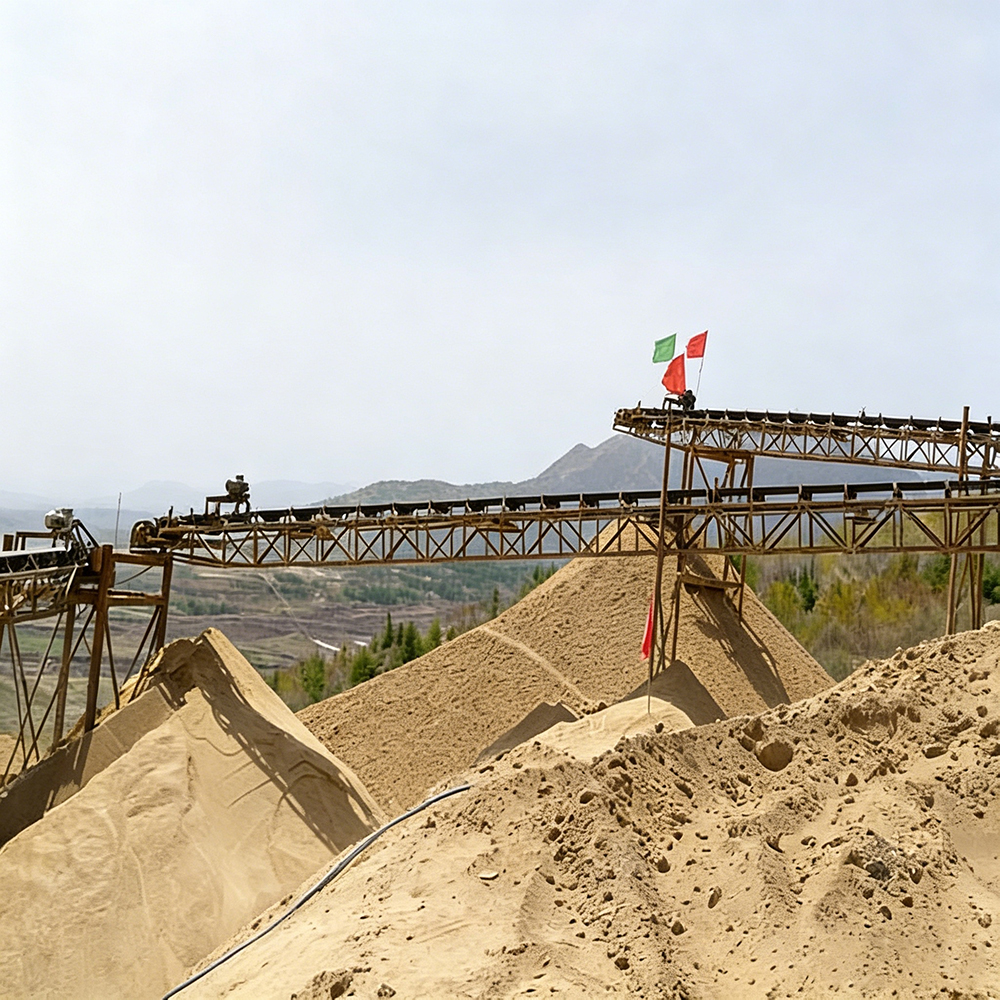

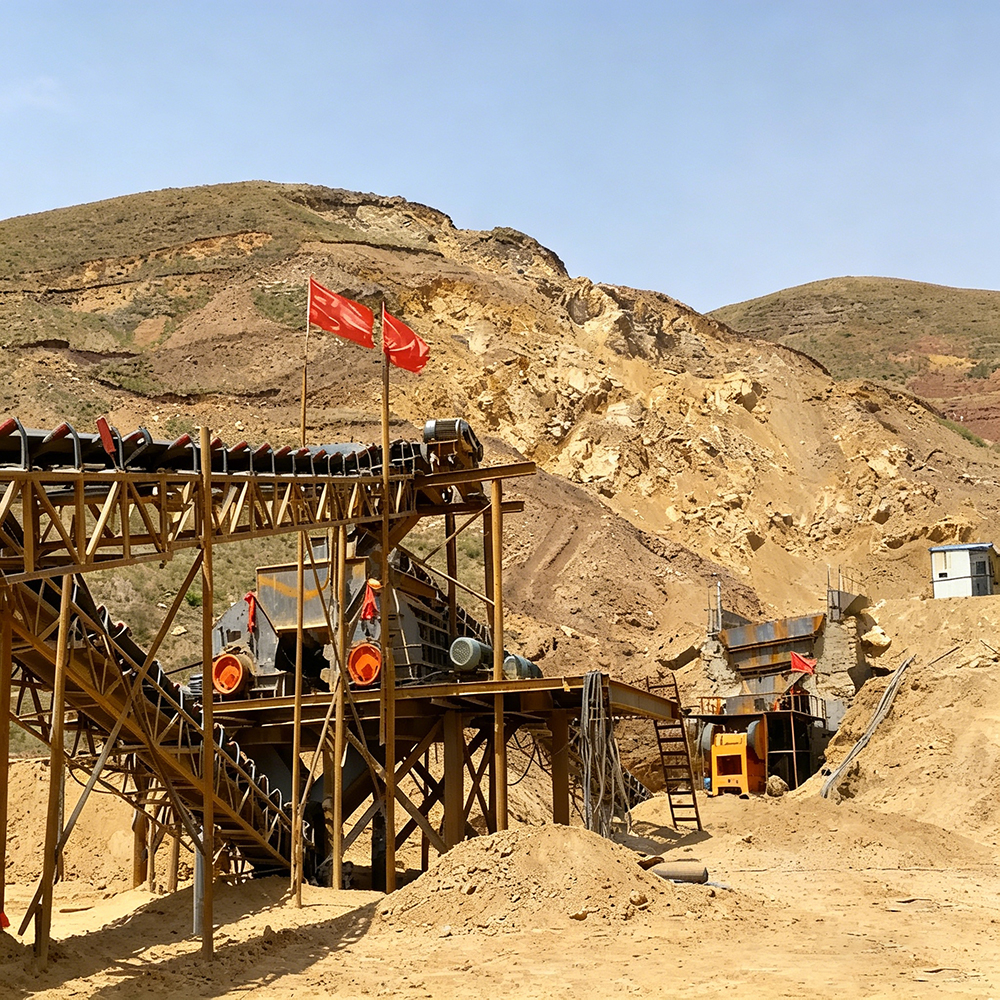

Coarse Crushing Section: The jaw crusher coarsely crushes large raw stones to a medium particle size; feed size is matched to different models based on actual requirements. Shaping Section: The hammer crusher performs fine crushing and shaping on the output from the jaw crusher; the resulting particle shape is rounded with minimal needle-like or flaky particles, resulting in finished product particle shapes and market value far exceeding those of production lines without a shaping step. Screening Section: The 3070 circular vibrating screen performs precise grading, ensuring manufactured sand of all specifications meets standards before being stored. Hard Rock Adaptation: For hard rock conditions such as granite and basalt, a cone crusher is added for medium and fine crushing after the jaw crusher's coarse crushing, while the hammer crusher focuses on shaping. Configurations are flexibly tailored to raw material characteristics rather than relying on fixed templates.
Aggregate Crushing Line EPC Service Scope
Process Design: Customized process configurations based on material hardness, finished product requirements, site conditions, and budget, rather than applying a one-size-fits-all template. Different jaw crusher models are matched to 600mm and 800mm feed sizes, while different hammer crusher specifications are matched to target capacities of 400 tons and 500 tons.
Equipment Manufacturing: Jaw crushers, hammer crushers, and 3070 circular vibrating screens are all independently researched and manufactured. The quality of high-wear-resistant alloy jaw plates and hammer heads is strictly controlled.
Installation and Commissioning: Dedicated on-site installation and commissioning services for each project ensure full production capacity within 7 days of equipment arrival; 3 days of on-site hands-on training covering jaw crusher discharge opening adjustment, hammer wear assessment, and circular vibrating screen excitation force adjustment; customized crushing and screening parameters based on material characteristics to ensure optimal performance upon arrival.
Operation and Maintenance Management: 12-month full-machine warranty; emergency spare parts package for core wear components (jaw plates, hammers, etc.) to support 7 days of emergency production; 48-hour response time for custom project compatibility issues; 24/7 online technical support and free guidance on process optimization.
Aggregate Crushing Line Project Case Study
A large-scale manufactured sand project at a sand plant in Ningxia. The plant originally used a standard production line, but the process was incompatible with the characteristics of local limestone. The finished product had poor particle shape and high levels of needle- and flake-shaped particles, forcing the plant to sell it as ordinary aggregate at low profit margins; hammer heads had to be replaced every 5 days, resulting in annual spare part costs exceeding 120,000 yuan; Frequent equipment failures resulted in an average of more than 3 shutdowns per month, with an output of only 380 tons per hour. After introducing Zhongyu Dingli's customized 500-ton-per-hour manufactured sand production line, the process – comprising a jaw crusher, hammer crusher for shaping, and a 3070 circular vibrating screen – was precisely matched to the characteristics of the limestone. The finished product achieved a rounded particle shape that met standards, successfully entering the high-strength concrete supply chain and increasing the selling price by 18%; The wear rate of high-wear-resistant alloy hammer heads decreased by 35%, with replacement intervals extended to 18 days, reducing annual spare parts costs to 78,000 yuan – a 35% reduction; The intelligent self-diagnostic system predicted 85% of failures in advance, reducing failure points by 50%, lowering average monthly downtime to 0.6 times, and maintaining an availability rate of over 97%; On-demand configuration eliminates redundant equipment, reducing overall procurement costs by 20% compared to standard lines, with a payback period of 1.5 years. Customer Feedback: Zhongyu Dingli's customized solution has finally aligned the process with the material. The selling price of the finished product has increased, hammer head replacements have decreased, and output has risen – solving all three challenges of a single production line.
Aggregate Crushing Line FAQ
Q: Can the process for a manufactured sand production line be customized based on the hardness of different materials?
A: Yes. For medium-to-soft rocks such as limestone and bluestone, the hammer crusher can complete both crushing and shaping in a single pass; for hard rocks such as granite and basalt, a cone crusher is added for medium and fine crushing after coarse crushing by the jaw crusher, while the hammer crusher focuses on shaping low procurement cost aggregate crushing line. The configuration is flexibly tailored to the characteristics of the raw material rather than following a fixed template.
Q: What is the service life of high-wear-resistant parts under continuous operation at 500 tons per hour?
A: Both jaw plates and hammer heads are made of high-wear-resistant alloy materials, reducing wear rates by 35% compared to standard parts; the 16mm high-manganese steel fully welded frame improves resistance to impact deformation by 40%; hammer head replacement intervals can exceed 18 days, excellent finished particle shape crushing plant significantly reducing long-term wear costs.
Q: How long does it take to start production after the customized equipment arrives on-site, and what after-sales support is provided?
A: Full production capacity is achieved within 7 days of equipment arrival; 3 days of on-site hands-on training ensures operators can work independently; a 12-month warranty covers the entire machine; an emergency spare parts package for core wear components ensures 7 days of uninterrupted production; we respond to custom compatibility issues within 48 hours; high wear resistant alloy sand making equipment and we provide 24/7 online technical support and free guidance on process optimization.
