| Item | Description |

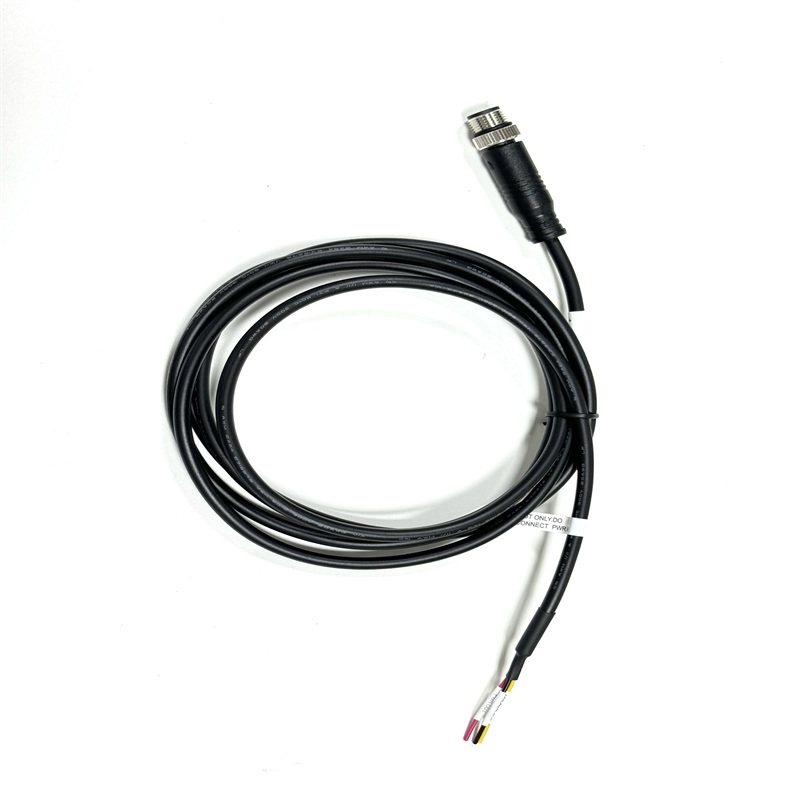

| Product Name | Cable Adapter M12 male to bare wires |

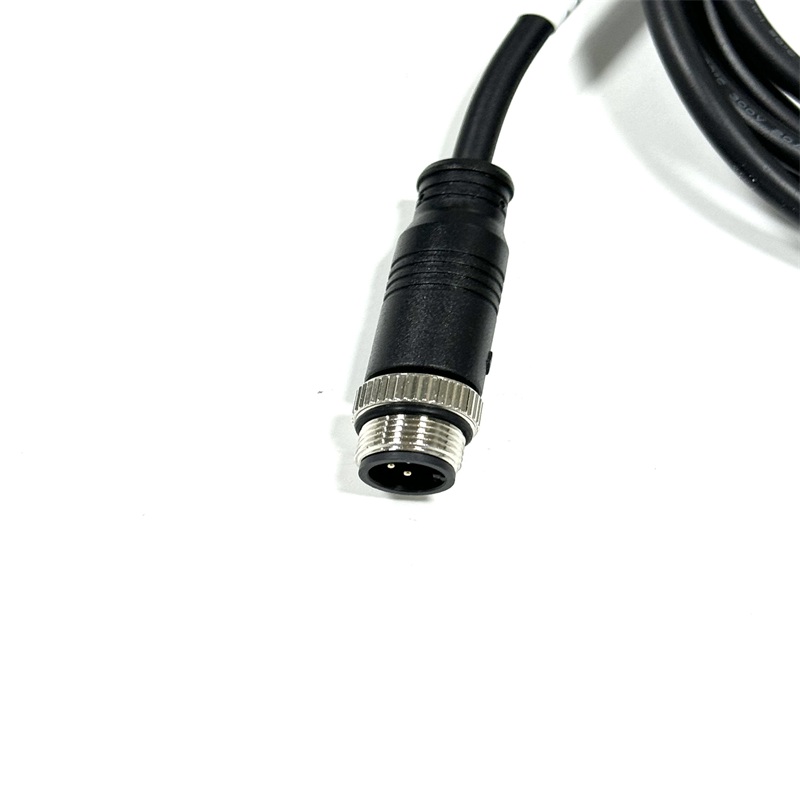

| Connector Configuration | • P1: M12 3Pin male connector, with metal threaded locking nut, integrated waterproof silicone seal ring, and black PA66 nylon housing • P2: Open bare wire end, 3-core exposed wires with color-coded insulation • Pin Definition: 1-Pin (Black) = GND OUT; 3-Pin (Red) = PWR OUT; 4-Pin (Yellow) = ACC PWR OUT |
| Length | • Total overall length (from M12 male connector end to bare wire end): 2000 ± 30mm • Length of M12 male connector housing: 40 ± 5mm • Distance from M12 connector to the fixed position of the marking label: 118mm ~ 266mm • Length of the marking label: 66mm • Stripping length of bare wire end: 10 ± 1mm • Outer diameter of the cable: 5.0mm |

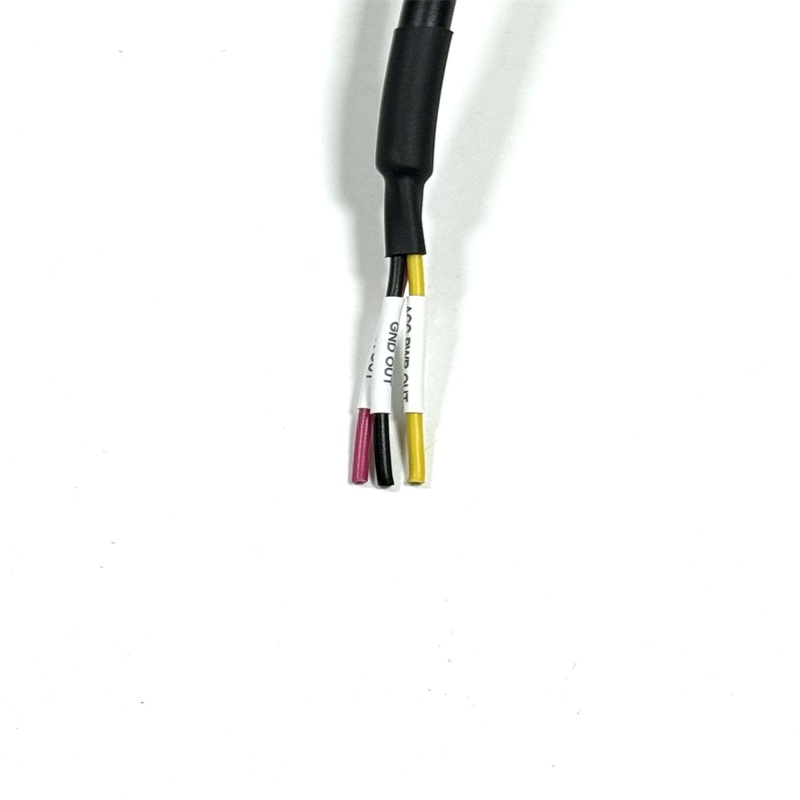

| Appearance Features | 1. Cable & Jacket: Flexible black PVC outer jacket, 3-core multi-strand high-purity copper conductors, with excellent oil resistance and temperature resistance. The cable surface is smooth, burr-free, and resistant to bending and abrasion. 2. Connector: M12 male connector with matte black nylon housing, silver-plated metal threaded locking nut, and built-in waterproof silicone ring for IP65/IP67 level dustproof and waterproof performance. 3. Markings: White tear-resistant, waterproof, and laminated PVC label with black text, printed with "PWR OUT ONLY DO NOT CONNECT PWR IN" in Arial font (2mm height), clearly indicating the cable's usage restriction. 4. Workmanship: Reinforced strain relief with heat-shrink tubing at the cable-connector junction. No deformation, scratches, bubbles, flow marks, or injection defects on all components. Connector pins show no damage, peeling, or rust. 5. Bare Wire End: 3 color-coded wires (black, red, yellow) with neatly stripped ends, no broken wires, virtual connections, or exposed copper burrs. |
| Electrical Performance | • 100% full-pin continuity tested, no shorts, opens, broken wires, or miswiring • Dielectric withstand test: DC 300V / 10ms, no electrical breakdown • Insulation resistance: ≥10MΩ • Conduction resistance: ≤3Ω • Cable and terminal pull test: 20AWG wires withstand minimum 5kgf pull force without terminal separation • Bending test: Withstands more than 1000 bends at 60° angle with 500g load |
| Application | • Power connection for industrial automation sensors, actuators, and control devices with M12 ports • Power supply wiring for outdoor monitoring equipment, roadside cameras, and waterproof IoT devices • On-board power conversion for heavy-duty trucks, buses, and construction machinery • Direct wiring for terminal devices that require bare wire termination, eliminating the need for intermediate adapters |
