Product details

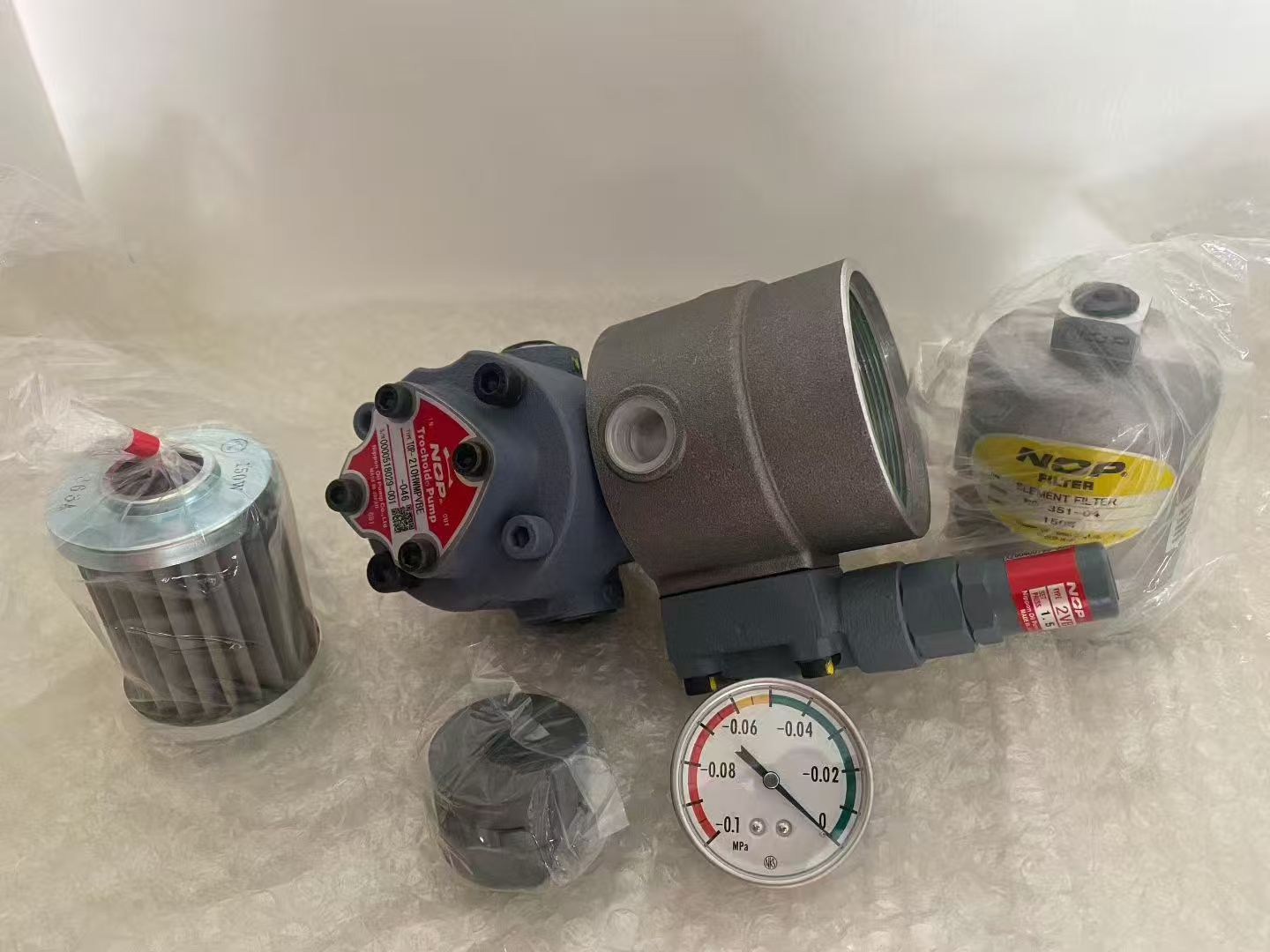

NOP TOP-210HWMPPVBE-04 NOP Trochoid Cooling Pump

Brand: NOP (Nippon Oil Pump)

Series: TOP-2HWM High-pressure Cooling Pump, specially used for cutting fluid and oil cooler

Full Model: TOP-210HWMPPVBE-04, integrated design with filter and relief valve

1. Model Code Definition

- TOP: Trochoid pump series

- 2: Size group 2, medium flow rate

- 10: Theoretical displacement 10 cm³/rev

- H: High pressure type, max working pressure 1.5 MPa

- W: Dedicated cooling pump

- M: Motor integrated structure, compact layout

- PP: Built-in suction strainer

- V: Internal adjustable relief valve

- B: Type B flange mounting

- E: Upgraded sealing material

- 04: 4-pole motor, 1500rpm@50Hz, 1800rpm@60Hz

2. Core Pump Technical Parameters

- Theoretical displacement: 10 cm³/rev

- Maximum pressure: 1.5 MPa

- Maximum flow rate:

50Hz: 15 L/min

60Hz: 18 L/min

- Max rotating speed: 1800 rpm

- Applicable fluid viscosity: 2–50 mm²/s

- Operating fluid temperature: -5～80℃

- Port size: Rc3/4 pipe thread

- Pump weight: Approx. 3.5 kg

3. Integrated Motor Specification

- Motor power: 0.75kW

- Pole & speed: 4 poles

- Rated voltage: Three-phase 200V/220V

- Protection grade: IP44

- Installation form: Horizontal Type B flange

4. Product Features

- Reinforced housing, bearing and shaft seal, stable for 24-hour continuous operation

- Low flow pulsation and low running noise with high precision trochoid gear

- Built-in filter prevents impurity contamination; relief valve protects pipeline system

- Excellent self-priming performance, no pre-filling required

5. Application Scope

- Cutting fluid circulation for CNC machining centers

- Cooling circulation of oil cooler and hydraulic station

- Low-pressure lubrication system and light oil transmission

6. Relevant Model Comparison

- TOP-210HWM: Basic pump head without valve and filter

- TOP-210HWMVB: Equipped with relief valve

- TOP-210HWMPVBE: Complete version with filter, relief valve and enhanced sealing
