Product details

Ultrasonic surgical gown sewing machine

Key features include:

①built-in computer chips and multi-channel ultrasonic protection systems to ensure stable operation;

②adjustable high-medium-low power settings for welding and cutting materials of varying types and thicknesses;

③international-standard performance achieved through auto frequency tracking and ultrasonic soft-start technology;

④diverse customizable pattern designs; user-friendly operation with speeds up to four times faster than conventional sewing machines.

Ultrasonic surgical gown sewing machine

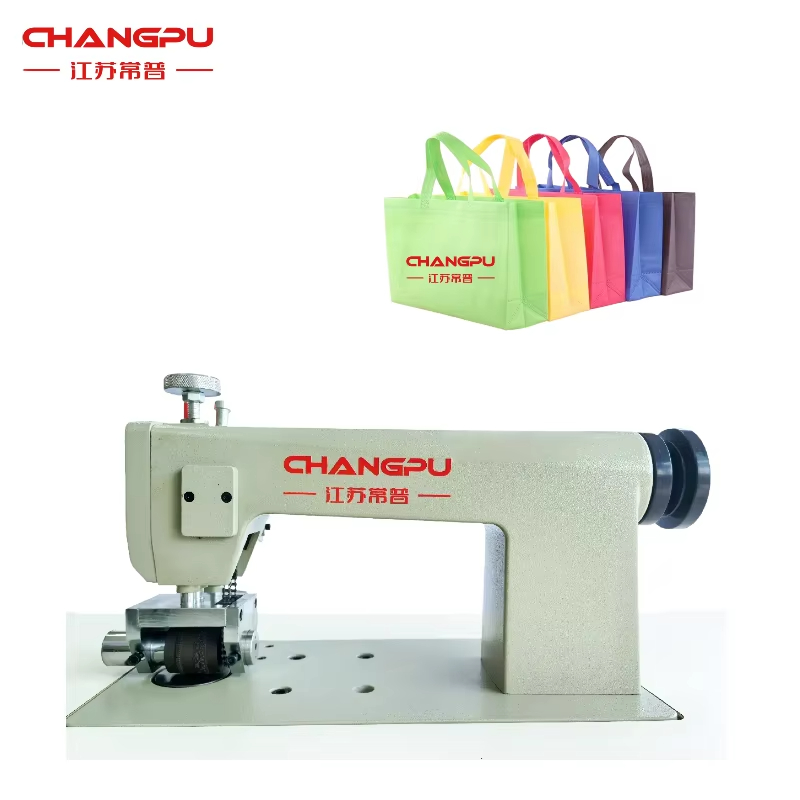

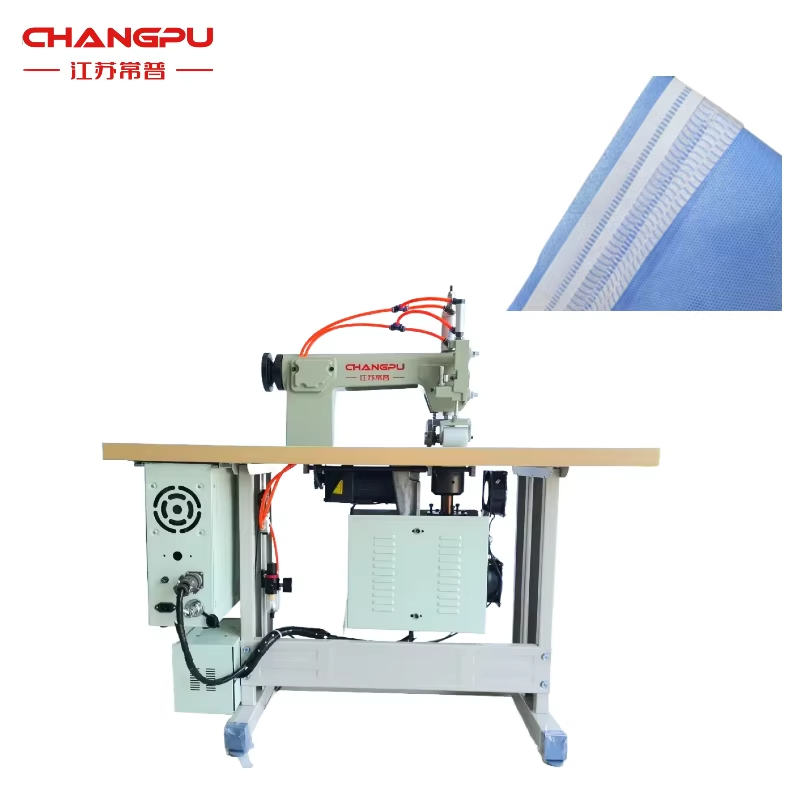

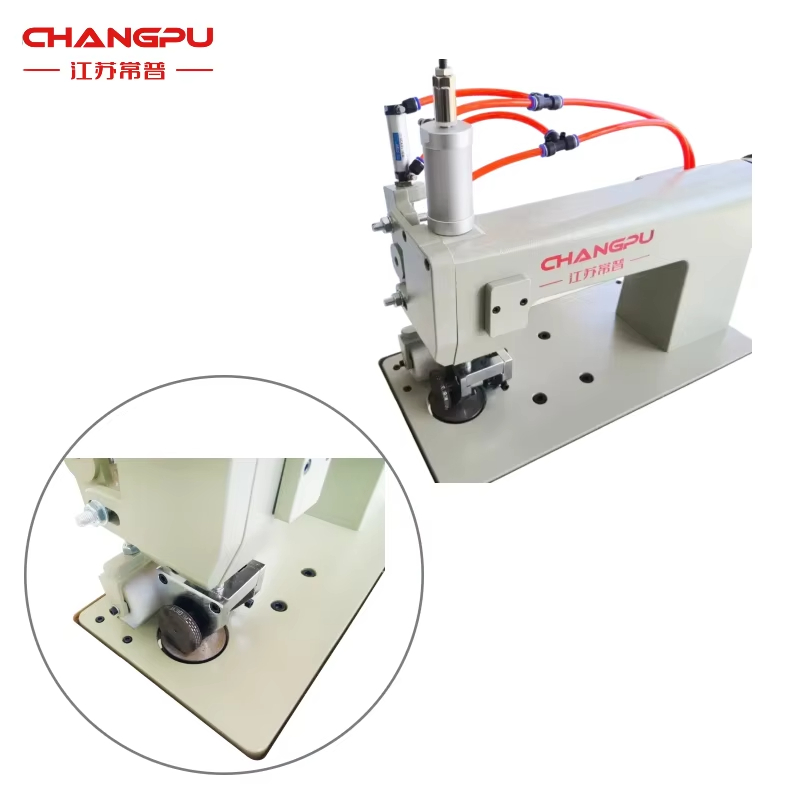

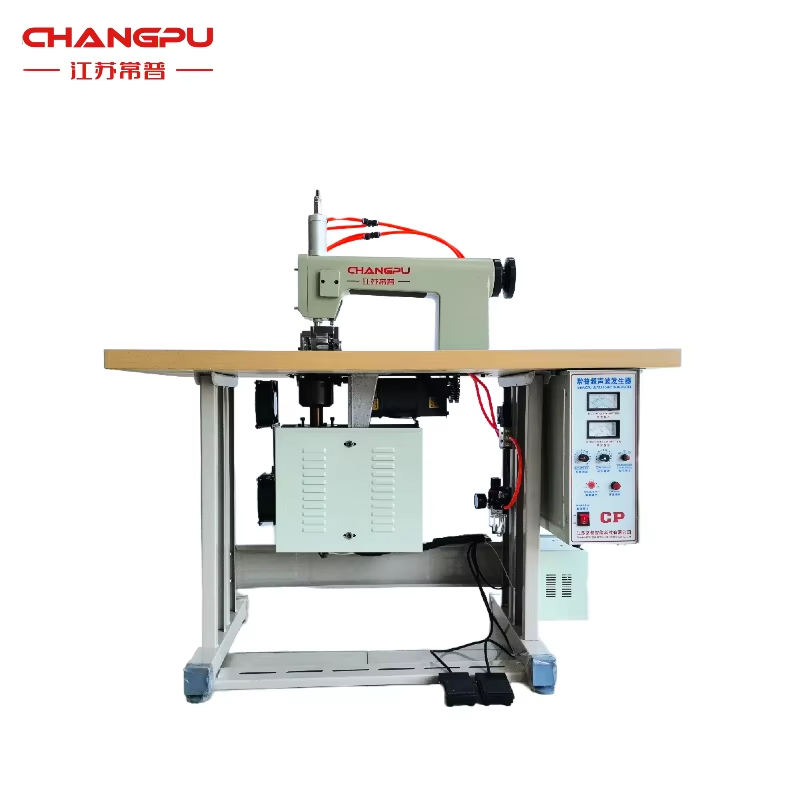

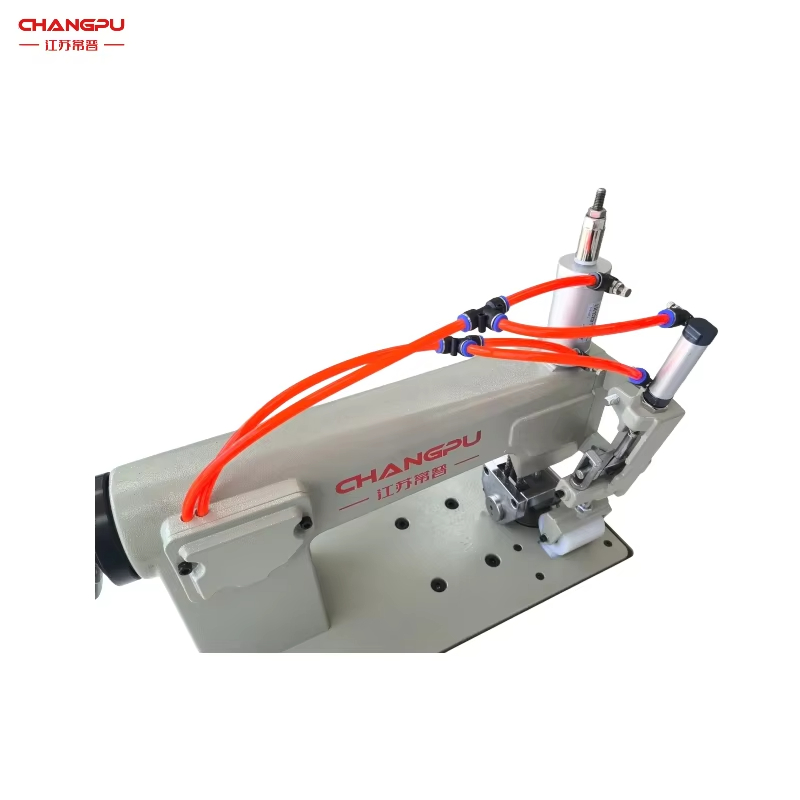

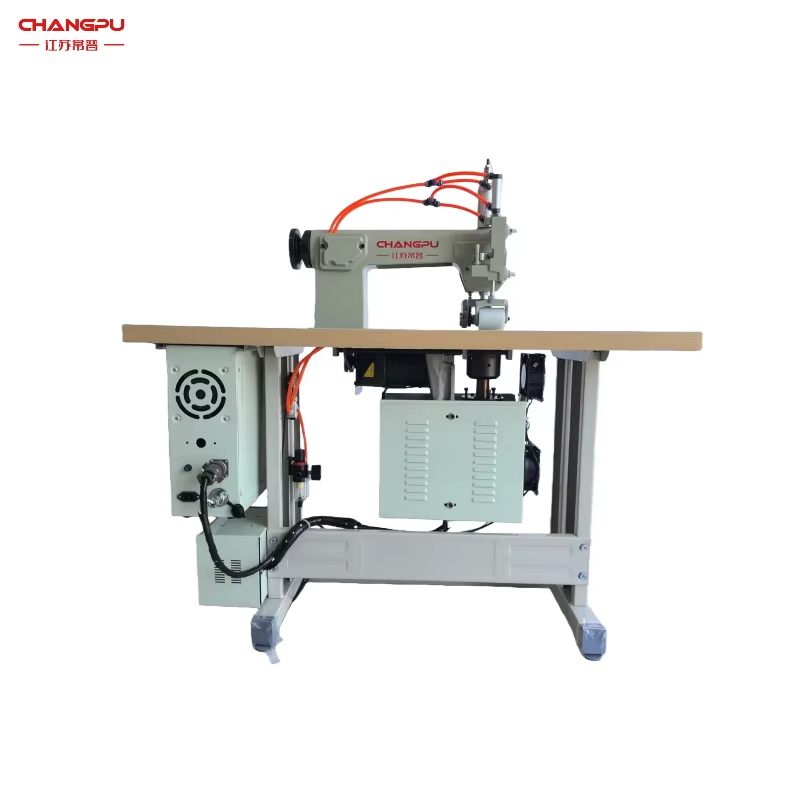

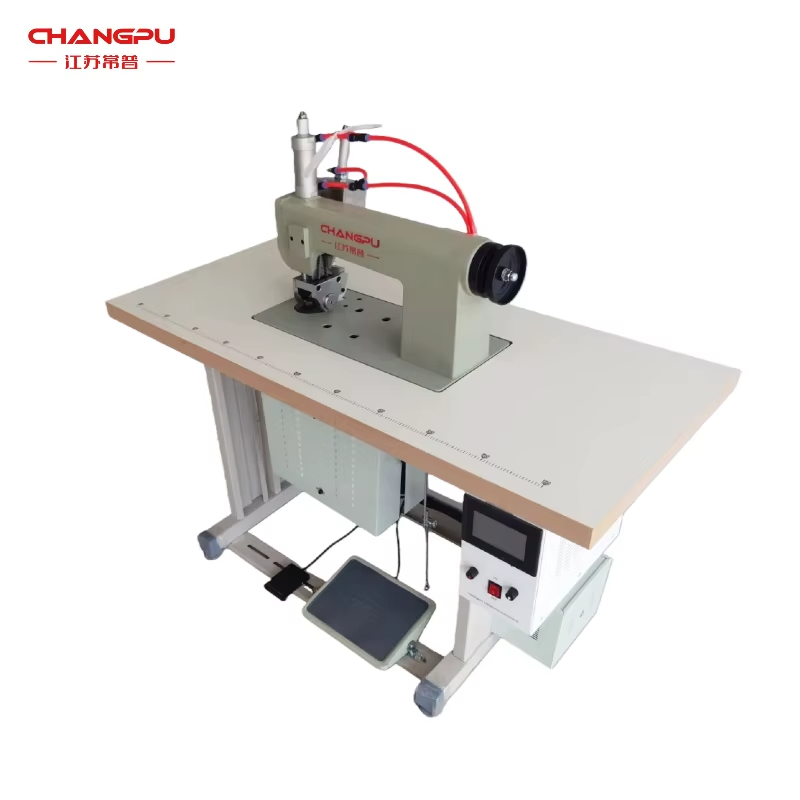

The Changpu CP-60S ultrasonic lacing machine features a standard configuration comprising a new 20kHz computer-controlled intelligent ultrasonic generator, transducer, fixed suspension structure for the base mold, dual-motor speed control system, and manual (optionally pneumatic) pattern mold lifting mechanism.

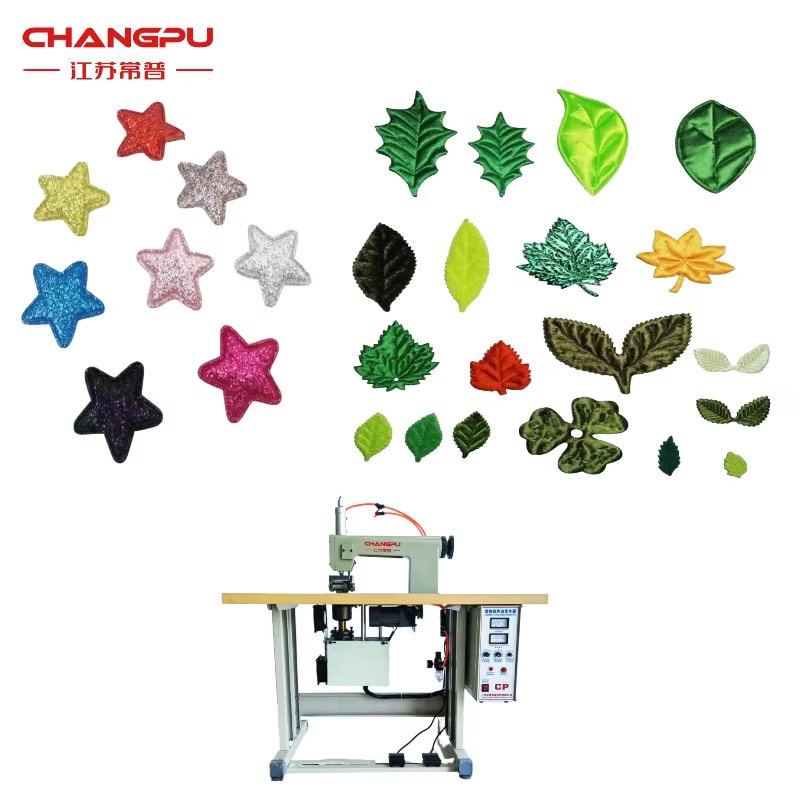

The machine delivers versatile functions including edge trimming (single/curved cutting with fused edges for smooth, fray-free finishes), seam welding (wireless bonding of multiple layers with high strength), pattern perforation (cut-out designs with fused edges), strip cutting (single/multiple strips with fused edges), and forming (simultaneous cutting, welding, and embossing in a single step).

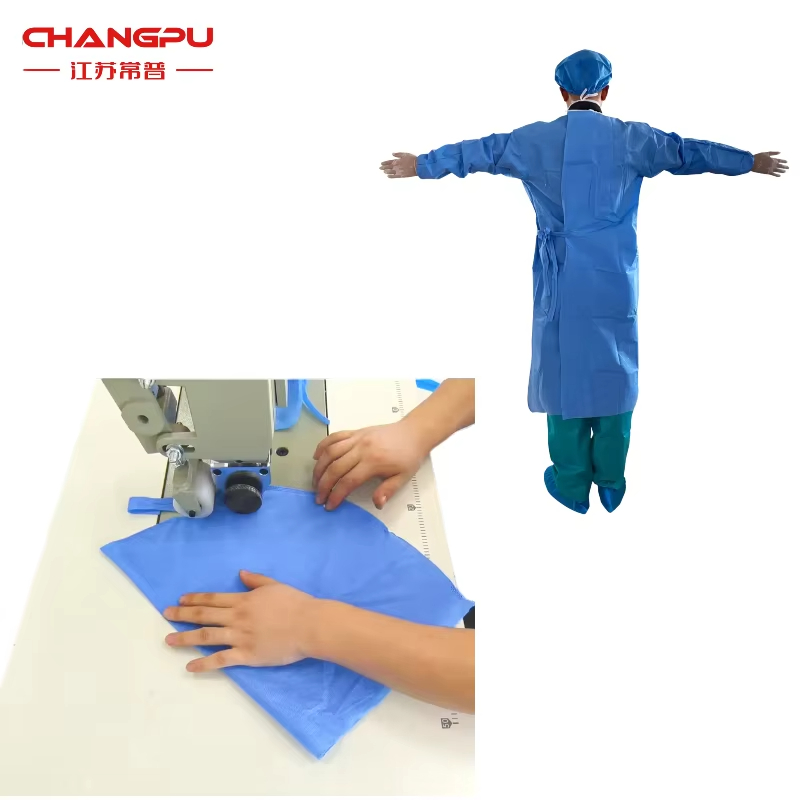

It is particularly suitable for materials such as chemical fiber fabrics, synthetic leather, non-woven fabrics, spray-bonded cotton, films, and plastic sheets. Widely applied in lace apparel, satin ribbons, decorative items, handkerchiefs, home textiles like tablecloths and curtains, tents, raincoats, as well as medical protective products including surgical gowns, caps, and non-woven masks.

No	Item	Data
1	Power Supply	220V
2	Input Power	1800-2500W
3	Output Frequency	20KHZ
4	Operating Speed	0-20m/min
5	Pattern Wheel Size	WIDTH：0-100mm; DIA：Ø50-Ø60mm
6	Dimensions (L × W × H)	12006001200mm
7	Net Weight	100KG
8	Model	CP-60
