Product details

Ultrasonic underwear sewing machine

FEATURES AT A GLANCE

Key features include:

①built-in computer chips and multi-channel ultrasonic protection systems ensuring stable operation;

②adjustable high/medium/low power levels to accommodate welding and cutting of various materials and thicknesses;

③international-standard performance achieved through auto frequency tracking and ultrasonic soft-start technology;

④diverse customizable pattern molds; user-friendly operation with speeds up to four times faster than conventional sewing machines.

Product Overview

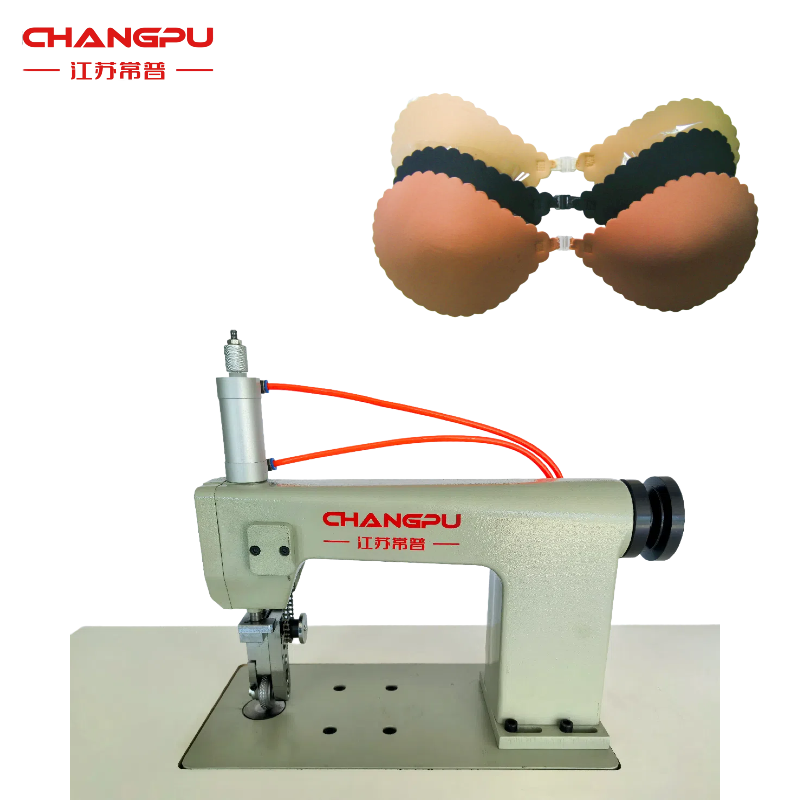

Ultrasonic underwear sewing machine

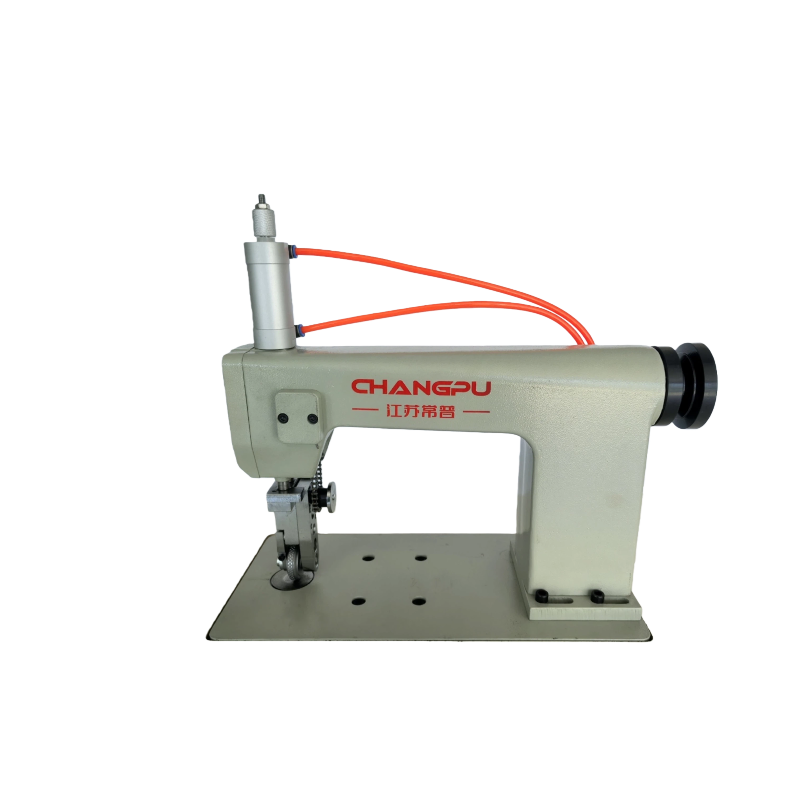

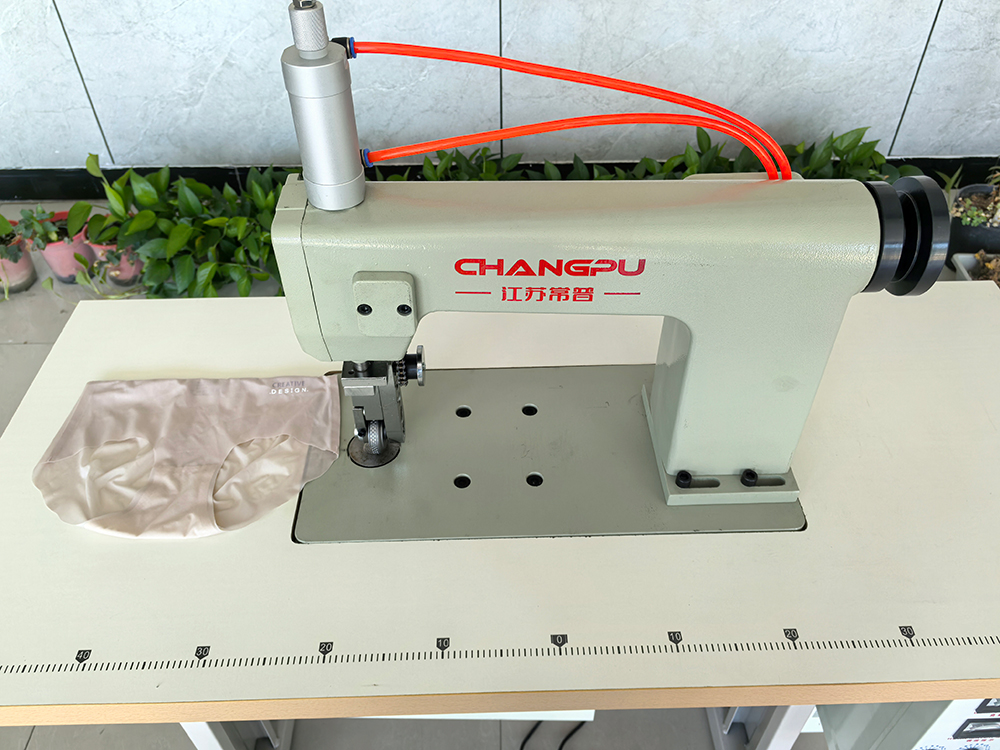

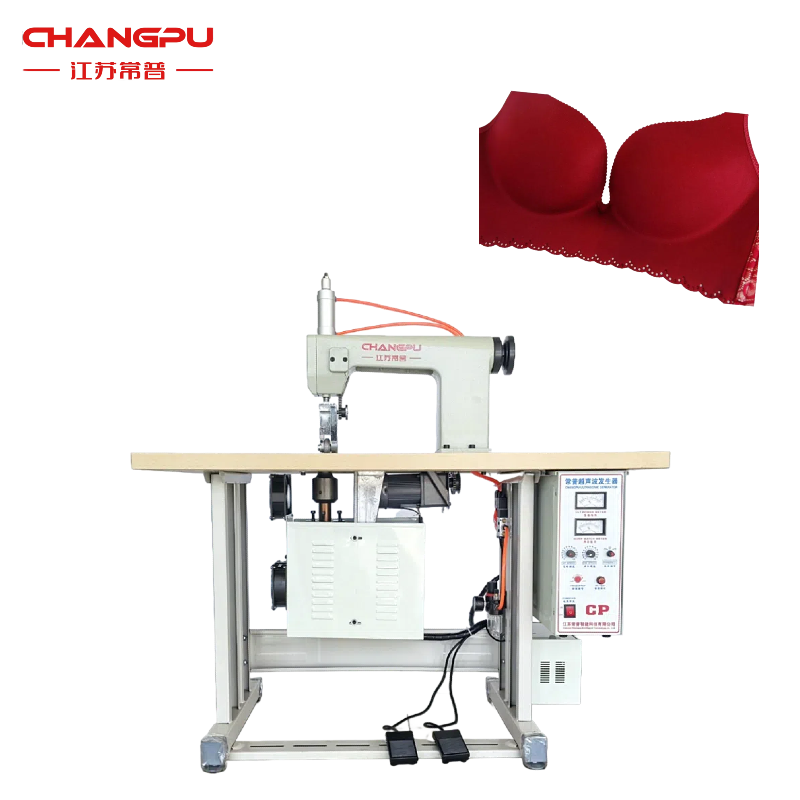

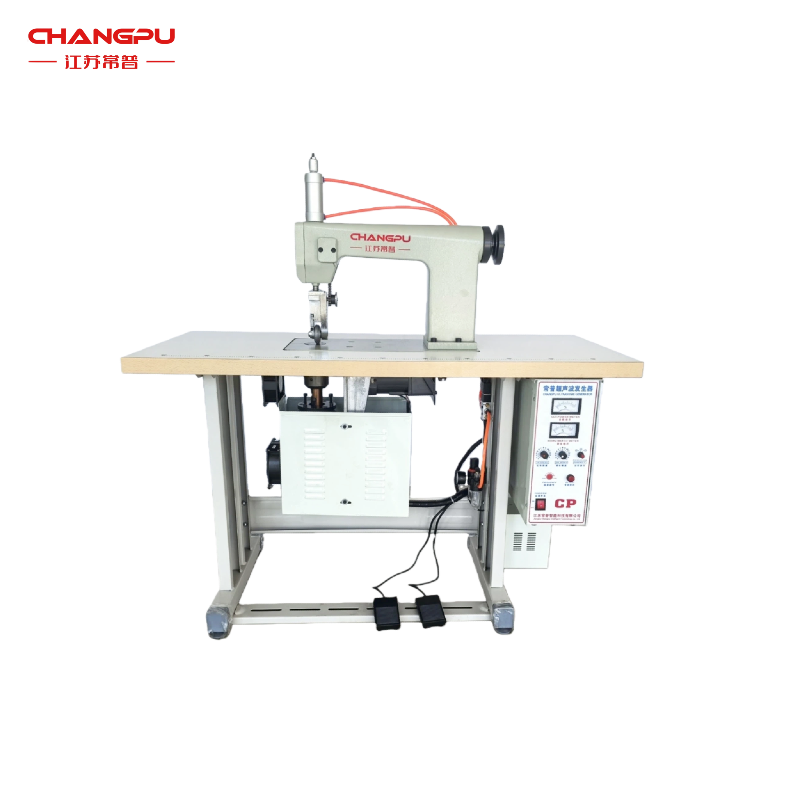

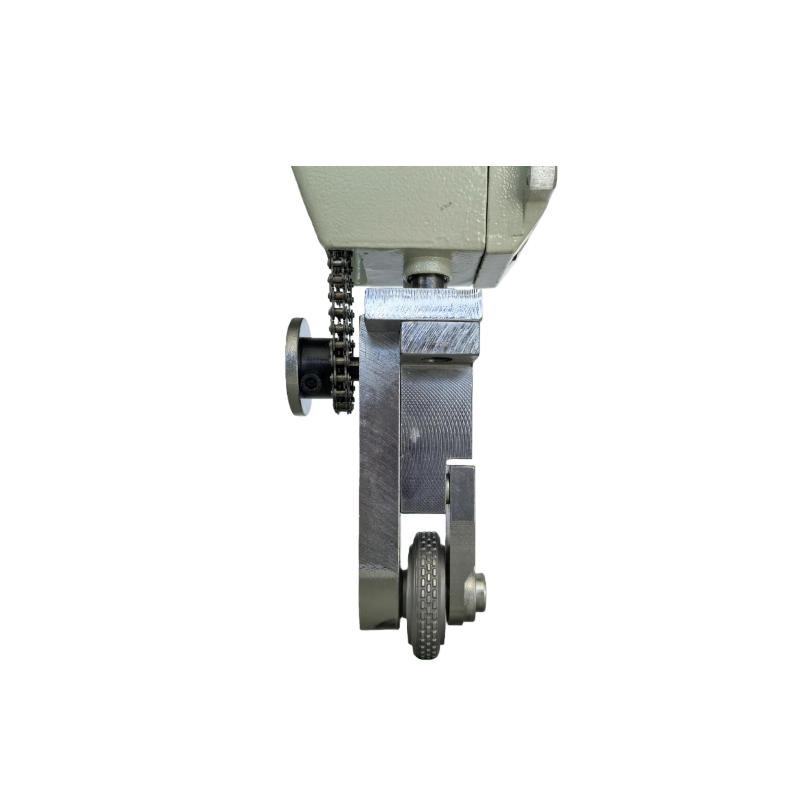

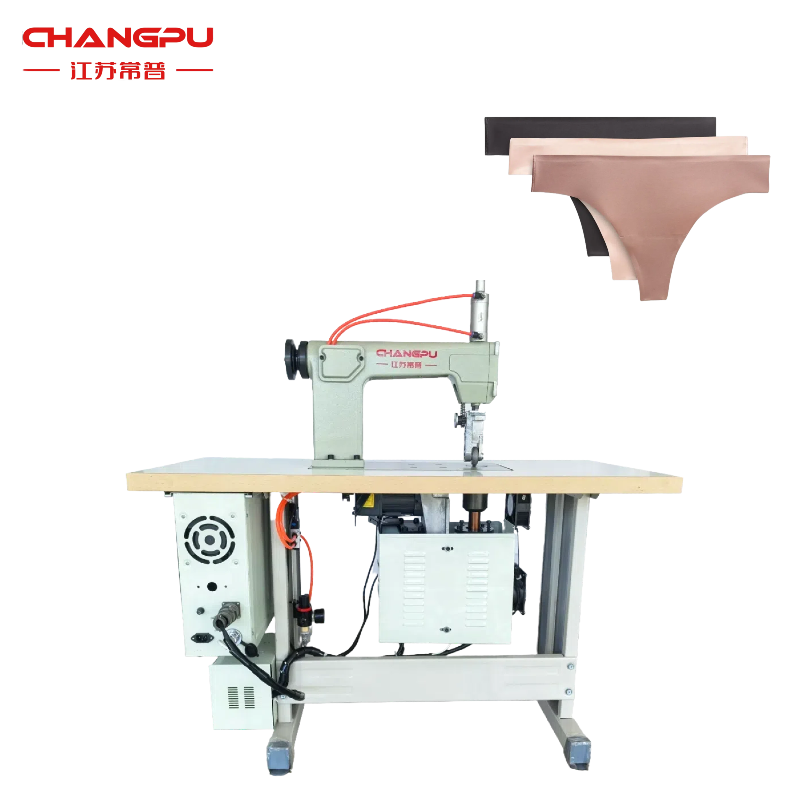

The Changpu CP-60S ultrasonic underwear machine features a standard configuration that includes a new 20kHz computer-controlled intelligent ultrasonic generator, transducer, fixed base mold suspension structure, dual-motor speed regulation system, and a manual (optionally pneumatic) pattern mold lifting mechanism.

The machine delivers versatile functions including edge trimming (straight/curved cutting with heat-sealed edges for smooth, fray-free finishes), seam bonding (wireless fusion of multiple layers with excellent strength), pattern perforation (design-cut holes with sealed edges), strip cutting (single/multiple strips with fused edges), and forming (simultaneous cutting, bonding, and embossing in one step).

It is particularly suitable for materials such as synthetic fabrics, artificial leather, non-woven fabrics, adhesive-coated cotton, films, and plastic sheets, widely used in producing underwear, ribbons, decorative items, handkerchiefs, tablecloths, curtains, tents, raincoats, and similar products.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power Supply	220V
2	Input Power	1800-2500W
3	Output Frequency	20KHZ
4	Operating Speed	0-20m/min
5	Pattern Wheel Size	WIDTH：0-100mm; DIA：Ø50-Ø60mm
6	Dimensions (L × W × H)	12006001200mm
7	Net Weight	100KG
8	Model	CP-60

PRODUCT CONFIGURATION
