Product details

Jiangyin Huashuo Machinery provides high-quality, energy-efficient equipment for metal products.

Main products: Wet Wire Drawing machine,Straight-line wire drawing machine,Fine Wire Drawing Machine,Double-Stranding machine, Tubular Stranding Machine and custom equipment.

Widely used in producing copper-coated, galvanized, phosphated, stainless and alloy steel wires as well as steel wire ropes, serving automotive, new energy, construction machinery, aerospace, construction, medical and agricultural industries.

Steel Cord Butt Welding Machine

Intelligent Steel Wire Butt Welder

This intelligent steel wire butt welder is a high-precision, fully automatic resistance welding machine specially developed for steel wire, steel cord, bead wire and alloy wire production. Adopting advanced PLC and HMI intelligent control system with dual Chinese and English languages, the machine stores more than 100 sets of welding process parameters, realizing one-click parameter switching for different wire diameters and materials. Equipped with real-time closed-loop monitoring of current, pressure and temperature, it automatically adjusts welding conditions to adapt to various high-carbon, low-carbon and alloy steel wires, ensuring extremely stable and consistent welding results.

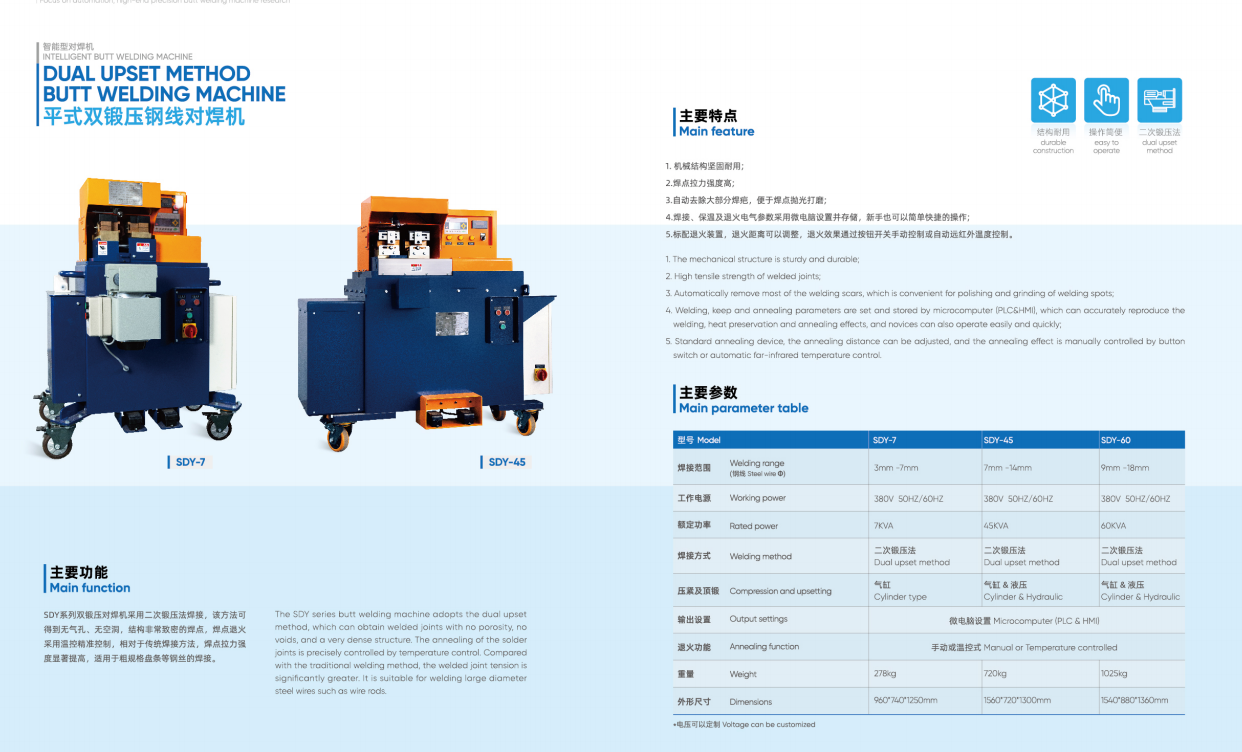

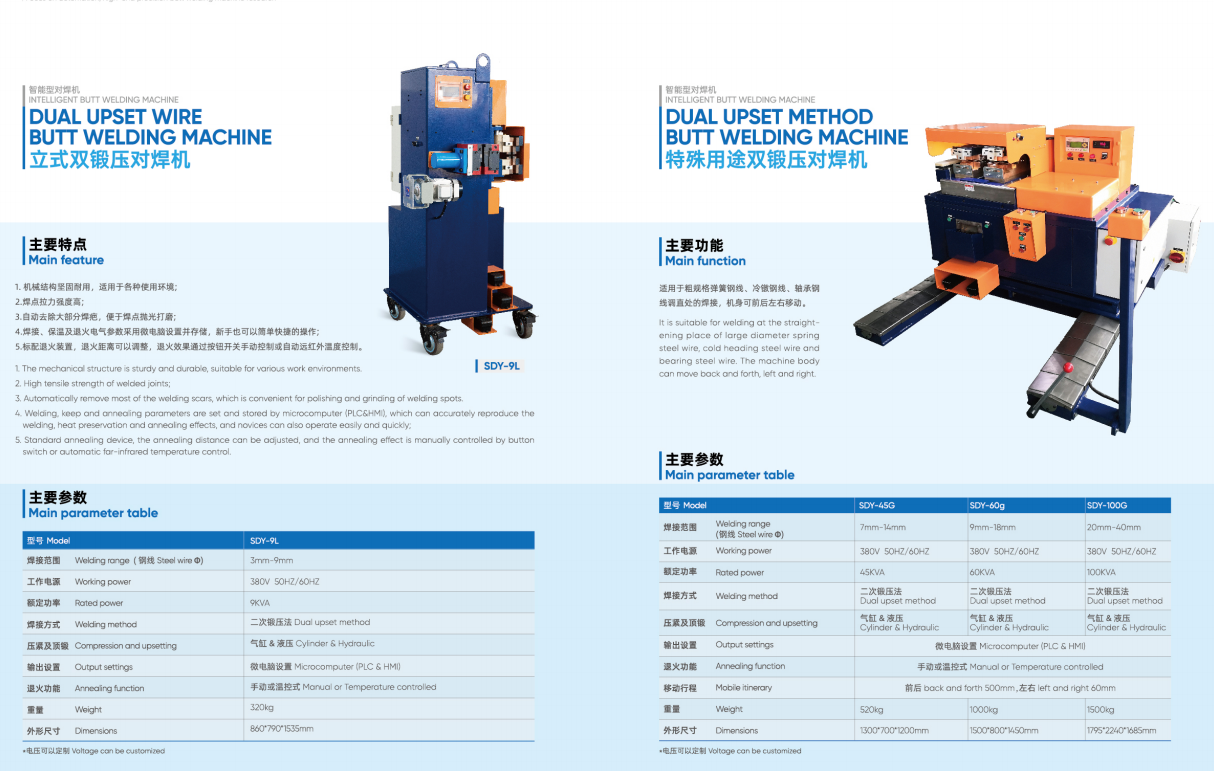

The machine adopts professional resistance butt welding and double upset forming technology. The welding joint is dense, smooth and free of pores and slag inclusion, with tensile strength reaching over 98% of the base material. Built-in intelligent annealing function effectively eliminates welding stress, preventing wire breakage during subsequent wire drawing processing. Optional automatic deslagging function greatly reduces manual polishing work and improves production efficiency. The key wearing parts adopt high-quality chromium-zirconium copper electrodes with circulating water cooling design, featuring high conductivity, wear resistance and long service life.

The whole machine adopts thickened steel plate welding frame with aging stress relief treatment, ensuring high rigidity, low vibration and high repeated positioning accuracy. All core accessories are supplied by well-known domestic brands, which guarantees long-term stable continuous operation. Equipped with intelligent fault self-diagnosis and early warning system, it can automatically detect abnormal current, temperature and pressure, effectively reducing failure rate. Supporting data recording, traceability and remote maintenance, it meets modern intelligent workshop production management requirements.

Suitable for wire diameter from 0.2mm to 25mm, this equipment features fast welding speed, low energy consumption and simple operation. Even novice workers can operate it skillfully in a short time. It is widely applicable in wire drawing factories, steel cord factories and various metal wire processing production lines, being an ideal intelligent matching equipment for high-efficiency wire production.
