| No. | Component | Key Specifications |
|---|---|---|
| 1 | Chassis | Dongfeng 6x4 chassis Engine: Euro 3 / Euro 4 emission standard 4 PTOs to drive vacuum pump, high-pressure pump and hydraulic systems Chassis model can be customized per customer request |
| 2 | Vacuum Tank | 8,000L (8m³) capacity, cylinder type Material: SS304L stainless steel, 6mm thickness Design pressure: -0.9 bar Hydraulic lifting (45°) for sludge discharge, with safety support Rear sludge outlets (4–6 valves), water level indicator |
| 3 | Clean Water Tank | 3,000L (3m³) capacity Material: SS304 stainless steel, 4mm thickness Low-level alarm included |
| 4 | Rear Door | Hydraulic-controlled rear door 2 cylinders for opening, 4 cylinders for locking 6 suction pipes + 6 discharge valves |
| 5 | Vacuum Pump | Kenflo liquid-ring vacuum pump Air flow: 3,000 m³/h, vacuum rate: 90% Customizable pump options available |
| 6 | High-Pressure Pump | German-made piston pump Flow rate: 212 L/min at 200 bar Brand/type customizable |
| 7 | Boom & Hoses | Telescopic suction boom: 300° horizontal rotation, 6m working radius, 3m vertical lift 6” stainless steel + rubber suction hose High-pressure hose reel (120m, ID 25mm), hydraulic-controlled 100° rotation |
| 8 | Other Features | Cooling water tank: 1,500L (for vacuum pump) Surface treatment: Sandblasting + primer + finish paint, color per customer choice Operation manual and factory training (1–2 days) included
|
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.

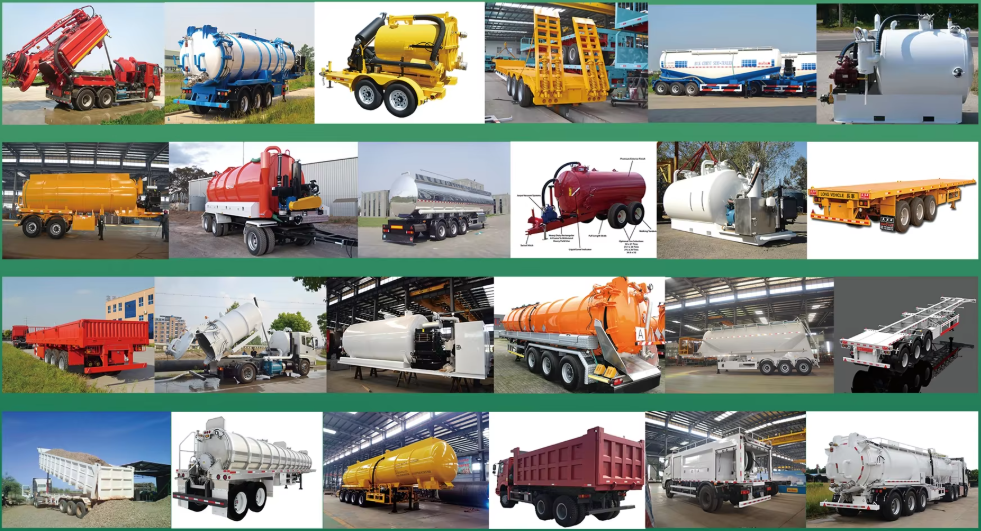

Main Product:
