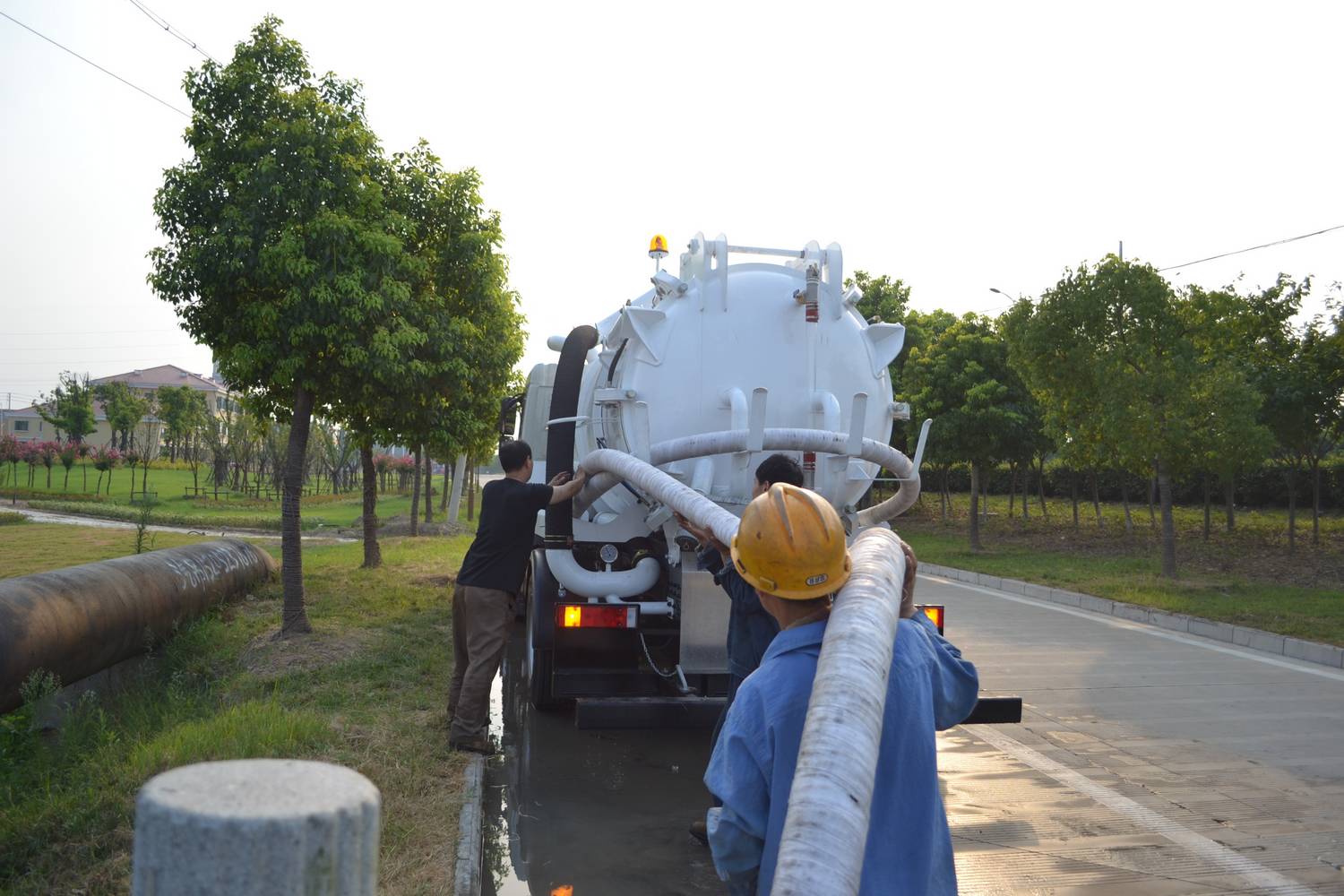

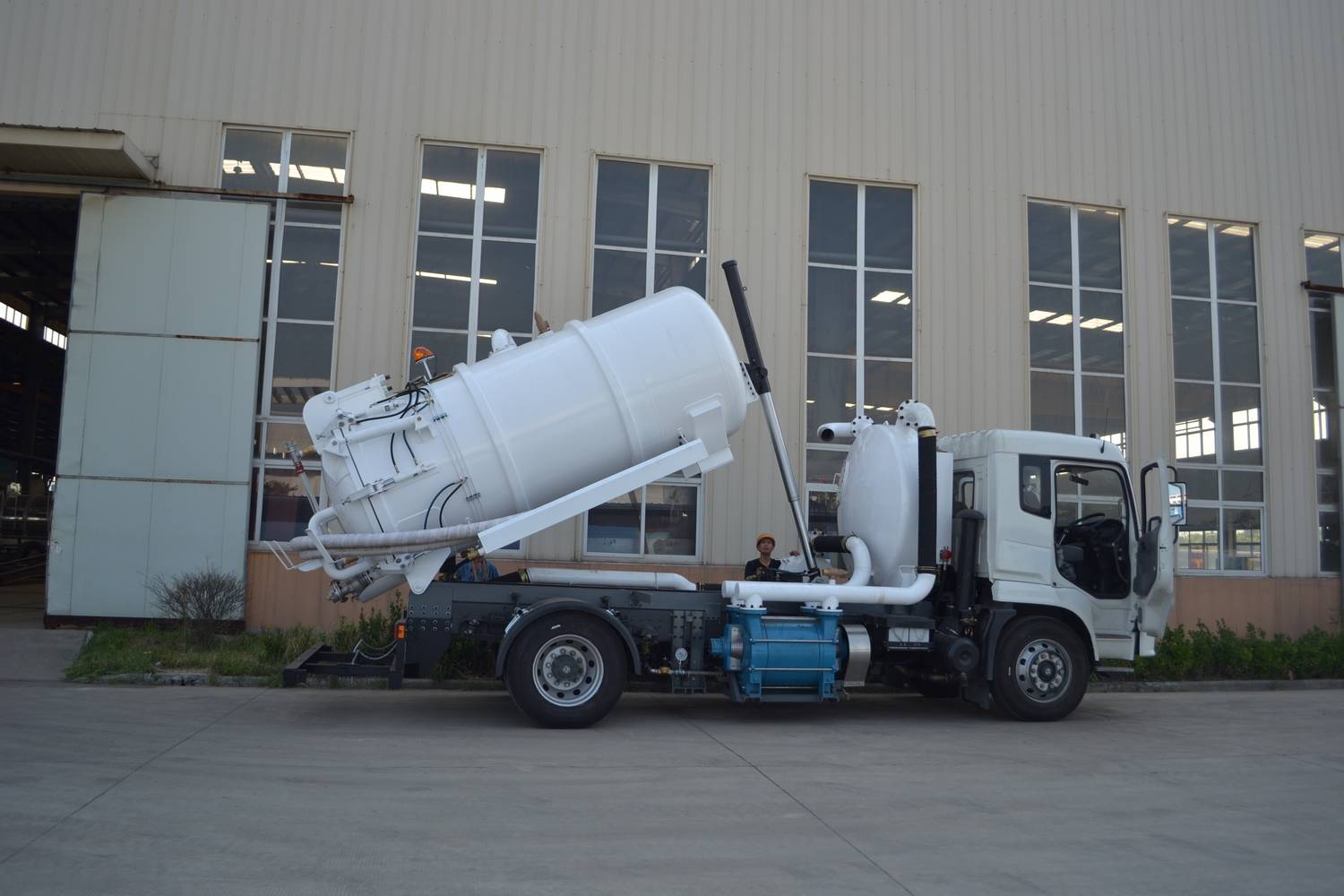

Vacuum Suction Trucks are built for fast collection and transportation of sewage, sludge and liquid waste. A powerful vacuum pump draws material from manholes, sewer lines, catch basins and wastewater facilities into a sealed tank. With strong suction performance and easy discharge, these trucks are ideal for municipal sanitation, sewer maintenance and environmental cleaning.
Usage Notes: Inspect the vacuum pump, suction hose, valves and tank before operation. Keep the truck stable during suction and monitor the tank level carefully. Avoid overfilling or exceeding rated vacuum pressure. Always release tank pressure completely before opening the rear door or performing maintenance.
| Maximum Load Capacity： | 32T | Type： | Semi-trailer |
| Material： | Steel | Compatible Vehicles: | Truck trailer |
| Brand: | KM | Country of Origin: | Jiangsu, China |
| Dimensions: | 12000*2500*3800mm | Product Name: | Vacuum tanker trailer |
| Axle: | FUWA or as per customer's requirement | Suspension: | ONE set of three axles (Mechanical Suspension) |
| King pin: | 90#/50# | Landing Gear: | FUWA Standard 28Ton |
| Tire: | 12pcs 11.00r22.5 | Vacuum Pump: | Liquid Ring Pump |
| Diesel Engine: | Weihai or Dongfeng Cummins | Function: | Suction and transport waste oil or sewage water |
| Color: | Customers Optional | ||
| No. | Main Components | Detailed Description |
| 1 | Vacuum refueling machine: | Design pressure +/- 2 bar, can be made of carbon steel, stainless steel or aluminum, 6 mm thick tank shell, tank volume 20 to 40 CBM, 6 hoses and 6 drain ports, 2 450 mm diameter manholes on top, on the ladder in front of the tank. |
| 2 | Vacuum System: | Rotary pump, 500 to 3000 CBM/H, located in front of or below the fuel tank; diesel engine brand: KOFO or Commins. |
| 3 | Operating System: | 3x13ton Fuwa axles, dual wheels, 12 x 11.00r22.5 tires with 12 rims, commodity suspension, 3.5" kingpin, FUWA brand landing gear. |
| 4 | Braking System: | Dual-line air brake |
| 5 | Electronic Systems | A complete 24V system with waterproof installation, featuring rear lighting, stop, parking, turn signals, fog lights, reversing lights, and side lights. |
| 6 | Painting | All steel parts are sandblasted with steel sand before painting. Two primer coats and two topcoat coats are applied; colors will be customized according to customer requirements. |
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Combined Vacuum Jetting Trucks,
Vacuum Suction Trucks,
Sewer Jetting Trucks ,
Portable Vacuum Tank Units,
Oil/Water/Chemical Tanker Trailers,
Custom Truck Body and OEM Services
