Product details

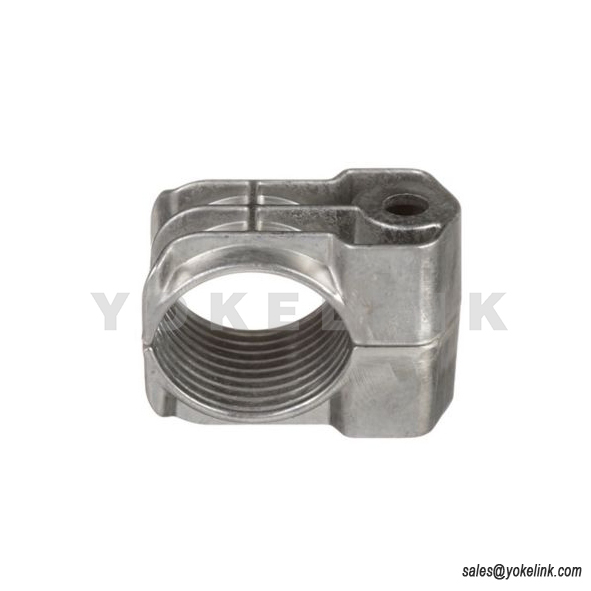

CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD

The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum One-Hole single cable cleat is available in multiple sizes with cable range-taking capability and is suitable for single conductor cables. Aluminum One-Hole single cable cleat is installed direct to the cable tray rung via a fixing hole and M10 bolt. Insulating spacers and washers are available to protect against galvanic corrosion in case of dissimilar cable tray rung and cable cleat materials.

different types of single Aluminium cable cle

Aluminium One-Hole Single Cable Cleat Features:

single Aluminium cable cleat feature （2）

• Operating temperature -40°C to +120°C (-40°F to +248°F)

• Cast aluminum material

• Cleats comply with IEC 61914:2015 standard. Tested at third party laboratory

• Dual bolt fixing (M10)

• Rounded aluminum edges for cable insulation protection

• Interlock feature prevents rotation between top and bottom pieces of cleat

• Available insulating spacers and washers

• Ridges help hold cable in place

• 10 – 57 mm cable diameter range-taking via 7 parts. Custom sizes available upon request

Aluminium One-Hole Single Cable Cleat Specification:

Aluminium One-Hole Single Cable Cleat Part Number:CCAL1H1013-X,CCAL1H1316-X,CCAL1H1619-X,CCAL1H1923-X,CCAL1H2327-X...

single Aluminium cable cleat application

Aluminium One-Hole Single Cable Cleat Short Circuit Testing Summary

This test evaluated aluminium single cable cleats under simulated short-circuit conditions. Results showed the cleats maintained structural integrity without deformation or cracking when subjected to rated short-circuit currents.

The high-purity aluminium material exhibited excellent heat dissipation, with temperature rise staying within safe limits, avoiding damage to cable insulation.

Aluminium single cable cleats short circuit t

Buy Aluminium One-Hole Single Cable Cleat From Yokelink

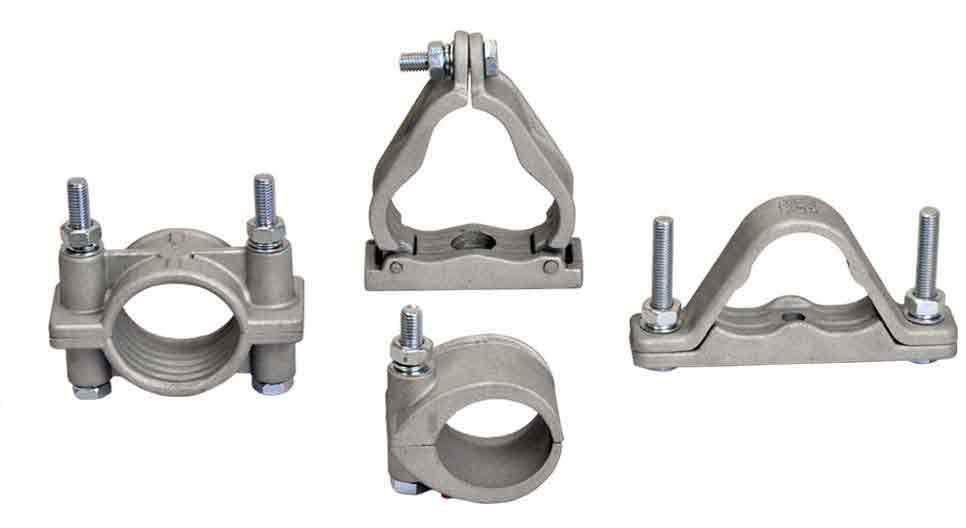

Different types of aluminium cable cleats

Choose yokelink aluminum cable cleats to protect the line safety! Made of high-strength aluminum alloy forging, Yokelink aluminum cable cleats is corrosion-resistant, high and low temperature resistant, and rock-solid in -60℃ to 100℃ environments. After rigorous short-circuit testing, it can withstand peak currents exceeding 70kA, does not loosen or deform under strong electromagnetic force, and firmly locks the cable. The lightweight design saves time and effort for installation, and is suitable for cables of multiple specifications, covering all scenarios from low voltage to high voltage. It complies with IEC 61914 standards and has reliable quality. Using it, the cable protection is as stable as Mount Tai, making the circuit safe and secure. It is a safe choice for power engineering!
