Product details

2 Hole Single Cable Cleat for LUL LSF Two Bolt Cable Clamps Fixing Wire Clamp

The Polymer Trefoil Cable Cleat is a non-metallic cable cleat which has been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ (IEC 61914).

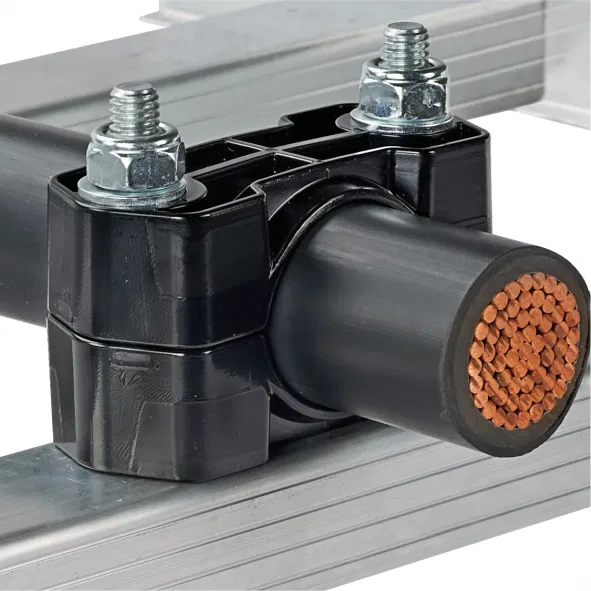

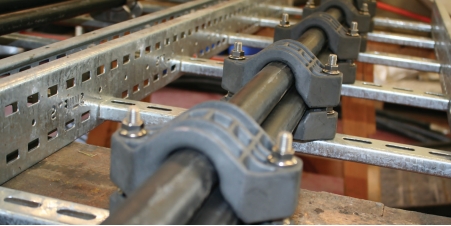

Polymer Trefoil Cable Cleat M10 Mounting 2Hole Clamp Nylon application

The Polymer Trefoil Cable Cleat ensures the retention and securing of single cables, without damaging or deforming the cable. The Polymer Trefoil Cable Cleat is manufactured from various materials making it suitable for both indoor and outdoor applications. Due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement. The Polymer Trefoil Cable Cleat have an excellent range take and are suitable for cable diameters of 38mm up to 135mm in only eight sizes. The Polymer Trefoil Cable Cleat has two M12 clearance holes for securing it to a mounting surface, which allows for either M10 or M12 fasteners to be used.

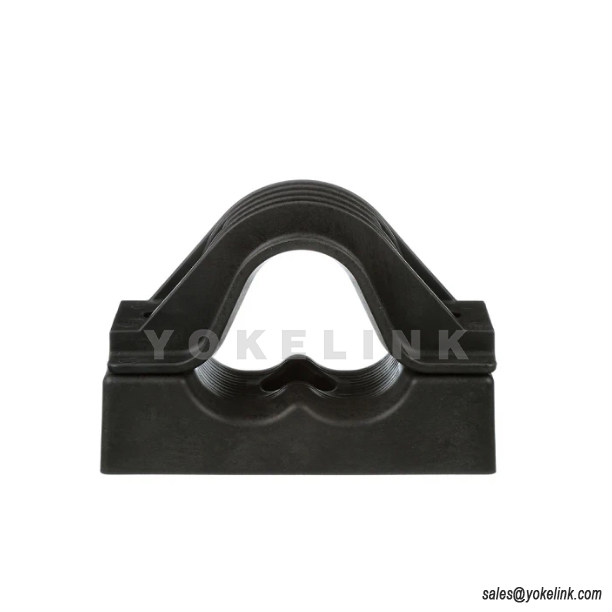

Polymer Cable Cleat M10 Mounting 2Hole Clamp Nylon

Polymer Trefoil Cable Cleat Features：

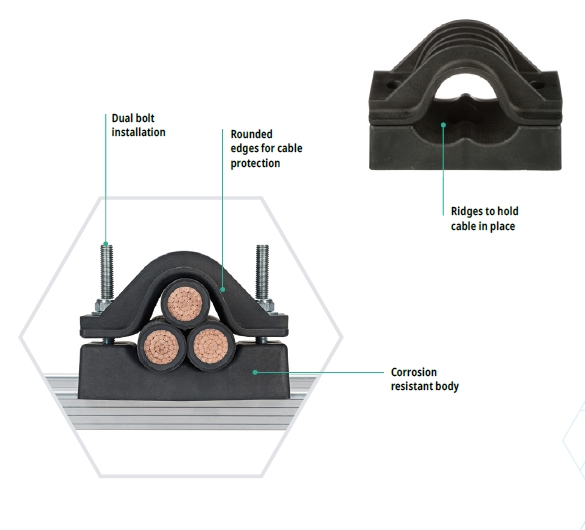

Polymer Trefoil Cable Cleat M10 Mounting 2Hole Clamp Nylon

•Third party certification to IEC 61914

Available in three different materials:

• Nylon

• Low Smoke & Fume (LSF), Zero Halogen (LS0H, Phosphorus Free and V0 Nylon

• LUL approved polymer

Sunlight (UV) & weather resistant

Operating temperature -40°C to +60°C

Can be double stacked

38 – 135mm in 8 sizes

Excellent axial & lateral load retention

Two bolt fixing design

About Polymeric Cable Cleats

Nylon: Standard nylon is tough, high tensile, and resistant to abrasion. This material is typically used for industrial applications where less harsh conditions exist.

Low Smoke & Fume (LSF) V0 Nylon: Nylon polymer, free of halogens and elemental phosphorus, providing a Low Smoke & Fume (LSF) solution. Rated V-0 to UL94 V-0, with very good flame retardant properties.

LUL: Flame retardant polymer, free of halogens and elemental phosphorus. It has excellent flame retardant properties and passes the most stringent tests for smoke and toxic fume emissions, making it compliant with the requirements of London Underground Standard 1-085.

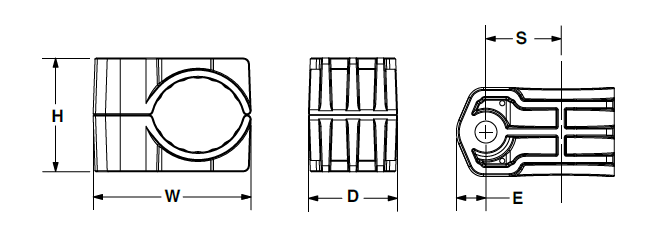

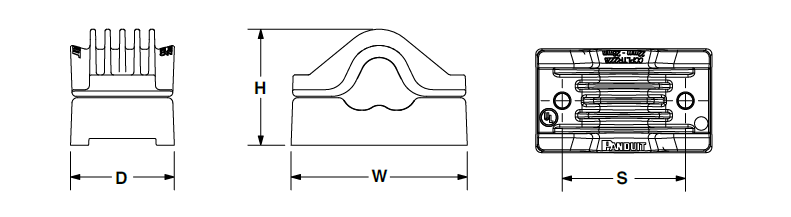

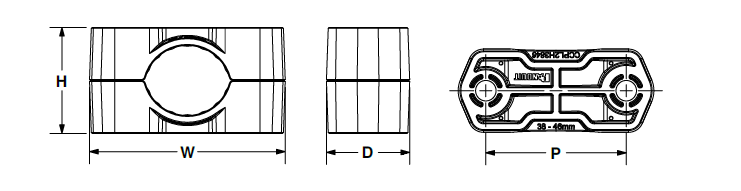

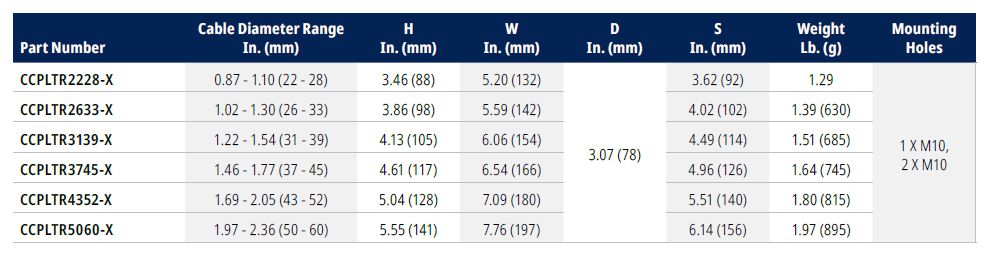

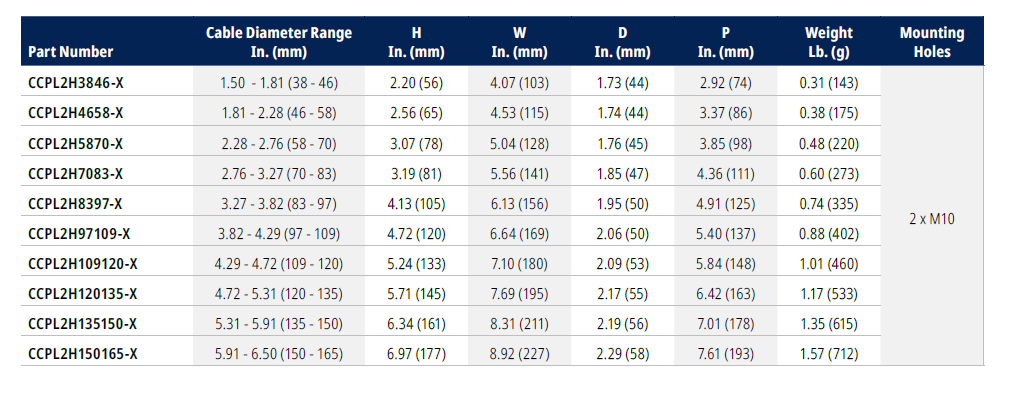

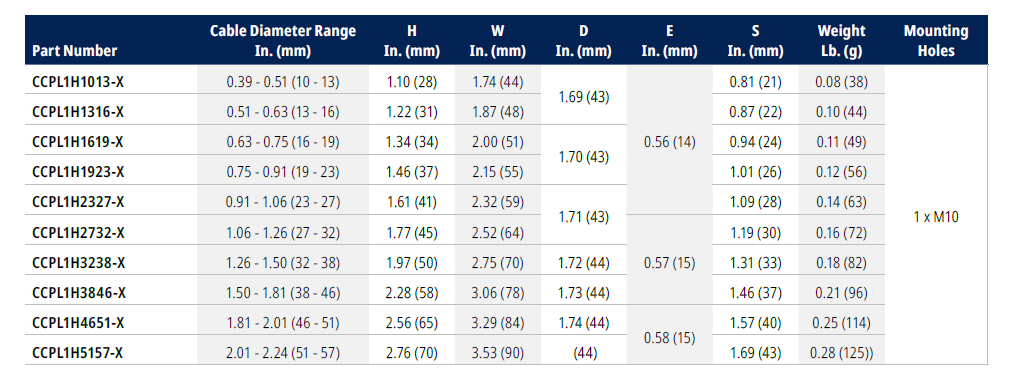

Polymer Trefoil Cable Cleat Specification：

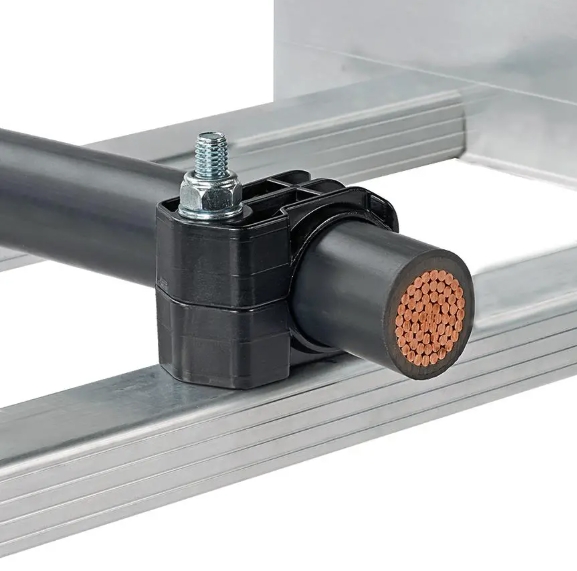

Polymer Cable Cleat M10 Mounting application

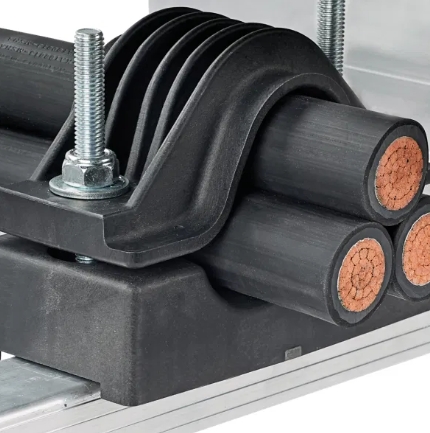

Polymer Trefoil Cable Cleat M10 Mounting 2Hole Clamp Nylon (2)

Polymer Trefoil Cable Cleat Electrical Performance Characteristics

Polymer Trefoil Cable Cleat Good insulation performance: polymer itself is an insulating material, which can effectively isolate the cable from the external conductive medium, prevent leakage and short circuit accidents, avoid electrical corrosion, prevent eddy currents, and reduce power loss.

Arc resistance:Polymer Trefoil Cable Cleat can withstand arc discharge of a certain time and intensity, and will not be quickly damaged by arc, which improves the safety and reliability in the electrical system.

Buy Polymer Trefoil Cable Cleat From Yokelink

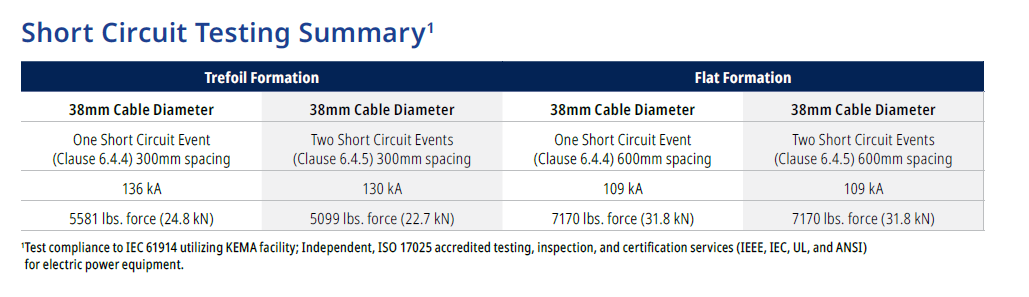

Choose Polymer Trefoil Cable Cleat to protect the line safety! Polymer Trefoil Cable Cleat made of high-strength aluminum alloy forging, it is corrosion-resistant, high and low temperature resistant, and rock-solid in -60℃ to 100℃ environments. After rigorous short-circuit testing, Polymer Trefoil Cable Cleat can withstand peak currents exceeding 70kA, does not loosen or deform under strong electromagnetic force, and firmly locks the cable. The lightweight design saves time and effort for installation, and is suitable for cables of multiple specifications, covering all scenarios from low voltage to high voltage. Polymer Trefoil Cable Cleat complies with IEC 61914 standards and has reliable quality. Using Polymer Trefoil Cable Cleat, the cable protection is as stable as Mount Tai, making the circuit safe and secure. Polymer Trefoil Cable Cleat is a safe choice for power engineering!

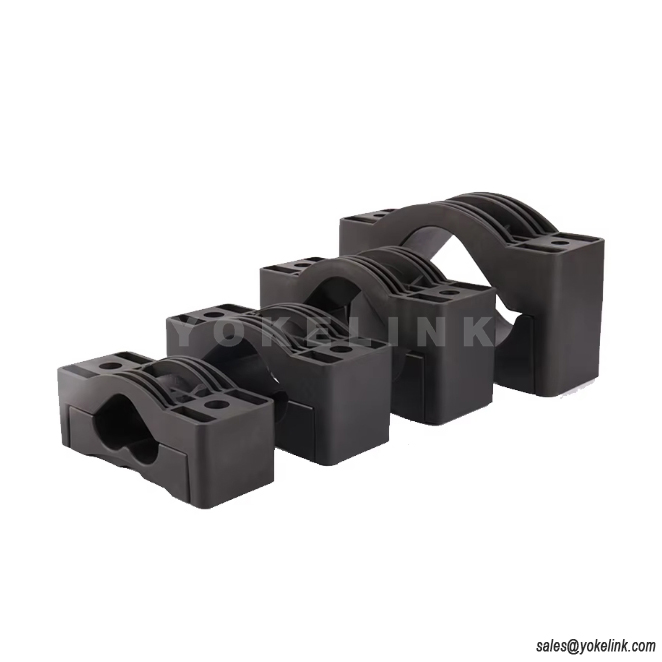

Polymer Cable Cleat M10 Mounting 2Hole Clamp Nylon (2)

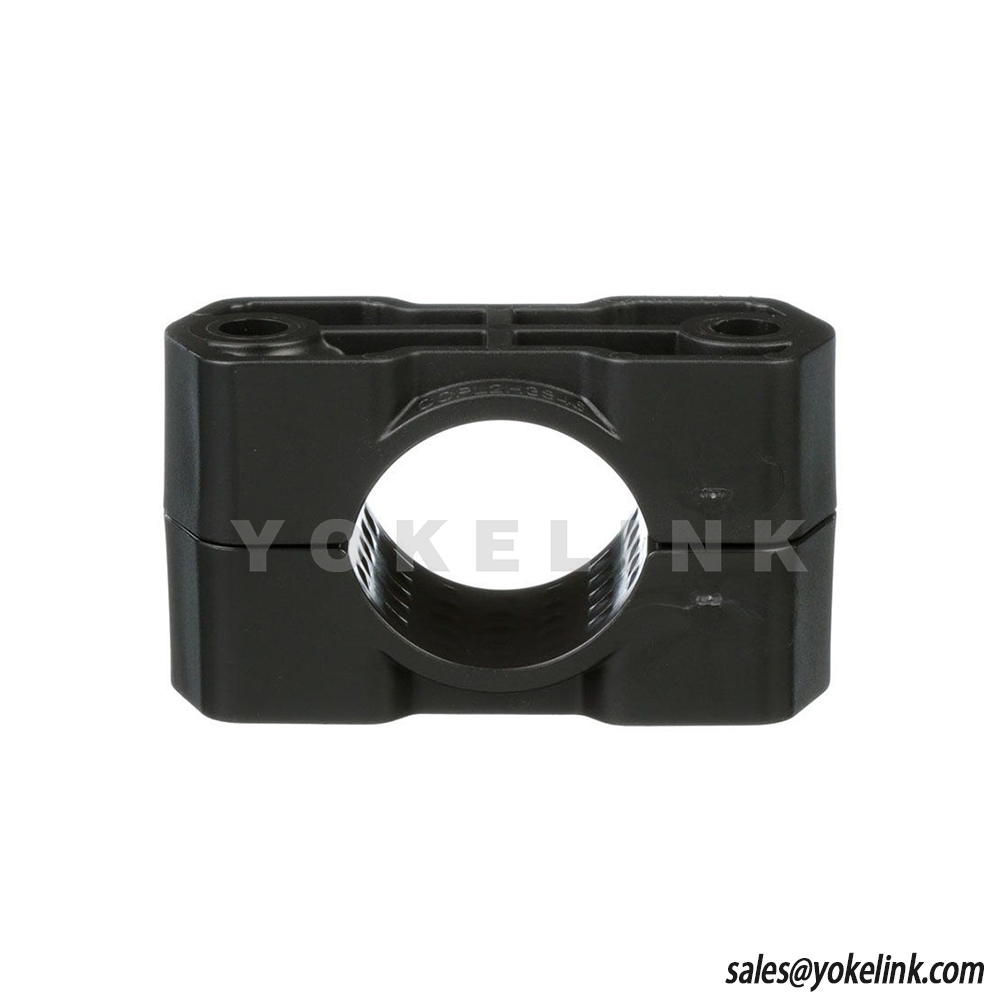

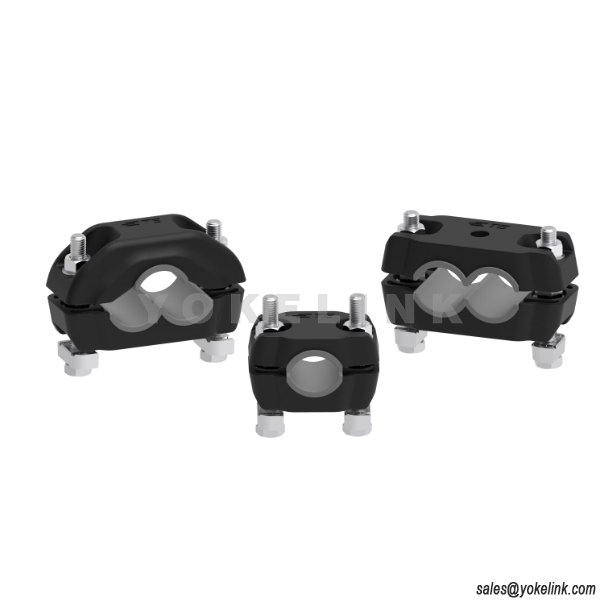

Diffierent types of Polymer Cable Cleat M10 Mounting Clamp Nylon
