Product details

FUBON delivers safe, stable and efficient power transmission solutions for high-voltage modules and heavy-duty industrial equipment, backed by professional expertise and strong R&D and manufacturing capabilities in auto cables and accessories.

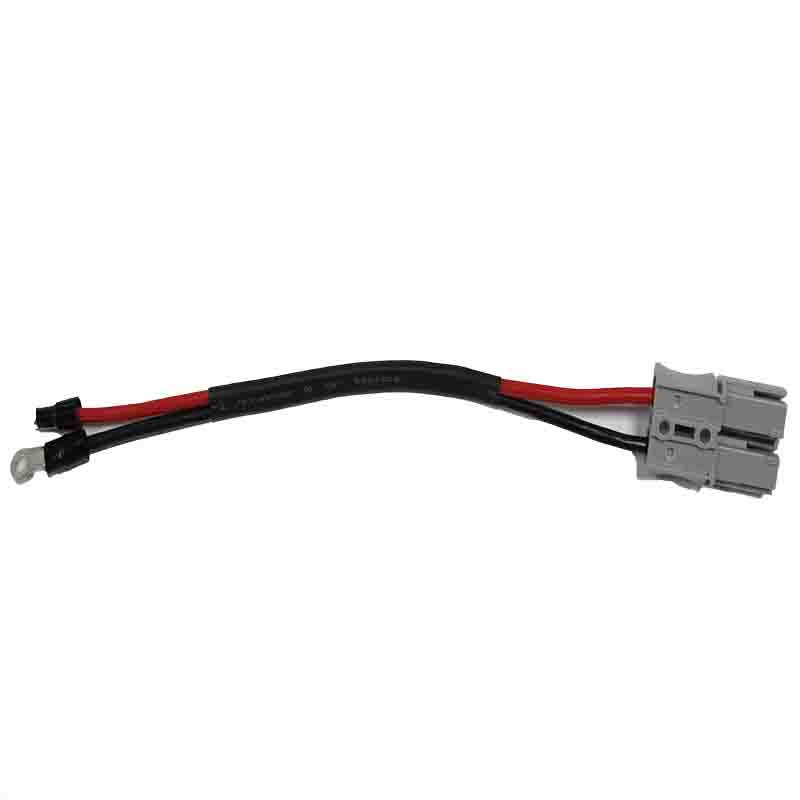

With years of professional wire harness assembly experience, mature and reliable production technology, and industry-standard high-voltage connection solutions, FUBON is committed to providing high-quality high-voltage wiring solutions, including this High-voltage cable that also meets the performance requirements of Automotive Cables. This high-quality 2P high-voltage cable is equipped with an Anderson 40A 600V gray connector, paired with red and black UL3239 12AWG high-temperature silicone wires, and is fully compatible with standard specifications for vehicle cable assembly.

The end is fitted with a ring terminal with a nylon sheath and covered with black heat-shrink tubing, forming a complete and reliable Automotive Cable Assembly structure. It features high and low temperature resistance, wear resistance and anti-aging properties, and can be widely used as high-performance connector cables in high-voltage module output, industrial equipment circuit connection, high-power electrical device power supply and other fields, providing safe, fast, long-lasting and stable support for circuit connection.

Item	Description
Product Name	High-voltage cable (High Voltage Module Output Interface, ROHS compliant)
Application Area	Power output for high voltage modules, high voltage circuit connection for industrial equipment, power transmission for high-power electrical devices (suitable for 40A/600V high voltage electrical scenarios)
Appearance Color	Wires: Red (UL3239 12AWG), Black (UL3239 12AWG) Plug: Anderson 40A 600V gray housing Sheath: Black heat shrink tubing (OD=7.0mm) Terminal: Metallic silver (ring terminal with black nylon sheath)
Specification	2P (2-core) design, compliant with ROHS; One end: Anderson 2P plug (40A 600V, model PMDB40),One end: Ring terminal (model RVN3.5-4, suitable for One end: Anderson 2P plug (40A 600V, model PMDB40),Wire model: UL3239 12AWG high temperature silicone wire, OD=3.5mm 14-12AWG wires, with black nylon sheath);Wire model: UL3239 12AWG high temperature silicone wire, OD=3.5mm
Core Features	High temperature resistant silicone wire, suitable for high voltage and high current applications;Anderson plug for easy plugging and strong current-carrying capacity (40A);Firm crimped ring terminal with nylon sheath for improved insulation and protection;Black heat shrink tubing wraps the wire harness to enhance wear resistance and anti-aging performance.

Choosing FUBON means choosing stable and reliable components, consistent quality and customized solutions, making every one of your high-voltage projects safer and more trustworthy.
