Solder-Cup ip67 power15 pin male connector：

The solder-cup db 15 pin male connector is a D-Sub series waterproof connector specifically designed for harsh environments. It features a two-row contact arrangement, combining the standard DB15 interface with IP67-rated waterproof performance. The solder-cup termination method offers exceptional flexibility and reliability for field installation, equipment repair, and custom cable assemblies. The 15 solid gold-plated contacts ensure stable signal transmission and strong conductivity.

Key Features

IP67 Waterproof and Dustproof: The waterproof d connectors integrates a waterproof glue core and sealing ring, achieving IP67 protection rating when mated. The db 15 connector Male is completely dust-tight and resistant to temporary immersion, making it suitable for outdoor or humid/dusty industrial environments.

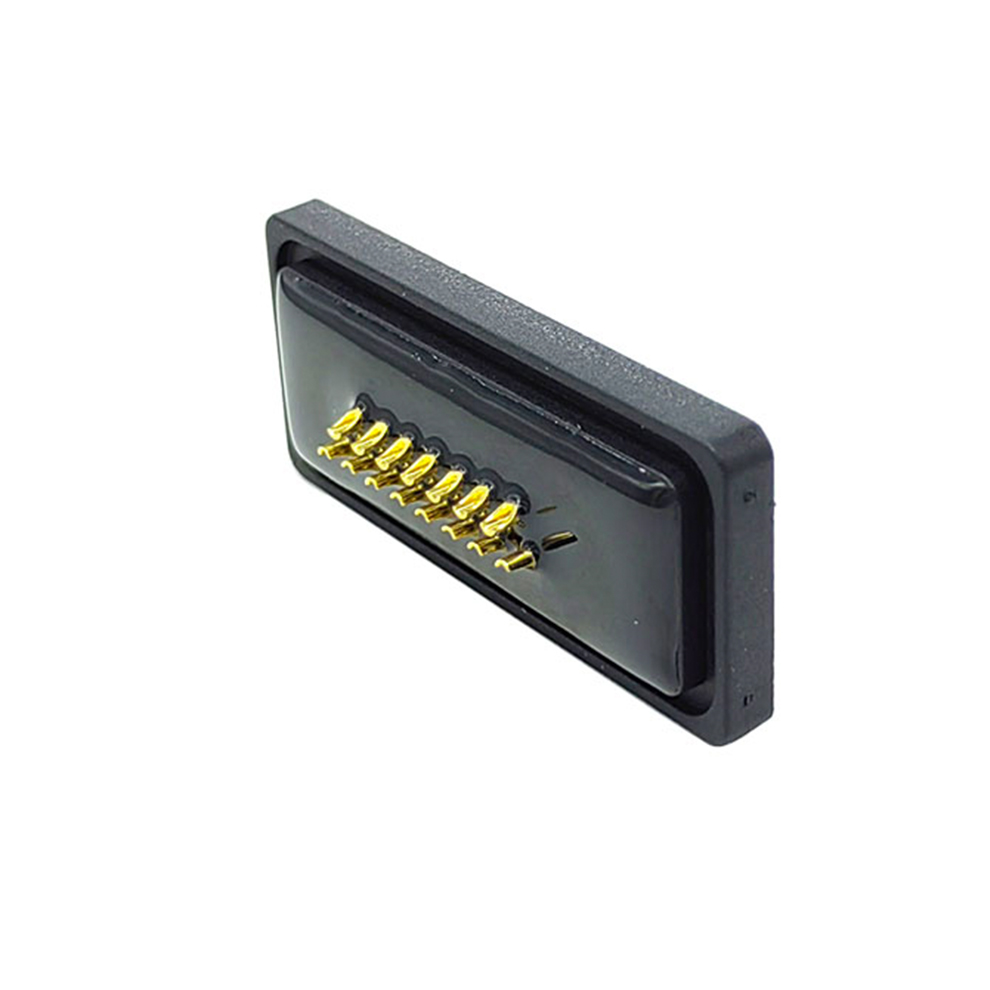

Solder-Cup Termination: The internal solder cup design allows users to directly solder wires to the contacts using a soldering iron. This connection method provides strong mechanical strength and excellent vibration resistance, ideal for small-gauge wires and high-reliability applications.

Robust D-Shape Design: The classic D-shaped metal shell not only provides excellent electromagnetic interference (EMI) shielding but also allows for screw locking, ensuring a secure connection that resists loosening due to vibration or accidental pulling.

Contacts: Brass / Phosphor bronze (customizable)

Shell: Steel / Stainless steel / Copper / Aluminum (customizable)

Insulator: PBT / PA9T / PA66 (customizable)

Typical Applications

Industrial Automation & Control: Signal connections for PLCs, sensors, actuators, servo motors, and other equipment in oily or humid environments.

Instrumentation: Suitable for test and measurement equipment used outdoors or in humid laboratory conditions.

Railway Transportation: Provides reliable electrical connections in train control systems subject to vibration and moisture.

Medical Devices: Used in certain medical equipment requiring high connection reliability and durability.

Technical Specifications

Model: DB15 solder-cup male / female

Number of Pins: 15 Pin

Number of Rows: 2 rows

Protection Rating: IP67 (when mated)

Termination Method: Solder cup

Rated Voltage: 300V AC

Rated Current: 3A or 5A

Contact Resistance: ≤25mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Withstanding Voltage: 500V - 1000V AC

Operating Temperature: -55℃ to +125℃

Shell Material: SPCC steel, tin or nickel plated

Insulator Material: PBT + 30% glass fiber, UL94-V0 flame retardant

Contact Material: Brass / Phosphor bronze, gold-plated in contact area

Mating Cycles: 500 insertions
