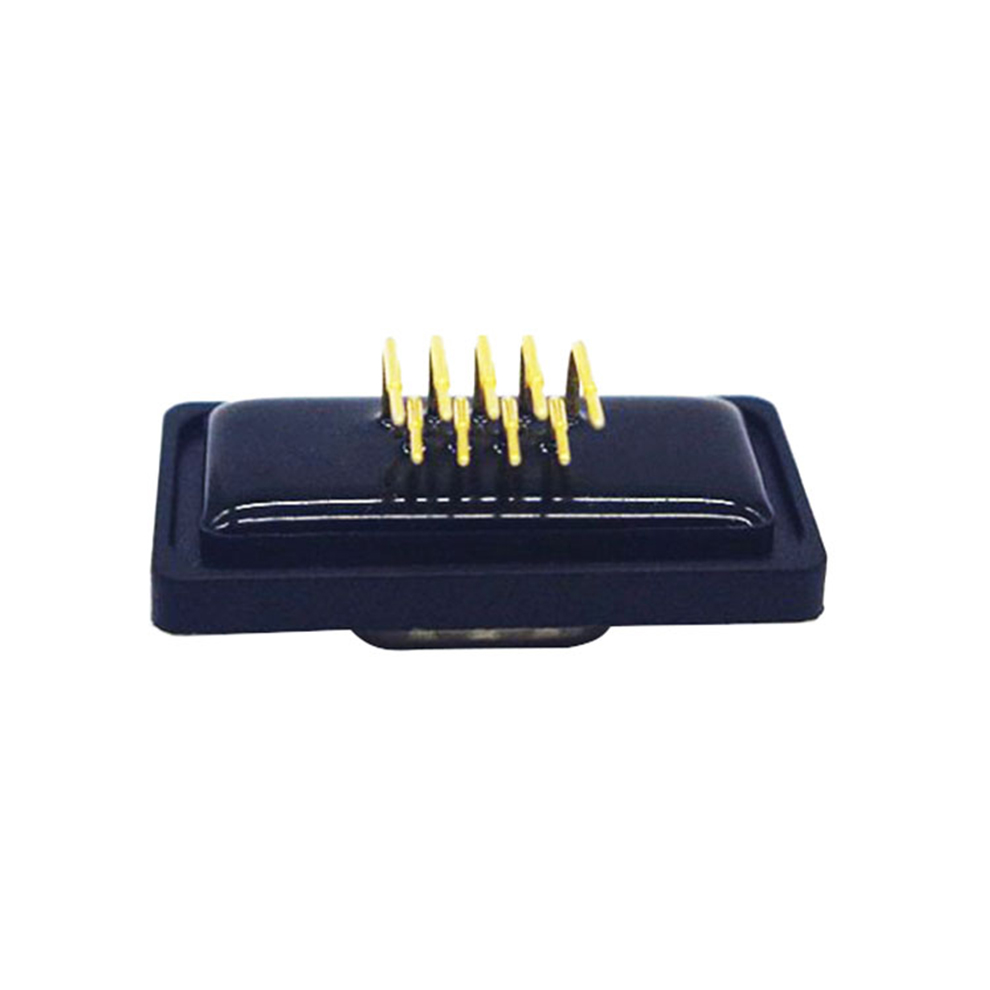

9 Pin Micro D Connectors(ip67 connector): Reliable Connection in Compact Spaces.

In industrial control cabinets, automation equipment, or outdoor enclosures, PCB-mounted interfaces often face the challenge of limited space – vertically oriented connectors tend to interfere with the enclosure sidewalls, causing excessive cable bending or even damage. The right-angle DR9 waterproof d sub connector is designed to solve this problem. With its 90° right-angle cable exit, the cable runs flush along the board surface, significantly saving installation space. At the same time, it inherits the classic rugged construction of dsub connector and offers IP67-rated dust and water protection, making it a reliable choice for signal transmission in confined spaces.

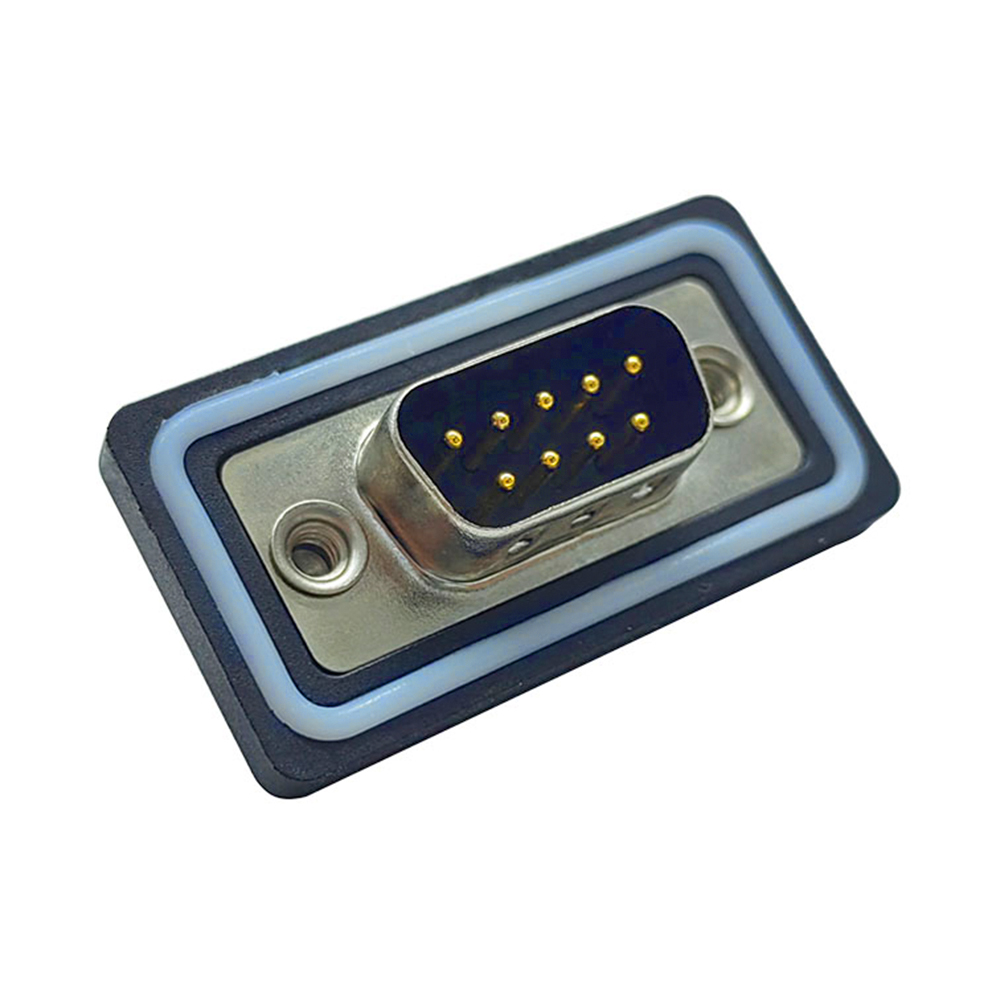

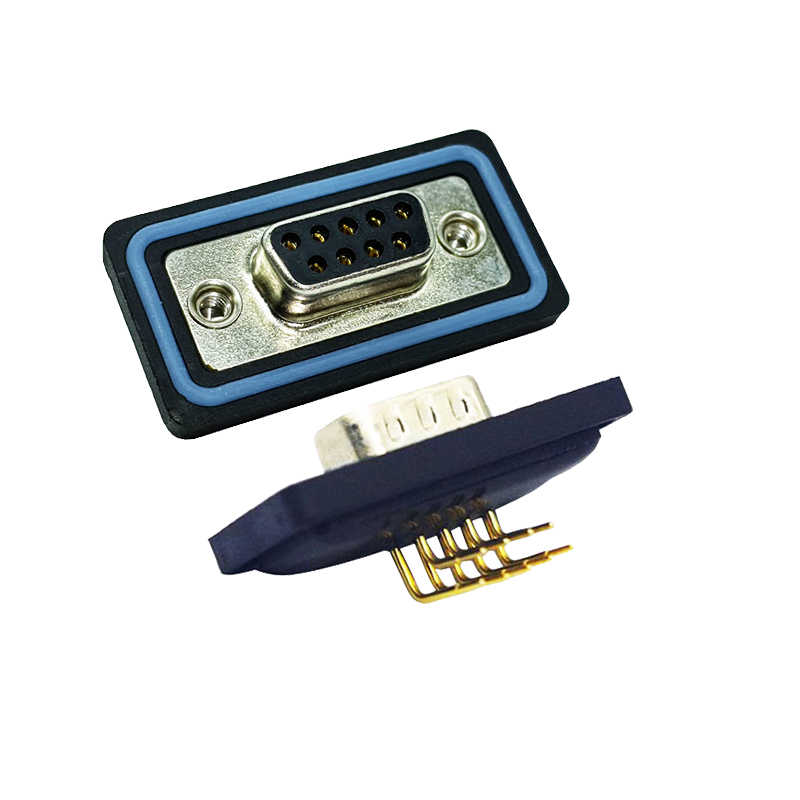

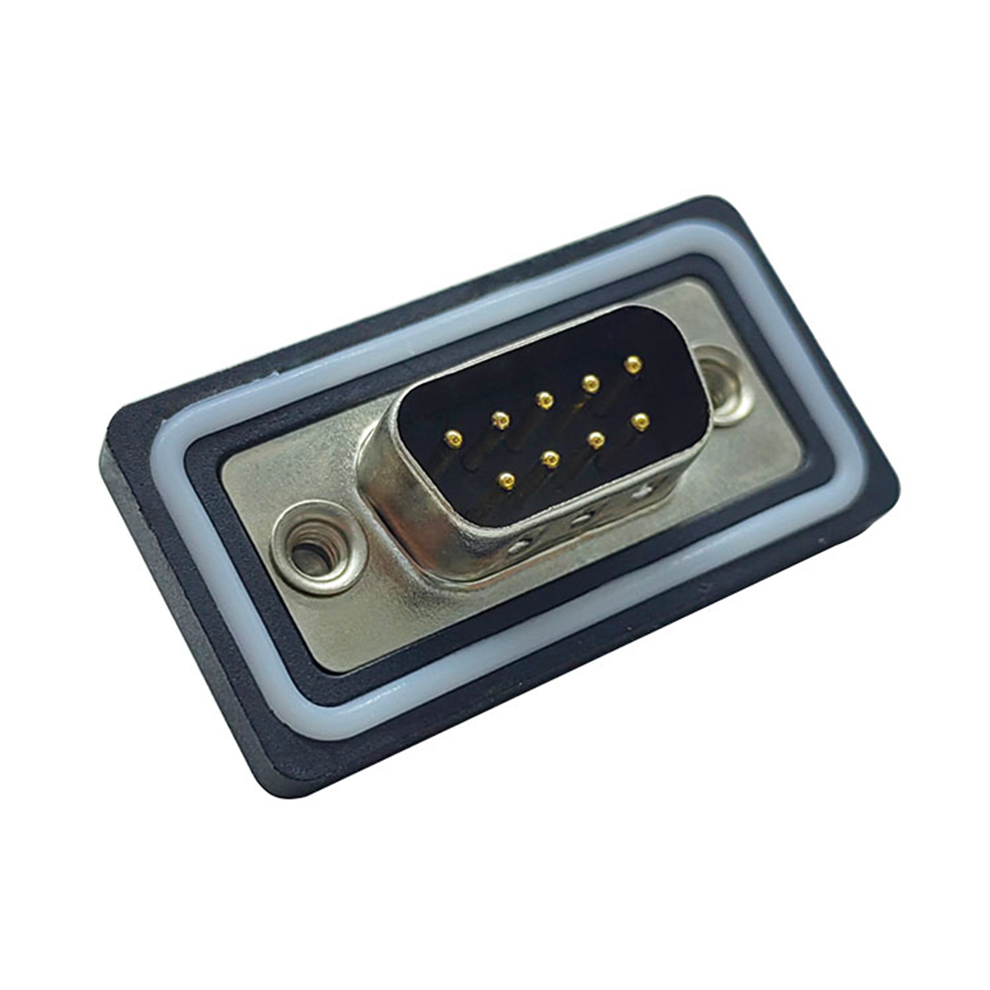

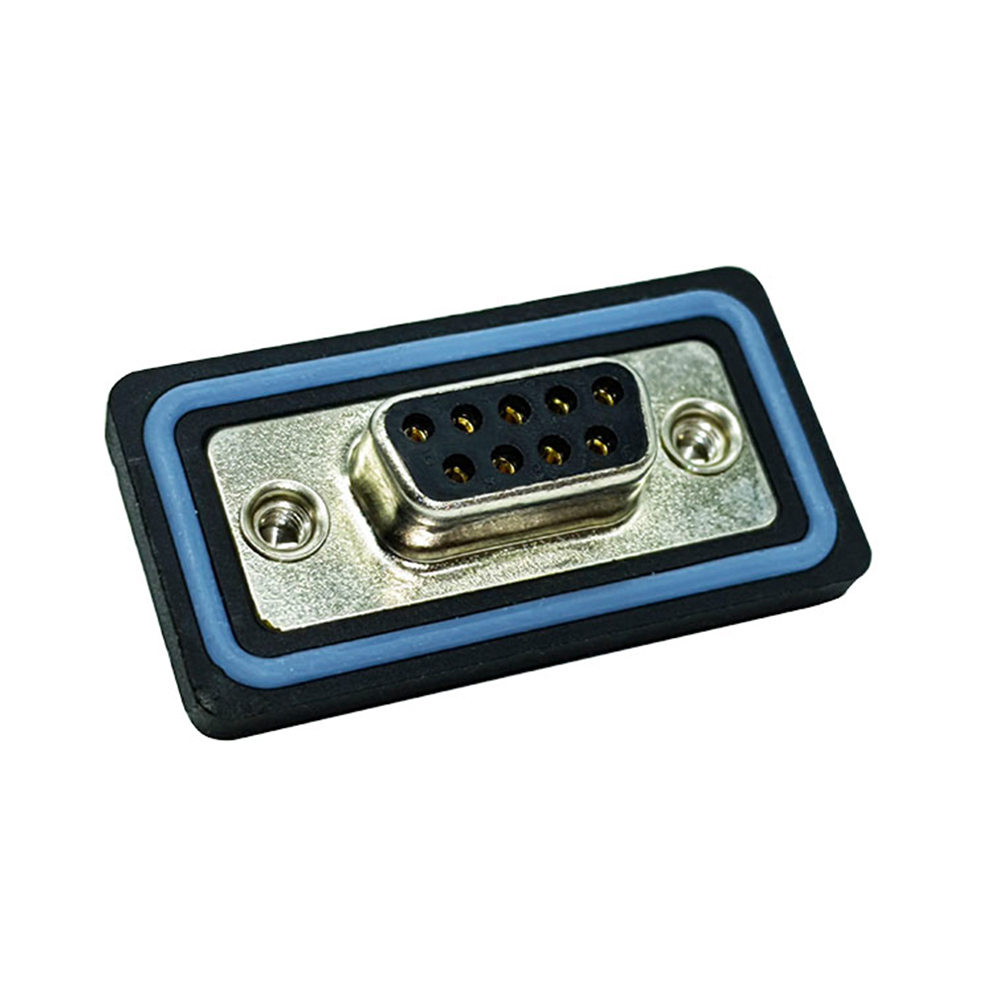

The core advantage of this D Type Connector 9 Pin lies in its combination of "space optimization" and "enhanced protection." The 90° right-angle design is not a simple shape change; it uses a precision metal shell and insulator structure to ensure stable electrical performance even after the pins are bent. The shell is made of zinc-plated steel or stainless steel with a nickel-plated surface, providing electromagnetic interference shielding and resistance to corrosion and vibration in industrial environments. The internal contacts are made of gold-plated brass, offering low contact resistance and oxidation resistance, ensuring pure and stable signal transmission. More importantly, the connector features double-layer silicone seals on the flange and mating face, forming a tight protective barrier after mating. Even when the equipment is installed in humid, dusty outdoor environments, it effectively prevents moisture and dust ingress, meeting the IP67 protection rating.

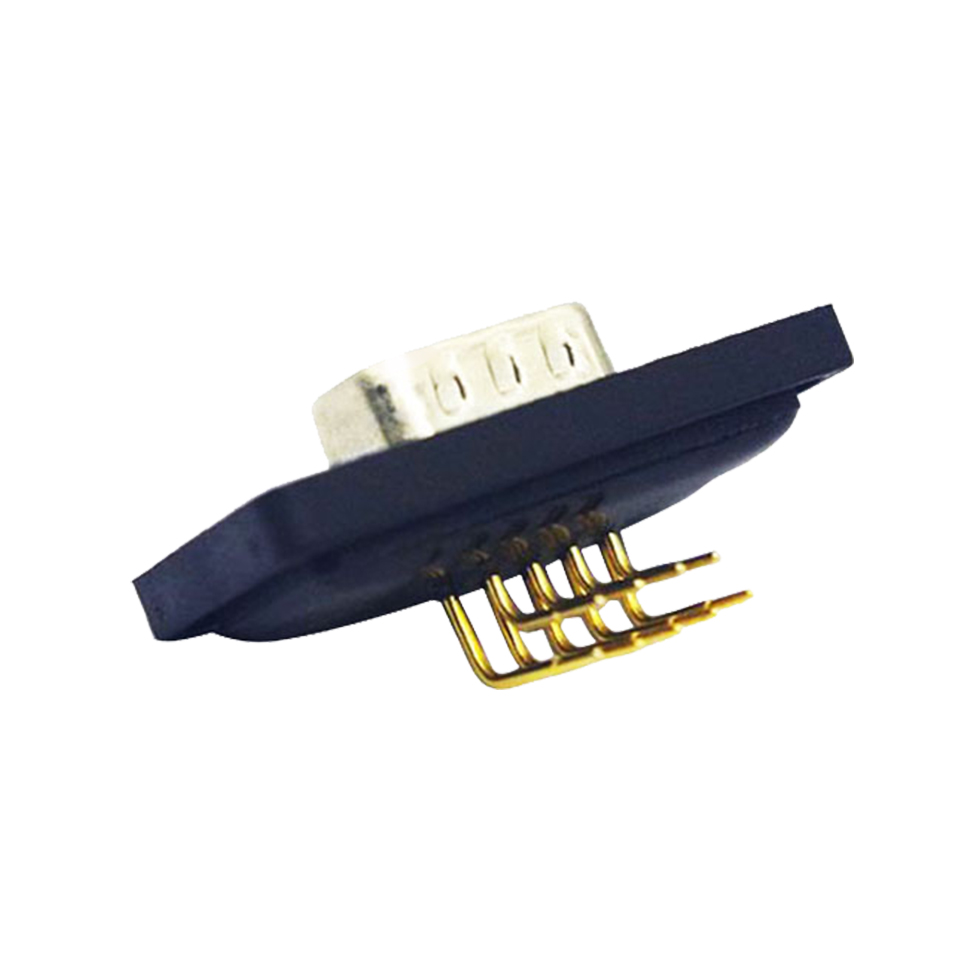

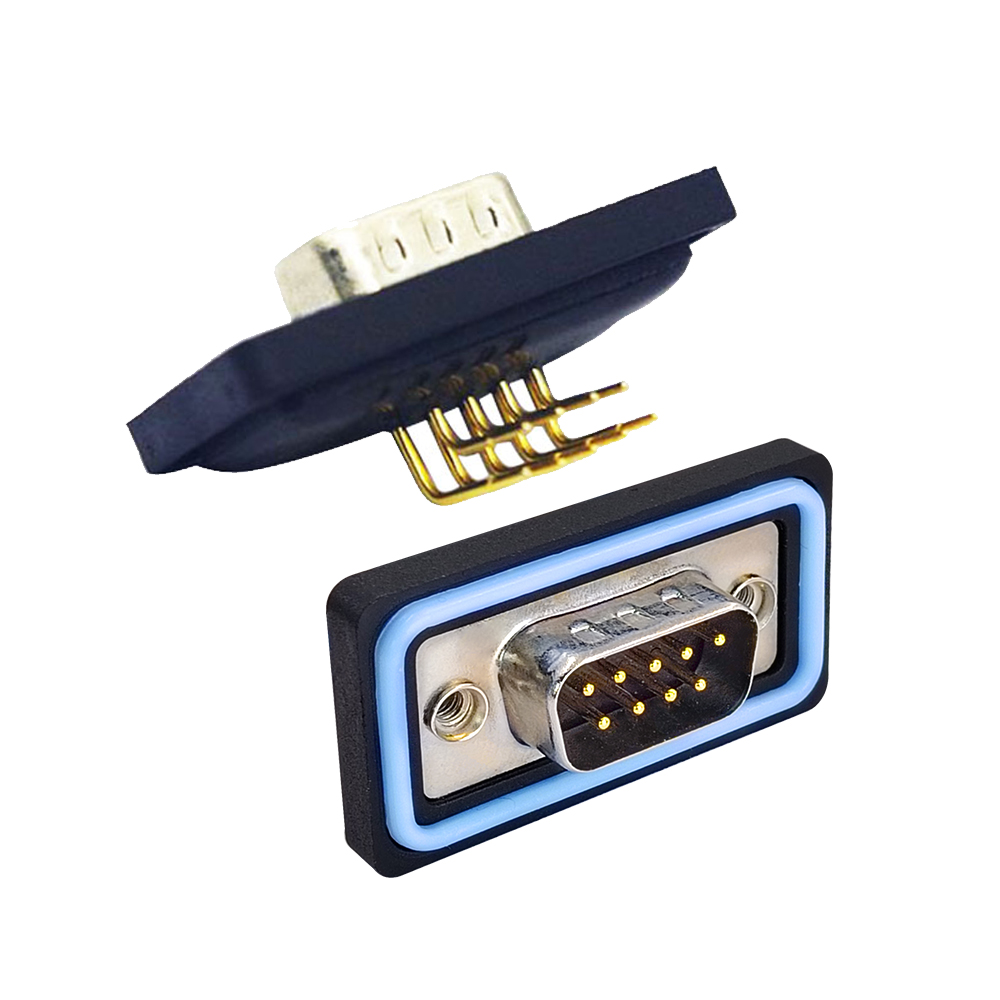

Compared to the straight version, the right-angle DR9 design makes cable management more flexible. Whether mounted on the side panel of a control cabinet or on the internal PCB of a device, the cable exits at a natural angle, avoiding stress damage caused by excessive bending and reducing the vertical space occupied by the cable, thus enabling a more compact internal layout. The locking screws on both sides (or optional quick-locking mechanisms) ensure a secure connection, preventing loosening even under long-term vibration. The operating temperature ranges from -55°C to +125°C, making it suitable for everything from extremely cold outdoor conditions to high-temperature industrial sites.

Right-angle DR9 waterproof d connectors are widely used in industrial automation PLC modules, outdoor communication equipment, medical instruments, transportation control systems, and more. This connector is not just a signal transmission channel – it stands for "reliable connection" in tight spaces: solving spatial challenges with a compact design and withstanding environmental challenges through rugged protection, providing a solid guarantee for stable equipment operation under harsh conditions.
