2.54mm Box Header 90° H=9.0

4 week ago

3 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

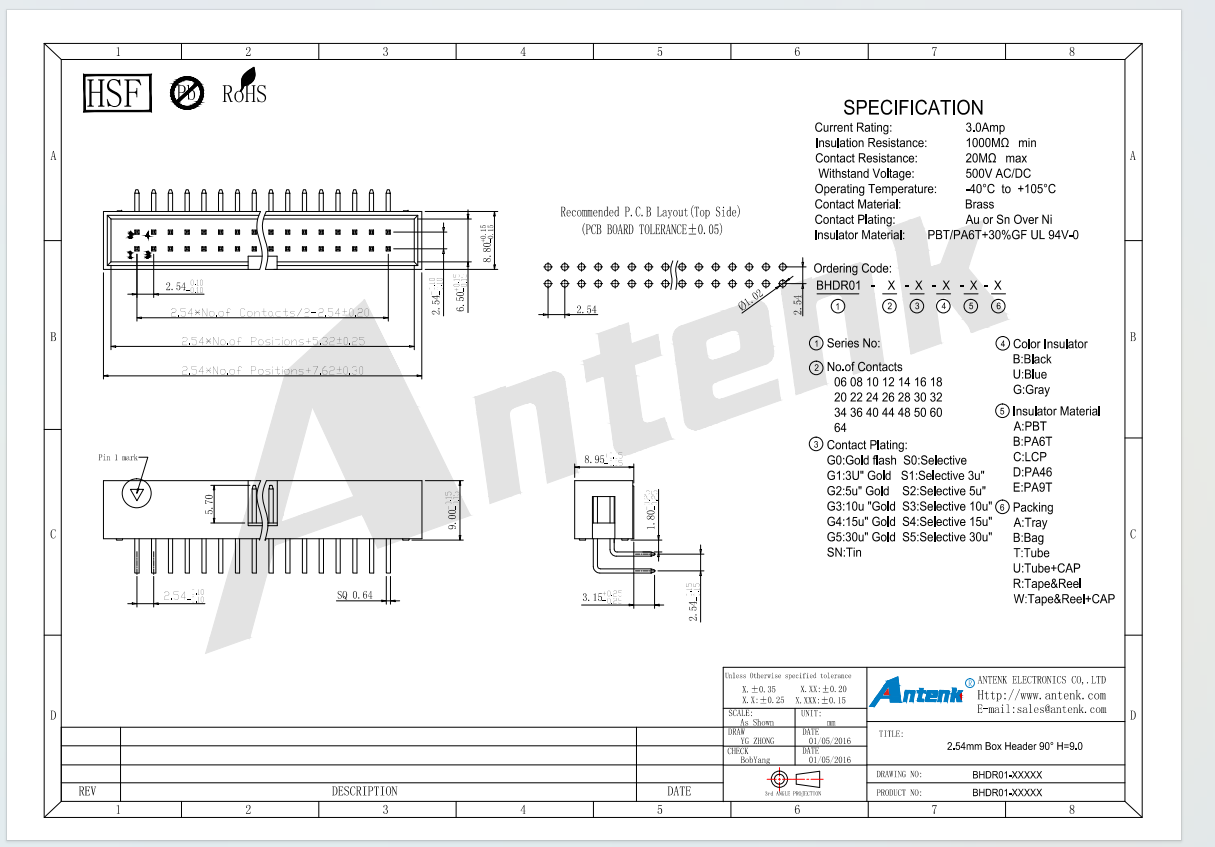

Manufactured by Huizhou Antenk Electronics Co., Ltd, the BHDR01 series 2.54mm right angle box header with 9.0mm height delivers reliable power transmission and stable signal interconnection for limited space PCB assembly scenarios. This connector supports pin configurations ranging from 06 pins to 64 pins, adopting brass as contact material with diversified surface plating options including gold flash, selective gold plating and tin over nickel plating. The insulator is made of PBT or PA6T filled with 30 percent glass fiber, complying with UL94V 0 flame retardant safety standard and available in black blue and gray colors. It is rated for 3.0 Amp operating current, with minimum insulation resistance of 1000MΩ and maximum contact resistance of 20MΩ, capable of withstanding 500V alternating and direct voltage, and runs steadily within the wide temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Our complete production process consists of independent mold development, precision terminal stamping, high temperature resistant plastic injection molding, anti oxidation surface plating, automatic assembly and strict electrical performance testing in professional laboratories. Equipped with Taiwan high speed punching machines and Japanese precision injection molding equipment, we strictly control PCB layout dimensional tolerances to ensure stable and accurate soldering installation.

This 90 degree right angle box header adopts through hole DIP soldering installation, compatible with both automatic wave soldering and manual welding processes to achieve horizontal PCB connection. It is widely applied in industrial control equipment, communication modules, automotive electronics, digital household appliances, precision testing instruments, computer peripherals and consumer electronic products. During installation, users must follow the official recommended PCB layout parameters for welding, avoid excessive soldering temperature and heating time to prevent insulator deformation, and keep contact terminals away from dust moisture and corrosive substances to extend service life. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001 ISO14001 and IATF16949 quality management system certifications, with flexible packaging solutions including tray bag tube and tape reel to meet diverse shipping and production demands.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self developed plastic molds and 180 sets of precision hardware terminal molds, enabling flexible customization of pin count plating type housing material color and packaging mode for this box header series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large scale order delivery capacity. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi stage strict quality inspection system brings outstanding structural stability and anti interference performance, effectively reducing circuit failure risks and establishing long term trusted cooperative relationships with customers across Europe America Southeast Asia and other international regions.
