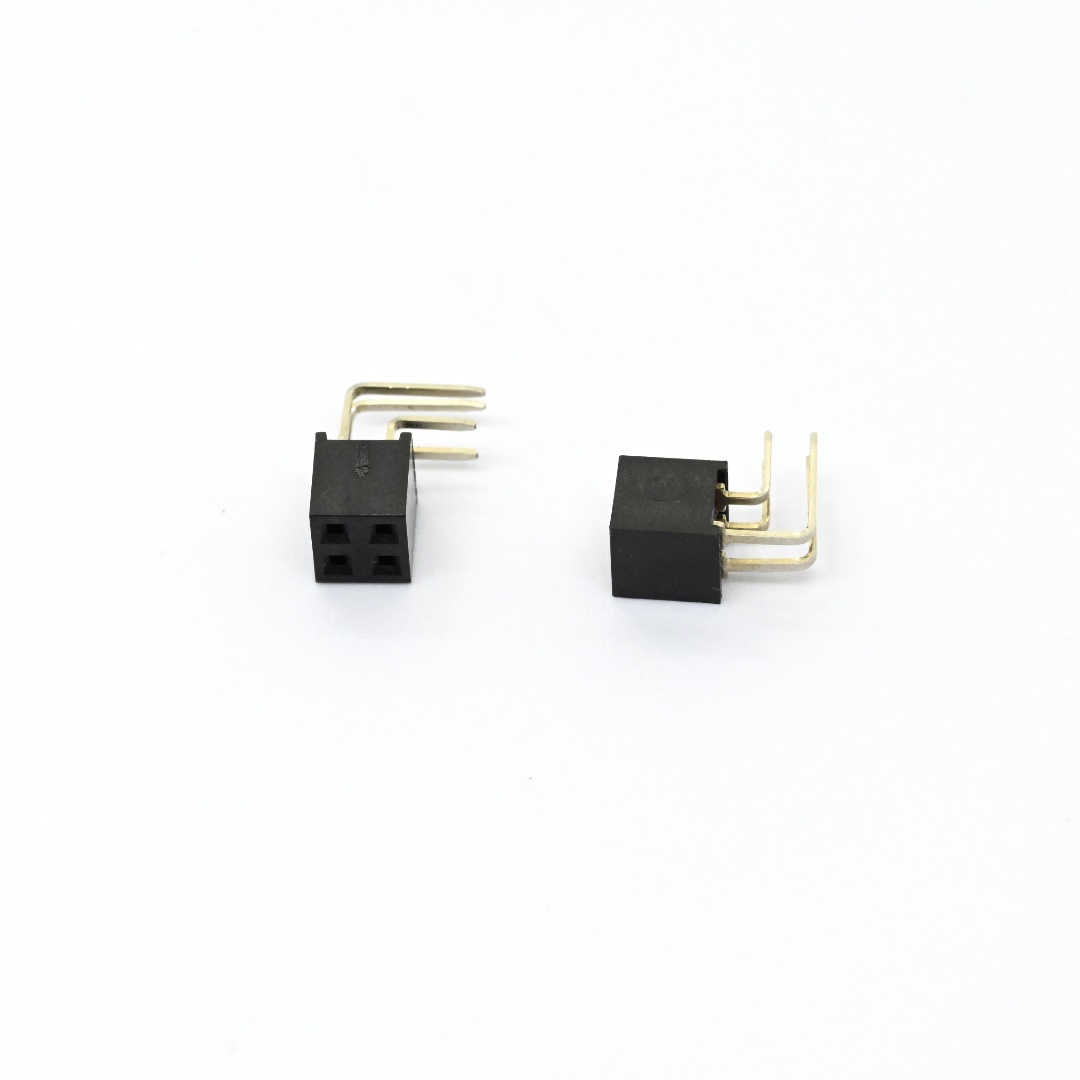

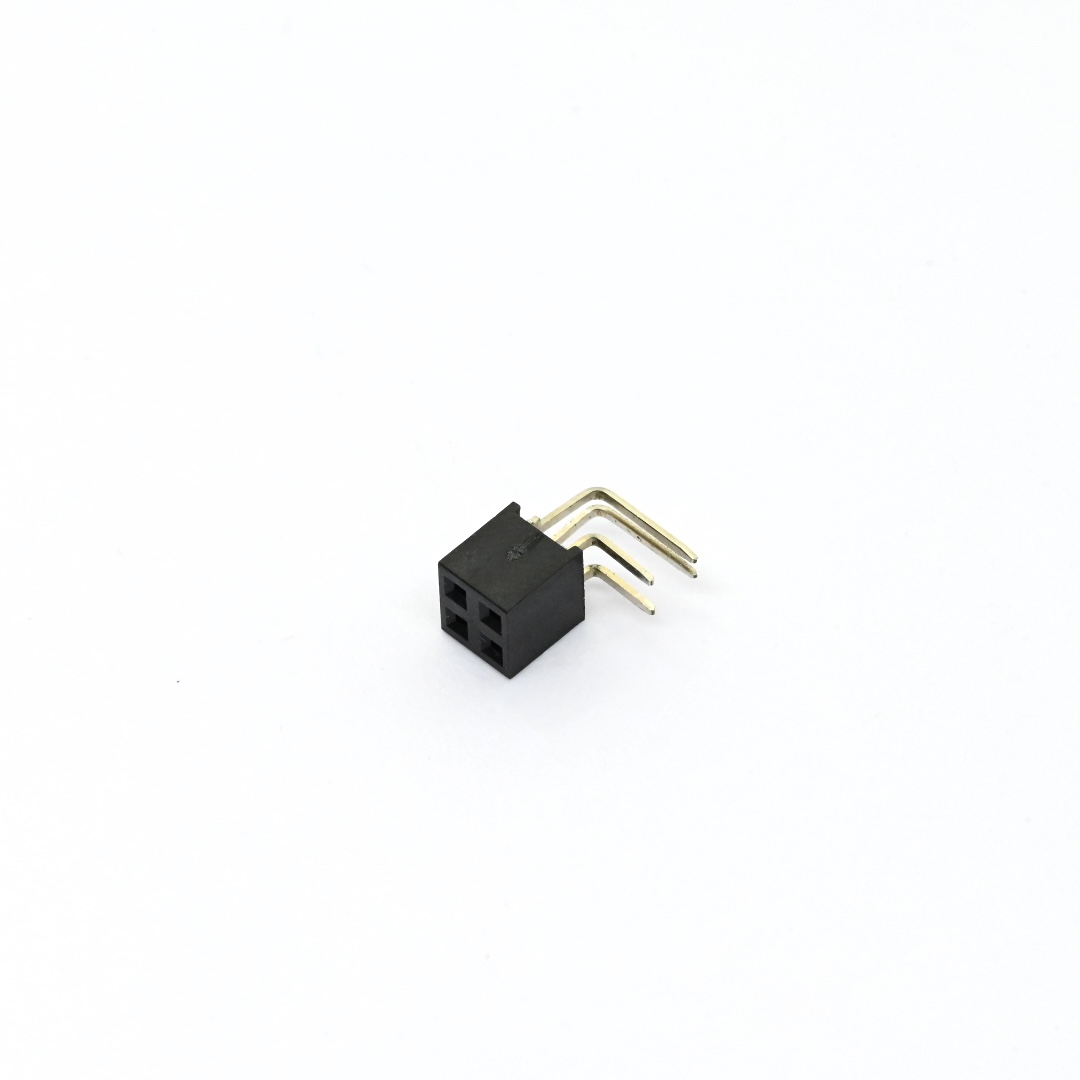

1.Product Description
Huizhou Antenk Electronics Co Ltd manufactures dual row right angle female header with two point five four millimeter pitch to deliver reliable board to board signal interconnection for compact printed circuit board assemblies. This angled female header uses UL94 V zero grade PBT insulator with multiple alternative housing material selections and brass contact terminals, it supports two to eighty contact positions, diverse selective gold plating and tin plating grades as well as varied plastic height and multiple packing selections, full dimension parameters can be obtained from engineering drawing for PCB footprint reference, it provides three amp rated current, five hundred volt AC dielectric withstanding voltage, insulation resistance no less than one thousand megaohm and contact resistance below twenty milliohm and performs stably from minus sixty five degree Celsius to plus one hundred twenty five degree Celsius. Users finish through hole soldering following official PCB drawing and mate with matching male header to establish stable circuit links for target electronic hardware. Operators must follow drawing dimensional tolerances for PCB layout avoid excessive mating force to prevent brass terminal deformation and store goods in dry environment to protect plated surfaces against oxidation. Unlike competitors purchasing outsourced components Antenk carries out complete in house workflow covering plastic molding terminal stamping assembly and comprehensive laboratory performance verification. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent finished goods export globally. This female header suits digital household appliances communication devices and industrial control instruments. Please share your contact count insulator material plating option and project specifications for free sample evaluation and complete technical document support.
Wide Temp Female Socket retains reliable electrical performance under drastic ambient temperature variations.

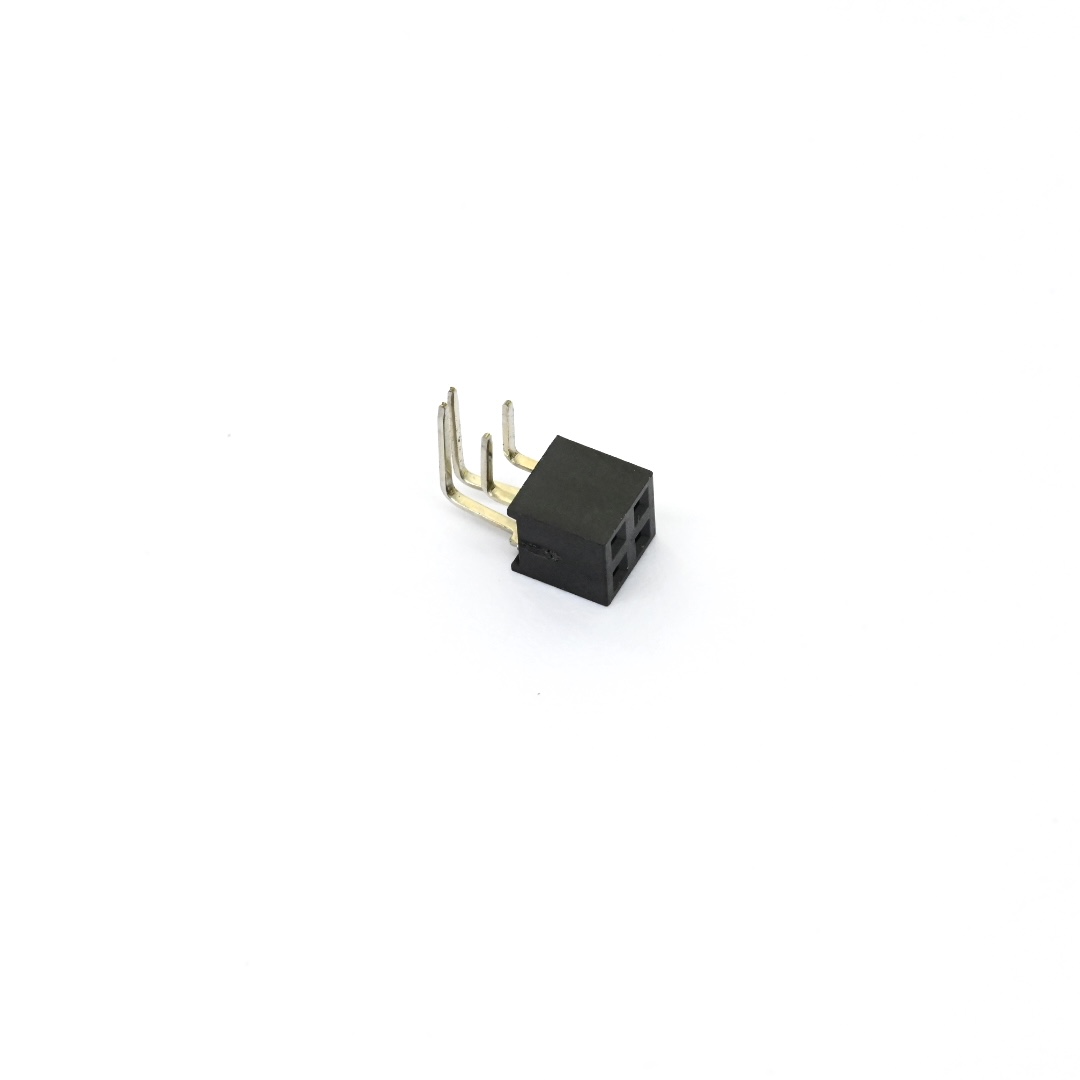

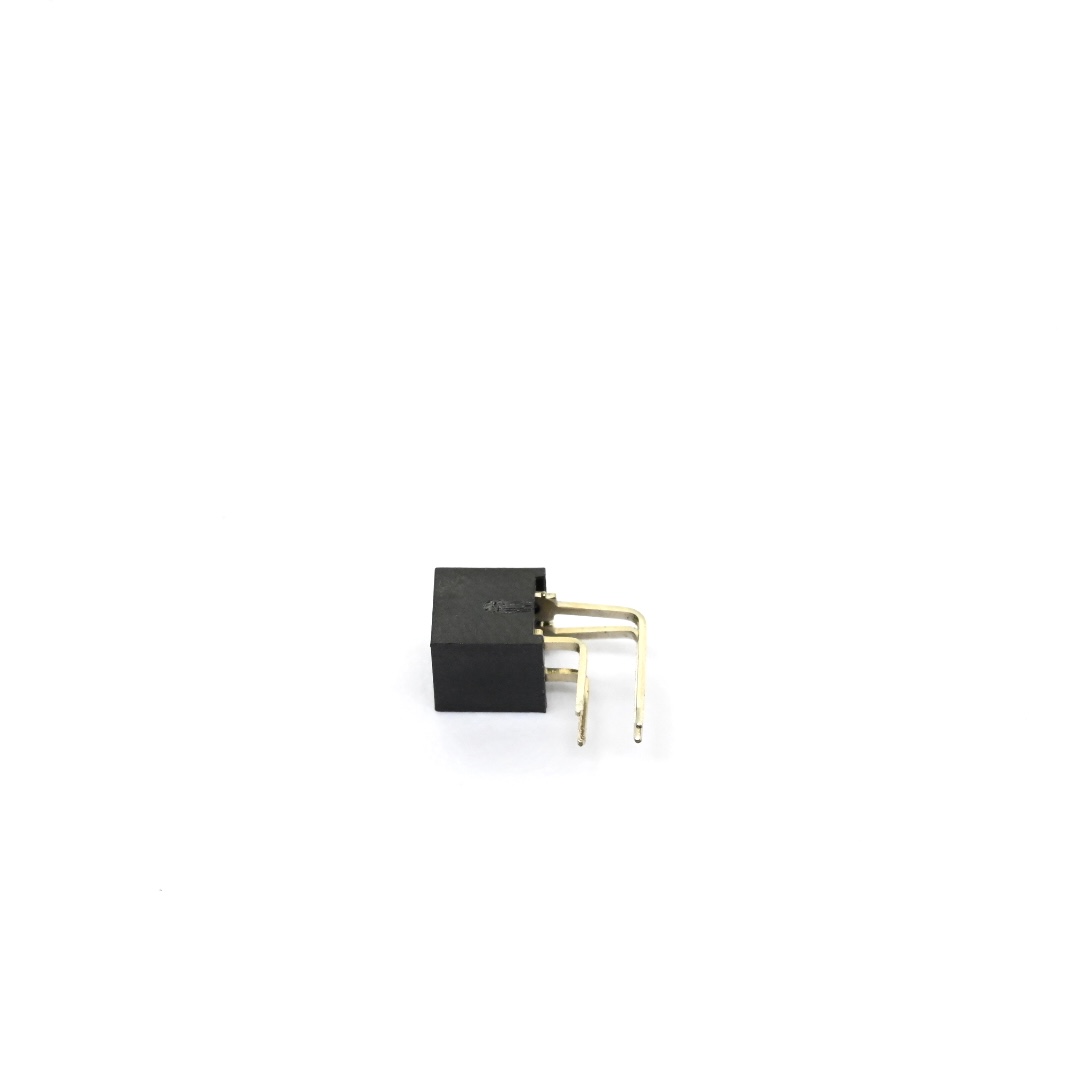

Angled PCB Female Header saves valuable board space for space‑constrained compact electronic assemblies.
Multi Material Female Socket provides flexible material options to match varied mechanical and application requirements.
2.Detailed Specifications of FHER05‑XXDXXX 2.54 mm Dual Row Right Angle Female Header
1. Mechanical Specifications
1.1 Product type: Dual row right angle through hole female header
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch is 2.54 millimeter, contact quantity ranges from 2 positions to 80 positions. Standard plastic height is 5.7 millimeter. Refer to engineering drawing for outline dimension and dedicated PCB layout dimensions. Follow drawing standard dimensional tolerances for unspecified dimensions during printed circuit board design. Multiple plastic height options are available.
1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with matching male header to realize board to board signal interconnection.
1.5 Ordering feature: Multiple insulator housing material options, various selective gold plating and tin plating grades, diverse plastic height and packing styles for custom project demands.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Material: Brass
2.2 Insulator Material: PBT UL94 V zero black, alternative optional materials include PA6T LCP PA46 and PA9T
3. Electrical & Environmental Performance Parameters
3.1 Current rating: 3.0 Amp
3.2 Dielectric withstanding voltage: AC 500V
3.3 Insulation resistance: Minimum 1000 Megaohm
3.4 Contact resistance: Maximum 20 milliohm
3.5 Operating temperature range: Minus 65 degree Celsius to plus 125 degree Celsius
3.6 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Complete through hole soldering according to official PCB layout drawing, connect with matched male header to achieve stable signal transmission.
4.2 Operation tip: Adopt PCB layout dimension data provided on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Board to board signal interconnection for digital household appliances
5.2 Internal circuit connection for communication electronic devices
5.3 Signal interface for industrial control instruments
5.4 General board to board connection for multi function electronic assemblies
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent permanent deformation of brass contact terminals
6.3 Prevent scratches dirt and mechanical impact on insulator housing and brass terminals before assembly
6.4 Store products in dry environment to avoid oxidation of plated surfaces
6.5 Confirm contact count insulator material plating grade plastic height and packing type before placing purchase order
6.6 CTA: Submit your hardware requirement material plating options and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

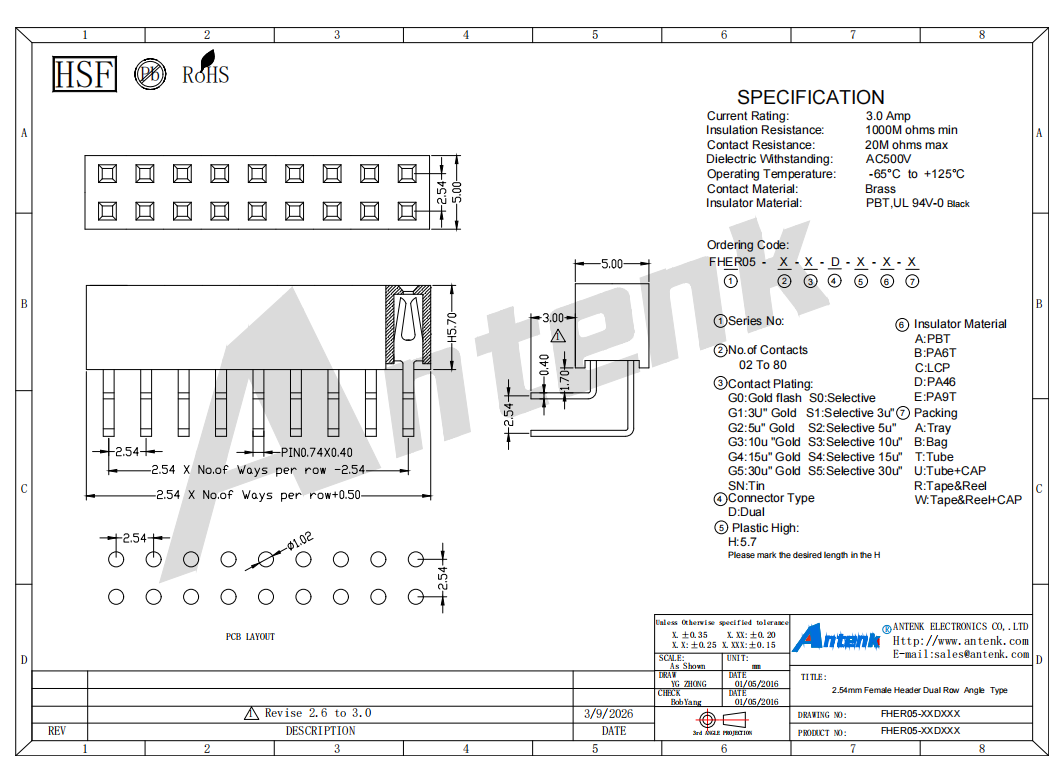

4.Product Drawing：
