d sub connector 13W3 Straight in

d sub connector 13W3 Straight in

3 month ago

5 0

Dongguan Pandi Electronic Technology Co., Ltd.

 4 month year

Product details

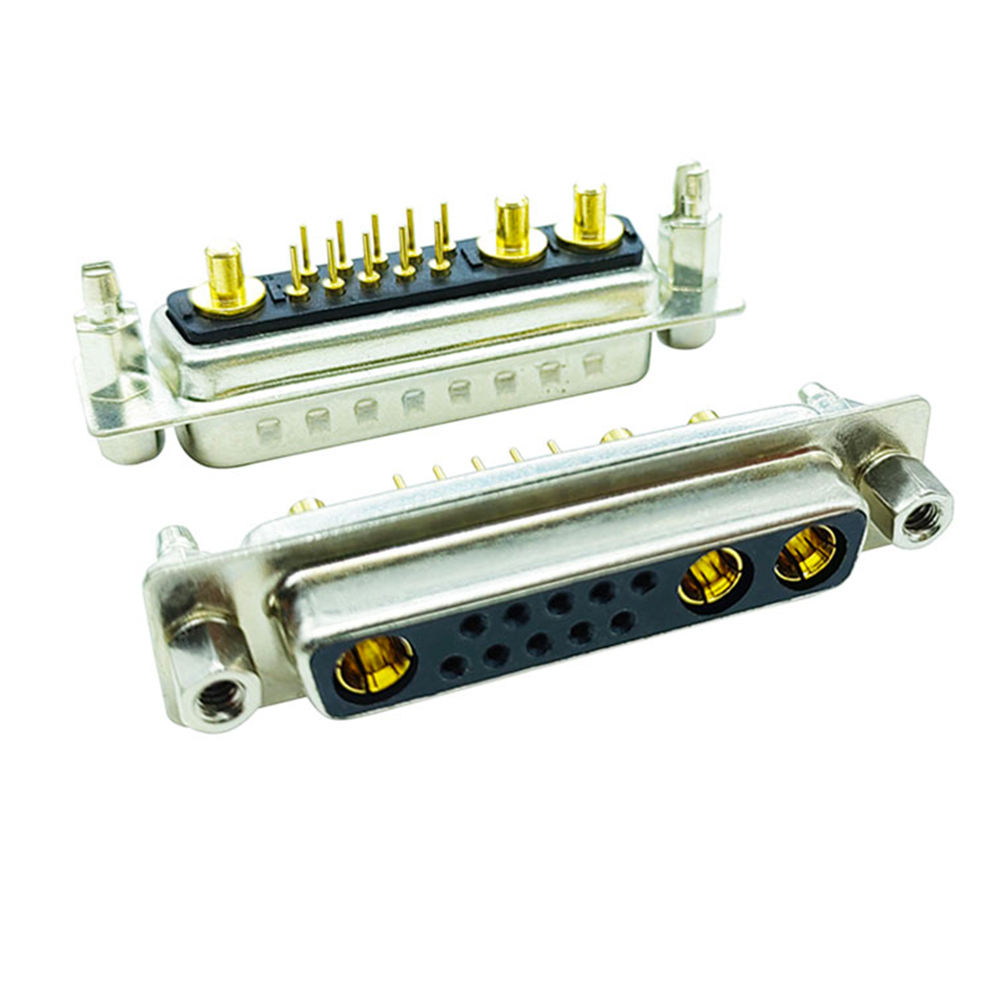

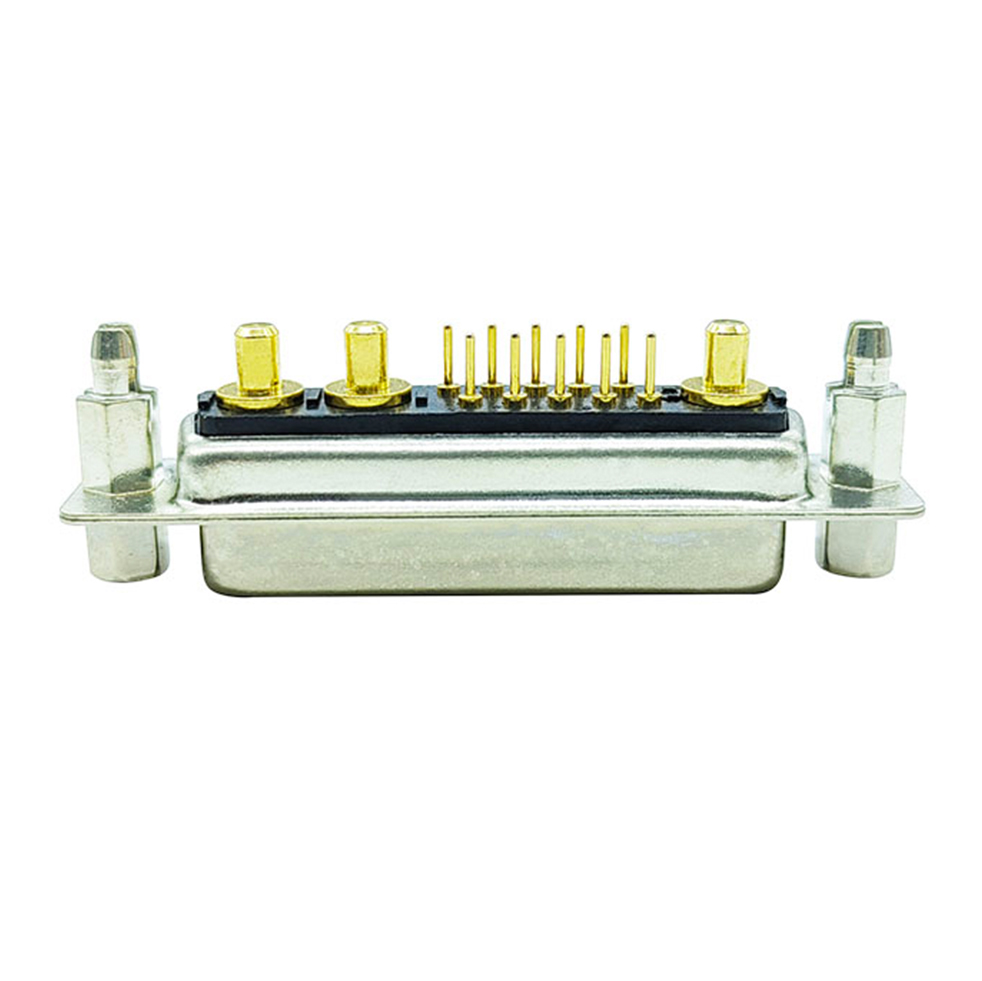

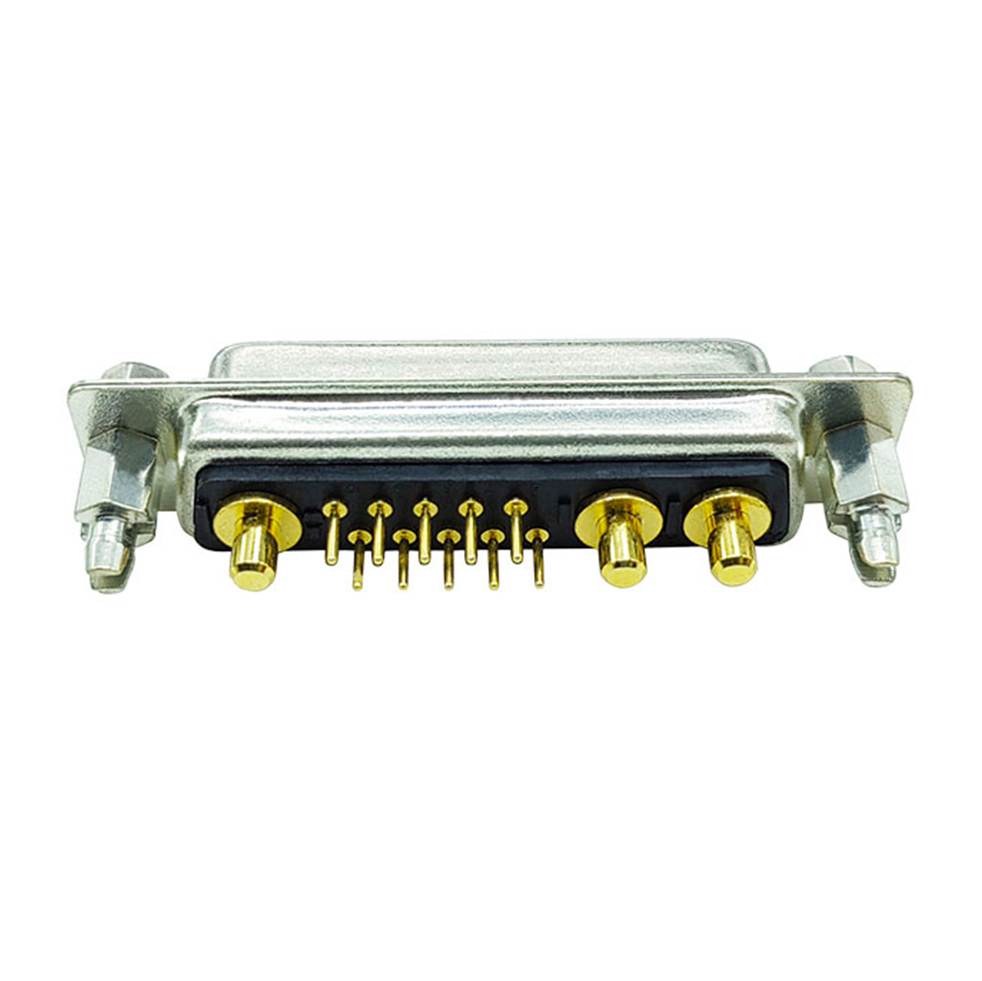

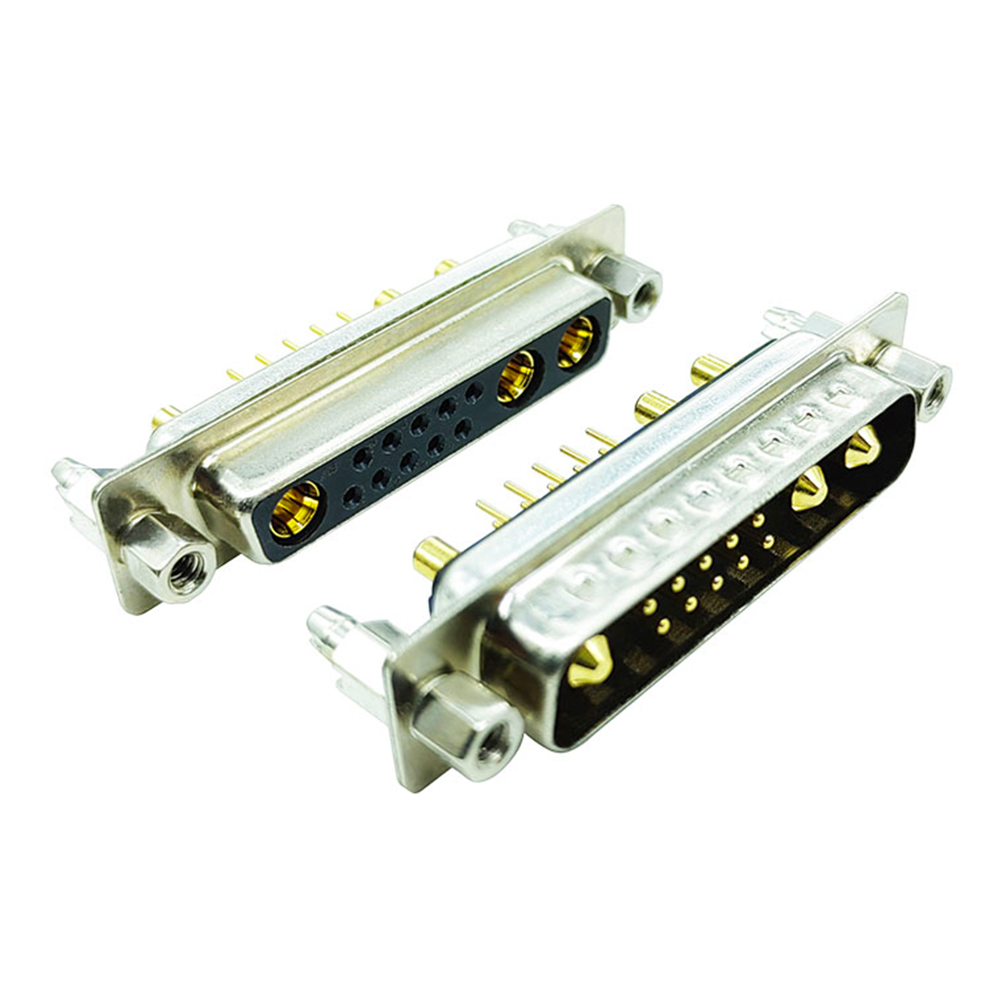

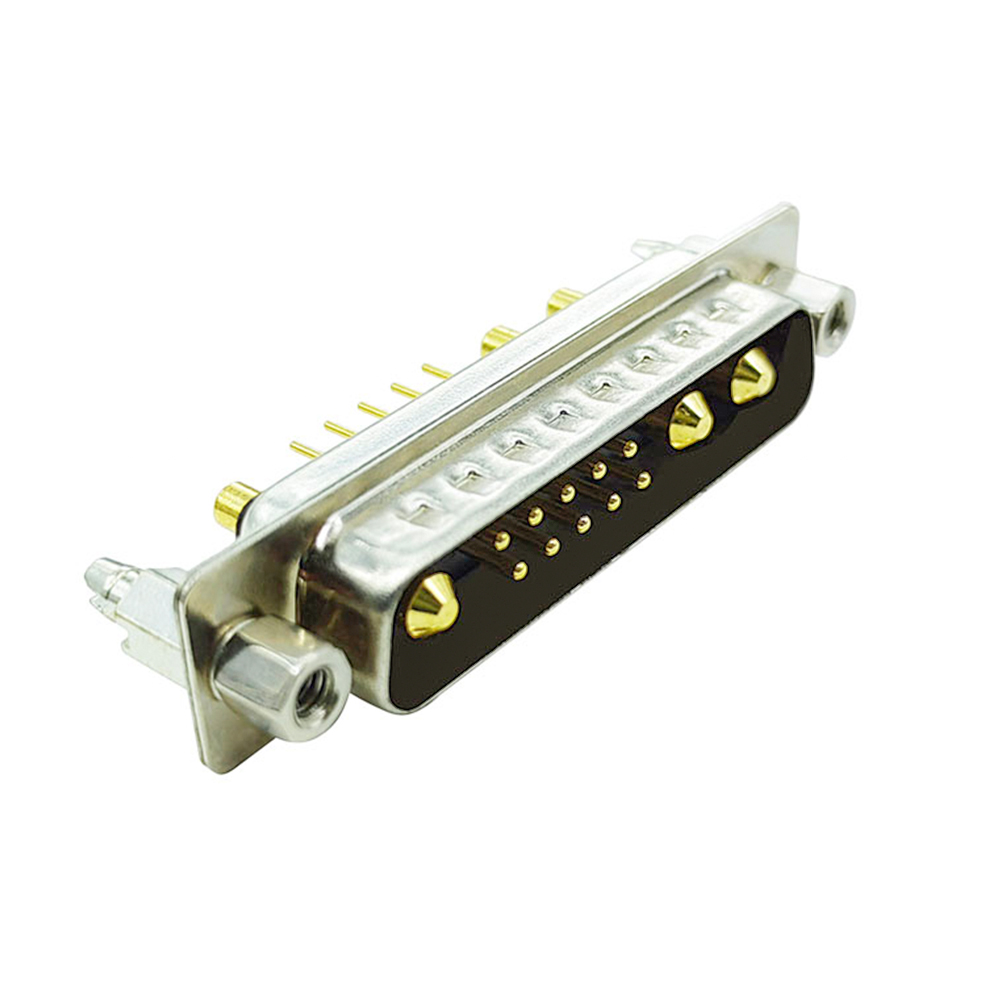

Our 13W3 D-Sub connector, Straight In Male, is designed for applications requiring mixed power and signal transmission with high environmental reliability. It features a hybrid layout of 10 signal contacts + 3 high-current contacts, supporting currents up to 40A/500V, and offers through-hole PCB mounting or panel mounting options. Power D-Sub Connectors are widely used in industrial automation, communications, new energy, medical equipment, laser/CNC systems, test and measurement, and rail transportation.

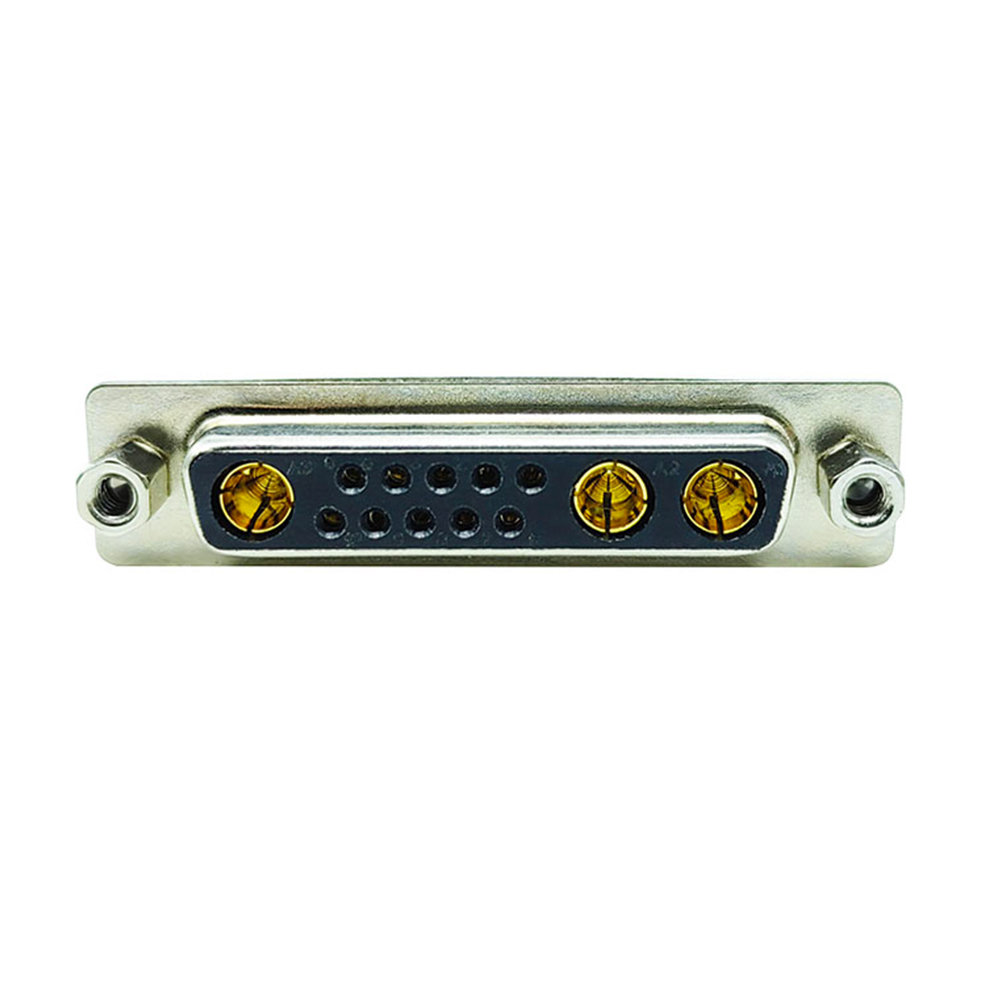

This 13-pin d sub connector is primarily used in industrial automation and robotics for through-hole connections to servo drives, I/O modules, and power units. We at Pandi support customization, offering d sub waterproof connector, OEM and ODM services, and optional IP67 waterproof ratings. This type of connector is essential for harsh environments like those of CNC machine tools.

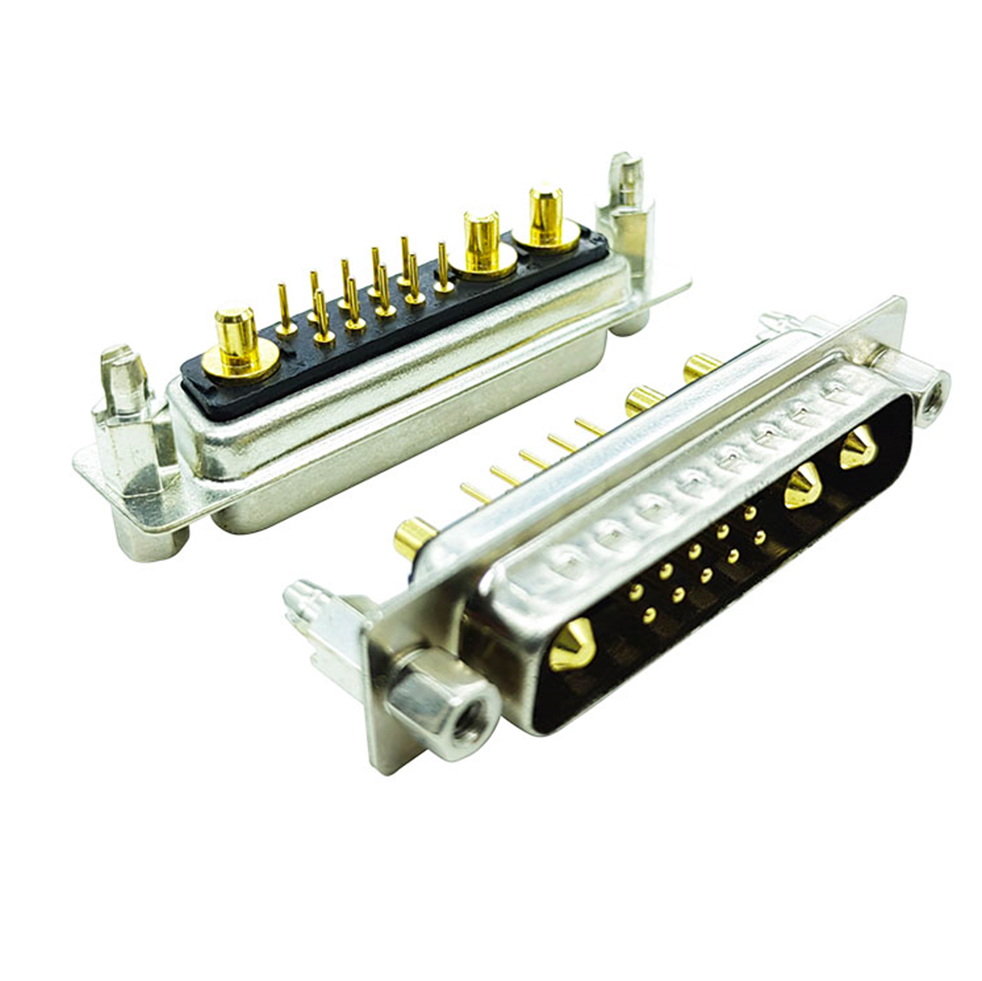

In addition, this 13W3 d sub Straight in connector is also widely used in new energy and power equipment, specifically for high-current charge/discharge connections in battery management systems (BMS) and energy storage inverters. For example, one of our German customers, whose product line with us is D Sub High-Current Connectors, manufactures integrated power and communication interfaces (10–40A range) for onboard controllers and charging guns in electric vehicles/charging stations. They require these 13-pin female d connectors for matching, specifically designed for applications requiring mixed power and signal transmission and high environmental reliability.

Power D-Sub Connectors 13 pin Technical Parameters:

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°

Mechanical Life: 500 Cycles

Applicable Wire Gauge: AWG 8/10/12

Mounting Method: Cable Plug-In

Packaging Method: Blister/Outer Carton

Environmental Requirements: Meets EU Environmental Requirements

Brand: pandi

Application Scope: Mechanical Equipment, CNC Systems, Instruments & Meters, etc.
