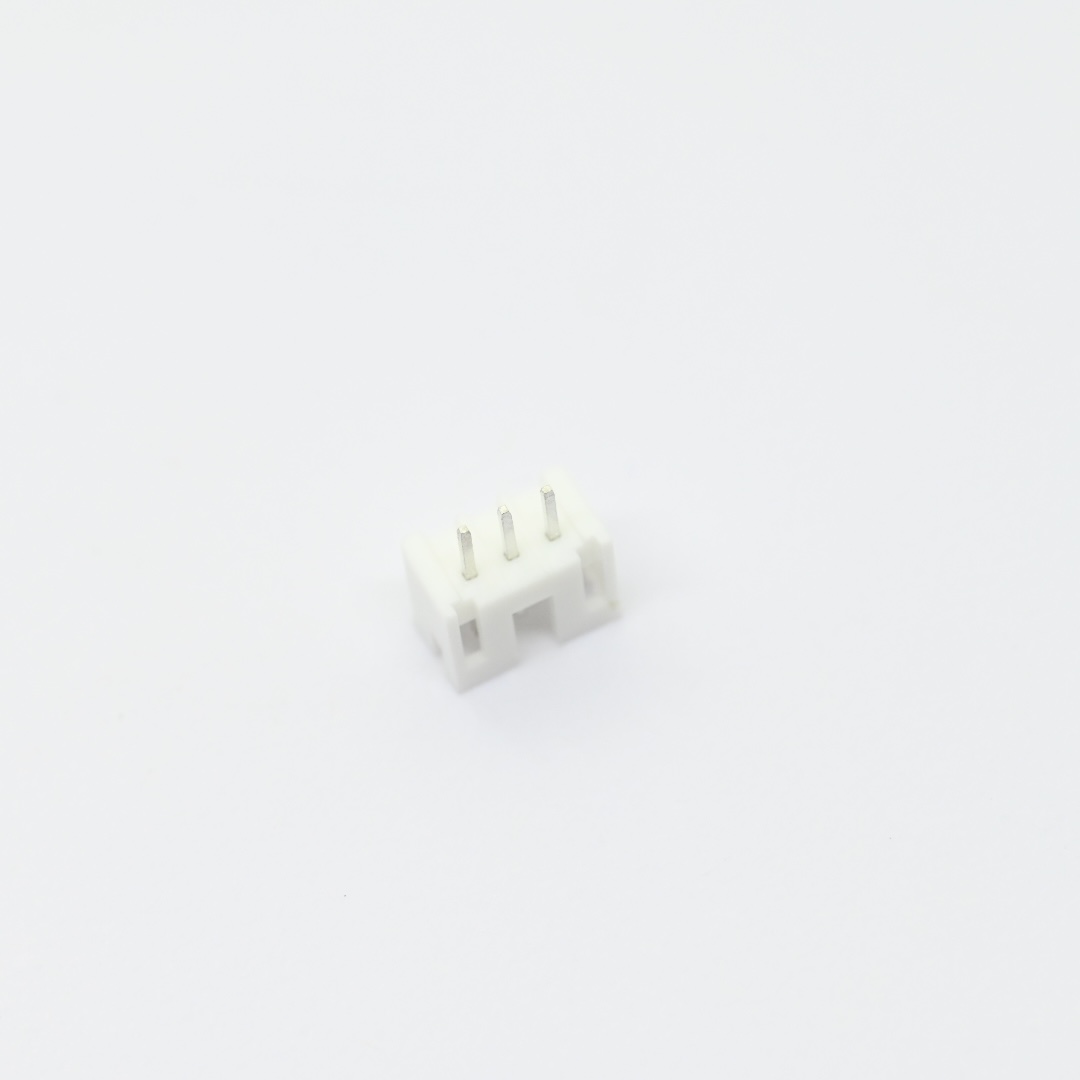

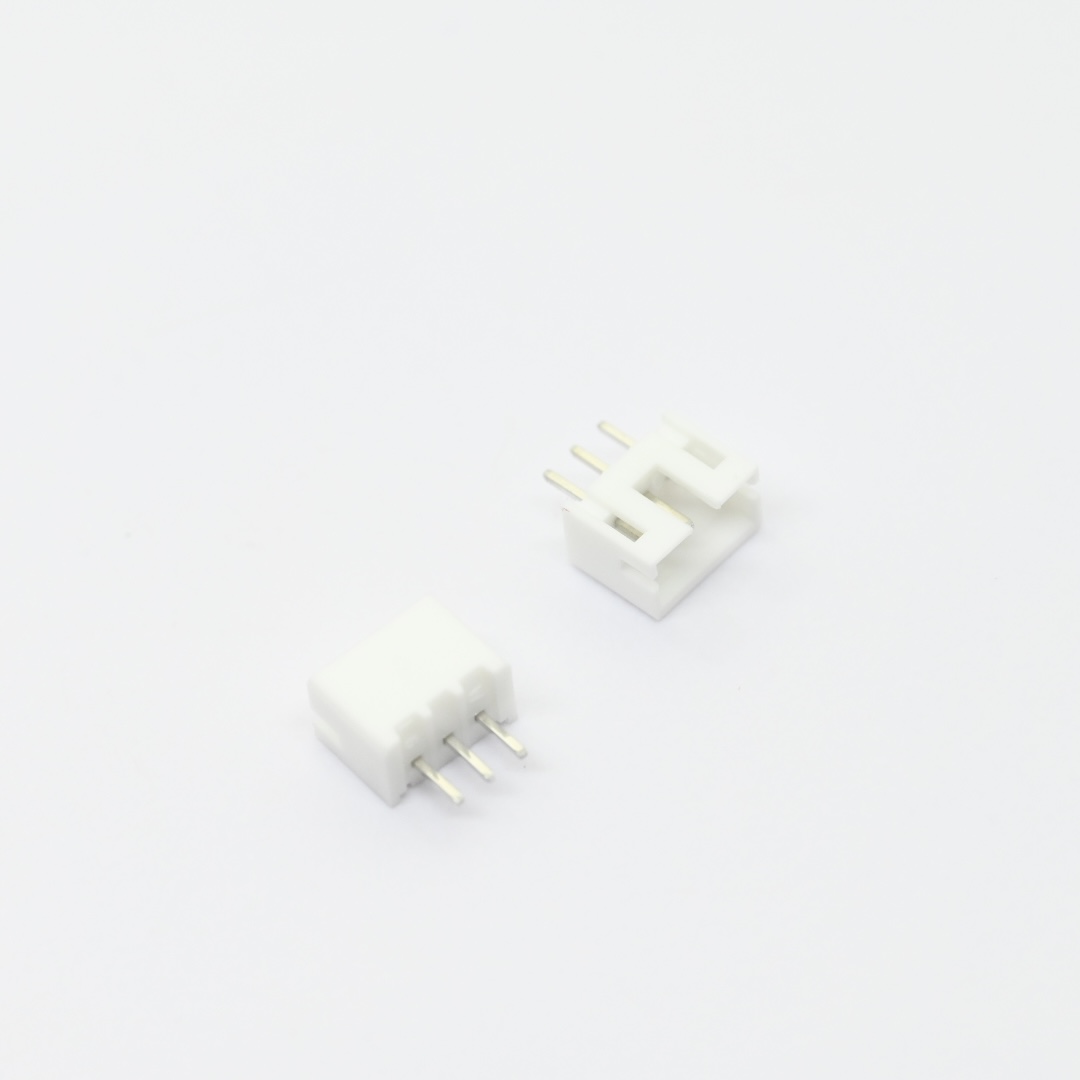

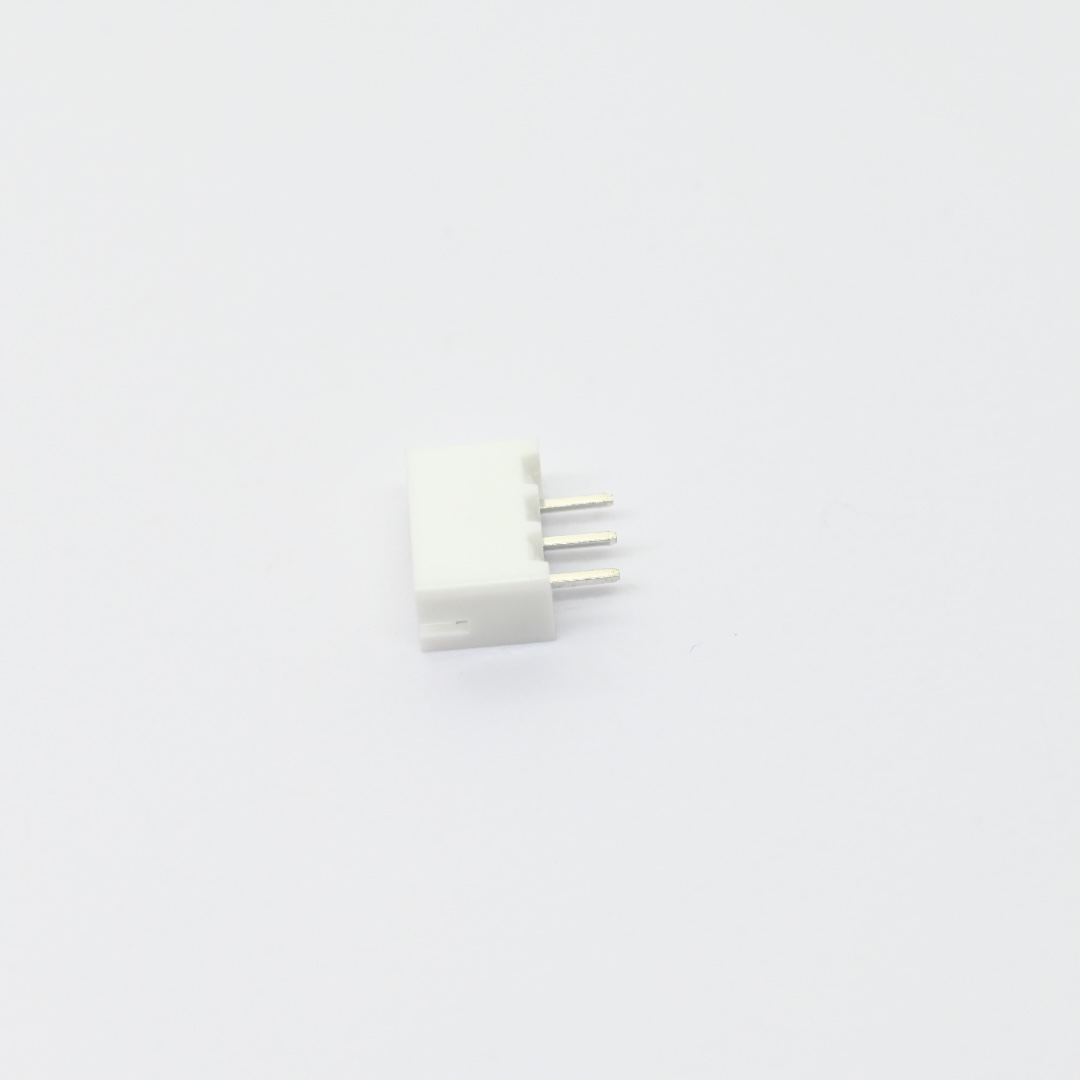

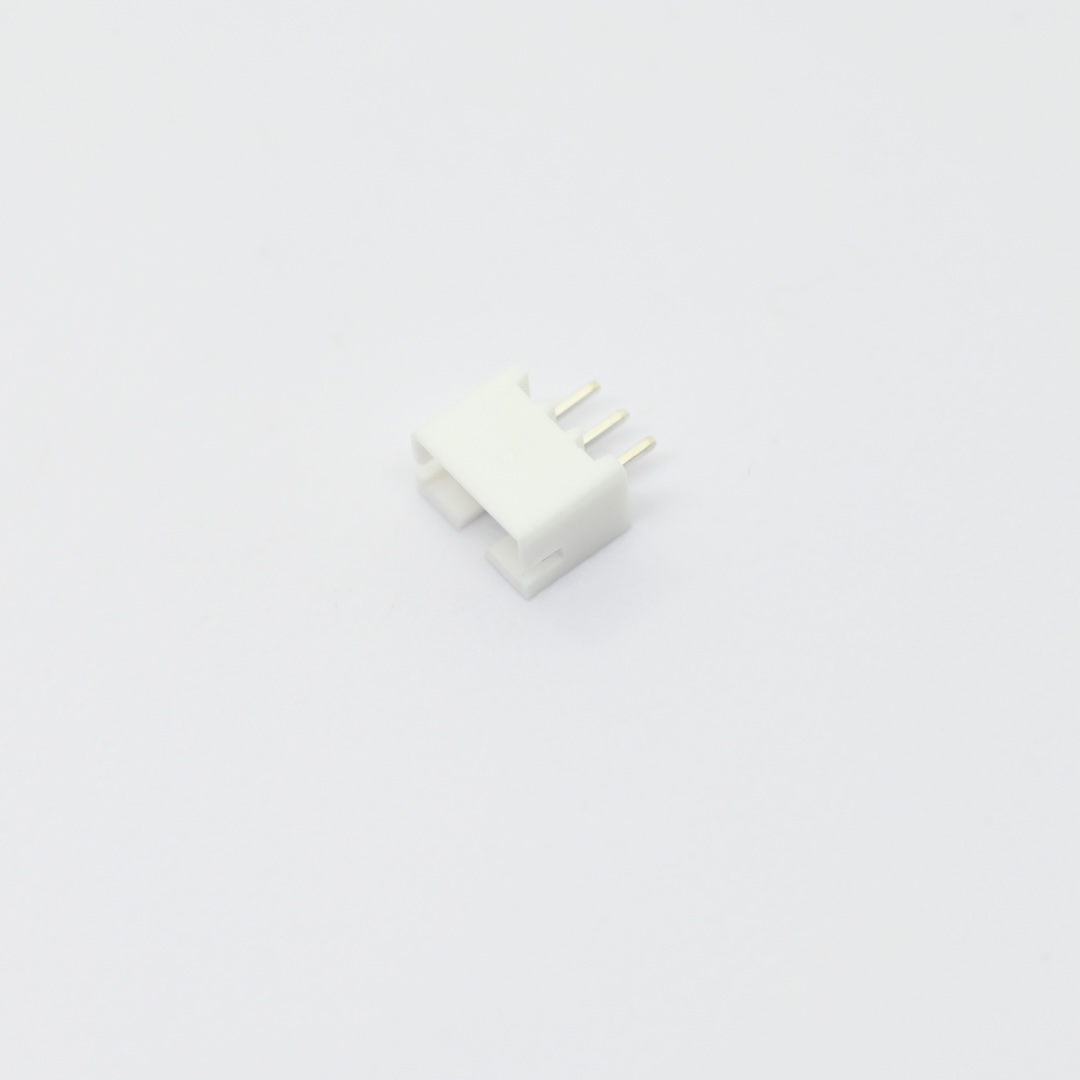

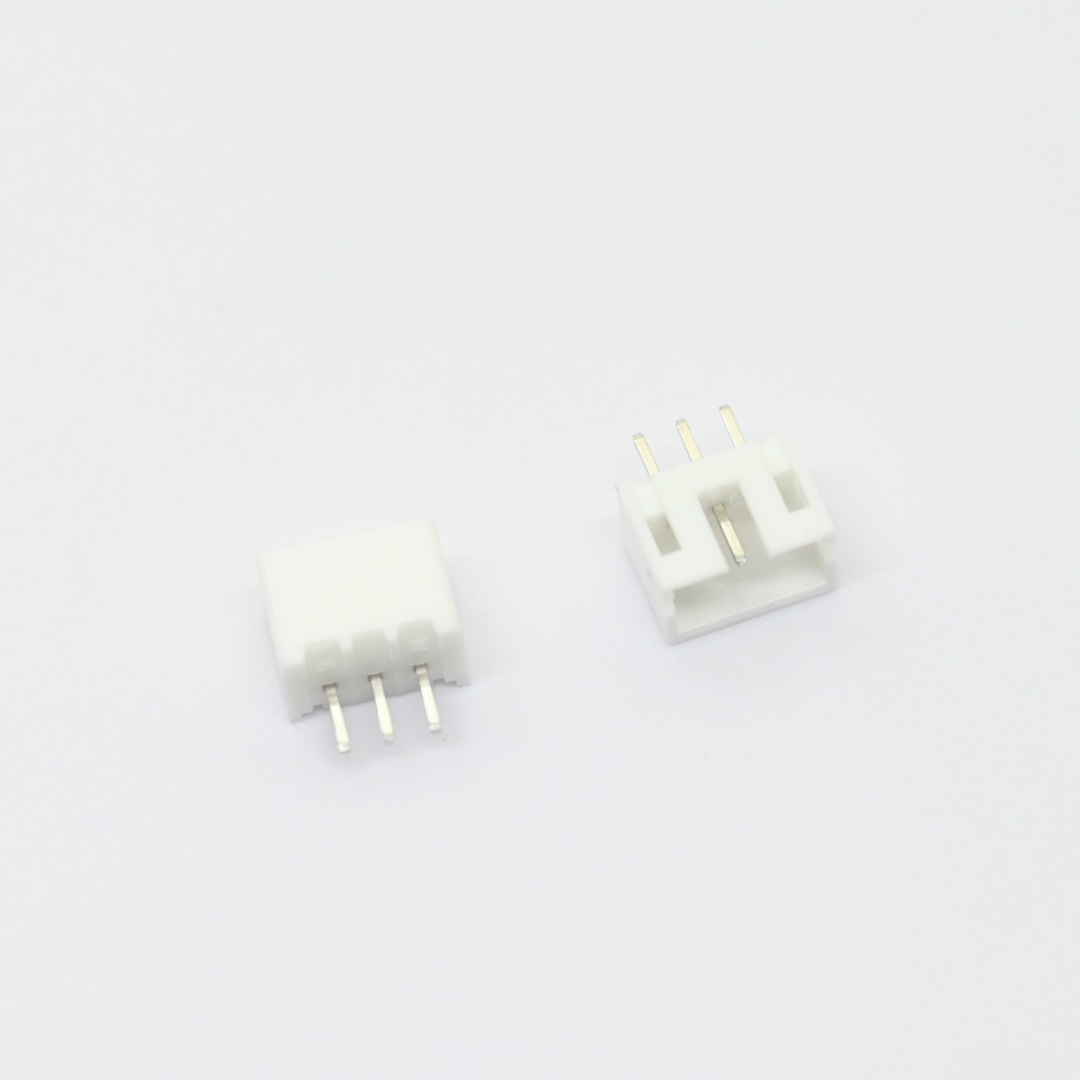

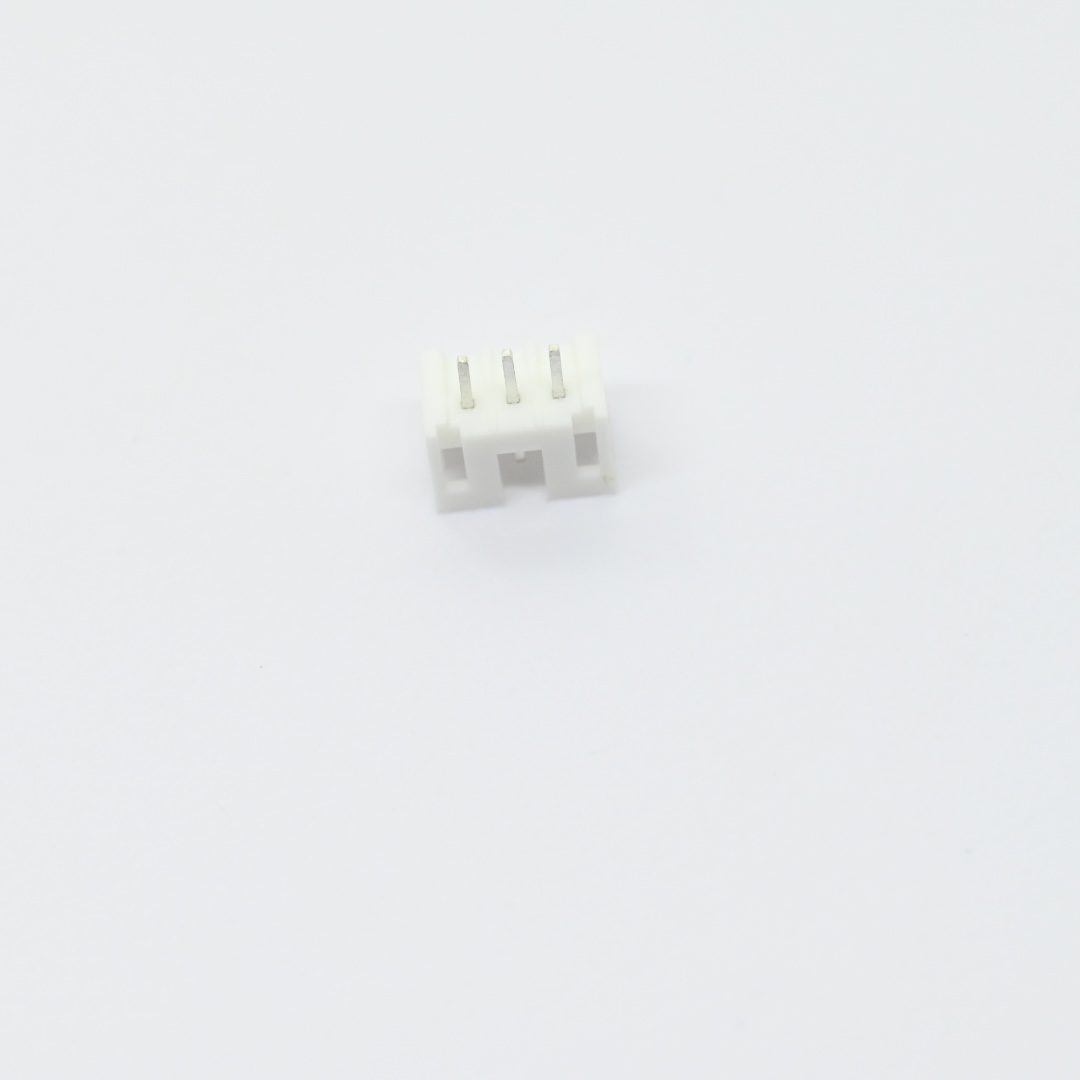

1.Product Description
Huizhou Antenk Electronics Co Ltd manufactures two millimeter pitch one hundred eighty degree wafer connector for reliable wire to board power and signal transmission inside electronic devices. This wafer connector provides three different pin styles for hardware selection, brass pins adopt tin over nickel surface treatment and white Nylon 66 insulator housing reaches UL94 V zero flame retardant grade, it mates with AH2001 series housing, full PCB layout and outline dimension data can be acquired from engineering drawing for circuit board design reference. Its rated voltage reaches one hundred volt AC DC and rated current is two ampere AC DC, it delivers eight hundred volt AC one minute withstand voltage, one thousand megaohm minimum insulation resistance and ten milliohm maximum contact resistance with operating temperature ranging from minus forty degree Celsius to one hundred and five degree Celsius. Users finish through hole soldering on printed circuit boards and lock with matched housing to realize stable circuit interconnection. Operators must follow drawing dimensional tolerances for PCB footprint design avoid excessive insertion force to prevent pin deformation and store goods in dry environment to stop surface oxidation. Unlike competitors purchasing outsourced components Antenk completes full in house workflow including plastic molding terminal stamping assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This connector applies for industrial control instruments digital household appliances display modules and consumer electronic equipment. Please share your pin quantity pin style and project requirements for free sample evaluation and complete technical drawing support.
Tin Plated Wafer Pin delivers stable electrical conductivity and effective anti oxidation performance for wire to board connection systems.
Through Hole Wire Header ensures firm mechanical mounting on printed circuit boards for reliable power and signal transmission.
White Insulator Wafer adopts high flame retardant Nylon 66 material to satisfy diverse electronic assembly application demands.
2.Detailed Specifications of AW2001V‑xxP‑X 2.00mm Pitch 180 Degree Wafer Connector
1. Mechanical Specifications
1.1 Product type: 2.00 millimeter pitch 180 degree wafer connector, three pin style options Type1 Type2 Type3
1.2 Measurement unit: millimeter
1.3 Key dimension: Refer to engineering drawing for complete outline size and PCB layout dimension. Multiple pole counts are available. Insulator color is white. This connector mates with AH2001 series housing. Follow drawing specified dimensional tolerances for printed circuit board design.
1.4 Assembly method: Complete through hole soldering on PCB and cooperate with matching AH2001 series housing to realize stable wire to board power and signal transmission.
1.5 Ordering feature: Optional pole quantity and pin style to satisfy diverse wire to board connection requirements of electronic projects.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Pin: Brass material with tin over nickel plating
2.2 Insulator Housing: Nylon 66, flame retardant grade UL94V‑0
3. Electrical & Environmental Performance Parameters
3.1 Rated voltage: 100 Volt AC DC
3.2 Rated current: 2 Ampere AC DC
3.3 Withstanding voltage: 800 Volt AC per minute
3.4 Insulation resistance: Minimum 1000 Megaohm
3.5 Maximum contact resistance: 10 milliohm
3.6 Operating temperature range: -40℃ to +105℃
4. Usage Method
4.1 Assembly mode: Perform through hole soldering according to official PCB layout drawing, pair with AH2001 series housing to achieve reliable wire to board connection.
4.2 Operation tip: Adopt dimension data shown on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Wire to board signal and power connection for industrial control devices
5.2 Internal circuit connection for digital household appliances
5.3 Interconnection component for display related modules
5.4 Circuit connection for consumer electronic and precision instrument products
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive insertion force to prevent permanent deformation of brass contact pins
6.3 Prevent scratches dirt and mechanical impact on insulator housing and pins before assembly
6.4 Store products in dry environment to avoid oxidation of tin plated surfaces
6.5 Confirm pole quantity and pin style before placing purchase order
6.6 CTA: Submit your hardware requirement pole quantity pin style and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

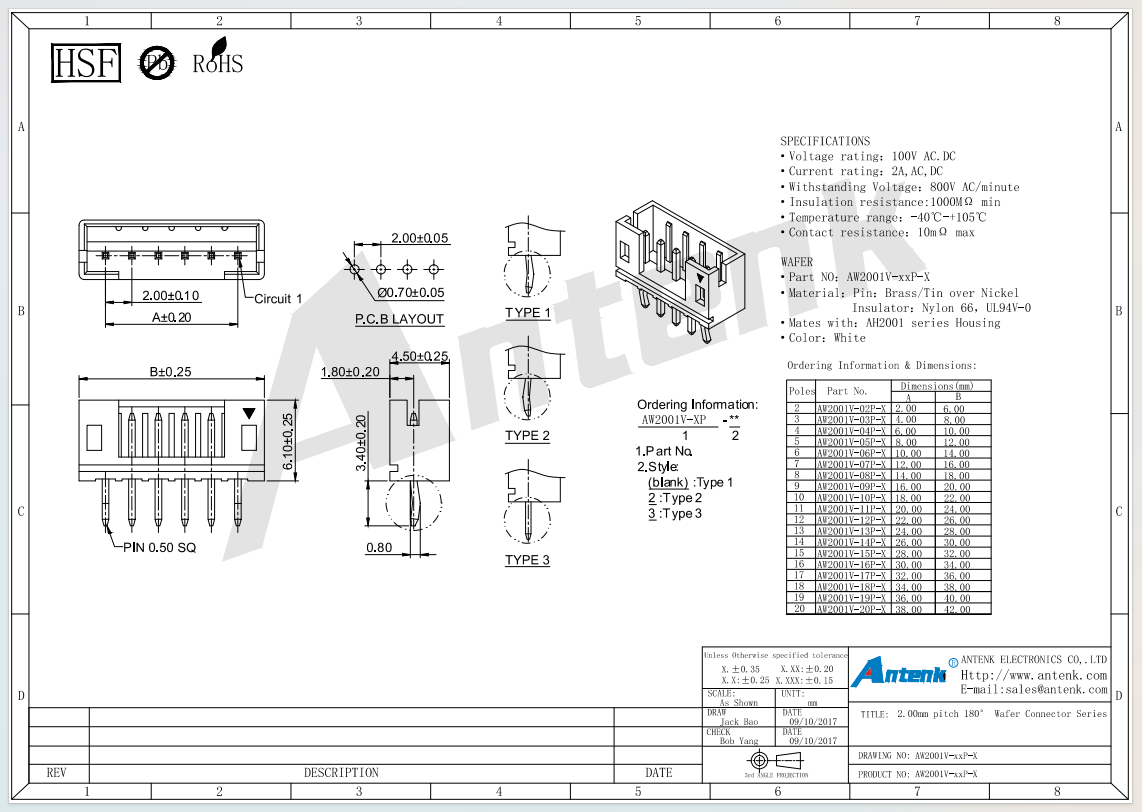

4.Product Drawing
