Product details

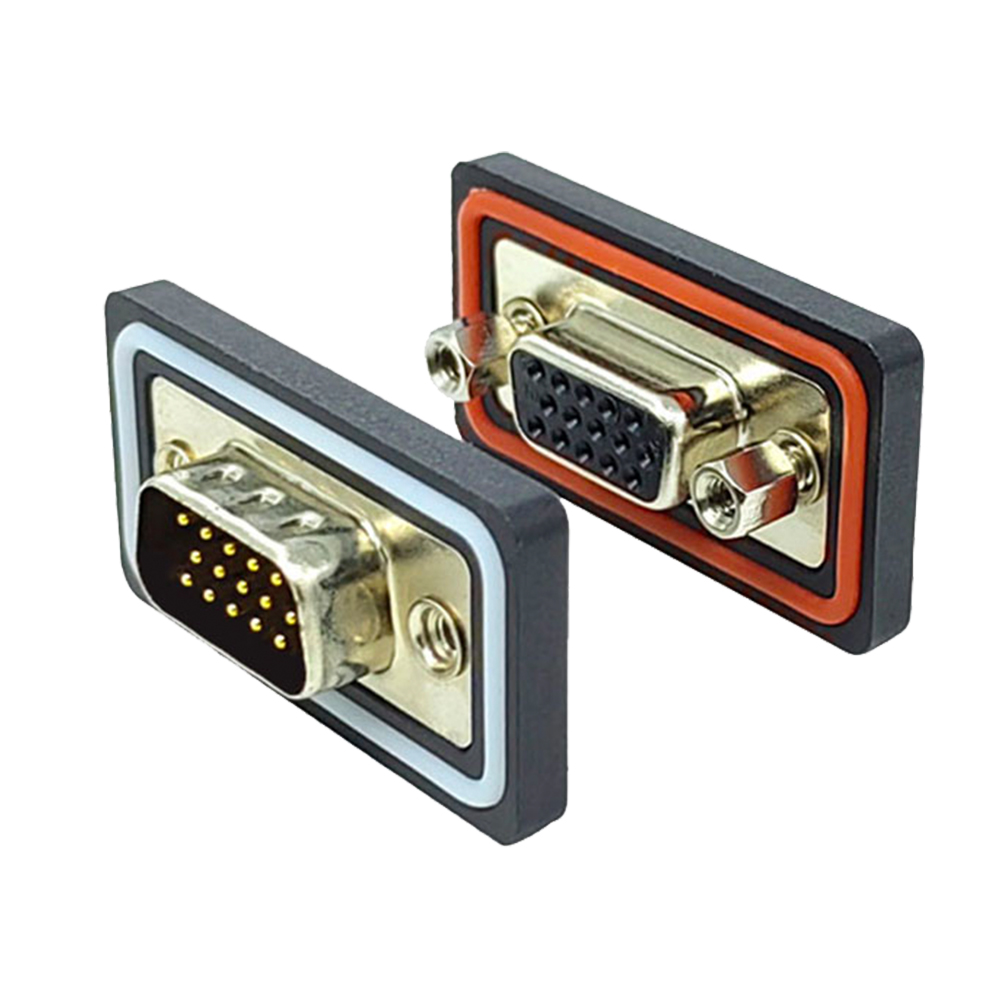

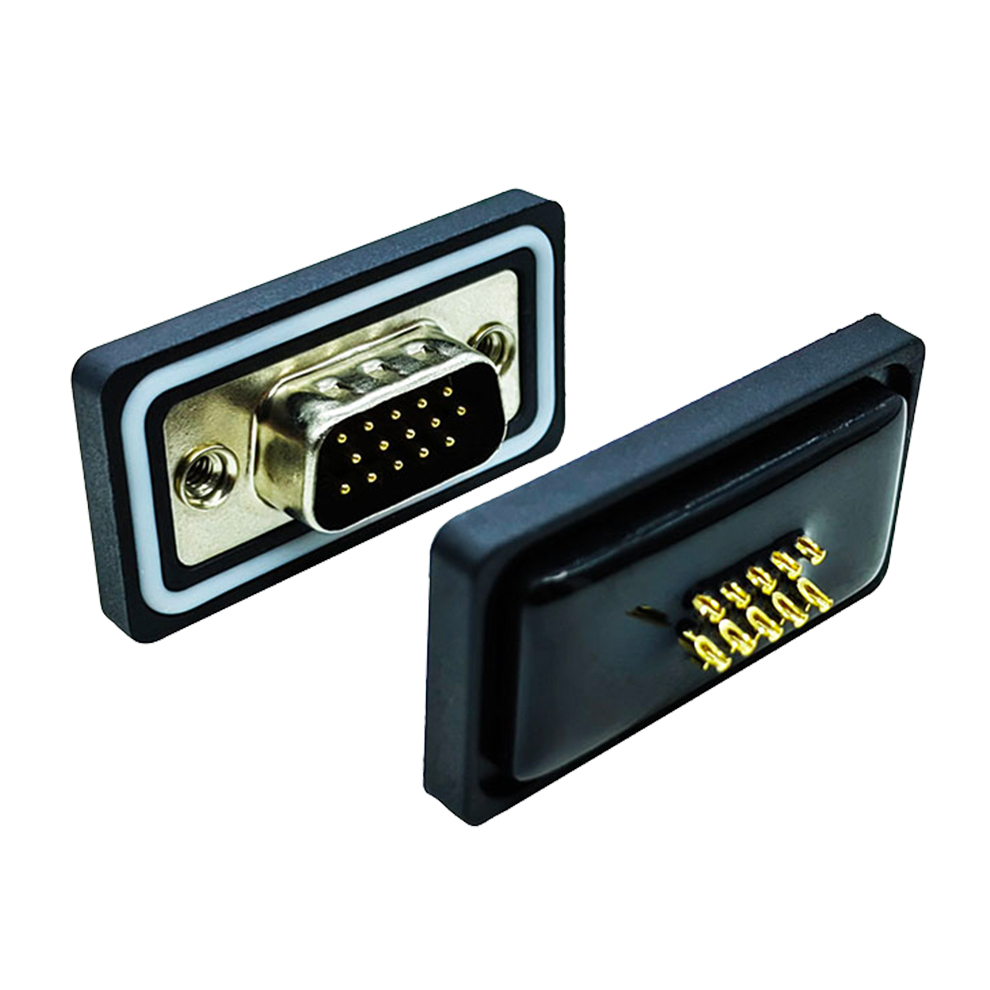

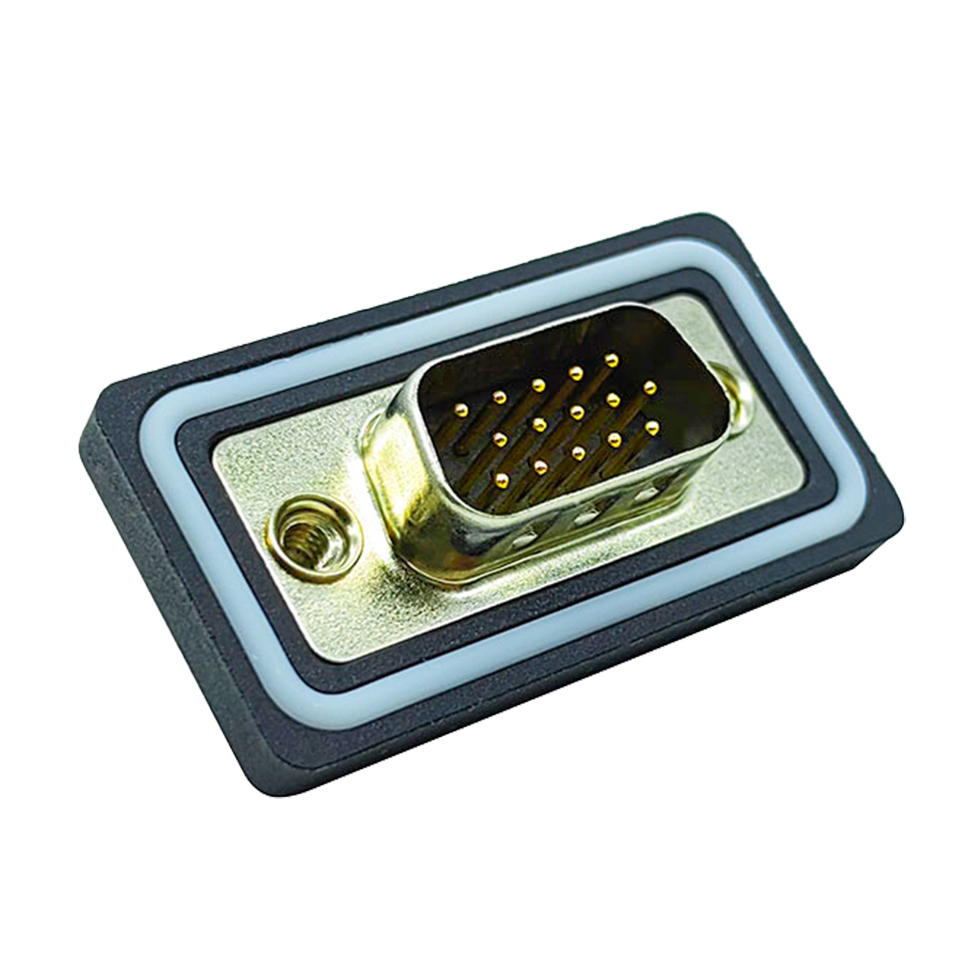

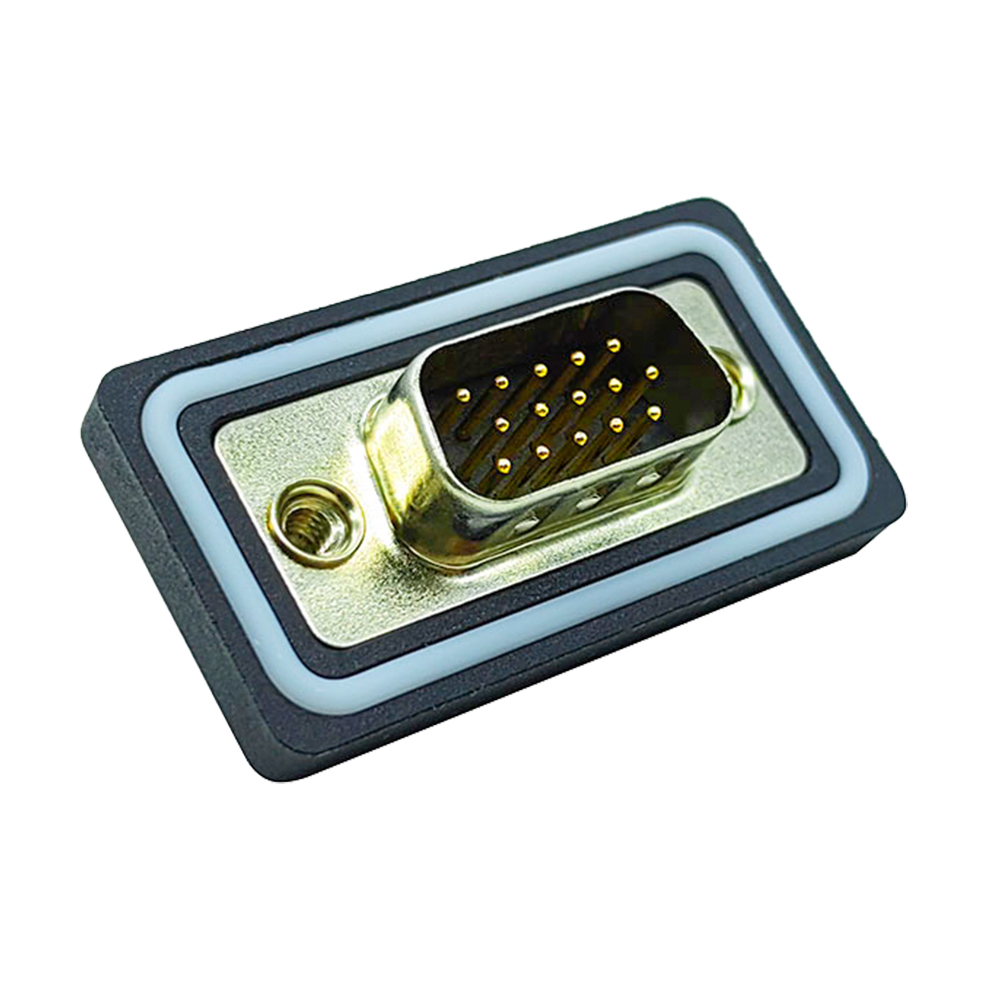

3-Row Male D Sub Connector Hdb15 Male：

This 3-row Ip67 Waterproof Connectors 15 pin is a high-density, high-protection electrical connection component specifically designed for complex and harsh operating conditions. Built upon a standardized D-sub interface structure, a 3-row pin layout, and professional waterproof sealing design, it achieves stable signal transmission and exceptional environmental adaptability. It is widely used in outdoor equipment, industrial control, transportation devices, security monitoring, and other fields that demand high connection reliability and water/dust resistance, solving connection failure and signal interference problems caused by moisture, dust, and extreme temperature variations.

Main Features

Superior Protection Performance: Rated IP67 for water and dust ingress protection. With silicone O-rings and epoxy sealing, it operates reliably in harsh outdoor or industrial environments.

Robust and Durable Construction: The iconic D-shaped metal housing provides excellent electromagnetic interference shielding, while the screw-locking design ensures a secure connection that effectively resists vibration and shock.

High-Density Design: The 3-row, 15-pin configuration offers a higher pin density within the same footprint compared to traditional 2-row designs, meeting the connection requirements of complex equipment.

Reliable Electrical Performance: Contacts are typically made of copper alloy with gold plating, ensuring low contact resistance and long service life.

Typical Applications

Industrial Automation: Used for signal connections between PLCs, CNC machines, industrial sensors, and actuators.

Communication Equipment: Applied in outdoor base stations, network equipment, and other applications requiring waterproof connections.

Transportation: Provides reliable connections in vehicles such as ships and railway systems where vibration and moisture are present.

Medical Instruments: Used in some medical devices that require high reliability and durability.

Technical Specifications

Number of Pins: HDB15(Waterproof connector)

Number of Rows: 3 rows (high density)

Protection Rating: IP67(ip67 d sub)

Rated Voltage: Typically 300V AC

Rated Current: Typically 3A or 5A per pin

Contact Resistance: ≤30mΩ

Insulation Resistance: ≥5000MΩ

Dielectric Withstanding Voltage: 1000V AC

Operating Temperature: -55℃ to +125℃

Shell Material: Nickel-plated steel
