Product details

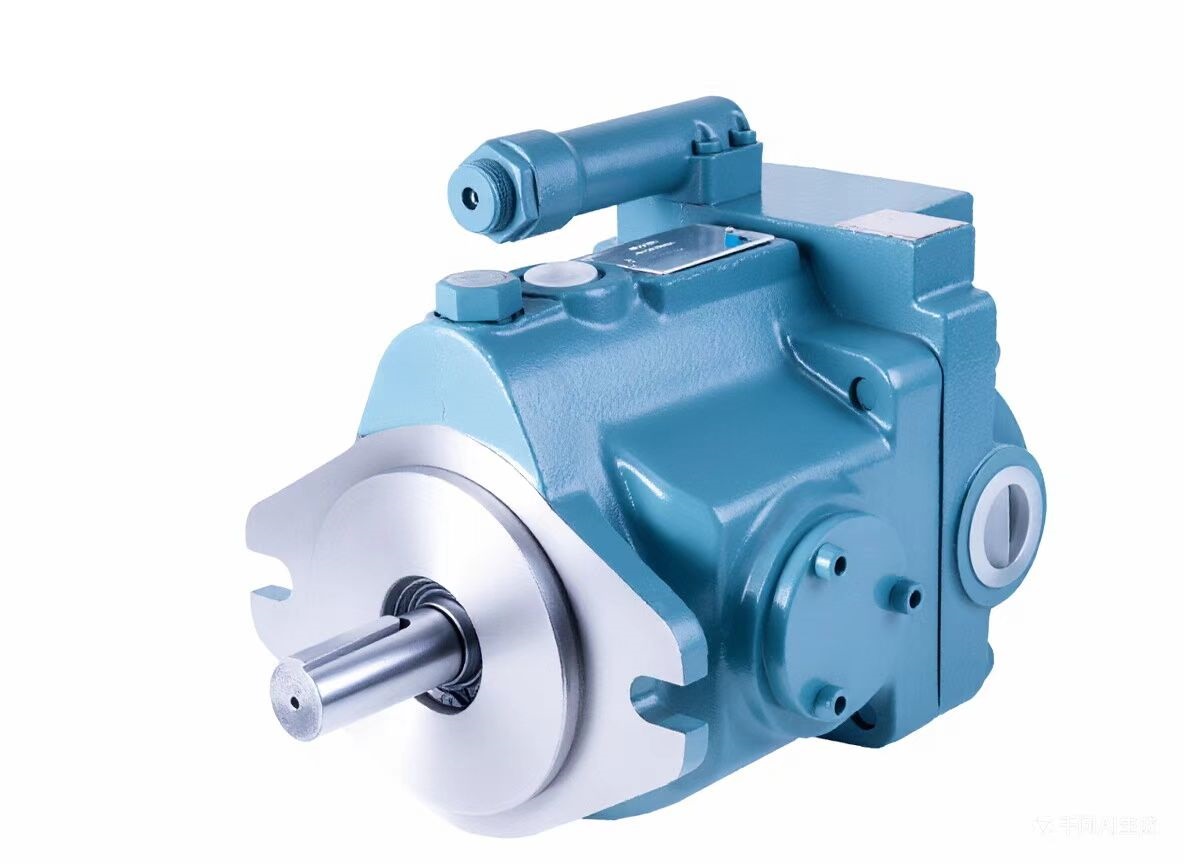

TheV23A1RX-30 Series Piston Pumpis a high-performance variable displacement piston pump manufactured by Daikin (Japan), belonging to its classic V Series. Below is a detailed introduction to this series:

I. Product Features

1. High Reliability

• Utilizes advanced manufacturing processes and high-quality materials to ensure long-term stable operation, suitable for high-load, continuous-duty industrial environments.

2. High Efficiency

• Optimized design minimizes energy loss, improving operational efficiency and reducing energy consumption.

3. Low Noise

• Features a specially designed swashplate angle adjustment function that maintains low noise levels across the full pressure range, enhancing the working environment.

4. Pressure Compensation Control

• Integrates multiple control methods to automatically adjust output flow and pressure based on system demands, achieving energy savings and stable system operation.

5. Easy Maintenance

• Compact structure allows for easy disassembly and maintenance, reducing downtime and lowering maintenance costs.

II. Technical Specifications

• Model: V23A1RX-30 (The V Series also includes models such as V8A, V15A, V38A, V50A, and V70A, covering a wide range of displacement capacities.)

• Displacement: 23 cm³/rev for the V23 series (specific models may vary slightly).

• Maximum Operating Pressure: Medium-pressure pump (4 MPa to 32 MPa), suitable for hydraulic systems with moderate pressure requirements.

• Control Method: Pressure compensation control (automatically adjusts system pressure).

• Rotation Direction: Clockwise (viewed from the pump shaft end).

• Drive Method: Electric motor-driven.

• Medium Temperature: Normal temperature.

• Flow Rate: Approximately 12 m³/h (actual flow depends on pump speed and displacement).

• Power: Approximately 0.7 kW (actual power depends on system pressure and flow requirements).

III. Application Fields

The V23A1RX-30 Series Piston Pump is widely used in various industrial sectors requiring efficient and reliable hydraulic systems, including but not limited to:

• Machine Tools and Lathes: Provides stable hydraulic power for CNC machines and machining centers.

• Forging Equipment: Used in hydraulic systems for metal pressure forming and forging processes.

• Plastic Molding Machines: Offers precise flow and pressure control in injection molding machines and extruders.

• Other Industrial Sectors: Such as shipbuilding, construction machinery, and metallurgical equipment.

IV. Model Expansions and Variants

The V Series piston pumps come in multiple models and variants to meet different application requirements. For example:

• V23A2RX-30: Similar to the V23A1RX-30 but may differ in control methods or performance parameters.

• V23A3RX-30: May have higher displacement or pressure ratings for higher-load applications.

• V23A1RX-30RC: A model with special control functions or interfaces for specific system requirements.

V. Market and Supply

• Brand and Origin: Manufactured by Daikin (Japan); some models may be assembled or distributed in other regions such as China.

• Market Price: Prices vary by model, supplier, and purchase quantity. For example, the V23A3RX-30 may range from several hundred to several thousand USD.

• Availability: Can be purchased through Daikin's official distributors, agents, or online platforms (e.g., Alibaba, Amazon, etc.).
