| Item | Description |

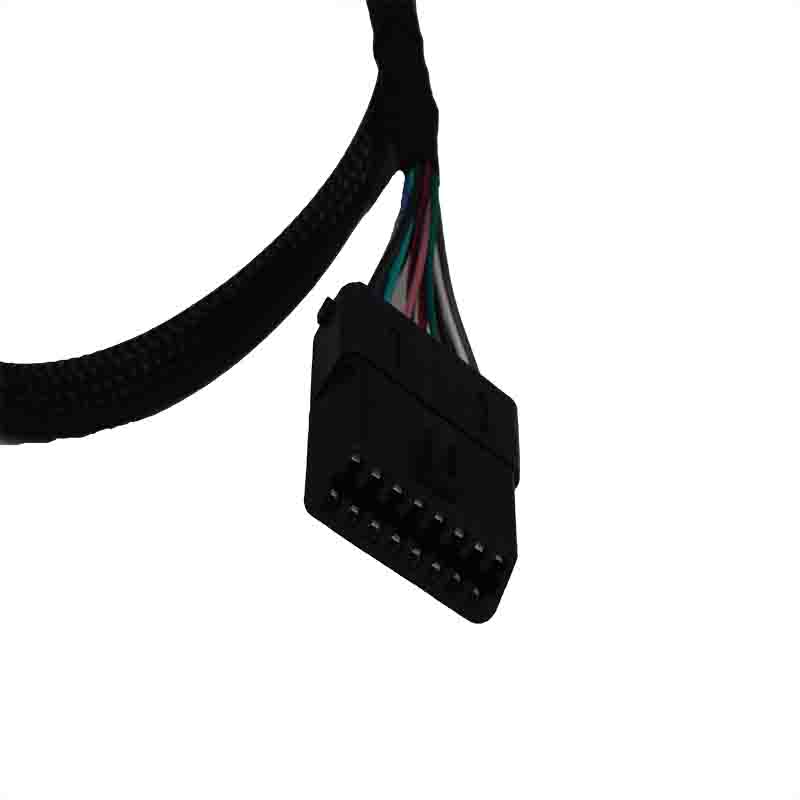

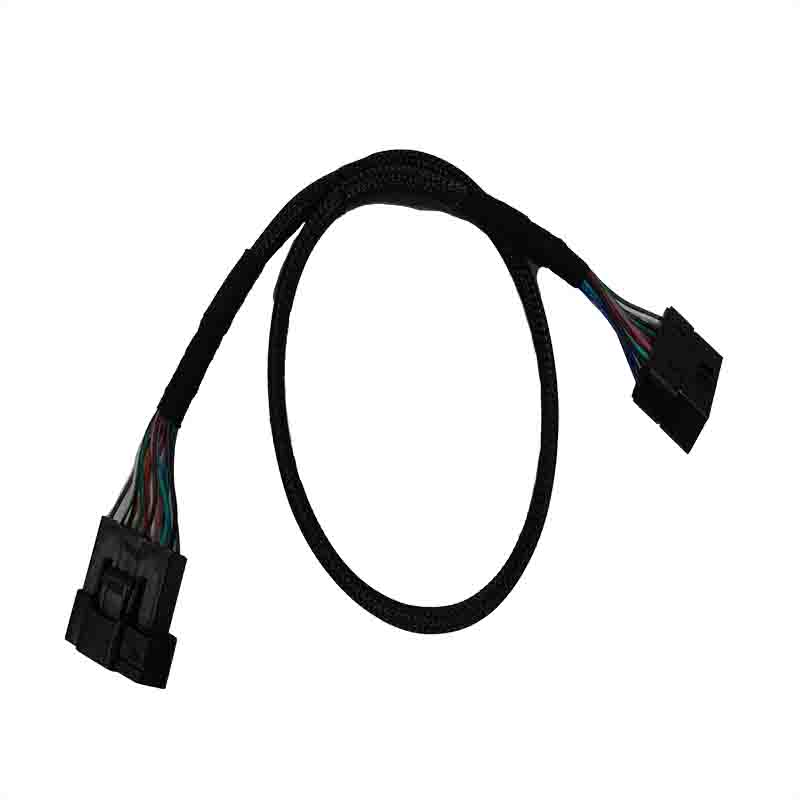

| Product Name | Assembled Black OBD Harness Male to Female |
| Core Structure | Straight-through OBD2 16Pin extension harness: one end is P1 OBD-II 16P male connector, the other end is P2 OBD-II 16P female connector, with a total wire length of 670±20mm |
| Length | Total wire length: 670±20mm; single wire length: 650mm; black braided mesh tube length: 550mm; exposed wire section at both ends: 30±5mm |
| Appearance Features | 1. Wire & Wrapping: 16-core multi-color automotive-grade wires (24AWG/20AWG), fully wrapped with black braided mesh tube for abrasion resistance; 30±5mm exposed wire sections at both ends, neatly arranged 2. Connectors: Standard OBD2 16P male/female connectors with black plastic housing and locking buckles, P1 end with no exposed terminals 3. Dimensions: Total length 670±20mm, braided tube length 550mm, compliant with drawing tolerances 4. Compliance: RoHS compliant, neat craftsmanship, 100% factory inspection |
| Key Performance | 1. Electrical Characteristics: 100% continuity test (no open/short circuit), conduction resistance ≤3Ω, insulation resistance ≥10MΩ, DC withstand voltage 300V 2. Mechanical Performance: Secure connector locking, firm crimping, excellent bending resistance and wear resistance 3. Environmental Adaptability: Stable performance in automotive working environments, resistant to high/low temperatures, oil and vibration |
| Core Material & Pinout | 1. Wire: 16×UL1007 24AWG/20AWG multi-color automotive-grade wires, length 650mm 2. Connectors: 1×OBD-II 16P male connector, 1×OBD-II 16P female connector, with matching terminals and buckles 3. Wrapping: Black braided mesh tube (550mm length), 2PCS 4. Accessories: Black cable tie for packaging, PE bag for outer packaging |
If you are interested in the product, contact 2bvideo.com for more information for more information
