Product details

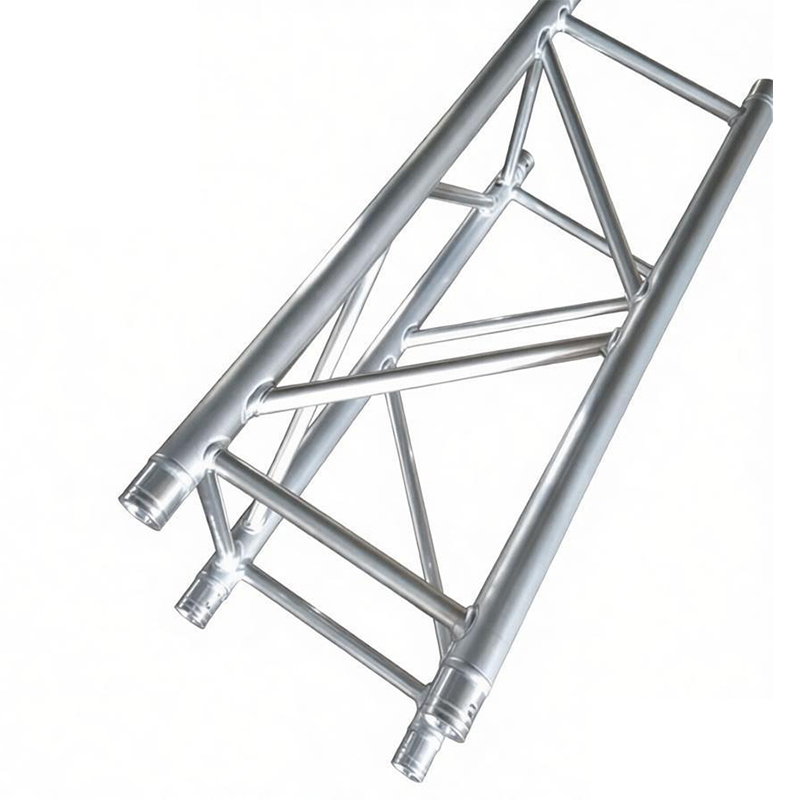

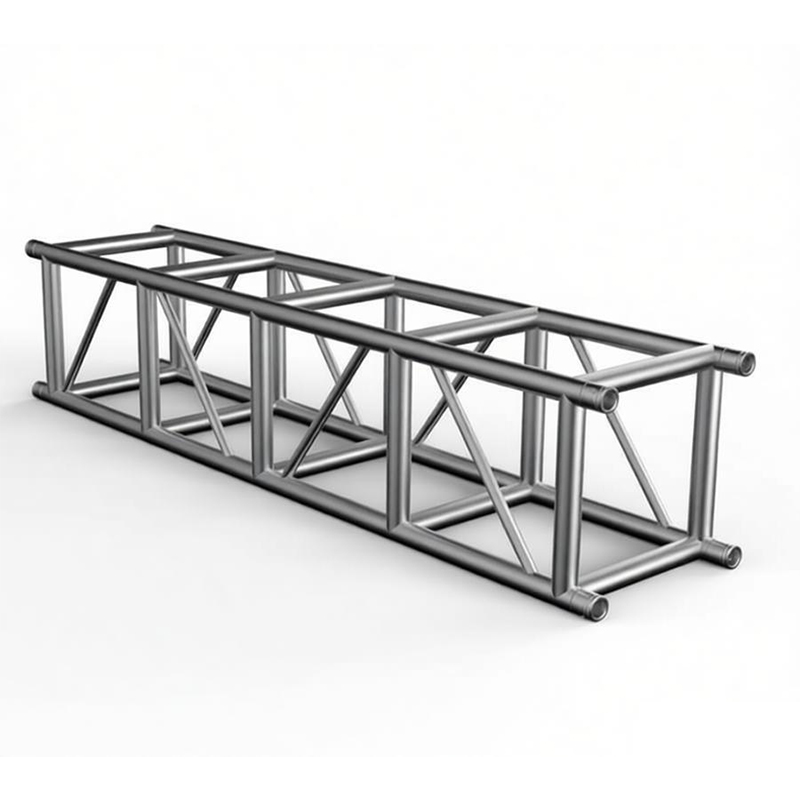

The 209 pin truss is a heavy-duty aluminum alloy quick-assembly truss for exhibitions, stages, and event setups. The portable lighting truss features a 290mm × 290mm cross-section and a pin-type quick-assembly structure, offering high strength, high versatility, and rapid assembly/disassembly.

Specifications of modular truss 209 pin connection

Cross-section dimensions: 290mm × 290mm

Material: 6061‑T6 aluminum alloy

Main tube: φ50mm round tube / 50×4mm square tube

Web member: φ20–25mm round tube

Section lengths: 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 4m

Connection method: pin + cone pin / spring pin

Surface treatment: anodizing / electrostatic spraying

Advantages of Tube Truss

Quick-assembly pin, high efficiency

Stage Lighting Truss: single truss section can be completed within 10 seconds, no wrench/bolts required; assembly/disassembly speed is 3–5 times faster than bolted trusses, suitable for large exhibitions, concerts, and temporary stages.

High rigidity, strong load-bearing capacity

2m span: load approx. 300–500kg

4m span: load approx. 150–300kg

Suitable for hanging heavy equipment such as lighting, sound systems, LED screens, chandeliers, and display racks.

Good stability, safe and reliable

Square cross-section + diagonal web members, strong torsion/bending resistance; pin positioning + cone pin anti-loosening, high repeat positioning accuracy, not easy to loosen.

High versatility, flexible combination

Theater Stage Truss: can be freely combined in straight, right-angle, curved, gantry, tower, and ceiling forms; universally compatible with same-spec 290 trusses, compatible with various connectors, bases, and hangers.

Lightweight, easy to transport and store

Aluminum alloy is 60% lighter than steel; a 2m section weighs approx. 8–12kg, portable by one person; stacking occupies little space, low cost.
