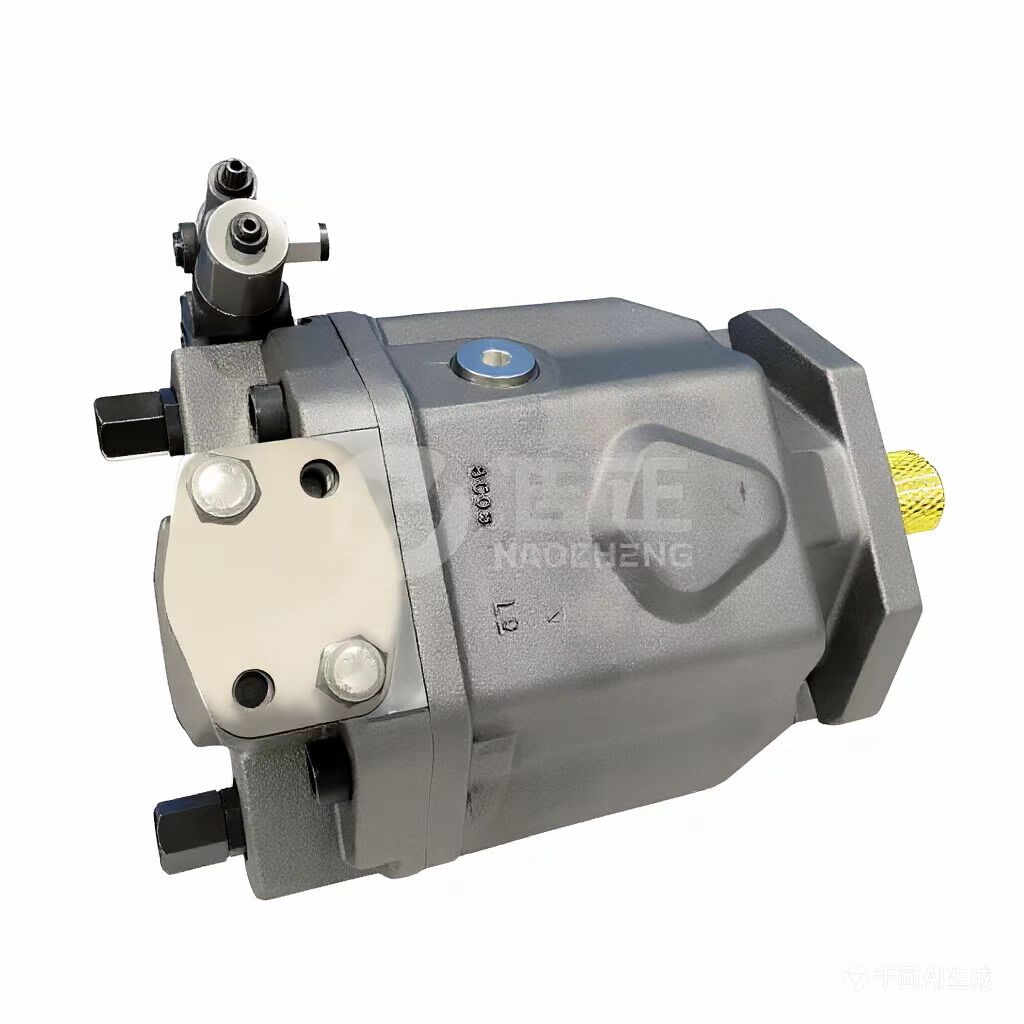

A10VSO100DFR1/31R-PPA12N00 Hydraulic Piston Pump: Detailed Information

I. Product Overview

The A10VSO100DFR1/31R-PPA12N00 is a high-performance axial piston variable pump from the German brand Rexroth. It is widely used in hydrostatic drive systems within open circuits, designed to meet the demands for high pressure, high efficiency, and precise control. It is suitable for applications in industrial machinery, construction machinery, metallurgical machinery, mining machinery, and other fields.

II. Product Features

1. Swashplate Structure: Utilizes a swashplate-type axial piston design for efficient hydrostatic transmission in open circuits.

2. Variable Displacement Control: Achieves stepless variable displacement by adjusting the swashplate inclination angle, with flow rate proportional to drive speed and displacement, meeting varying flow demands under different operating conditions.

3. High Pressure Capacity: Rated pressure up to 28 MPa (280 bar), capable of withstanding high-load working conditions.

4. Low Noise and Long Lifespan: Optimized design reduces operational noise while enhancing wear resistance and durability, extending service life.

5. Multiple Control Options: Offers pressure control, flow control, and pressure-flow composite control, enabling rapid response and adaptation to different application requirements.

6. Through-Shaft Drive Capability: Can be combined with gear pumps or axial piston pumps of the same specifications to form compound pumps, expanding application scope.

III. Technical Specifications

• Model: A10VSO100DFR1/31R-PPA12N00

• Nominal Displacement: 100 ml/r

• Rated Pressure: 28 MPa (280 bar)

• Maximum Speed: 2000 rpm (some sources mention 1700 r/min or 1800 rpm; refer to actual product specifications)

• Control Method: Pressure-flow composite control (DFR1 indicates hydraulic X-T flow controller with flushing function)

• Rotation Direction: Clockwise when viewed from the drive shaft (R)

• Series: 31 Series

• Through-Shaft Drive: Supported (N00 indicates no through-shaft drive, but combination applications can achieve through-shaft drive)

IV. Application Areas

The A10VSO100DFR1/31R-PPA12N00 hydraulic piston pump is widely applied in the following fields:

• Industrial Machinery: Hydraulic systems for machine tools, plastic machinery, rubber machinery, etc.

• Construction Machinery: Hydraulic systems for excavators, loaders, cranes, etc.

• Metallurgical Machinery: Hydraulic systems for blast furnaces, converters, continuous casting machines, etc.

• Mining Machinery: Hydraulic systems for crushers, screeners, etc.

V. Product Advantages

• Efficient and Stable: The efficient transmission system and precise control system ensure consistent output pressure and flow during operation.

• Wear-Resistant and Durable: High-quality materials and precision machining processes enhance wear resistance and durability, reducing maintenance costs.

• Energy-Saving and Environmentally Friendly: Optimized design and improved energy efficiency effectively reduce energy consumption and emissions.

• Intelligent Control: Some models feature intelligent control systems capable of real-time monitoring of pump operating status, enabling timely detection and resolution of potential issues.
