| Item | Description |

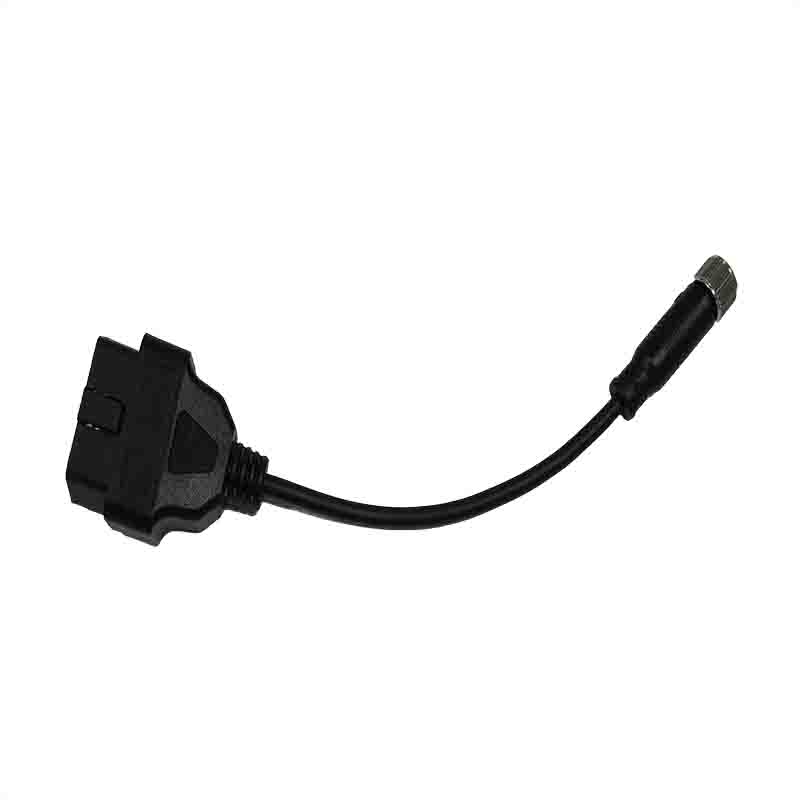

| Product Name | Custom OBDII 16Pin Male to M12 4Pin Waterproof Female Cable |
| Length | Total cable length: 200±20mm Coiled packaging dimensions: 160×240mm |
| Core Structure | Straight-through connection harness: • One end: P1 OBD II 16P male connector (standard automotive diagnostic interface) • The other end: P2 M12-4P waterproof female connector (with locking nut, IP-rated) |

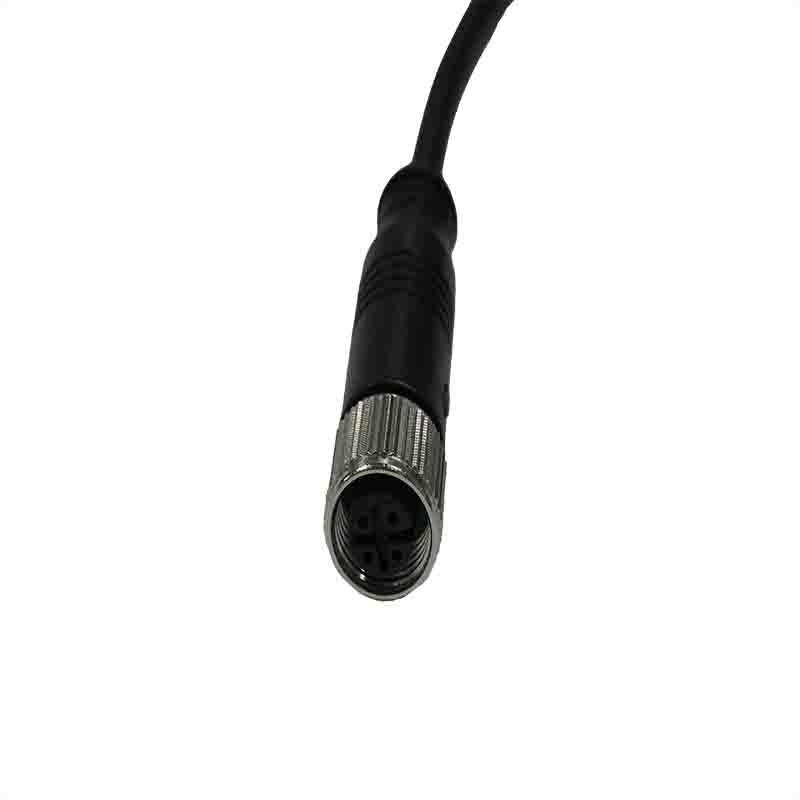

| Appearance Features | 1. Connectors: - P1: Black OBD II 16P male plug (standard automotive design with locking tab) - P2: Black M12-4P waterproof female plug with metal locking nut, suitable for outdoor/industrial environments 2. Wire & Sheath: UL2464 4C×22AWG multi-core wire, outer sheath made of semi-matte black PVC (80P), temperature-resistant from -40℃ to +85℃ 3. Protection: Waterproof ring on M12 connector for dust/water resistance; strain relief at both ends for anti-pull protection 4. Color Coding: Core wire colors: brown, blue, white, green (pins defined: P1 pin3→P2 pin1, pin4→pin3, pin11→pin4, pin16→pin2) 5. Compliance: RoHS compliant, 100% electrical testing, neat craftsmanship |
| Product Advantages | 1. Waterproof & Durable: M12 waterproof connector design, suitable for harsh outdoor/industrial environments 2. Reliable Signal Transmission: High-quality multi-core wire with stable conductivity, ensuring accurate data transmission 3. Universal Compatibility: Standard OBDII interface, works with all OBD-compliant vehicles 4. Customizable: Support customized wire length, connector type, pin definition according to demand |
| Core Material Specifications | 1. Connectors: 1×OBD II 16P male plug, 1×M12-4P waterproof female plug (with sealing ring and locking nut) 2. Wire: UL2464 4-core×22AWG automotive-grade wire (brown/blue/white/green) 3. Protection: Black PVC outer sheath, strain relief, waterproof ring 4. Packaging: PE bag (with hole), cable tie, carton |
If you are interested in the product, contact 2bvideo.com for more information for more information
