Custom CAN Cable assembly

4 month ago

5 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

FUBON has years of experience in designing and manufacturing tailored connectivity solutions for automotive and industrial communication systems. We specialize in creating high-quality customized car wiring harness and robust industrial assemblies that perform reliably in even the harshest environments. Our custom wire harness assembly services are built to meet the exact specifications of each customer’s unique use case.

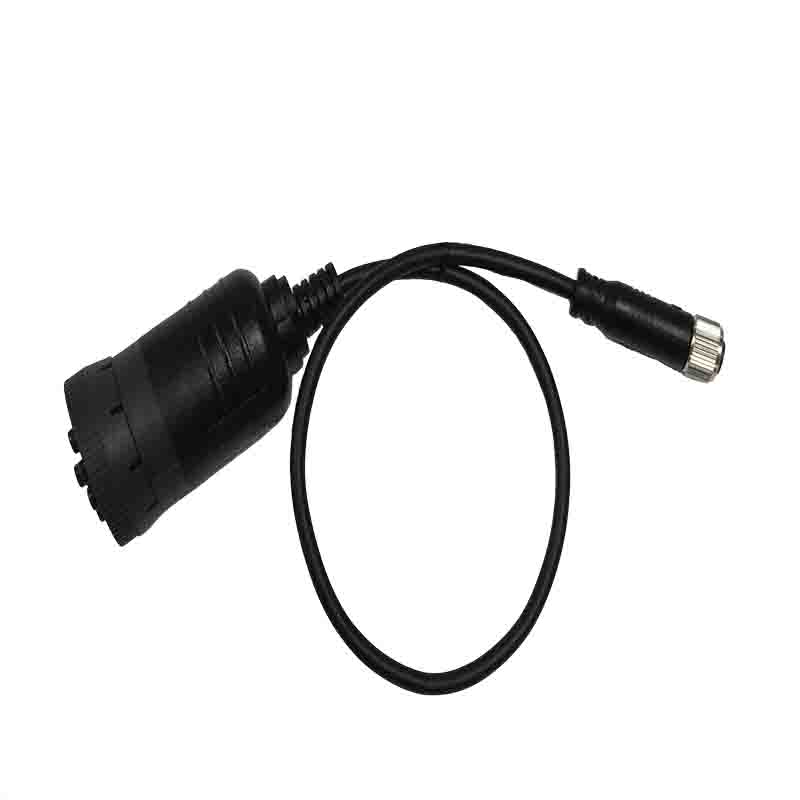

This custom CAN cable is a prime example of our engineering expertise. As a custom electrical wiring harness purpose-built for CAN bus communication, it features a rugged M12-4Pin waterproof female connector on one end and a heavy-duty 9Pin round male connector on the other. Designed to maintain stable signal transmission in high-vibration, dust-prone environments, it is widely used in heavy-duty trucks, construction machinery and fleet management systems.

Item	Description
Product Name	Custom CAN Cable assembly
Length	Total cable length: 500±20mm Coiled packaging dimensions: 160×240mm
Core Structure	Straight-through communication harness: • One end: P1 M12-4Pin female waterproof connector (industrial-grade) • The other end: P2 9Pin male round connector (heavy-duty vehicle/industrial standard)

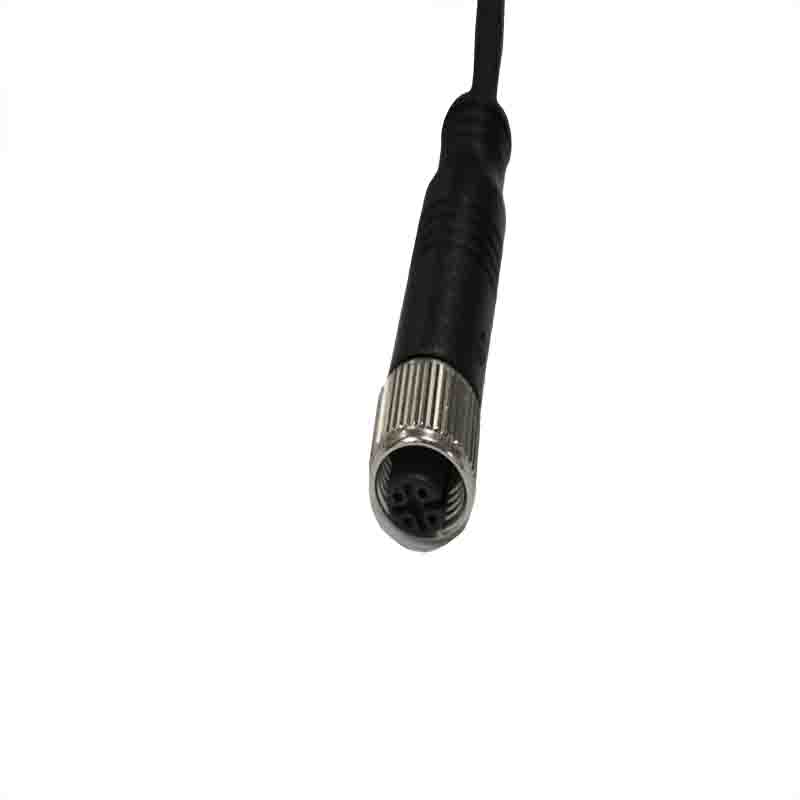

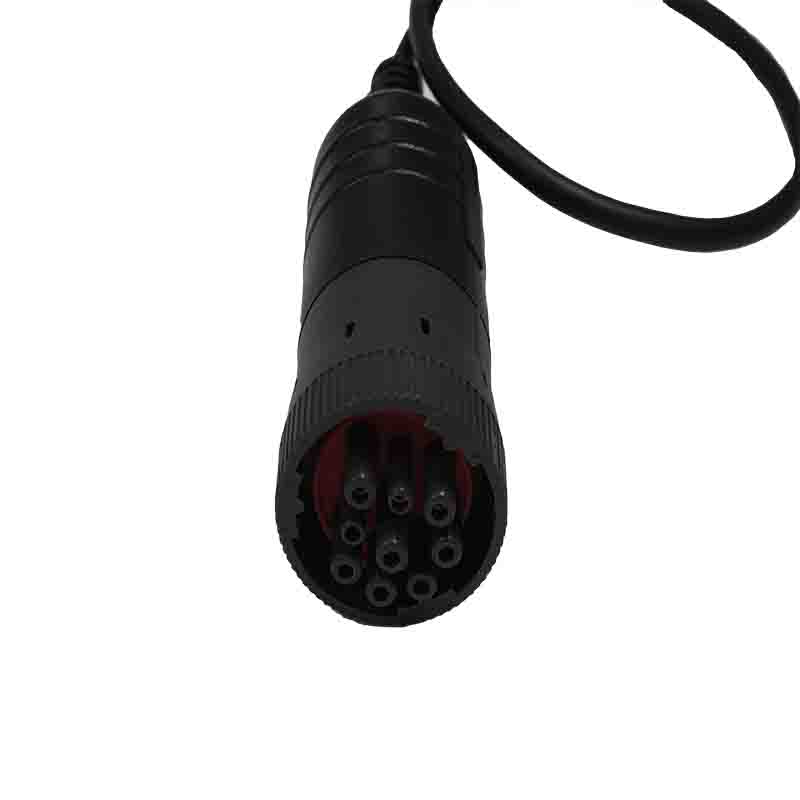

Appearance Features	1. Connectors: - P1: Black M12-4Pin waterproof female plug with metal locking nut (IP-rated, dust/water resistant) - P2: Black 9Pin round male plug with threaded locking ring (for secure connection in heavy-duty environments) 2. Wire & Sheath: Black multi-core twisted-pair wire (green/brown/white/blue color coding), with durable outer sheath 3. Protection: Strain relief at both ends to prevent wire damage; all connectors are fully molded for rugged use 4. Pinout: P1 pins mapped to P2 pins (4→A, 1→B, 2→C, 3→D) for CAN communication signals 5. Compliance: RoHS compliant, 100% electrical tested, no short/open circuit issues
Product Advantages	1. Rugged & Waterproof: IP-rated connectors, suitable for harsh outdoor/industrial environments 2. CAN Bus Optimized: Twisted-pair design ensures stable, interference-resistant communication 3. Customizable: Supports custom pinouts, lengths, and connector types to match specific CAN system requirements 4. Durable Construction: Fully molded connectors and strain relief ensure long service life in high-vibration environments
Core Material Specifications	1. Connectors: 1×M12-4Pin female waterproof plug, 1×9Pin round male plug 2. Wire: Multi-core twisted-pair CAN cable (green/brown/white/blue) 3. Protection: Black outer sheath, strain relief, locking nuts on both ends 4. Packaging: PE bag, cable tie, carton

Constructed with high-quality twisted-pair conductors, this custom wiring harness minimizes electromagnetic interference to ensure reliable data exchange. The cable is fully sheathed in durable black PVC, with reinforced strain relief at both ends to prevent damage from repeated use or movement. With a total length of 500±20mm, it offers a compact yet flexible fit for a variety of installation scenarios..

As part of our comprehensive custom cable assembly service, this product can be modified with different connector types, lengths and pinouts to suit your specific CAN system requirements. Whether you need a standard solution or a fully tailored design, FUBON delivers durable, high-performance connection products that keep your systems running smoothly.
