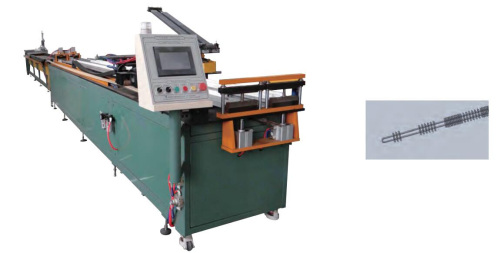

Hydraulic Push-Type Tube Expander: An efficient helper for precise connections

This special unit is designed for refrigerator evaporator fin tube insertion. As a professional In-Line Evaporator Core Assembly Machine, it replaces conventional manual fin insertion with fully automatic operation, greatly saving labor and lifting production efficiency. The whole line boasts compact structure, simple operation, stable transmission, high productivity and consistent product quality. As core Equipment For Heat Exchanger, it runs steadily for long-term mass production.

Main technical performance parameters

Suitable raw material: aluminum fin (thickness 0.16-0.2mm);

Inserting machine size:

Four stations: 6500800 (length * width); stretching machine size: 8000700 (length * width)

Inserting speed: 10 - 20M/min

The output number: 2 / times

Remove: cylinder mold release

Capacity: about 10KVA (380V, 50Hz)

Device color: green

This In-line Type Evaporator Processing Equipment consists of a machine frame, working table, automatic inserting trolley, inserting die, release device and an electric control box etc. Pressure aluminum tube device of the table is also equipped with a three pipe expansion; to achieve the release strip must be replaced and inserting die.
