Product details

ip67 cable connector 17 pin Main Application Areas

1. Industrial Automation and Control

This is the core application scenario of the ip67 connector 17 pin.pcb to wire connectors .

Application scenarios: industrial robots, CNC machine tools, automated assembly lines, servo motor control systems.

2. Outdoor Communication and Network Equipment

With excellent sealing performance (usually reaching IP67/IP68 ), it is very suitable for equipment exposed to the natural environment.

Application scenarios: outdoor base stations, outdoor LED displays, security surveillance cameras (especially those with pan‑tilt and heating functions), outdoor broadcasting systems.

3. Transportation and Special Vehicles

Vehicles operate in complex environments with heavy vibration and possible water exposure, requiring highly reliable connections.

Waterproof connector technical specifications:

Parameter: Specification

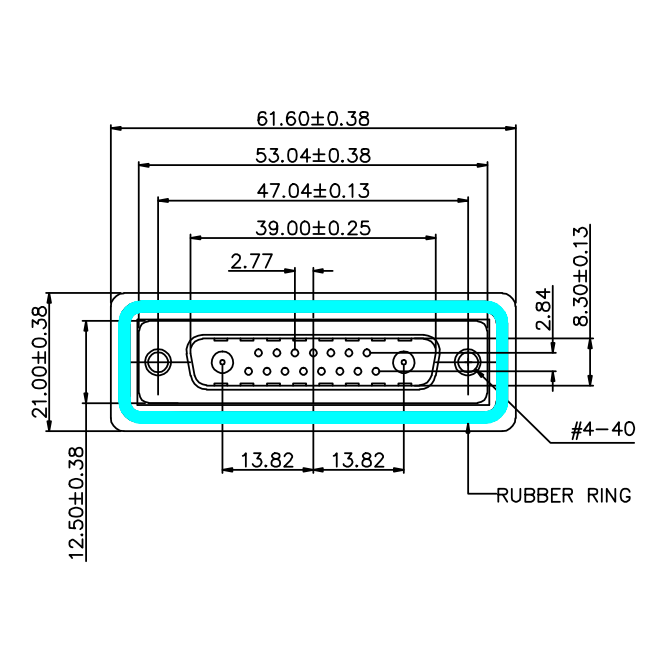

Contact Layout : ip67 panel mount connector 17W2

Protection Rating : IP67(ip67 d sub)

Rated Current : 10A / 20A / 30A / 40A (Customizable)

Rated Voltage: 250V

Contact Resistance: ≤15mΩ

Insulation Resistance: ≥2000MΩ

Dielectric Withstand Voltage： 750V AC / 1min

Operating Temperature： -55°C ~ +105°C

Contact Material： Brass / Pure Copper, Gold Plated

Insulator Material： PBT + 30% Glass Fiber (UL94 V-0)

Shell Material： Aluminum Alloy / Cold Rolled Steel (Nickel Plated)

Mechanical Durability： ≥1000 Mating Cycles

Locking Mechanism： Threaded Locking (Jackscrews)
