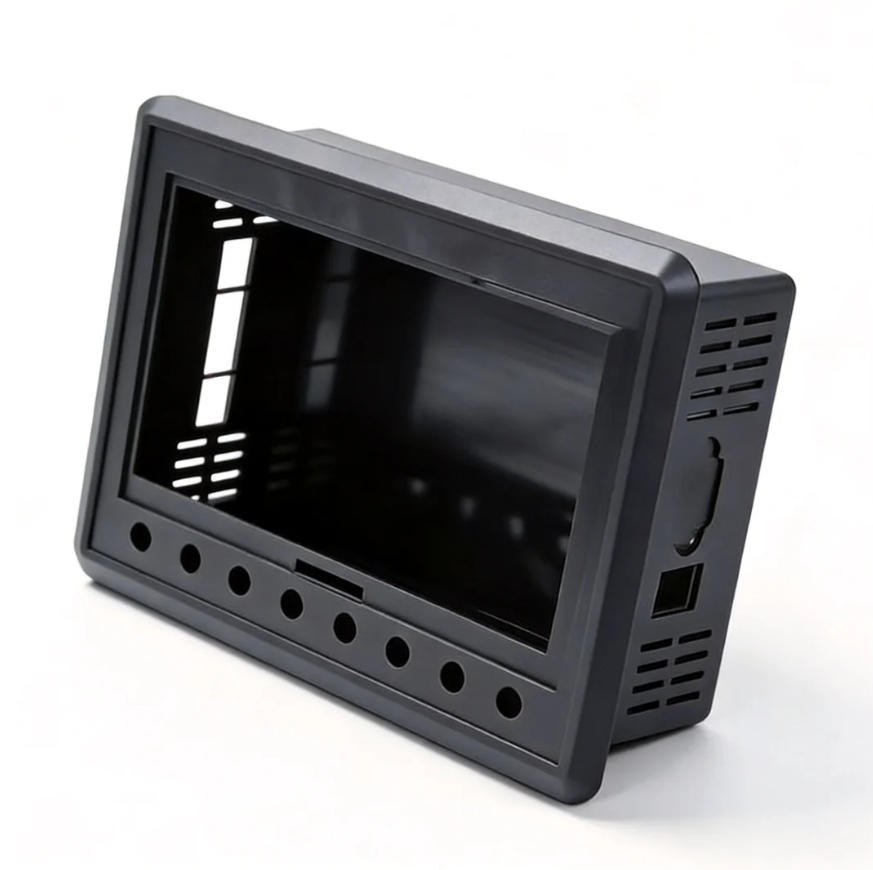

Industrial Machine Control Panel Plastic Mould
Product Summary
Our Industrial Machine Control Panel Plastic Mould is a professional precision solution for industrial equipment manufacturers, focusing on wear-resistant, insulated, and high-precision control panel molding. As a core Custom Plastic Injection Tooling and Precision Mold Design and Build product, it meets strict industrial requirements for installation accuracy, corrosion resistance, and long-term stable use. Complementing our portfolio—including ABS Plastic Electrical Control Box Mould, Custom Plastic Battery Pack Enclosure Mould, Medical Patient Monitor Housing Plastic Mould, Custom Plastic PVC Pipe Cross Fitting, and Heavy Duty Plastic Pallet Injection Mould—it provides one-stop injection molding services to promote the efficient development of the industrial equipment manufacturing industry.
Product Overview
Specializing in precision injection molds and finished parts for industrial machinery control panel plastic shells, our product serves industrial equipment supporting precision mold manufacturing and industrial automation control supporting industries. Unlike small appliance molds such as Coffee Maker Plastic Housing Injection Mould or new energy molds like Custom Plastic Battery Pack Enclosure Mould, this mold is engineered for industrial control scenarios, solving core pain points: ultra-high installation precision, industrial-grade corrosion resistance, temperature resistance, and batch production consistency. We deliver a one-stop solution to enable mass production of high-quality control panels, helping customers reduce costs and enhance competitiveness in the global industrial equipment market.
Durability
Durability is a core concern for global B2B purchasers of industrial control panel moulds, and our product excels in long-term stable performance under harsh industrial conditions. Crafted from high-quality engineering plastics (flame-retardant ABS, PC/ABS alloy, modified PP), the control panels boast excellent toughness, resisting cracking during equipment transportation, installation, and collision. They maintain stability in a wide temperature range of -20℃ to 70℃, without cracking or deformation even under long-term temperature fluctuations, meeting the full life cycle requirements of industrial equipment. The surface is scratch-resistant and wear-resistant, retaining a neat appearance after long-term use in industrial workshops. Additionally, the panels are corrosion-resistant to engine oil, lubricating oil, and cutting fluid, avoiding swelling or degradation. The mold uses P20HH pre-hardened mold steel (upgradable to S136 corrosion-resistant mirror steel), with two rounds of stress relief annealing and nitride hardening treatment, ensuring over 300,000 cycles of service life and stable dimensional accuracy for long-term mass production.
Product Features
Our molds stand out with industrial-specific advantages. Ultra-high precision (±0.05mm installation hole tolerance) ensures precise positioning of electrical components and switches, suitable for automated assembly lines with a 99.8%+ assembly pass rate. Tight panel contour fitting (±0.08mm tolerance) with equipment cabinets ensures dust and waterproof protection. Stable insulation performance meets industrial electrical safety standards, while corrosion resistance adapts to harsh workshop environments. The panel surface offers customizable textures (matte, frosted, high-gloss) with precise silk screen positioning, ensuring clear logo and scale printing. Multi-cavity flow balance design ensures minimal batch size deviation and good interchangeability, reducing unit production costs.
Technical Specifications
Detailed parameters for global purchasers: size customization from 100mm×80mm (small instruments) to 1200mm×600mm (large machine tools), compatible with flat, curved, and irregular structures. Applicable materials: flame-retardant ABS, PC/ABS alloy, modified PP, with customizable UV-resistant, low-temperature resistant, and anti-static modifications. Wall thickness: 1.5mm-2.5mm (main body), 2.0mm-3.0mm (installation columns/edges). Dimensional accuracy: panel curvature ≤0.2mm/m, installation hole tolerance ≤±0.05mm. Mold service life: over 300,000 cycles. Cavity design: 1-in-2/1-in-4 (small/medium panels), 1-in-1 (large machine tool panels). Compatible injection molding machines: 200T-600T (small/medium), 600T-1200T (large).
Application Scenarios

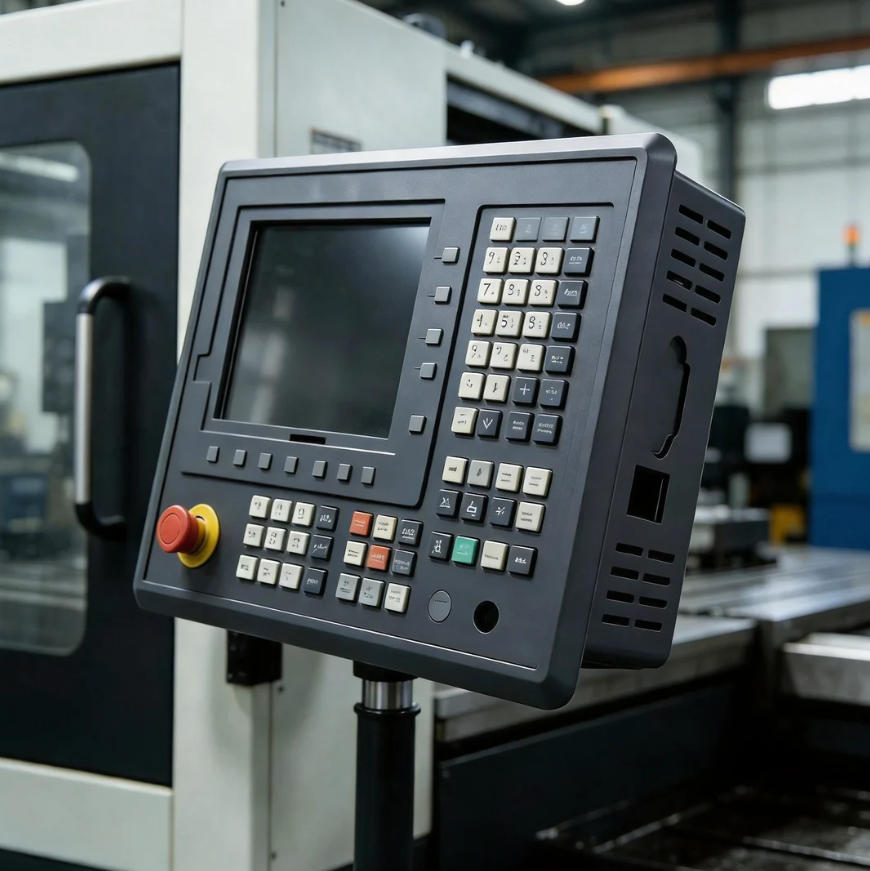

Our molds cover diverse industrial scenarios: CNC machine tools and machining center control panels, industrial automation production line operation panels, construction machinery control panels, food processing machinery control panels, medical testing equipment operation panels, packaging and printing machinery control surfaces, new energy equipment control panels, and port/logistics machinery control panels. We also support non-standard customization for other industrial machine control panels, complementing our Medical Patient Monitor Housing Plastic Mould to expand industrial and medical equipment solutions.
Certifications and Compliance
Our molds and finished panels fully comply with industrial plastic control panel quality and safety standards. We have a dedicated quality control system covering raw material insulation/flame-retardant testing, 3D cavity inspection, first-piece assembly verification, and batch sampling. We also provide technical support for customers to complete equipment safety certification, ensuring seamless market access worldwide.
Customization Options
We offer flexible customization: size (100mm×80mm to 1200mm×600mm), structure (flat/curved/irregular), material (conventional/modified), surface texture (matte/frosted/high-gloss), and cavity design (1-in-1/1-in-2/1-in-4) based on production capacity and industrial equipment needs.
Our strict process ensure
FAQ
Q1: Is the panel suitable for harsh industrial environments?
A1: Yes, it is corrosion-resistant to oil and cutting fluid, with temperature resistance of -20℃ to 70℃ for long-term use.
Q2: What is the mold service life?
A2: Over 300,000 cycles, upgradable to S136 steel for longer use.
Q3: Can you customize anti-static panels?
A3: Yes, we offer anti-static modification to meet special industrial needs.
Q4: Is the mold suitable for automated assembly?
A4: Yes, ±0.05mm hole precision ensures compatibility with automated production lines.
Q5: Lead time for customized molds?
A5: 20-30 days, with urgent development support for equipment launches.
