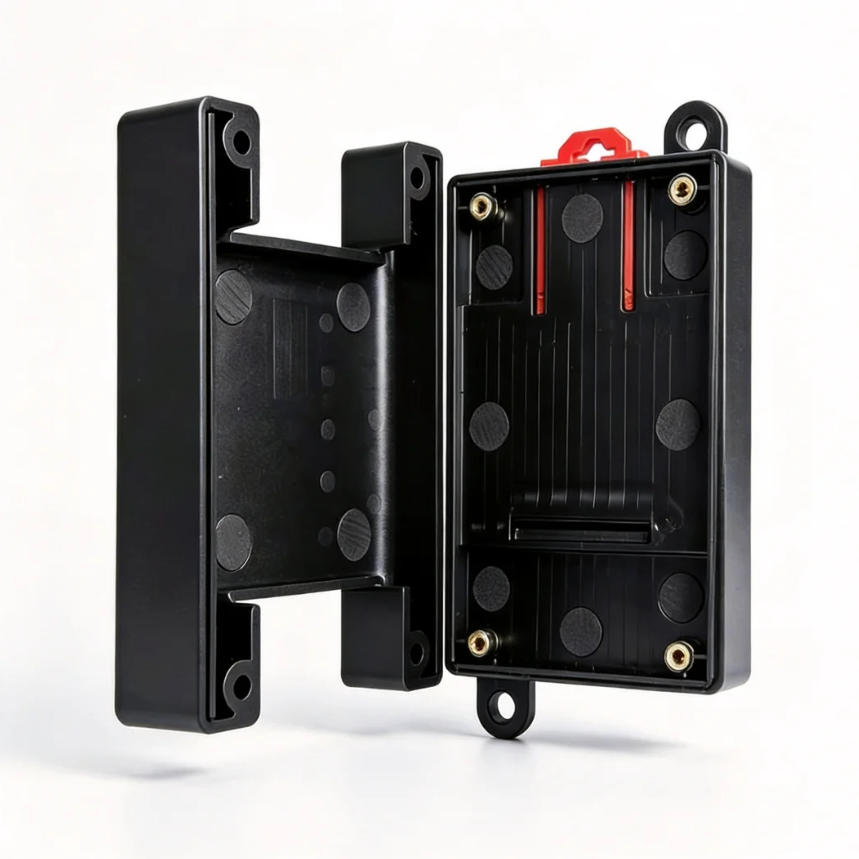

ABS Plastic Electrical Control Box Mould
Product Summary
Our ABS Plastic Electrical Control Box Mould is a professional precision solution for electrical equipment manufacturers, focusing on flame-retardant, insulated, and structurally stable ABS control box molding. As a core Custom Plastic Injection Tooling and Precision Mold Design and Build product, it meets strict electrical industry requirements for size accuracy, insulation safety, and long-term weather resistance. Complementing our portfolio—including Medical Patient Monitor Housing Plastic Mould, Water Purifier Plastic Filter Housing Mould, Custom Plastic PVC Pipe Cross Fitting, Heavy Duty Plastic Pallet Injection Mould, and Interlocking Plastic Hollow Block Wall Mould—it provides one-stop injection molding services to support safe and stable operation of the power and electrical industry.
Product Overview
Specializing in precision injection molds and finished parts for industrial/civil ABS plastic electrical control box shells, our product serves electrical equipment precision mold manufacturing and power & electrical control supporting industries. Unlike small appliance molds such as Coffee Maker Plastic Housing Injection Mould or pipeline molds like Custom Plastic PVC Pipe Cross Fitting, this mold is engineered for electrical control scenarios, solving core pain points: high assembly precision, flame-retardant insulation, impact resistance, and batch production consistency. We deliver a one-stop solution to enable mass production of high-quality control boxes, helping customers reduce costs and enhance competitiveness in the global electrical equipment market.
Certifications and Compliance
We prioritize international compliance and certification to meet the strict safety requirements of global B2B electrical purchasers. Our ABS Plastic Electrical Control Box Mould and finished products fully comply with international electrical plastic product quality and safety standards, including UL94 V-0 flame retardant certification—ensuring the control box automatically extinguishes in case of fire, eliminating potential safety hazards. All products meet environmental safety standards, with low-smoke, low-toxic ABS materials that have no harmful precipitation. We have a dedicated quality control system covering raw material flame-retardant and insulation performance testing, 3D full-size cavity inspection, first-piece assembly accuracy verification, and batch sampling, with a failure rate controlled within 0.02%. Additionally, we provide technical support for customers to complete electrical product 3C certification, ensuring seamless market access worldwide.
Product Features
Our molds stand out with electrical-specific advantages. High assembly precision (±0.1mm installation hole tolerance, ±0.05mm door shaft fit tolerance) ensures smooth box cover opening/closing and precise electrical component installation, suitable for automated assembly lines. Integrated installation columns and buckles eliminate secondary processing, reducing assembly costs. Flame-retardant ABS materials offer stable insulation (meets electrical safety standards) and UL94 V-0 flame retardancy. Excellent impact resistance and weather resistance (-20℃ to 60℃ operation) prevent cracking/deformation, adapting to indoor/outdoor scenarios. Oil-resistant, easy-to-clean surfaces suit complex industrial environments. Multi-cavity flow balance design ensures minimal batch size deviation and good interchangeability, cutting unit production costs.
Technical Specifications
Detailed parameters for global purchasers: size customization from 200mm×150mm (wall-mounted) to 1200mm×800mm (floor-mounted), compatible with exposed/concealed installation designs. Applicable materials: conventional flame-retardant ABS, with customizable UV-resistant, low-temperature-resistant, and food-contact modified options. Wall thickness: 1.5mm-3.0mm (main body), 2.0mm-3.5mm (installation columns/edges). Dimensional accuracy: box curvature ≤0.3mm/m, installation hole tolerance ≤±0.1mm. Mold service life: over 300,000 cycles. Cavity design: 1-in-2 (small/medium boxes), 1-in-1 (large boxes). Compatible injection molding machines: 400T-800T (small/medium), 800T-1600T (large).
Application Scenarios

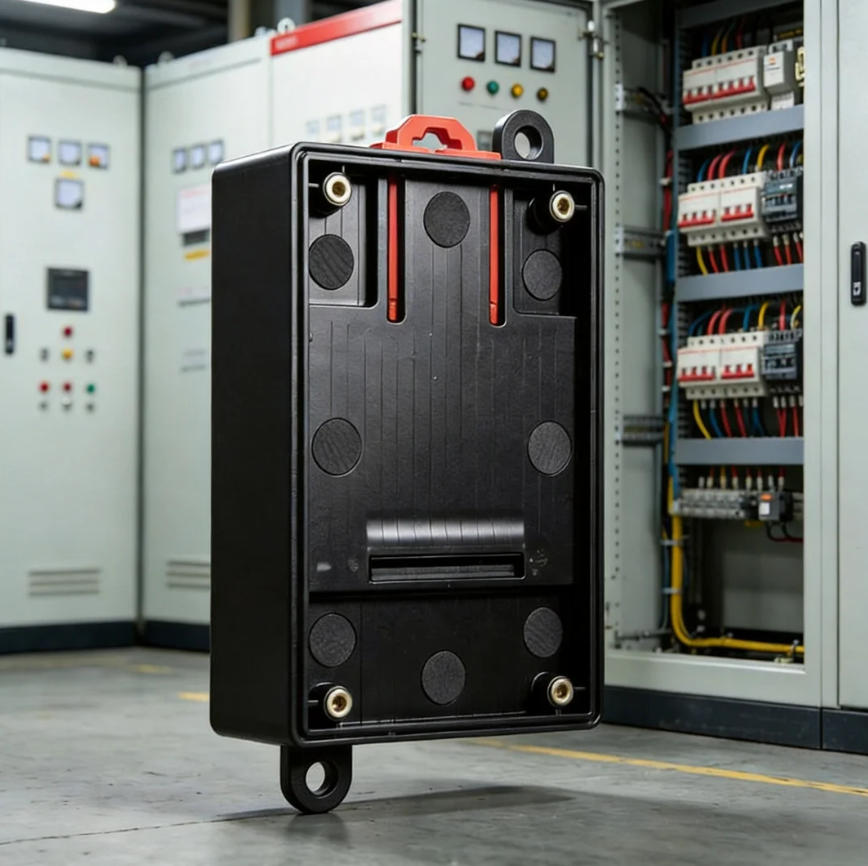

Our molds cover diverse electrical scenarios: industrial automation equipment control boxes, building distribution wall-mounted control boxes, smart home distribution/weak current boxes, municipal outdoor electrical control boxes, new energy equipment distribution control boxes, medical device electrical control boxes, and commercial elevator control boxes. We also support non-standard customization for other ABS electrical control boxes, complementing our Medical Patient Monitor Housing Plastic Mould to expand electrical equipment solutions.
Customization Options
We offer flexible customization: size (200mm×150mm to 1200mm×800mm), installation type (exposed/concealed), material (flame-retardant ABS, optional modified materials), surface texture (matte/high-gloss), and cavity design (1-in-1/1-in-2) based on production capacity and industry needs.
Production Process
Our strict process ensures precision: design (targeted control box design, CAE analysis, optimized ejection); machining (large CNC, slow wire cutting, surface treatment); material treatment (two rounds of stress relief annealing, nitride hardening); quality control (full-process testing). We also provide 7-15 day rapid sample verification and lifelong maintenance.
FAQ
Q1: Does the control box meet UL94 V-0 flame retardant standards?
A1: Yes, our flame-retardant ABS materials fully meet UL94 V-0 level, ensuring electrical safety.
Q2: Can you customize outdoor control boxes?
A2: Yes, we offer UV-resistant modified materials for long-term outdoor use.
Q3: What is the mold service life?
A3: Over 300,000 cycles, upgradable to 718H steel for longer use.
Q4: Is the mold suitable for automated assembly?
A4: Yes, high precision ensures compatibility with automated assembly lines.
Q5: Lead time for customized molds?
A5: 25-35 days, with urgent development support for new product launches.
