OBD TO 4P L=1M Car Diagnostic Model

4 month ago

5 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

FUBON is a professional manufacturer specializing in automotive diagnostic and connection cables. We focus on delivering durable, reliable products that meet workshop-grade standards for everyday vehicle maintenance and troubleshooting.

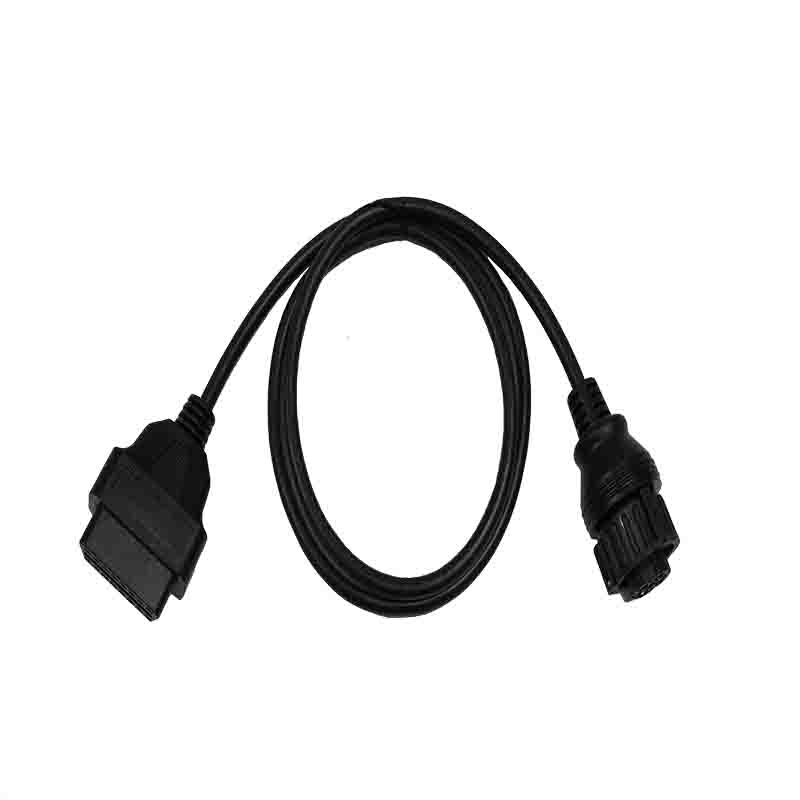

This OBD TO 4P L=1M Car Diagnostic Model is a purpose-built adapter designed to bridge standard and specialized vehicle interfaces. With a 16-pin OBD female connector on one end and a 4-pin circular automotive plug on the other, it creates a direct, secure connection path. At 1000±30mm in length, it offers just the right amount of reach for comfortable tool placement without straining the vehicle port.

Item	Description
Product Name	OBD TO 4P L=1M Car Diagnostic Model

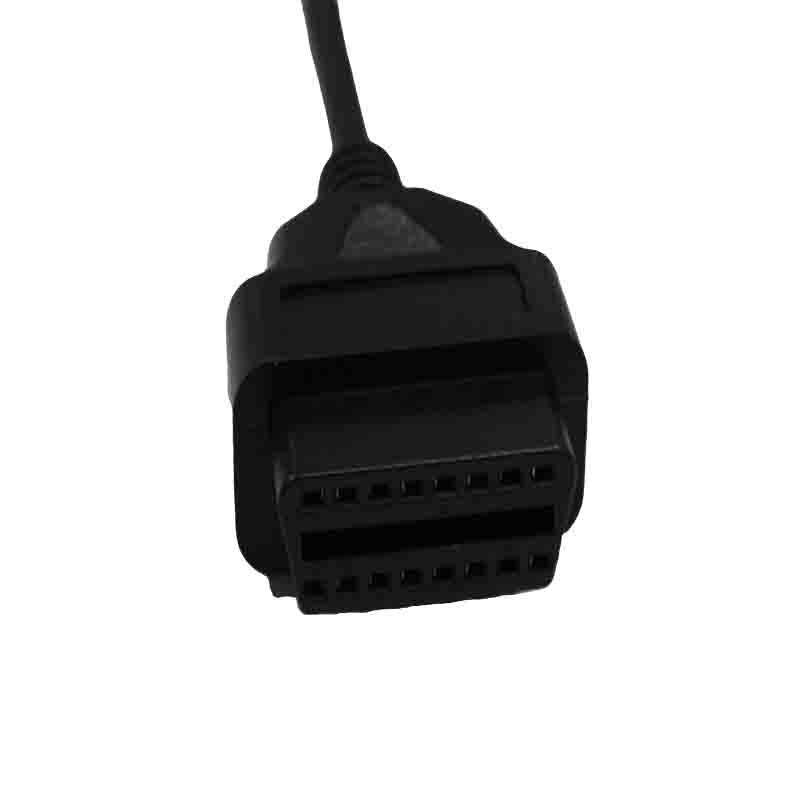

Connector Type	• P1: OBD II 16-pin female connector (standard OBD port interface) • P2: 4-pin circular automotive connector (DJ3043Y-2.5-2I style)
Length	1000 ± 30mm (1 meter) • Stripped length at open end: 4±1mm • Conductor exposed section: 25±5mm
Appearance Features	1. Cable Jacket: Black full-coated PVC outer sheath, flexible and abrasion-resistant 2. P1 End: Standard OBD2 female housing (ABS+PC material) with molded strain relief 3. P2 End: 4-pin circular connector with black housing and orange silicone ring, anti-vibration and dust-proof 4. Finish: Uniform black color, no bubbles, scratches, or deformation
Electrical Performance	• 100% continuity tested (no short/open/miswiring) • Test voltage: DC 300V / 10ms • Insulation resistance: ≥5MΩ • Conduction resistance: ≤5Ω • RoHS compliant materials
Packaging	• Black cable tie for coiling • Packaged in a transparent self-sealing PE bag

Built to fully comply with standard protocols, this OBDII cable preserves power and signal integrity for accurate readings and stable device operation. The robust black PVC jacket provides excellent protection against abrasion, while molded strain relief at both ends guards against wear from repeated use. Every unit undergoes full electrical testing to ensure safety and performance.

This practical OBD cable is engineered for compatibility with common diagnostic tools and vehicle-specific 4-pin ports. It eliminates the need for permanent modifications, allowing you to connect and test equipment quickly and easily in workshop or field settings.

For technicians and installers, this dedicated car diagnostic cable simplifies the process of working with vehicles that require non-standard connections. It lets you use standard scan tools with ease, reducing setup time and helping you get reliable data faster.

As a reliable OBD diagnostic cable, this adapter is built to withstand daily use in demanding environments. It reflects FUBON’s commitment to quality, with strict checks in place to ensure consistent performance for every application.
