7W2 Bending connector

7W2 Bending connector

3 month ago

1 0

Dongguan Pandi Electronic Technology Co., Ltd.

 4 month year

Product details

The male and female connectors of the 7W2 high-current d connector are typically used together, but the specific equipment used can vary depending on the location of installation (device end vs. cable end):

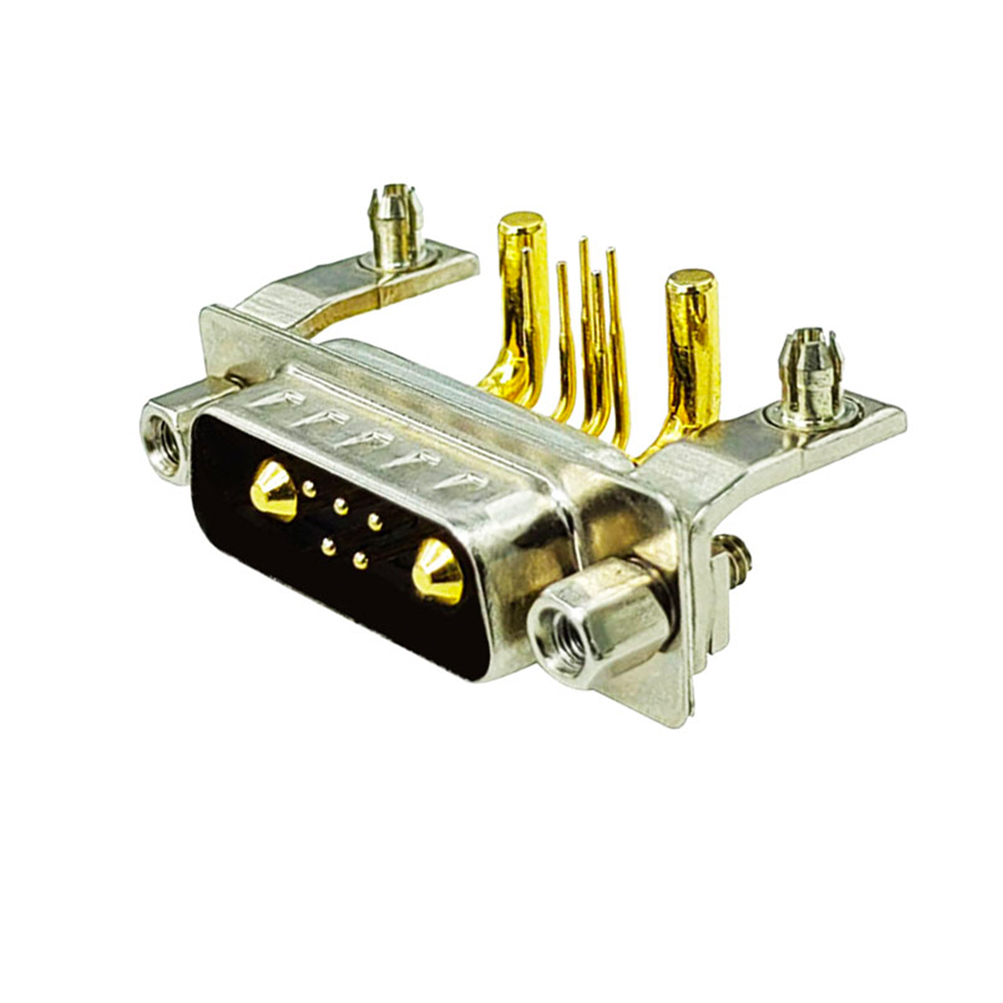

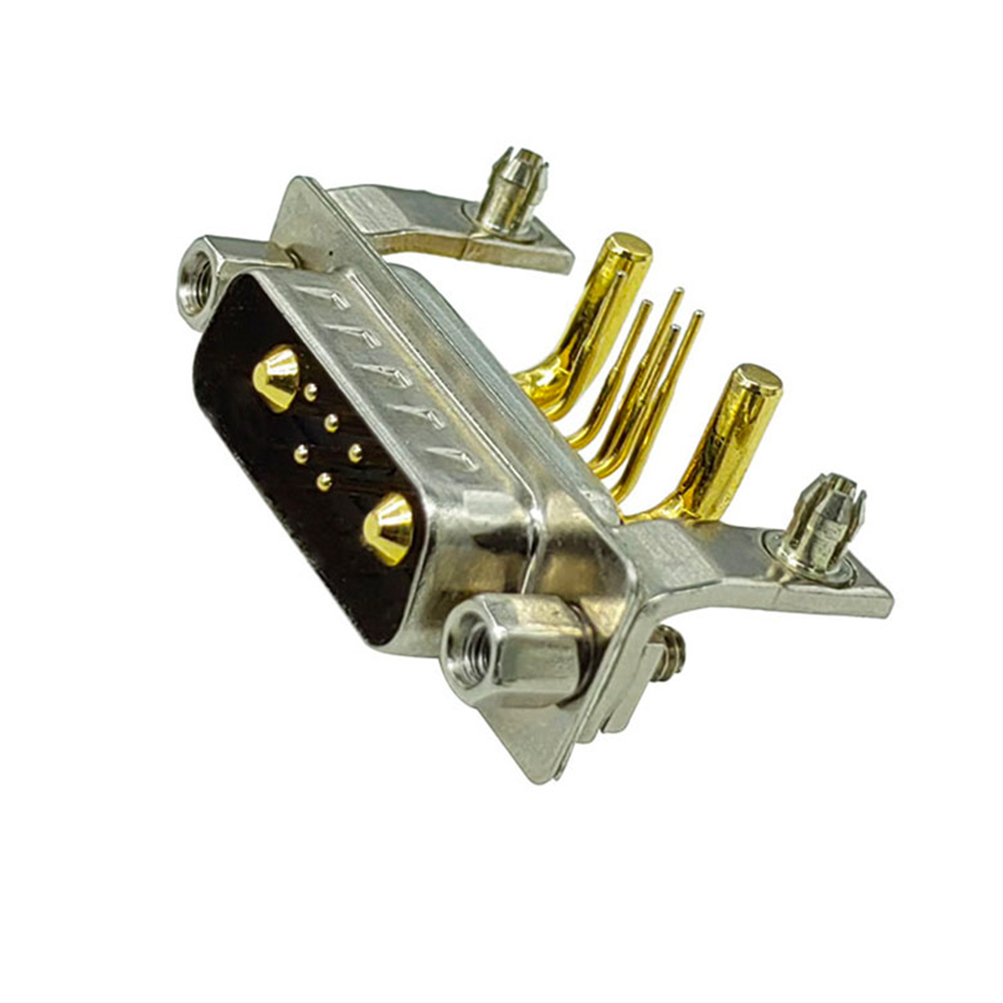

D sub male connector.

The jack is typically used to connect cables or serves as a plug for mobile devices:

· Cable assemblies: These are most commonly found at the ends of high-current power cables, used to connect controllers to devices.

· Electric balance scooter charging port: Many tumbler scooters and skateboards feature a 7W2-style dsub connector on the vehicle’s end.

· Industrial servo drives: Connect to the motor power harness; the movable end typically features a universal connector.

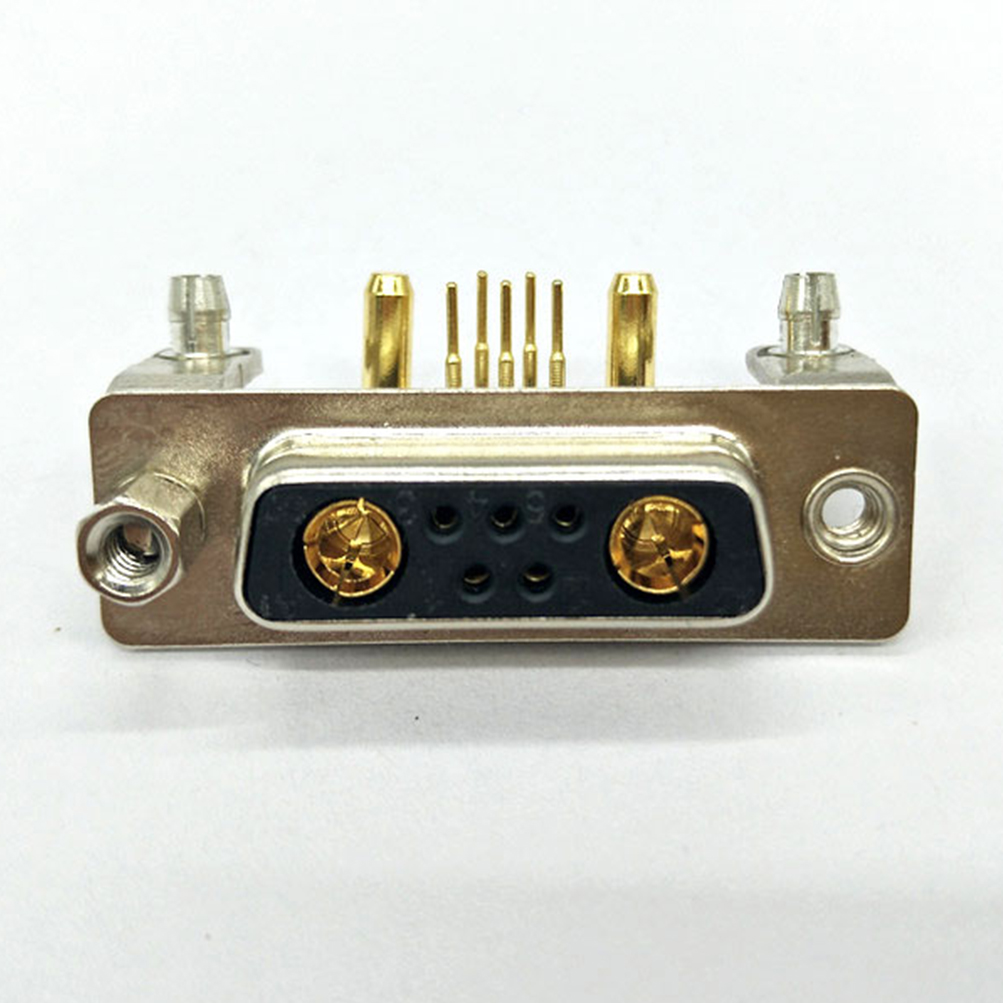

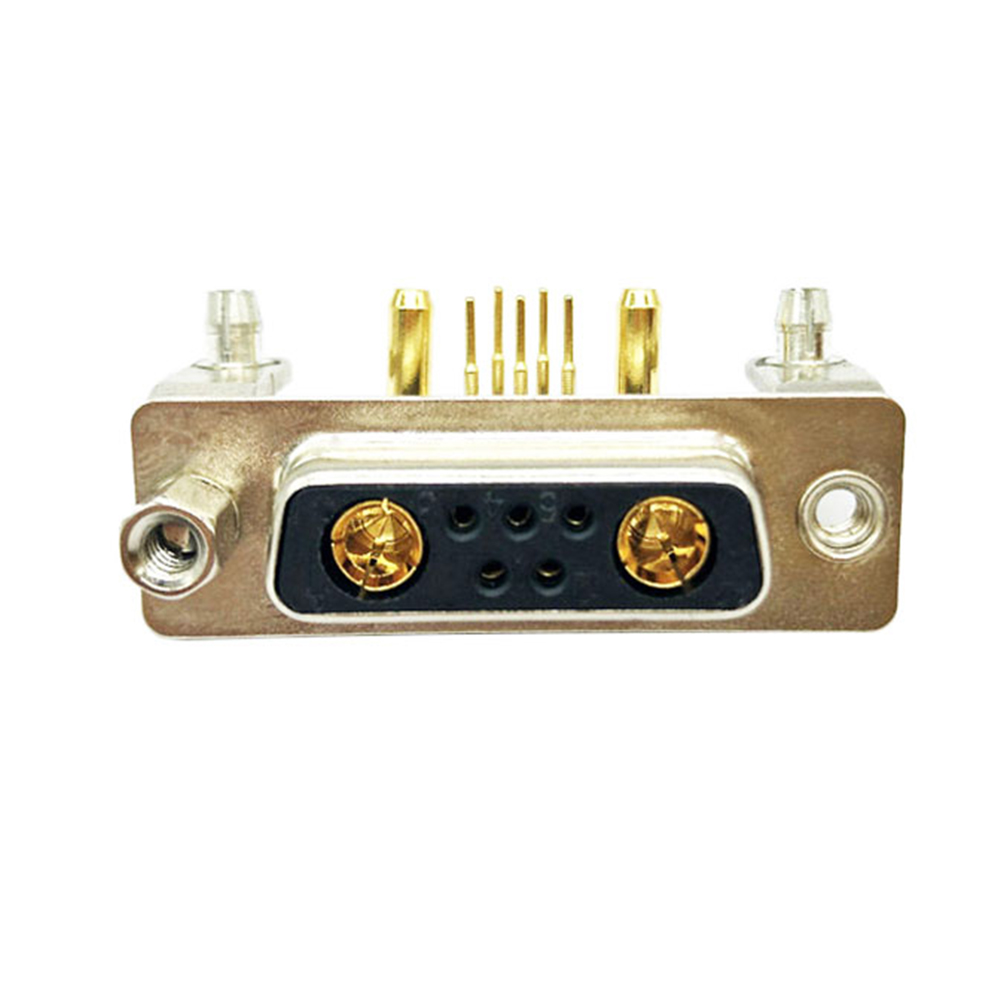

D sub female connector.

The motherboard is typically directly welded or secured within the device as a socket:

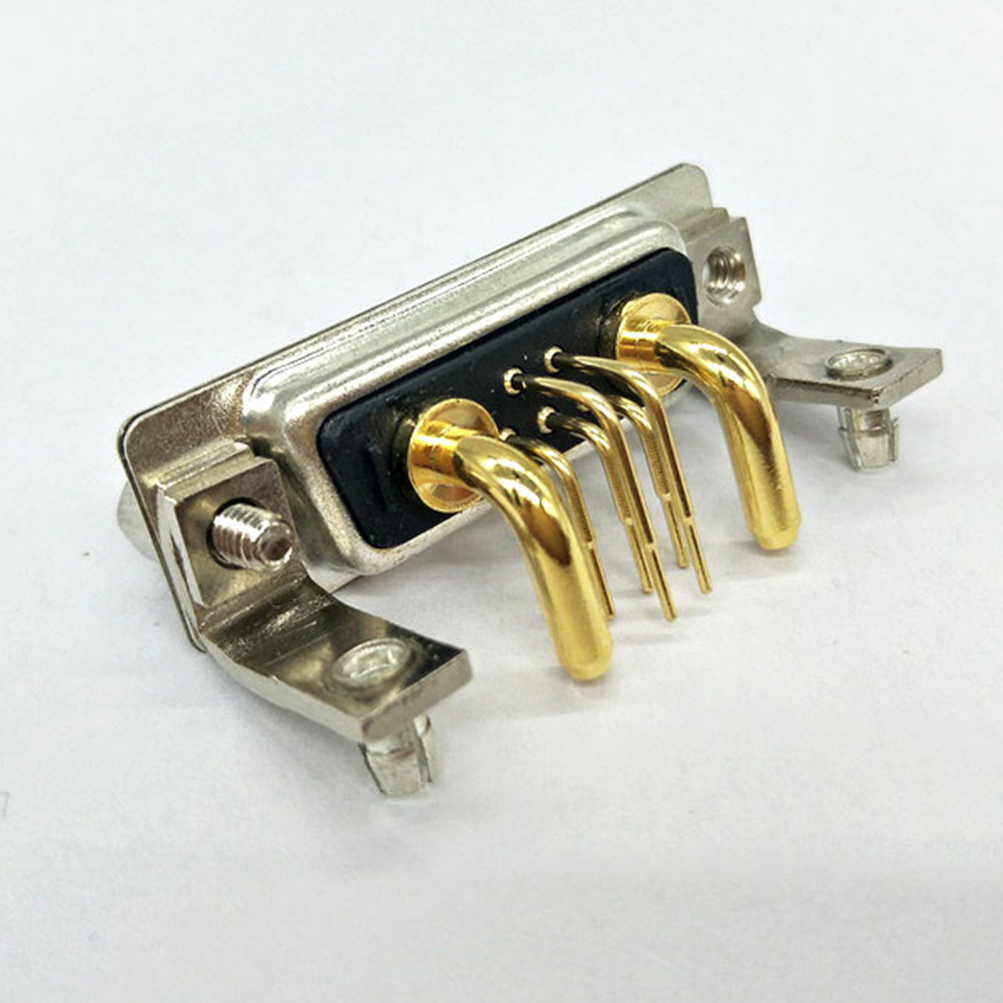

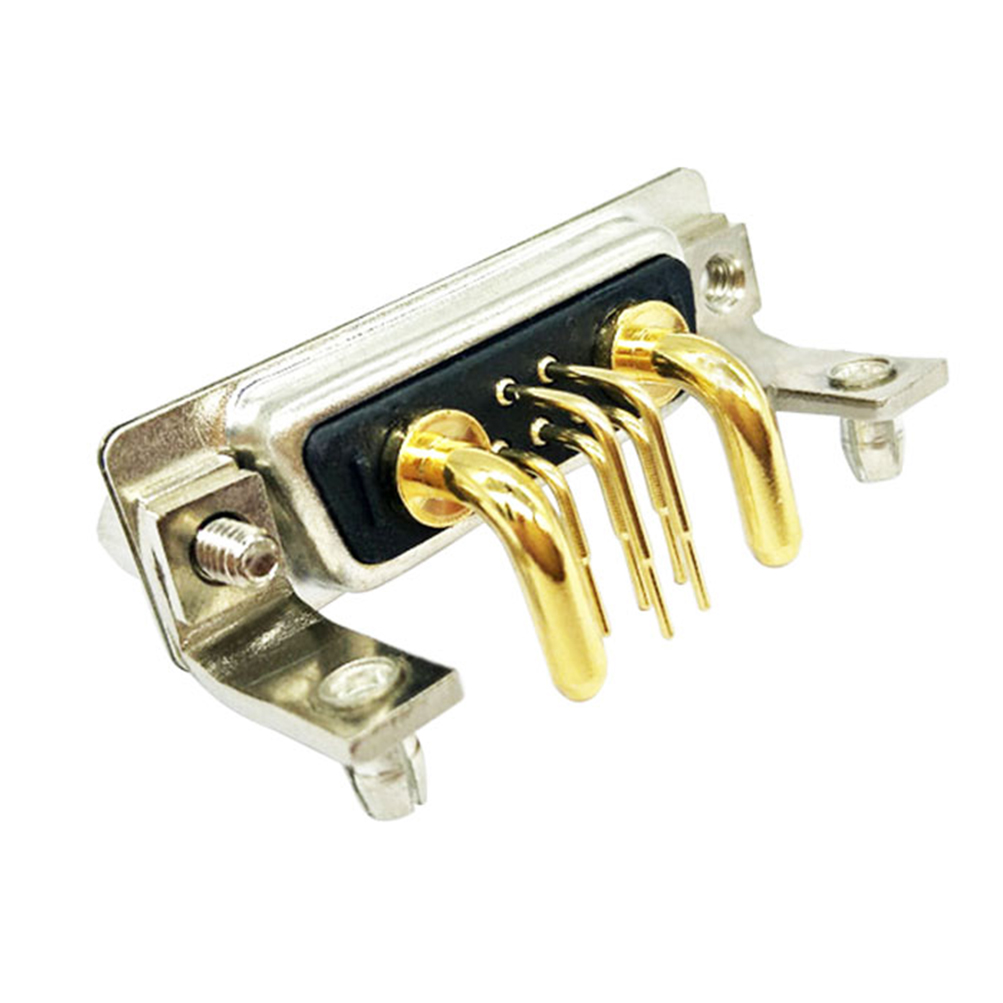

· PCB control boards: Widely used on circuit boards where power supply and signal integration are required. They feature 90° bend or 180° straight-through packaging.

· Equipment chassis panel: Fixed as an I/O interface on the servo drive unit and communication cabinet, interfacing with cable connectors.

· Medical/power equipment: Fixed internally to receive high-current inputs from power lines.

Common application scenarios.

These Power D-Sub Connectors are widely used in servo motors, industrial robots, medical devices, communication cabinets, and new energy equipment. Their core value lies in simultaneously addressing both the supply of 40A high-current power and the control of weak electrical signals within a single interface.

Technical Parameters:

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°

Mechanical Life: 500 Cycles

Applicable Wire Gauge: AWG 8/10/12

Mounting Method: Cable Plug-In

Packaging Method: Blister/Outer Carton

Environmental Requirements: Meets EU Environmental Requirements

Brand: pandi

Application Scope: Mechanical Equipment, CNC Systems, Instruments & Meters, etc.
