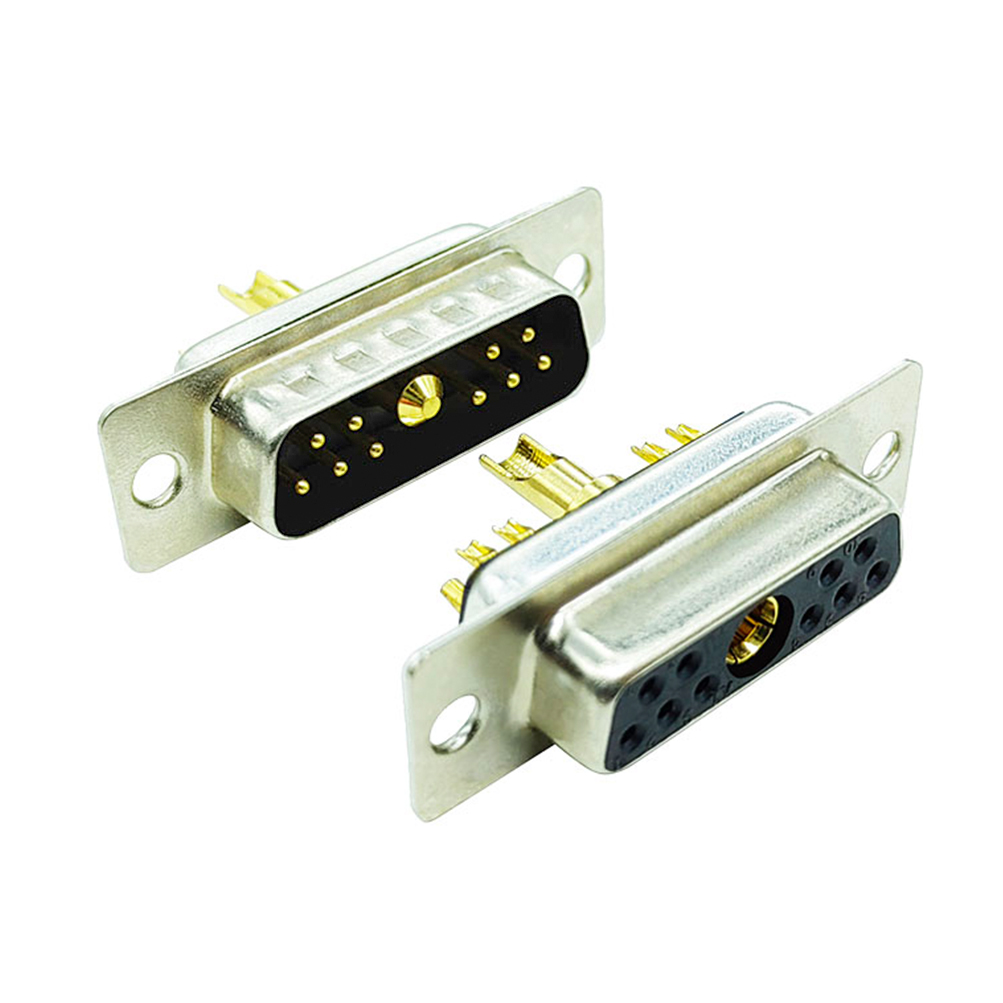

11W1 Female and Male D-Sub Connector: The Perfect Balance of Signal and Power

In the hybrid layout series of D-Sub connectors, the 11W1 employs a unique "10+1" terminal configuration, achieving a perfect balance between signal transmission and power supply. It is a widely used, multi-functional D-type connector.

The core positioning of this d connector: the perfect balance of signal and power. The 11W1 is designed to precisely meet the needs of simultaneous signal transmission and single-channel high-current power supply. Its "10+1" layout combines 10 signal terminals and 1 high-current power terminal. It not only provides ample channels for signal transmission within precision equipment but also integrates a dedicated high-power interface. Compared to models with more terminals, the 11W1 ensures signal integrity with more concentrated power output. Simultaneously, compared to models with fewer terminals, it offers stronger signal processing capabilities.

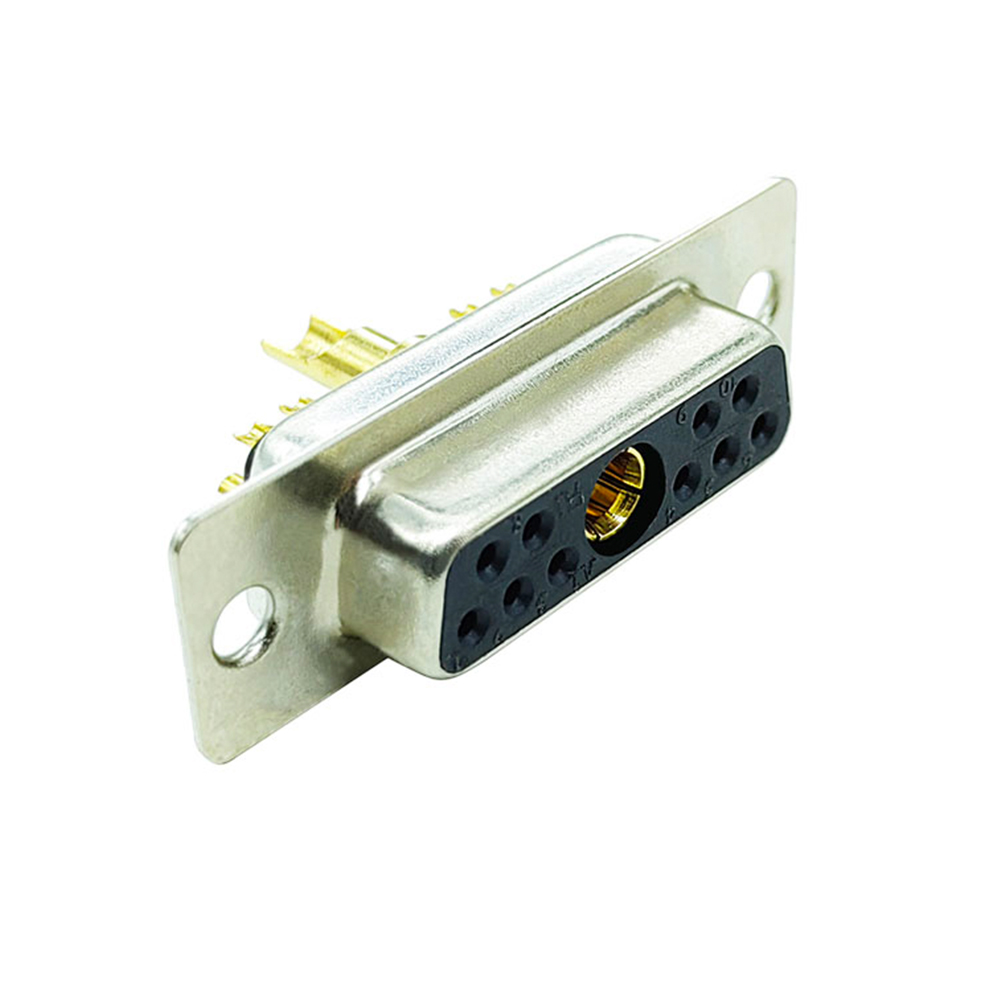

The 11-pin female connector uses wire solder termination, providing extremely high flexibility and reliability for equipment design.

1. Flexible Cable Customization: As a professional manufacturer of D-Sub High-Current Connectors, Pandi allows our customers to freely choose and solder cables of different wire gauges, materials, and lengths according to their actual needs, without being limited by standard PCB routing. This is especially suitable for equipment with complex cable layouts.

2. Convenient Field Maintenance: For industrial and outdoor equipment, damage d sub power connector can be directly cut and resoldered on-site without replacing the entire connector or circuit board, significantly reducing maintenance costs and downtime.

3. Suitable for Small-Batch Production and R&D: Many of Pandi's customers require fast delivery times. We have a professional team dedicated to rapid R&D and order matching for D-Sub Connectors. In product development and small-batch production, wire-soldering designs support rapid prototyping and iterative verification. It eliminates the need for costly molds and custom PCBs, effectively shortening time to market.

Our Pandi 11-pin male and female connector, with its ingenious design and flexible installation, plays a crucial role in numerous industrial sectors.

We have a UK customer in the precision medical and test measurement industry who needs a clean and stable power and signal path for the internal circuit boards of medical imaging and treatment equipment. Pandi's high-power d sub connector, with its excellent metal housing, effectively prevents external electromagnetic interference, ensuring the accuracy of measurement data and the safe operation of the equipment. Our customer has consistently been very satisfied with the product quality and performance, and we have maintained a stable, long-term partnership with them.

Technical Parameters:

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°

Mechanical Life: 500 Cycles

Applicable Wire Gauge: AWG 8/10/12

Mounting Method: Cable Plug-In

Packaging Method: Blister/Outer Carton

Environmental Requirements: Meets EU Environmental Requirements

Brand: pandi

Application Scope: Mechanical Equipment, CNC Systems, Instruments & Meters, etc.
