Equalizer Lithium Battery Equalization Tester Harness

4 month ago

4 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

FUBON is a trusted manufacturer of high-quality test and connection solutions for automotive, energy, and industrial applications. We design each product to meet strict safety and durability standards, ensuring stable performance in demanding testing and diagnostic environments.

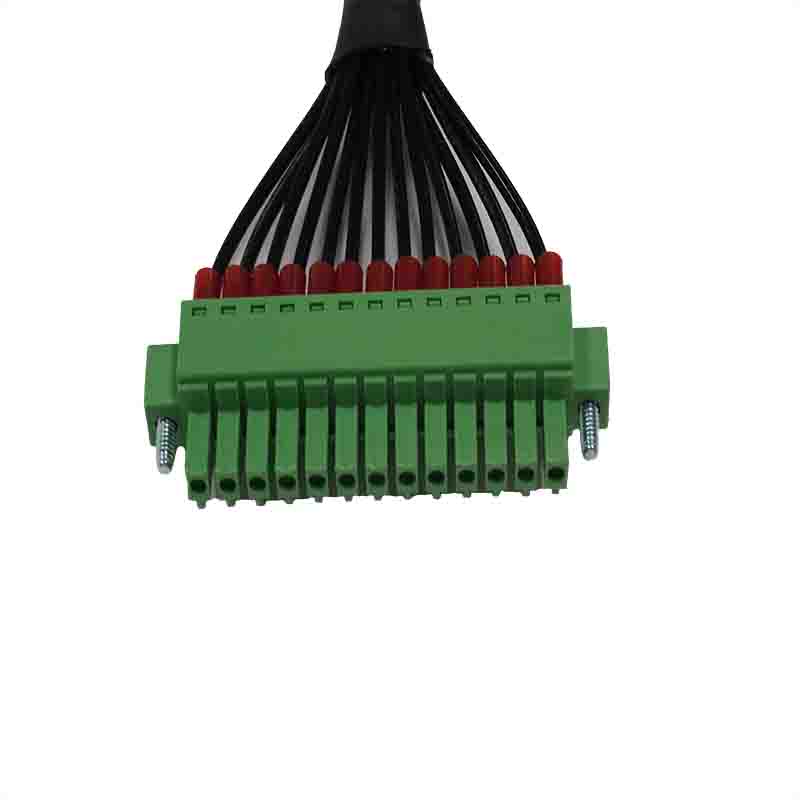

This Equalizer Lithium Battery Equalization Tester Harness is a multi-channel test cable built for lithium battery balancing and BMS calibration. It features a 13-pin green Phoenix connector on one end and 13 labeled alligator clips (12 red, 1 black) on the other, allowing you to connect and monitor up to 12 cells simultaneously. With a total length of 1500±50mm and a braided mesh outer layer, it offers both flexibility and abrasion resistance during testing.

Designed with the same precision as our standard car wiring cables, this harness uses UL1332 18AWG stranded wires for reliable signal transmission. The braided sleeve and heat-shrink tubing at both ends protect the cable from wear, while color-coded and labeled clips ensure quick, error-free connection to battery cells. Every unit undergoes 100% continuity, insulation, and voltage testing to meet industrial-grade safety requirements.

Item	Description
Product Name	Equalizer Lithium Battery Equalization Tester Harness
Connector Structure	Multi-channel test harness: • P1 End: 13-pin green Phoenix connector (KF2EDGKM-3.81) • P2 End: 13 color-coded alligator clips (1 black, 12 red)
Length	• Total cable length: 1500±50mm • Braided sleeve section length: 1290mm • P1 connector exposed length: 30±5mm • Each clip lead length: uniform, with alligator clip opening 10mm

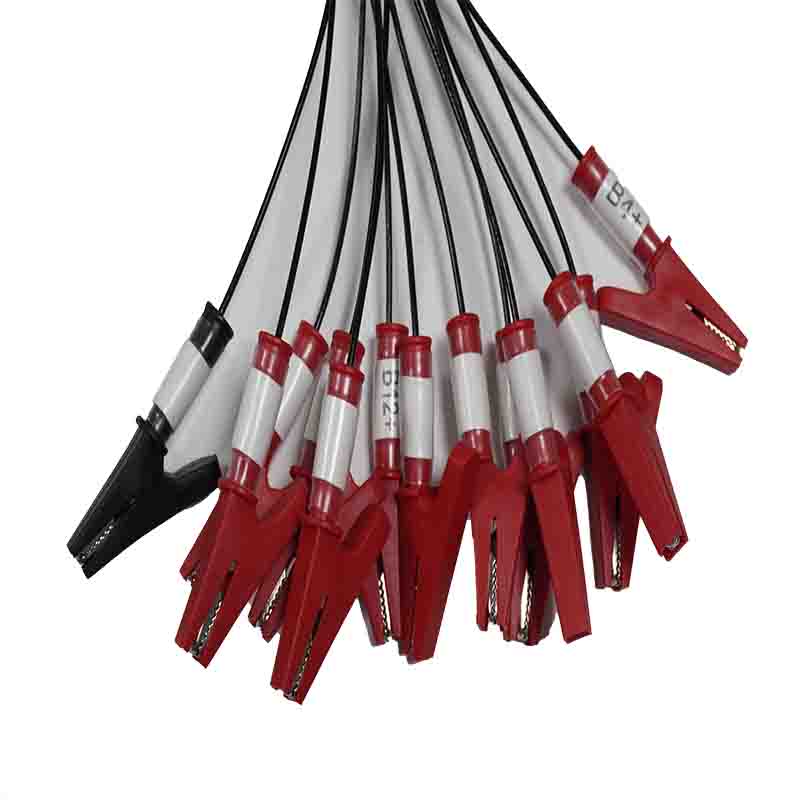

Appearance Features	1. Cable Protection: Central section wrapped in black PET braided mesh for abrasion resistance, heat-shrink tubing at transitions 2. P1 Connector: Green 13-pin terminal block with secure locking, color-matched to the harness 3. P2 Clips: 13 pure copper alligator clips, 1× black (ground) and 12× red (positive), each with insulated sleeves and labeled (B1–B12+) 4. Construction: UL1332 18AWG black stranded wires, neatly bundled and individually sleeved at the clip end
Electrical Performance	• 100% continuity tested (no short/open/miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤2Ω • Insulation resistance: ≥10MΩ • RoHS compliant materials
Application	Lithium battery equalization testing, BMS (Battery Management System) calibration, and multi-cell voltage monitoring

As a dedicated battery harness, it is engineered to handle the low-voltage signals used in lithium cell equalization. The pure copper alligator clips provide secure contact with cell terminals, even in tight spaces, and the 13 individual leads allow for clear, isolated monitoring of each channel.

For technicians working with battery systems, this harness acts as a reliable vehicle diagnostic cable adapter, bridging your equalizer tester to the battery pack. It eliminates the need for temporary wiring setups, providing a stable, reusable connection that speeds up testing and reduces the risk of connection errors.

As part of our line of energy cable accessories, this equalizer tester harness reflects FUBON’s commitment to building practical, application-specific tools. Whether you’re working on EV batteries, power banks, or stationary energy storage systems, it offers a safe, organized way to perform cell balancing and voltage checks.

From automotive diagnostics to energy storage testing, FUBON delivers durable, high-performance connection solutions you can count on.
