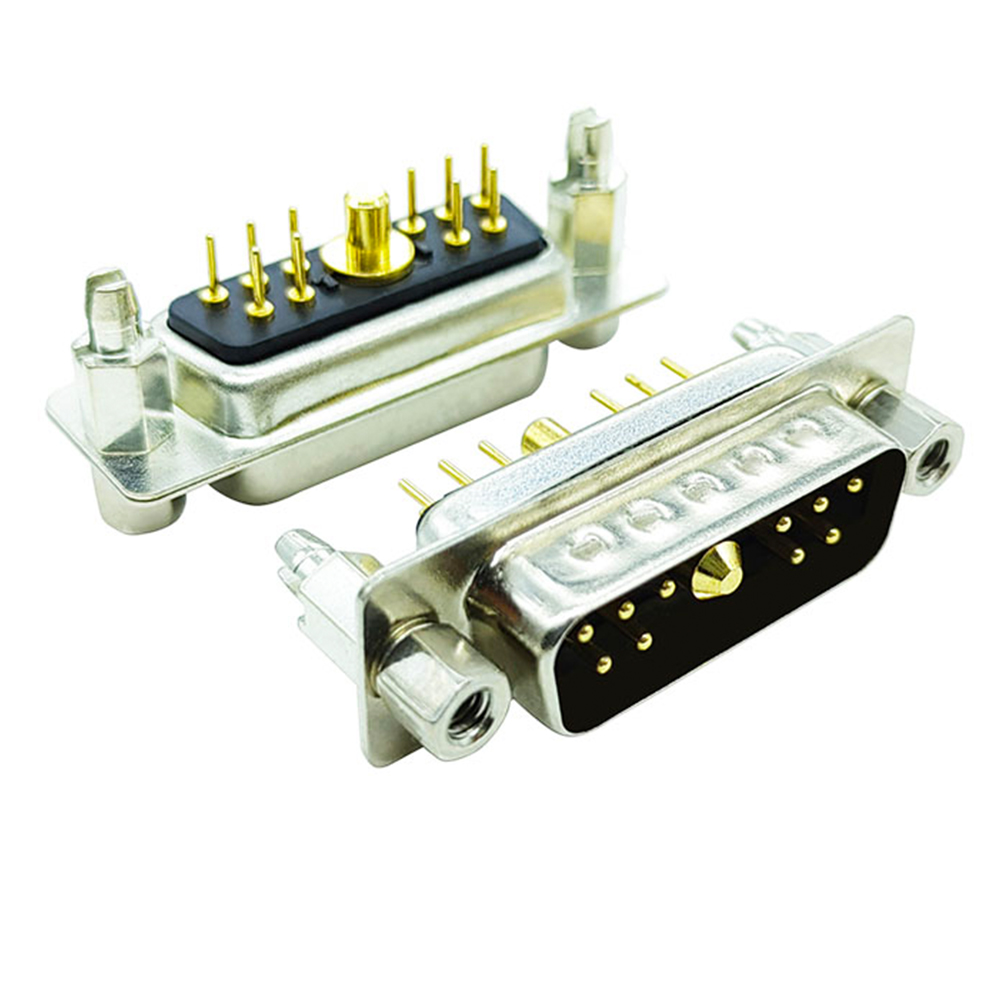

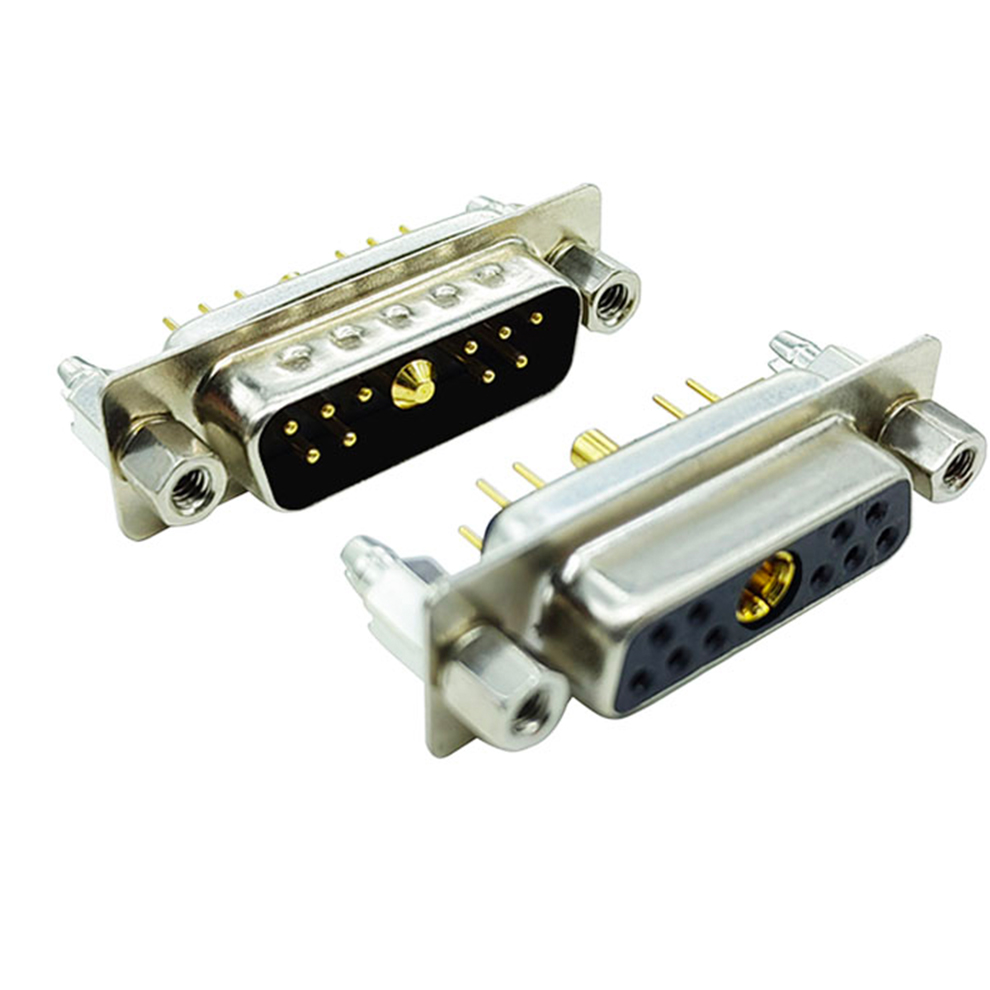

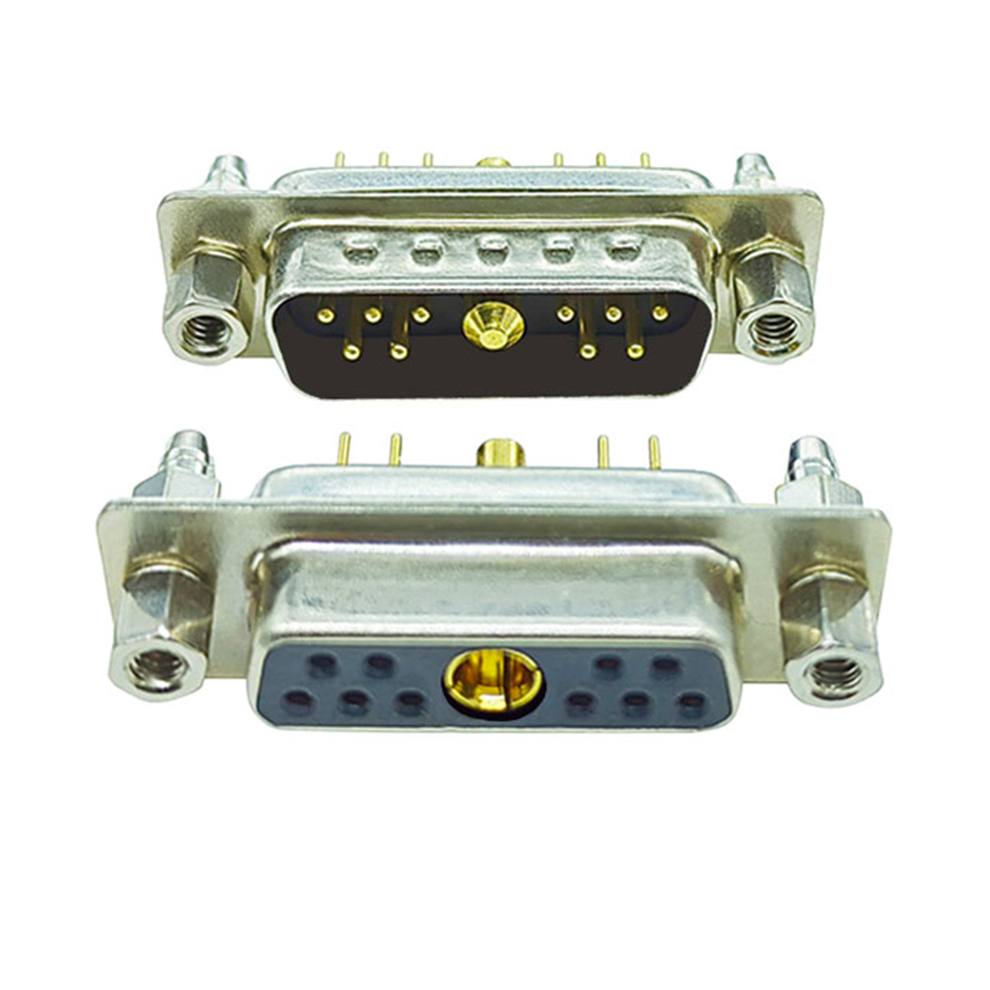

11W1 Straight PCB High-Current d connector – 10 Signal + 1 High-Current, Mixed High-Current D-Sub Series

The 11W1 straight PCB high-current D-SUB belongs to the mixed high-current D-sub series, featuring a 10 signal contacts + 1 high-current contact configuration, with 180° straight PCB mount (solder to board / straight PCB mount), standard 15P D-SUB shell, combining signal and high-power power supply in a compact and reliable design, suitable for industrial strong electromagnetic and high-vibration environments.

I. Model Explanation

· 11W1: 11-contact configuration, 1 high-current + 10 signal, W = Power (power contact)

· Straight PCB: 180° straight PCB mount, soldered to board, replacing traditional solder-cup type

· High-Current: The single power contact can carry 10–40A (depending on selection), signal contacts 3–5A

· D-SUB: Standard D-shaped metal shell, shielding anti-interference, industrial universal interface

II. Male/Female Mounting and Equipment Adaptation

Male dsub connector (Straight PCB Pin End)

· Mounting: PCB soldering (board end), fixed on equipment motherboard/control board

· Applicable Equipment:

· Industrial PCs, industrial computers, motion control cards

· Servo drives, frequency converters, high-power power supply boards

· Laser equipment control boards, new energy module motherboards

· Instrumentation, test equipment, communication equipment motherboards

· Key Point: Male connector used at board end, prevents accidental touch and short circuit, stable mating

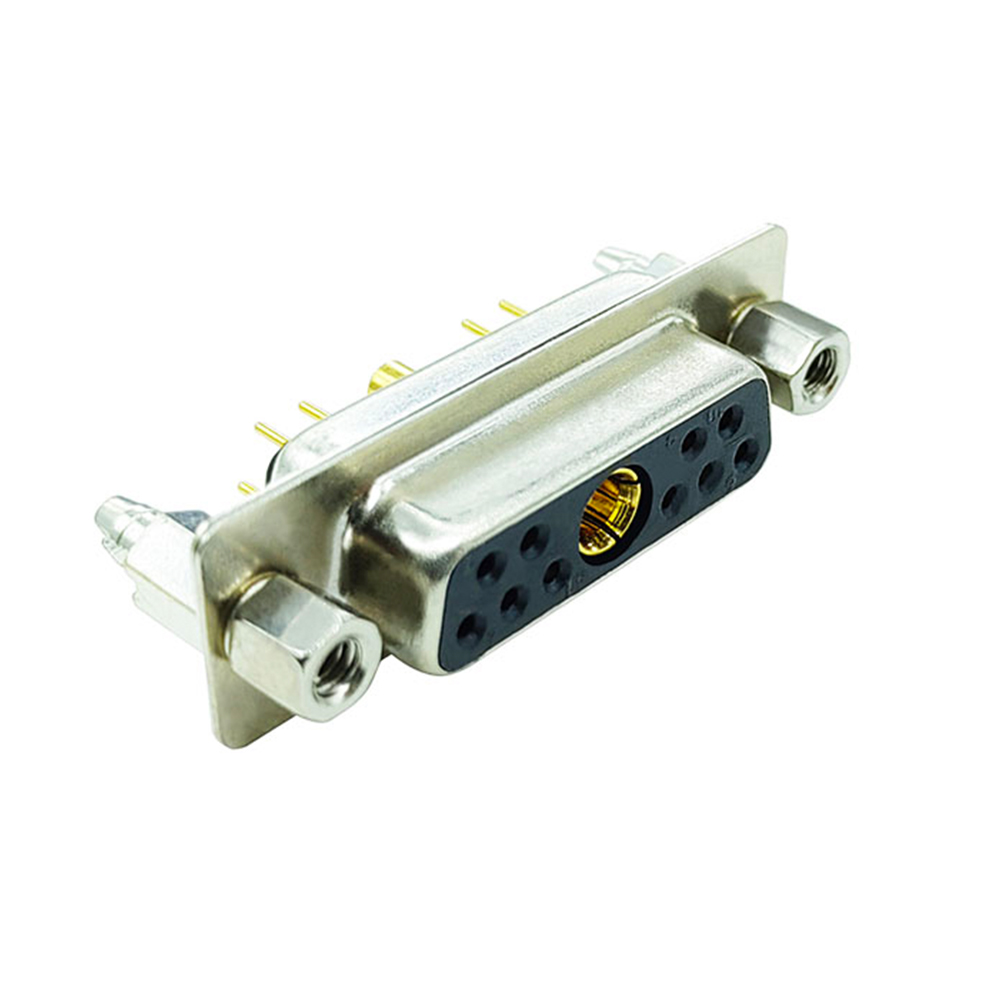

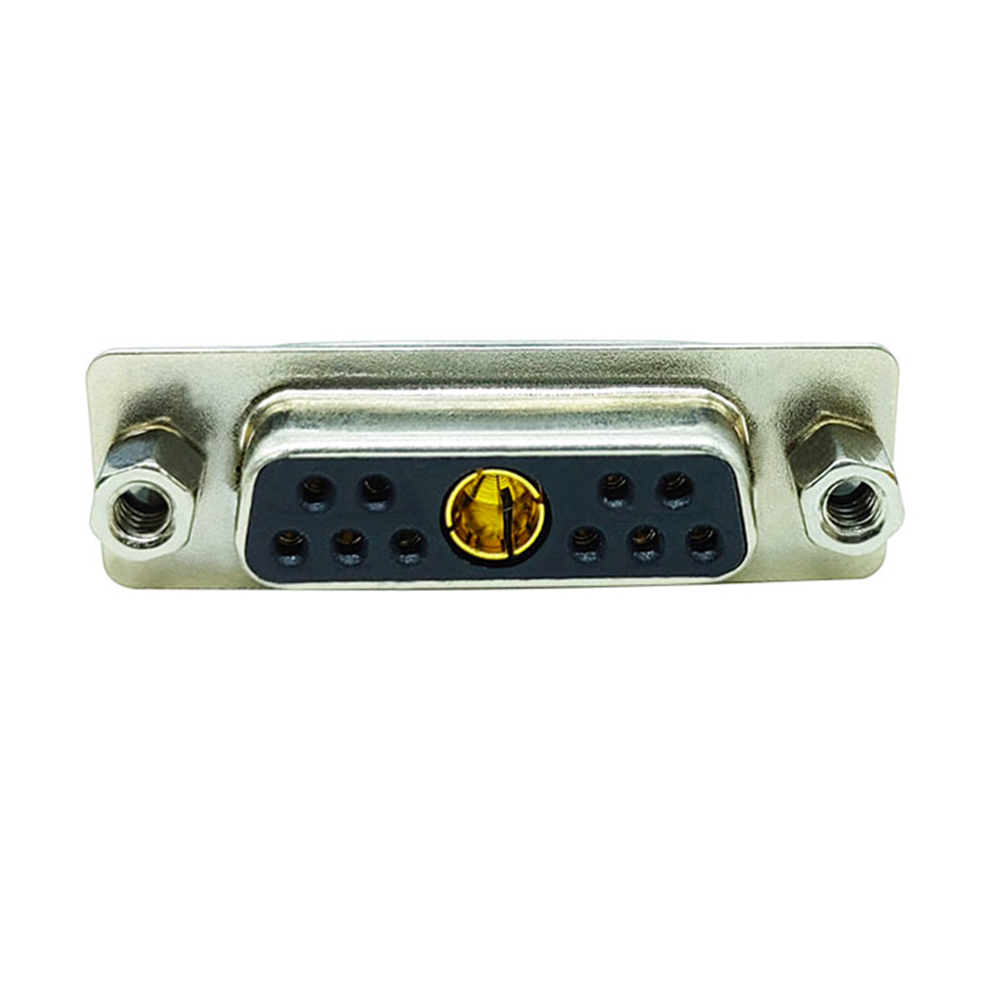

Female d sub connector(Straight PCB Socket End)

Mounting: PCB soldering (board end) or panel mounting (cable end/equipment end)

Applicable Equipment:

Control cabinets, power supply chassis, equipment panel input ports

Industrial robots, automation equipment power/signal interfaces

Energy storage equipment, lithium battery modules, charging modules

Medical equipment, vehicle electronic control, outdoor communication equipment

Key Point: Female connector commonly used at panel/equipment end, convenient for male connector harness plugging and unplugging

III. Core Advantages

1. Signal + High-Power Integration: 10 signal channels + 1 high-current channel, eliminates multiple interfaces, simplifies wiring

2. Straight PCB Mount for Greater Stability: Soldered to board, vibration resistant, pull resistant, suitable for automated mass production

3. High Carrying Capacity, Low Loss: Thickened gold-plated power contact, low heat generation under high current, stable conductivity

4. Strong Shielding Anti-Interference: Metal shell isolates EMI, suitable for industrial strong electromagnetic environments

5. Wide Temperature Durable: Flame-retardant temperature-resistant material, long mating life, reduces maintenance costs

IV. Typical Application Scenarios

Industrial Automation: PLC, motion controllers, servo system power + signal connection

New Energy Equipment: Small energy storage, lithium battery BMS, charging module power interface

Laser & Intelligent Equipment: Laser cutting/welding equipment, industrial control complete machine power supply + control

Communication & Medical: Base station equipment, medical instrument power and signal mixed transmission

Vehicle & Special Machinery: Construction machinery, vehicle electronic control system power + signal connection
