Product details

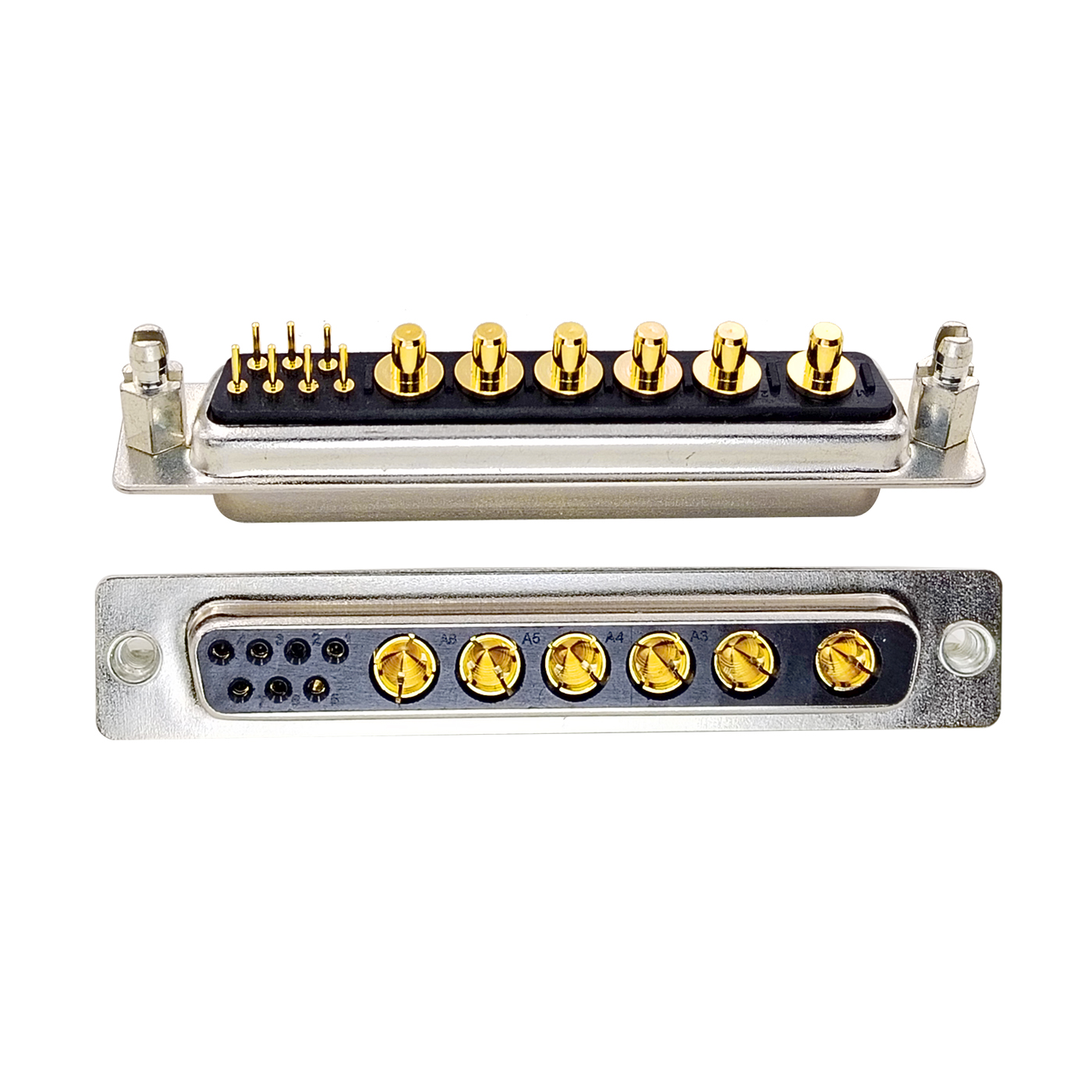

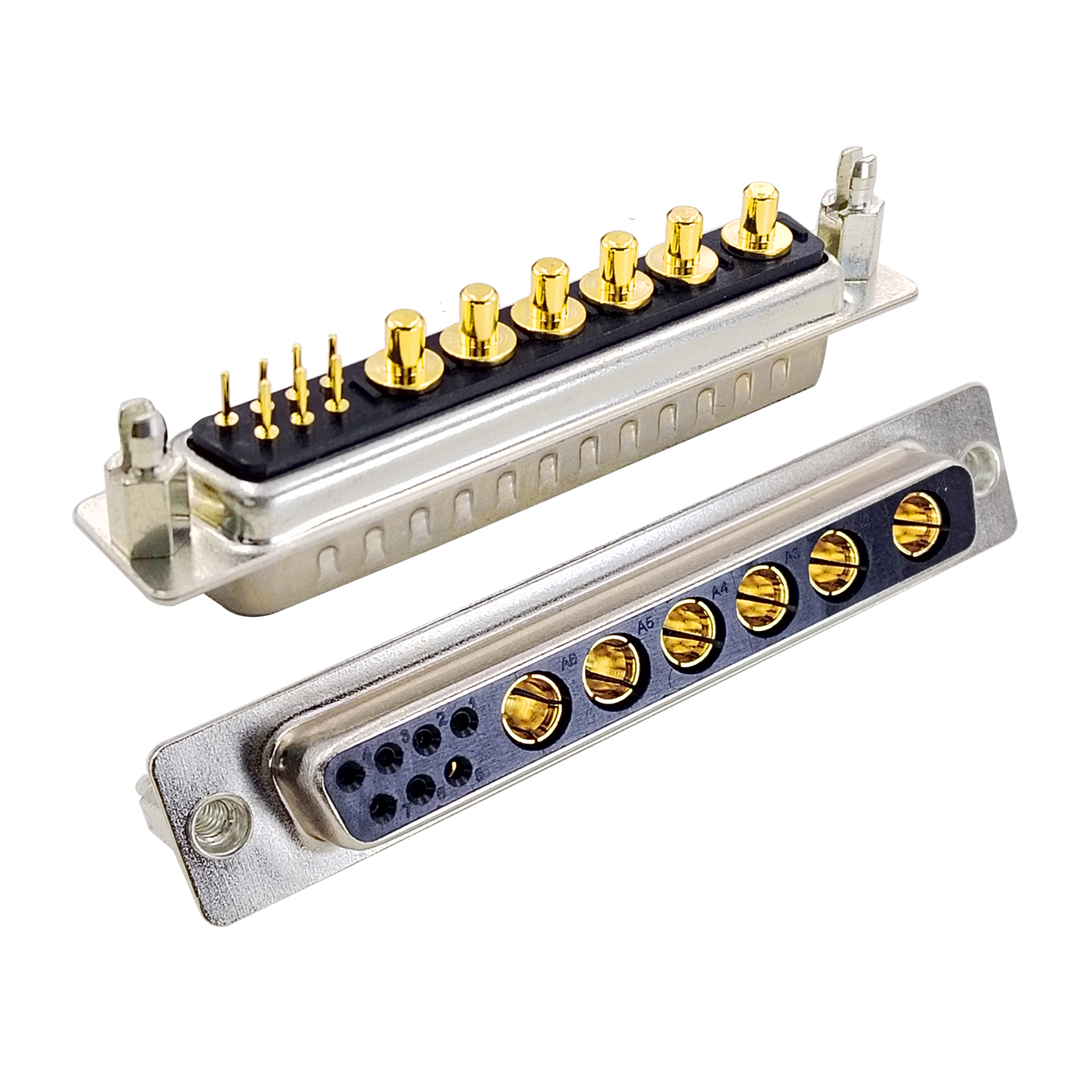

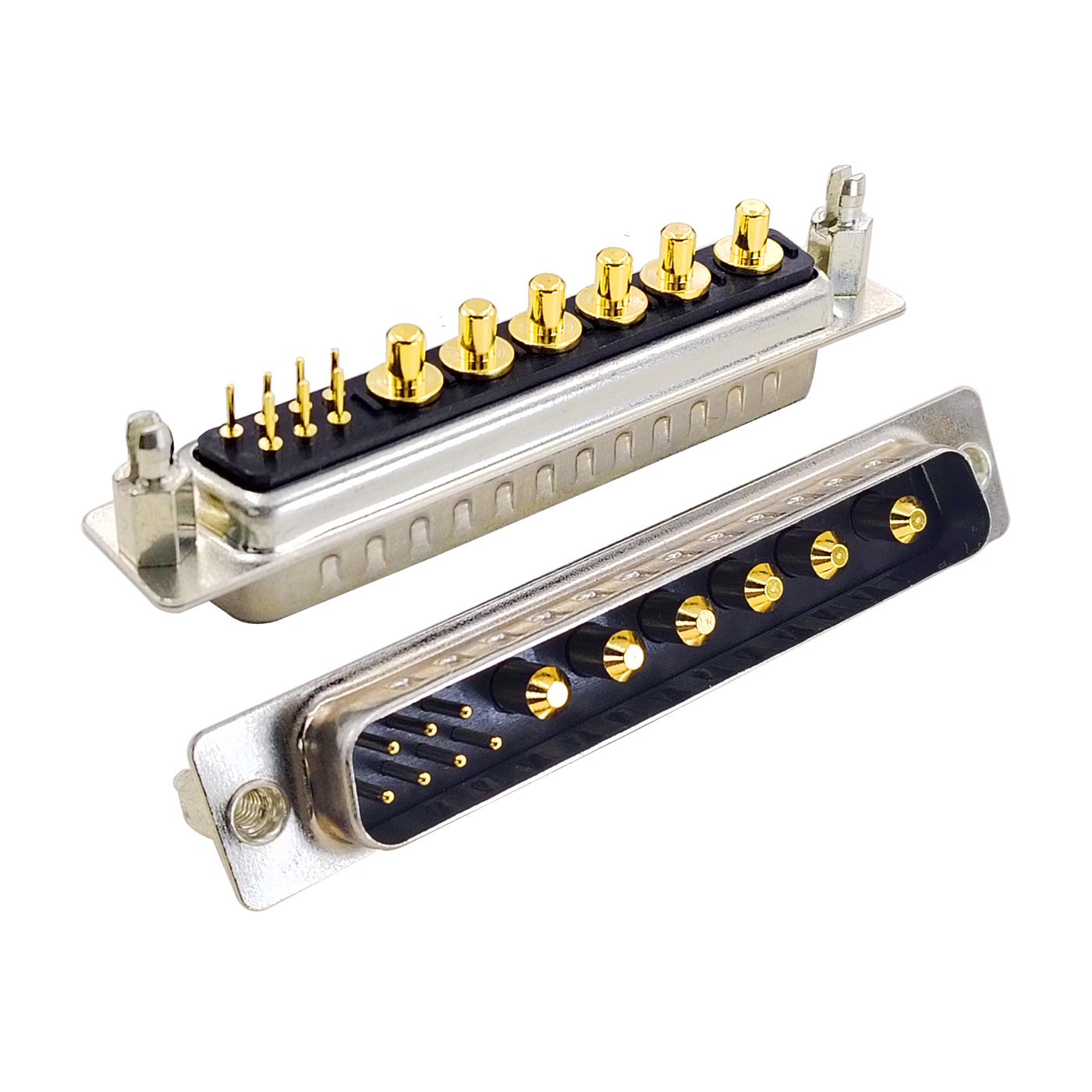

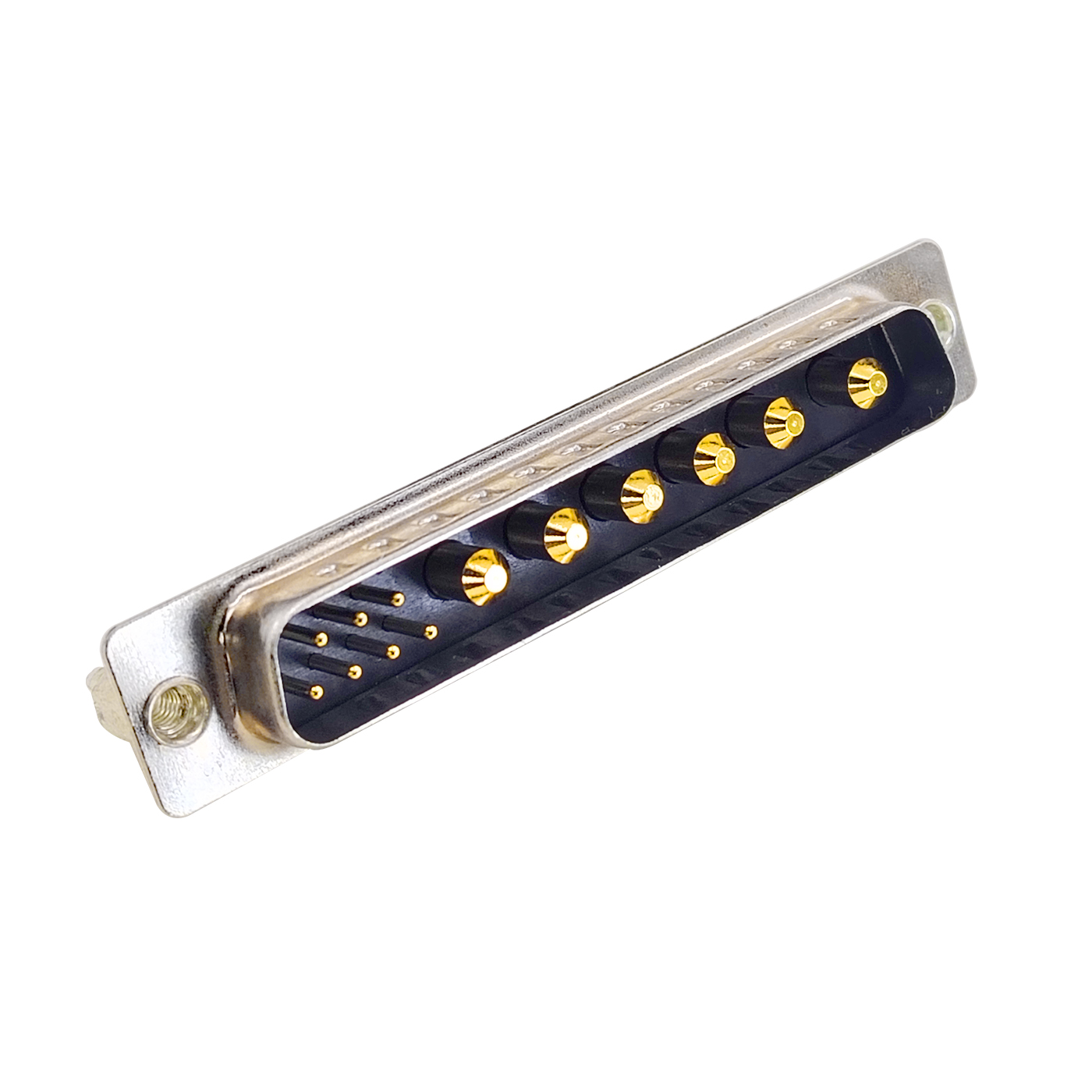

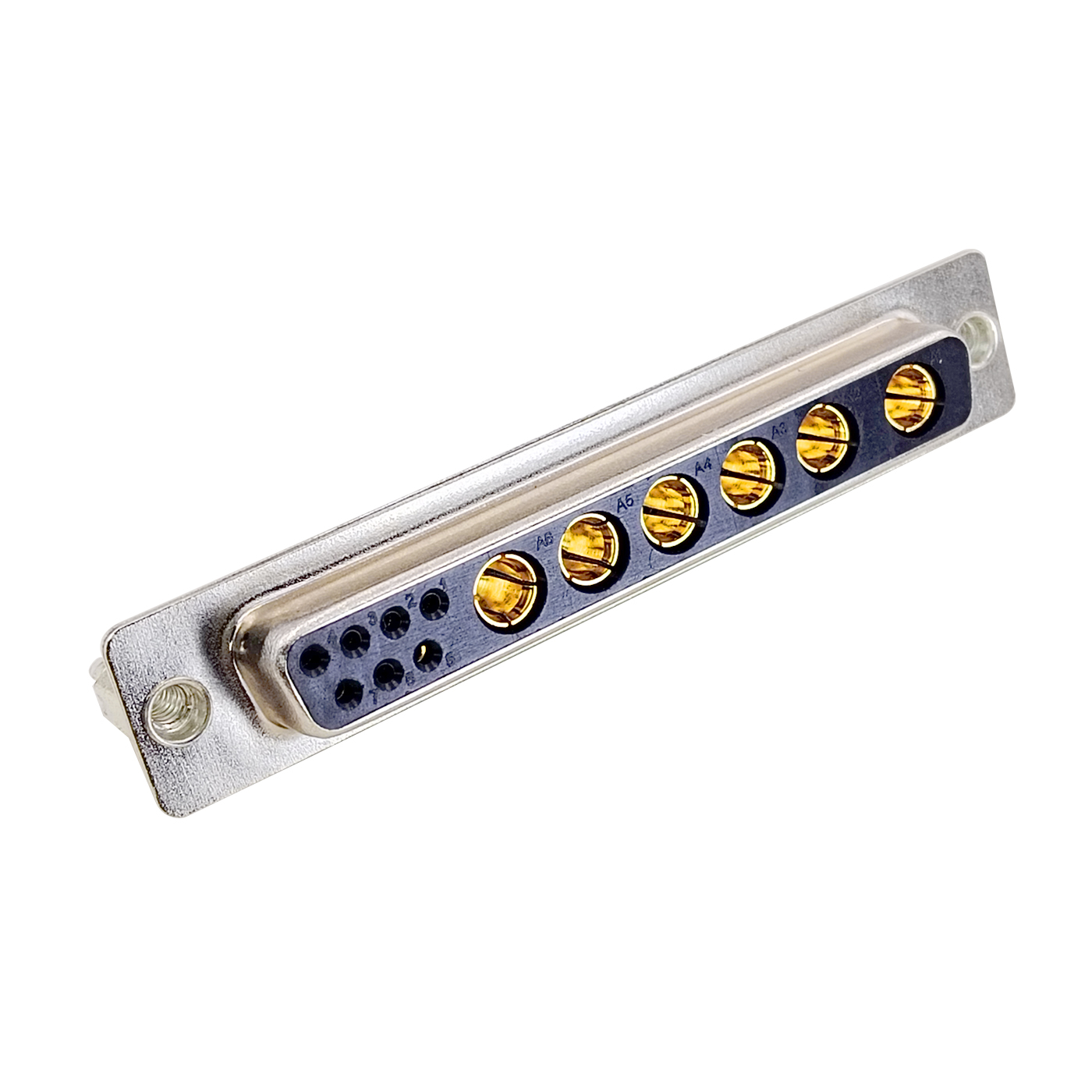

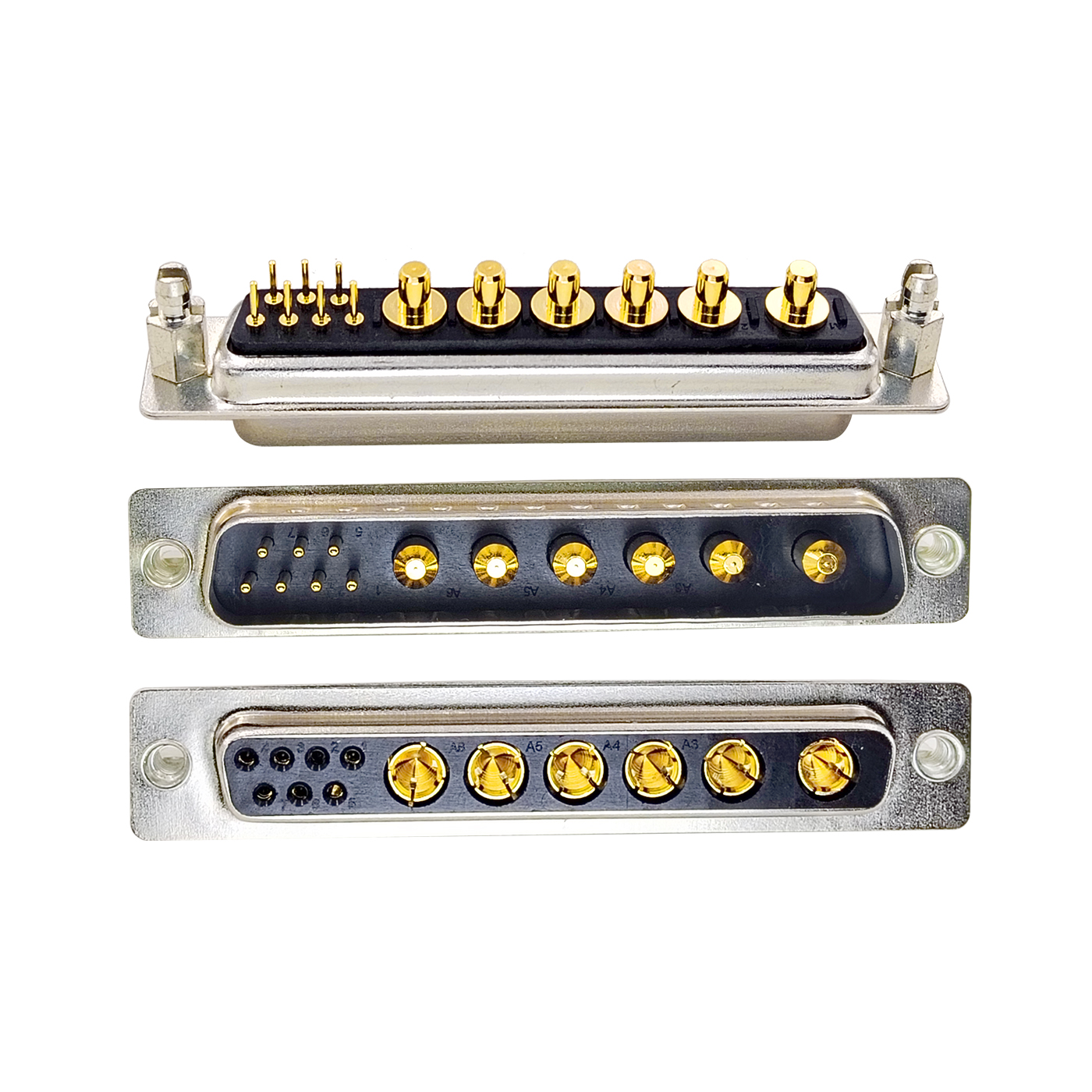

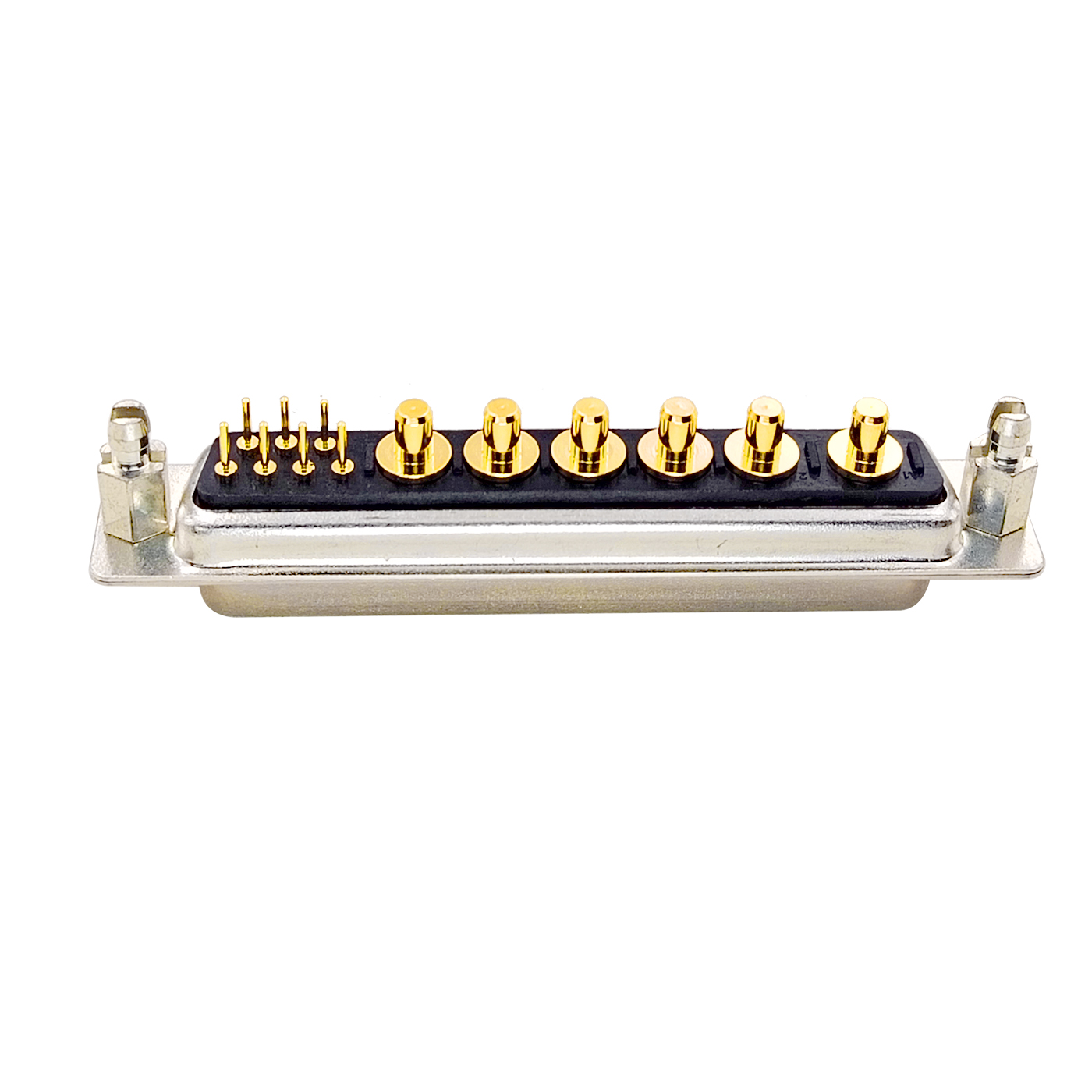

The 13W6 direct-plug high-current d connector belongs to the D-Sub hybrid power dsub connector series. “13” indicates that the connector has a total of 13 pins, while “W6” clearly specifies the pin allocation scheme. It features an integrated layout with 6 high-current power pins and 7 signal pins, enabling seamless integration of power transmission and signal control within a single interface. The pin tips are gold-plated to ensure stable signal output.

The direct insertion design is the core highlight of this product. It employs a 180° vertical insertion structure, suitable for direct soldering of PCB boards and fixed installation of equipment panels. Assembly can be completed quickly without bending, significantly simplifying the internal wiring and assembly processes of the equipment and improving production assembly efficiency. The connector housing is made of high-quality nickel-plated steel, which possesses excellent mechanical strength and anti-interference capabilities, effectively shielding electromagnetic interference and ensuring signal transmission stability. The internal insulating components are made of UL94 V-0-grade flame-retardant thermoplastic polyester material, which is heat-resistant and has excellent insulating properties, thereby eliminating electrical safety hazards. The pins are made of high-precision brass material, with a gold-plated surface treatment, which not only ensures low contact resistance but also enhances corrosion resistance and wear resistance, thereby extending the product’s lifespan.

This sub d power connector is designed specifically for high-current transmission scenarios, and its core electrical performance is exceptional. With 6 power pins, the single pin’s rated current can reach up to 40A, and the rated voltage is 250V AC. It can easily meet the high-power power supply requirements of industrial equipment and new energy products. The 7 signal pins are focused on transmitting weak electrical signals. The contact resistance is ≤5 milliohms, the insulation resistance is ≥5000 megohms, the withstand voltage strength is ≥1000V R.M.S. (50Hz), enabling synchronized and stable transmission of power and signals without interference.

In terms of environmental adaptability and mechanical durability, the product also performs exceptionally well. The operating temperature range covers –55°C to +125°C, allowing it to adapt to extreme high and low temperature industrial environments. The mechanical plug-and-play capability can exceed 500 times, featuring excellent vibration and impact resistance. Even in high-frequency operation equipment such as industrial robots and servo devices, it maintains stable connections and prevents issues related to poor contact. The overall structure is compact and lightweight, making it suitable for installations in spaces with limited space. Installation and removal are both convenient, and the maintenance costs are lower in the long run.

Technical Parameters

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°

Mechanical Life: 500 Cycles

Applicable Wire Gauge: AWG 8/10/12

Mounting Method: Cable Plug-In

Packaging Method: Blister/Outer Carton

Environmental Requirements: Meets EU Environmental Requirements

Brand: pandi

Application Scope: Mechanical Equipment, CNC Systems, Instruments & Meters, etc.
