Product details

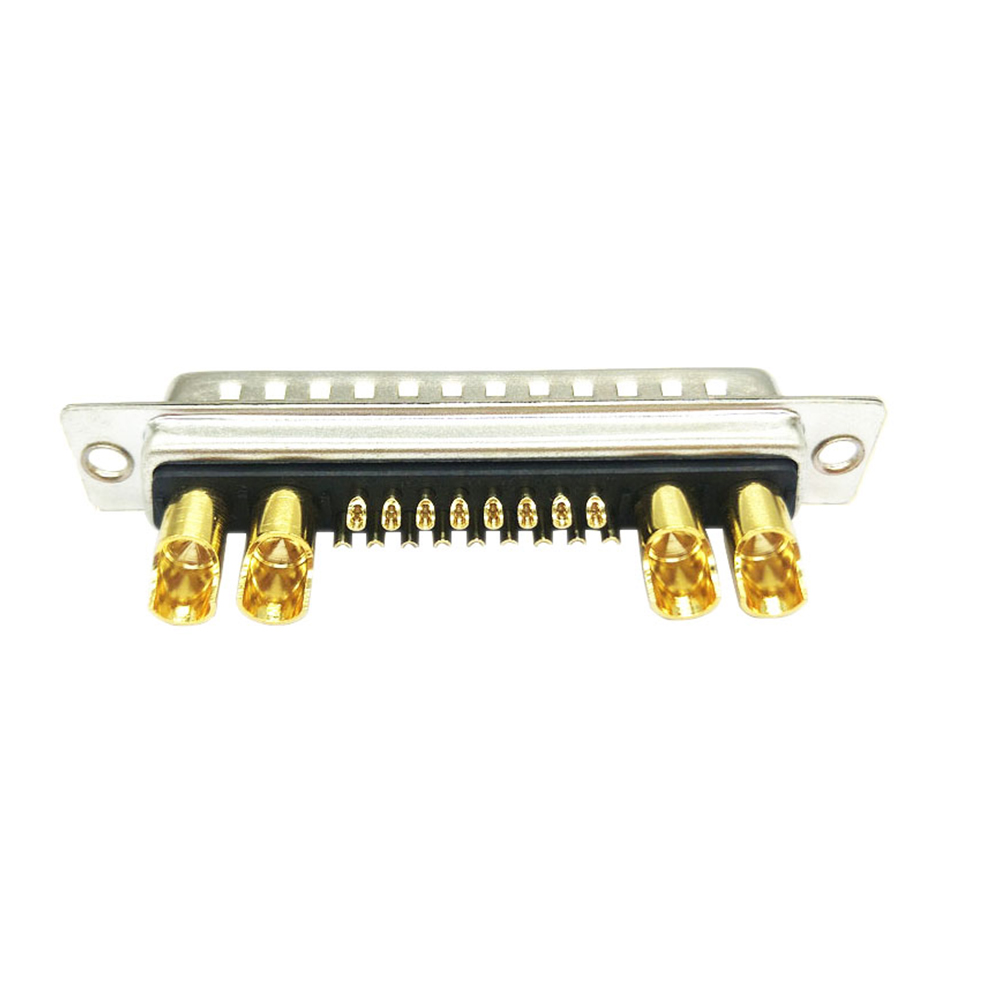

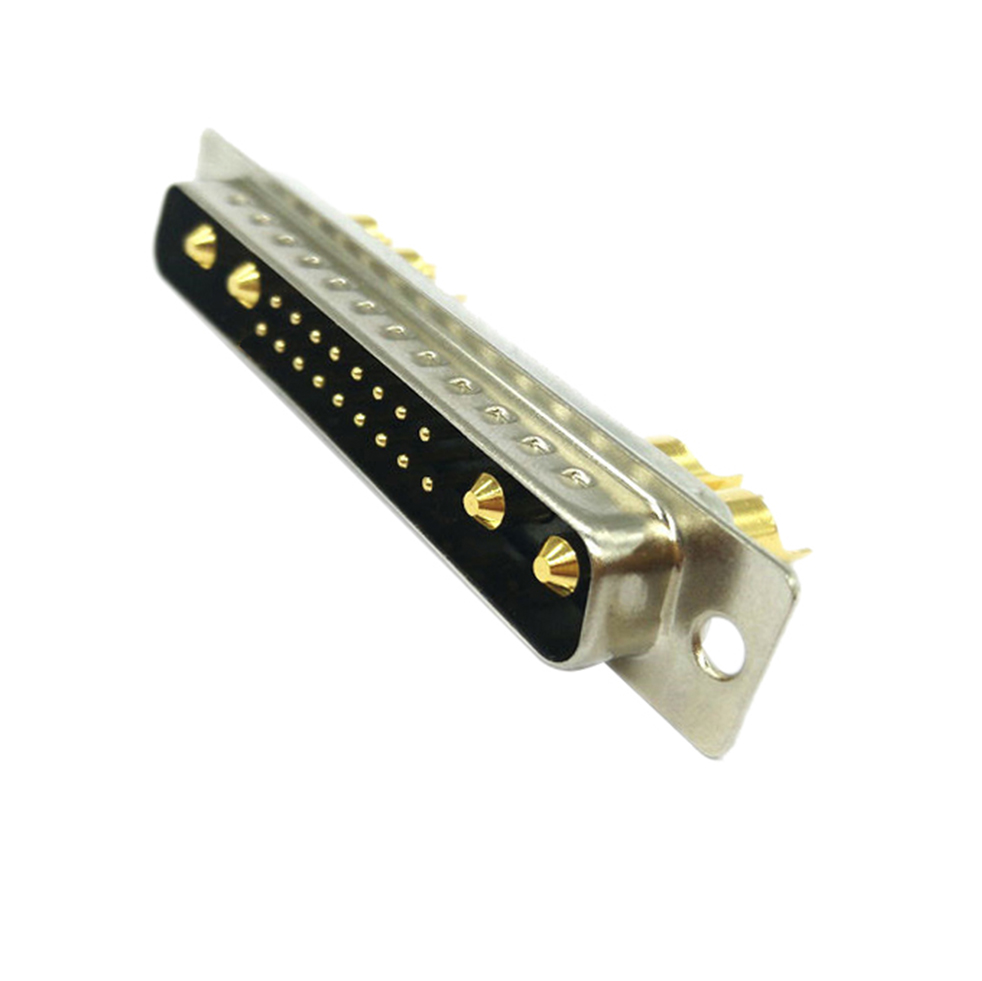

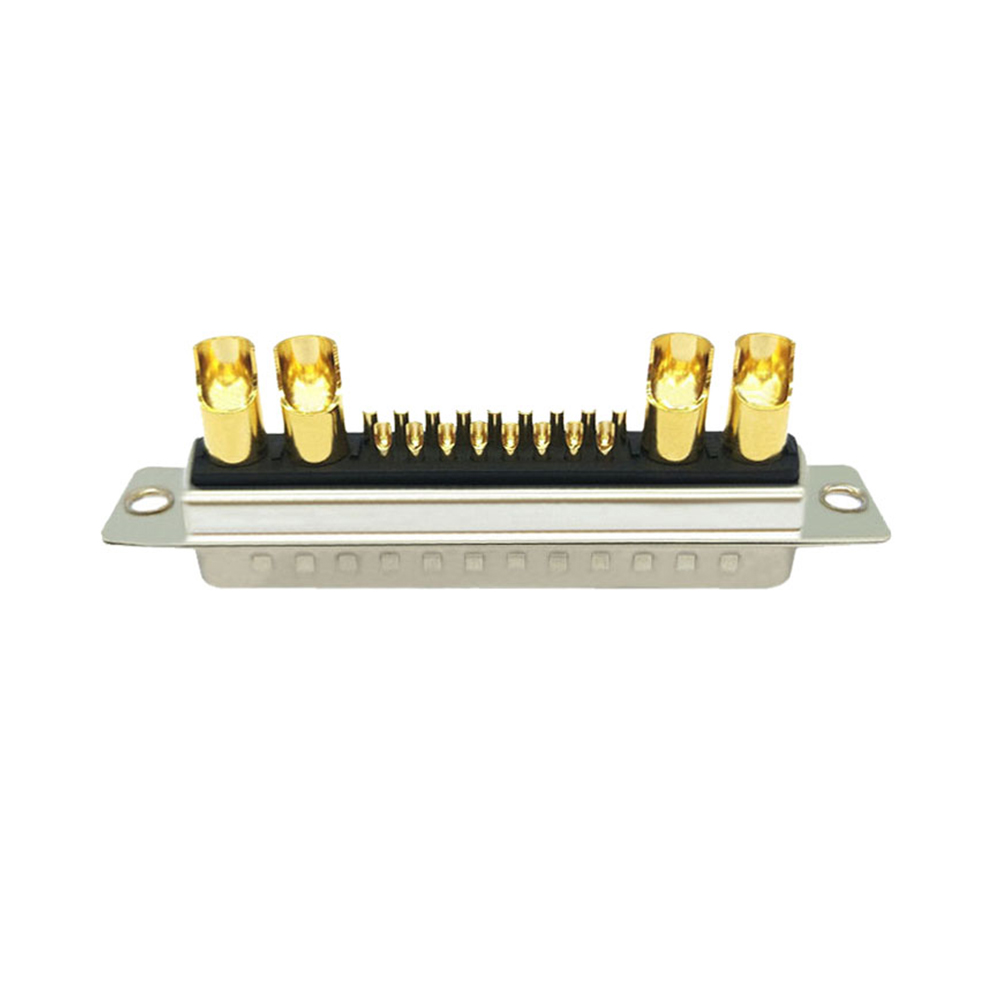

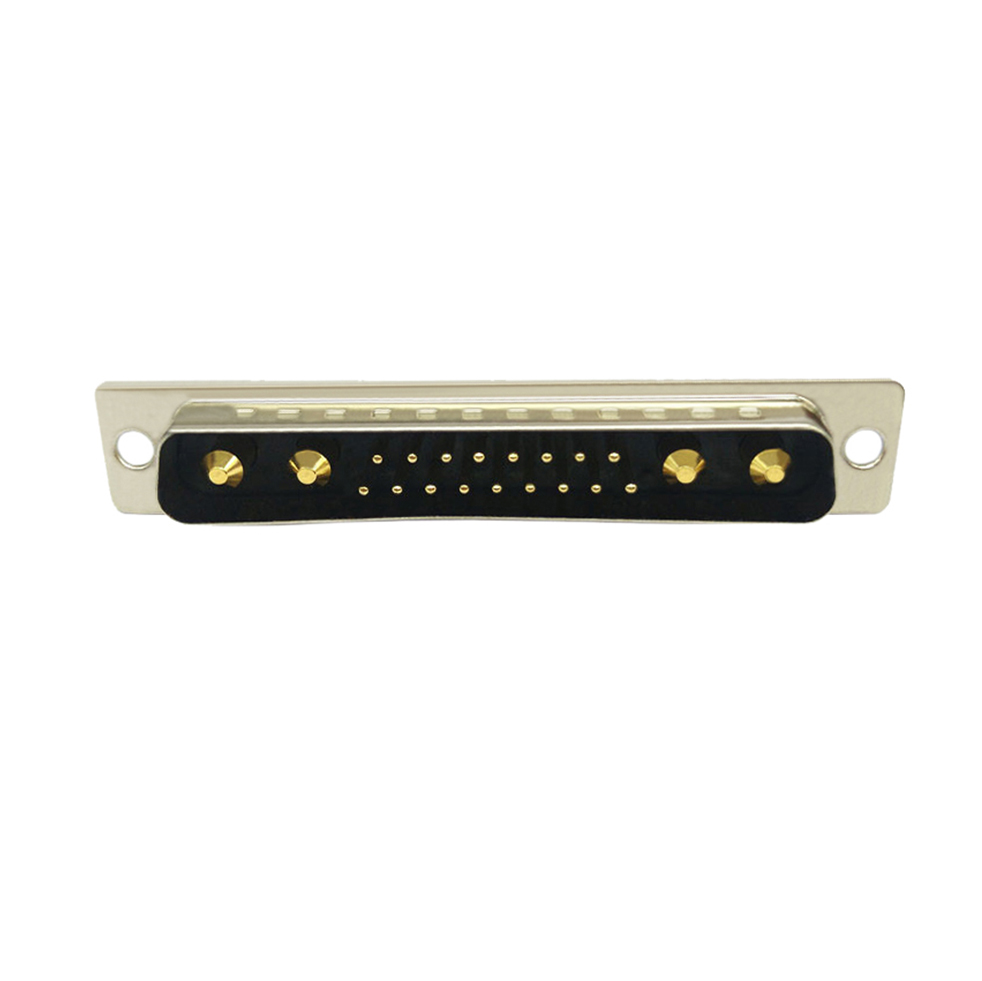

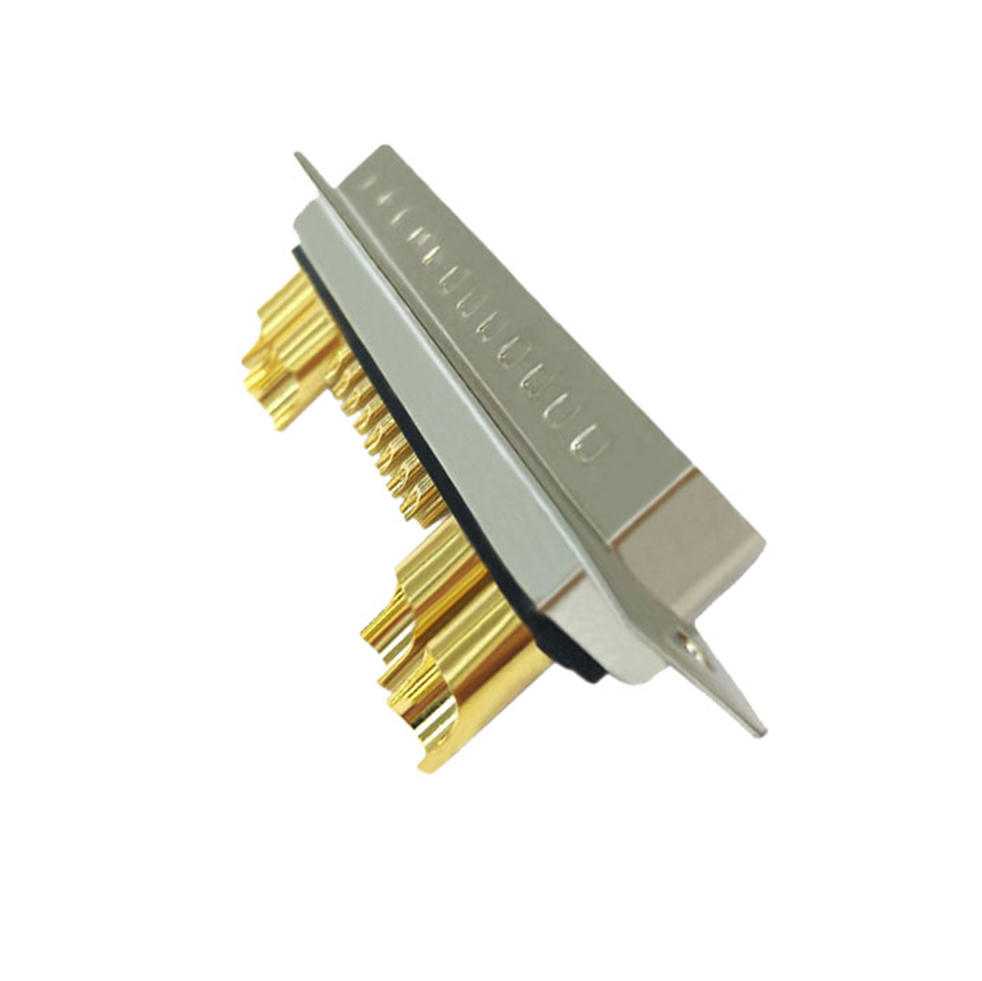

This 21W4 D-Sub connector (female) features a hybrid layout with 17 signal terminals and 4 high-current terminals. It can be directly soldered onto equipment, providing both power and signal transmission capabilities while offering robust environmental reliability. This connector is specifically designed to meet the unique needs of hybrid transmission in complex equipment.

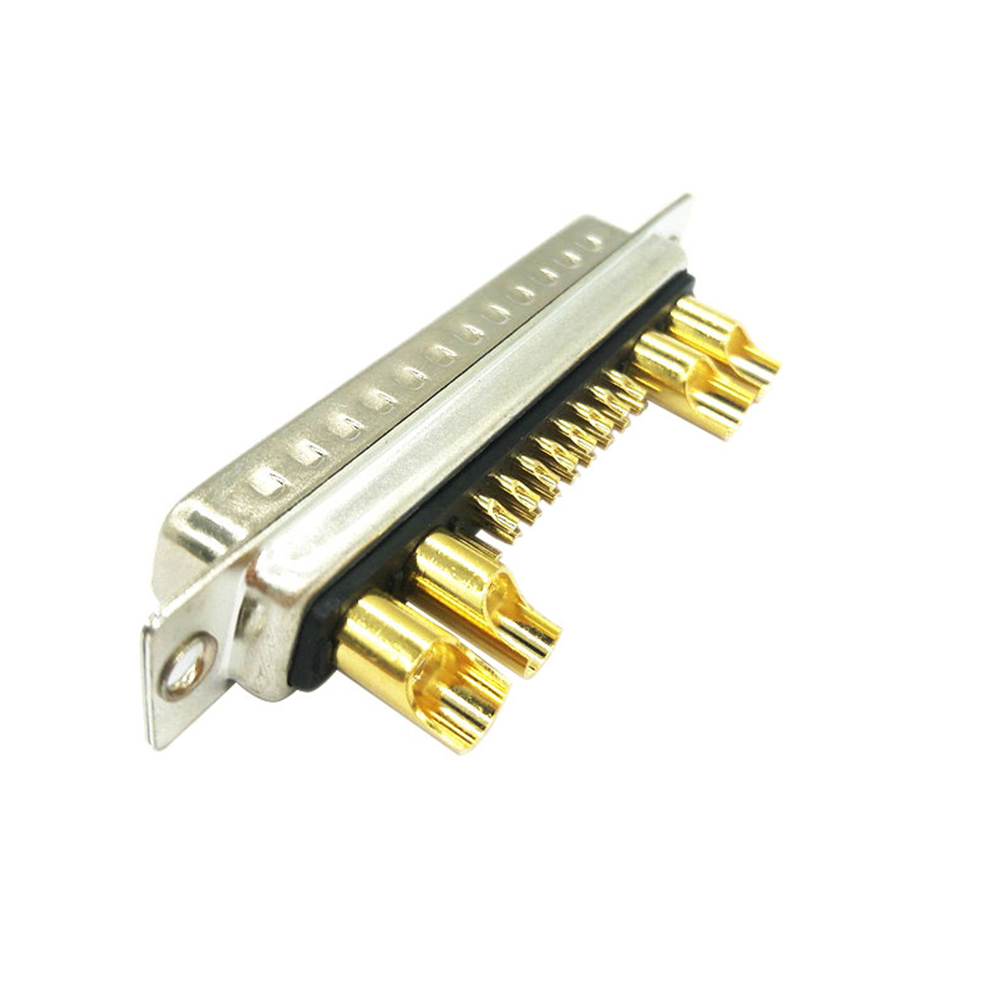

Configuration: 21-pin d sub connector (17 signal terminals + 4 power terminals).

Rated Current: 10A to 40A (Rated Voltage: 500V).

Customization: Custom current specifications are supported to meet the needs of specific equipment.

Mounting Method: Wire soldering/cup soldering.

We at Pandi are a professional manufacturer of Power D-Sub Connectors. Our hybrid 21-pin high density d sub connector (female) is widely used in various heavy-duty and large-scale industrial equipment. One of our clients in Bangladesh works in the industrial automation and control industry. Their CNC machine tool spindle drives and motion control systems require stable integrated power and signal transmission, including the connections between I/O modules and power units within the control cabinet. These all require 21W4 D-sub connectors with high temperature resistance and vibration resistance.

Industries related to aerospace and military applications have even higher requirements for D-sub high-current connectors. We at Pandi can provide D-sub power connectors compliant with GJB142 / MIL-C-24308 standards, suitable for airborne equipment and weapon systems.

Technical Parameters

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°

Mechanical Life: 500 Cycles

Applicable Wire Gauge: AWG 8/10/12

Mounting Method: Cable Plug-In

Packaging Method: Blister/Outer Carton

Environmental Requirements: Meets EU Environmental Requirements

Brand: pandi

Application Scope: Mechanical Equipment, CNC Systems, Instruments & Meters, etc.
