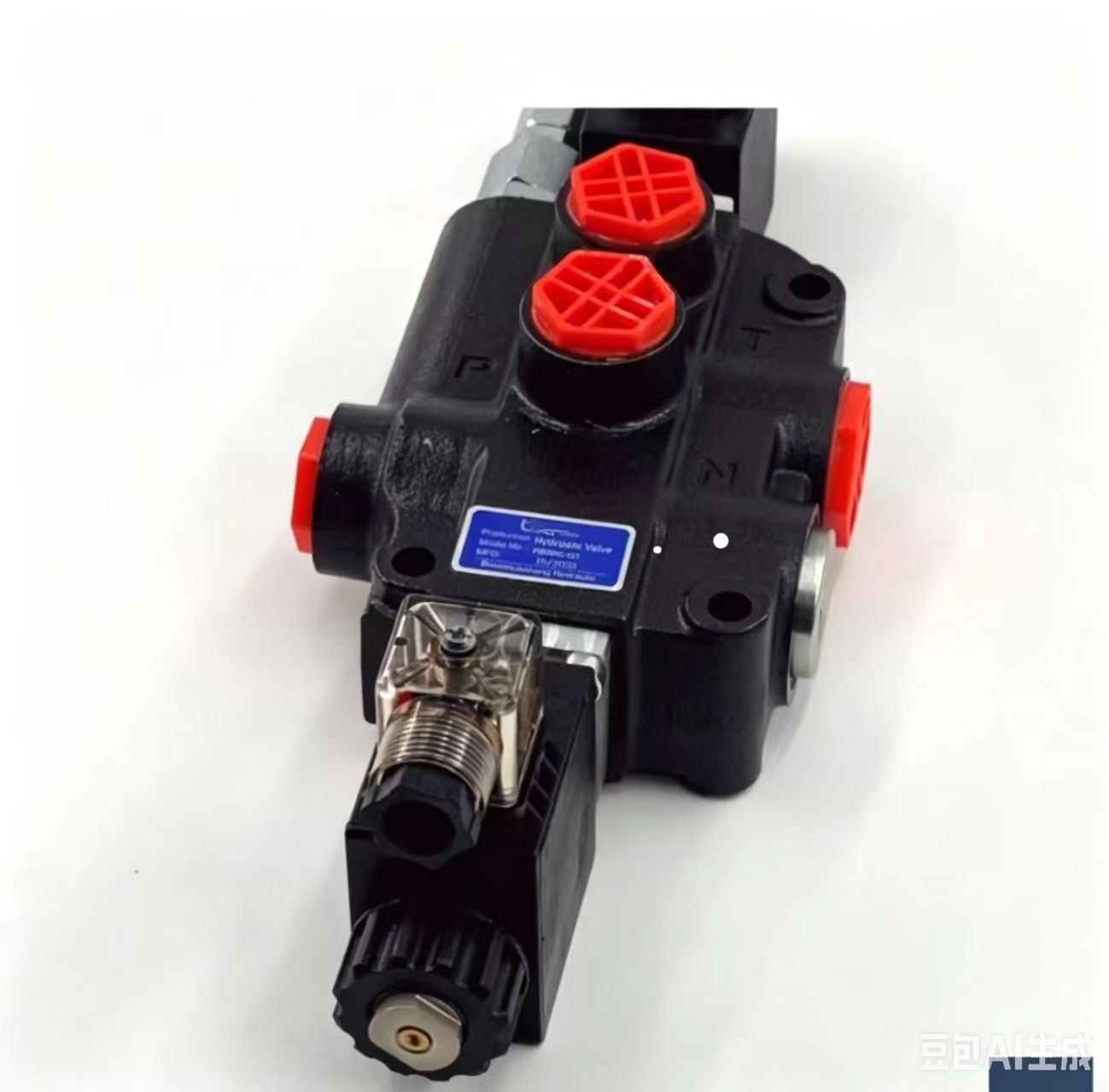

P80 Solenoid-Operated 1-Way Monoblock Directional Control Valve

TheP80 Solenoid-Operated 1-Way Monoblock Directional Control Valveis an electromagnetically driven, single-path monoblock directional valve widely used in hydraulic systems to control fluid flow direction and on/off switching. It is suitable for remote or automated control applications. Below is a detailed introduction to this valve:

------

1. Product Overview

• Model: P80

• Actuation Method: Solenoid-operated (electromagnetic control)

• Number of Flow Paths: 1-way (1 working port)

• Structure Type: Monoblock (integral design)

• Function: Controls fluid flow direction and on/off switching in hydraulic systems, ideal for remote or automated control.

------

2. Technical Specifications

• Rated Flow: 80 L/min (some models may vary, e.g., 40 L/min or 120 L/min)

• Maximum Operating Pressure: 250 bar (or 31.5 MPa, depending on model and manufacturer)

• Operating Temperature Range: -40°C to 80°C (may vary by model)

• Fluid Viscosity Range: 12–400 cSt

• Connection Type: Internal thread

• Control Method: Solenoid-operated (optional manual, pneumatic, or electro-hydraulic control)

• Valve Body Material: Cast iron or carbon steel (model-dependent)

• Spool Functions: Multiple options available (e.g., O, Y, P, A for different port configurations)

------

3. Structural Features

• Monoblock Design: Compact, single-piece valve body reduces leakage points and enhances reliability.

• Electromagnetic Actuation: Fast response and high precision control via solenoid-driven spool movement.

• Flexible Control Options: Supports solenoid, manual, pneumatic, or electro-hydraulic control for versatile applications.

• Built-in Check Valve & Relief Valve (Optional): Prevents backflow and regulates system pressure (available in some models).

------

4. Applications

• Construction Machinery:

• Forklifts, loaders, excavators (controls hydraulic cylinder extension/retraction and steering).

• Agricultural Machinery:

• Tractors, harvesters (controls hydraulic motor rotation and cylinder movement).

• Industrial Equipment:

• Machine tools, injection molding machines (manages hydraulic sequence and direction).

• Other Fields:

• Marine, aerospace (customizable for specific requirements).

------

5. Selection & Installation Considerations

• Key Selection Factors:

• Ensure rated flow, pressure, and temperature match system requirements.

• Verify fluid compatibility (e.g., hydraulic oil, water-based fluids).

• Installation Guidelines:

• Install in the correct orientation to avoid malfunction.

• Ensure tight pipe connections to prevent leaks.

• Regularly inspect seals and solenoid operation for reliability.

------

6. Maintenance & Upkeep

• Regular Inspections:

• Check seals, solenoid performance, and pipe connections periodically.

• Cleaning:

• Clean valve body and internal passages to prevent spool jamming from contaminants.

• Seal Replacement:

• Replace worn or aged seals promptly to maintain sealing integrity.
