DB26Pin Male to Measure Voltage Harness

4 month ago

7 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

FUBON is a trusted manufacturer of high-quality connection and test solutions for automotive, industrial, and diagnostic applications. We design each product to meet strict performance and safety standards, ensuring stable, reliable connections in both workshop and field environments.

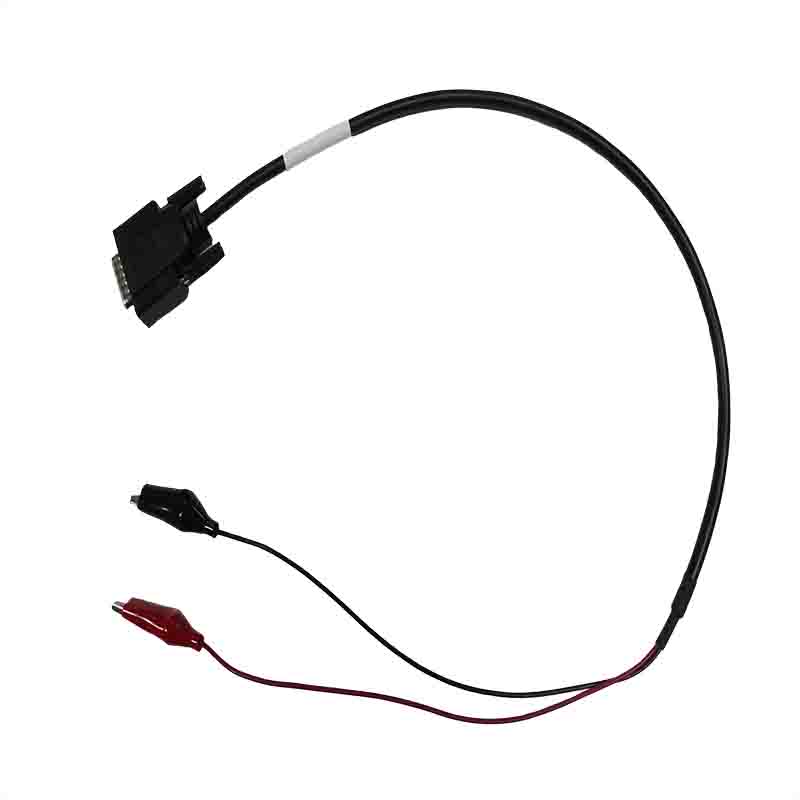

This DB26 to alligator clip test harness is a purpose-built adapter for voltage measurement and diagnostic testing. It features a standard DB26 male connector on one end, paired with color-coded red and black alligator clips on the other. With a total length of approximately 760mm, it provides enough reach to connect devices to power sources or test points while keeping the setup organized.

Item	Description
Product Name	DB26Pin Male to Measure Voltage Harness
Connector Structure	• P1: DB26P 3-row male connector (black plastic housing, nickel-plated contacts, no front nut) • P2/P3: 2 large alligator clips (red insulated for positive, black insulated for negative)
Length	• Main cable length: 500±10mm • Branch wire length (from split point to clips): 300±10mm • Total expanded length: ~760mm

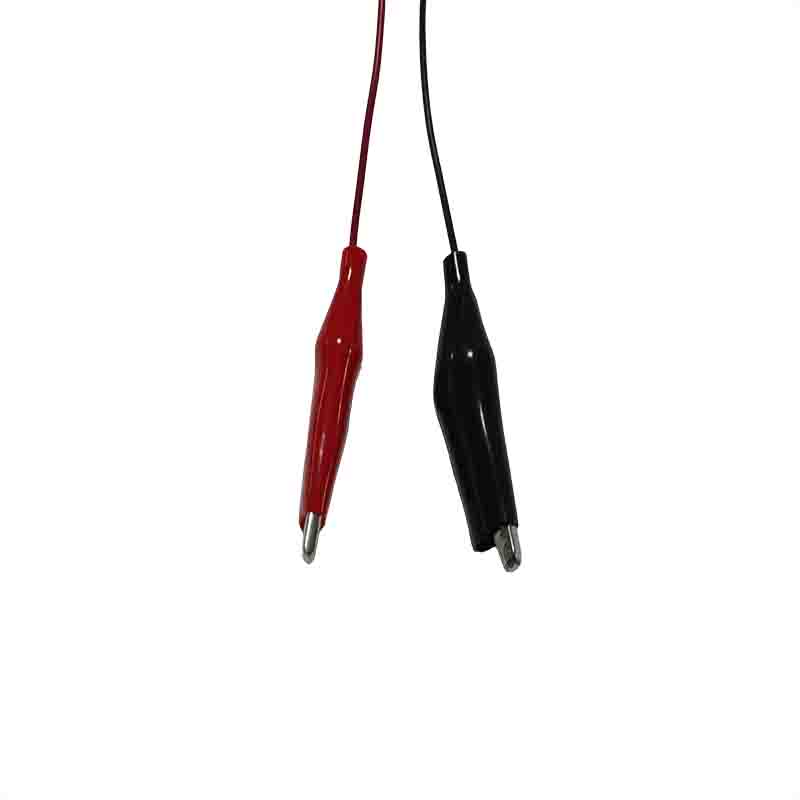

Appearance Features	1. Connector End: Standard DB26 male connector with black molded housing and screw mounting holes for secure device connection 2. Cable Section: Black PVC-jacketed main cable, split into red/black insulated branch wires with heat-shrink protection at the split 3. Test Clips: Nickel-plated large alligator clips with red/black insulating sleeves for clear polarity identification
Application	Voltage signal testing and power connection for industrial equipment and diagnostic instruments, used to interface DB26 devices with external power sources or test points

As part of our proven line of car wiring cables, this harness uses automotive-grade PVC-insulated wire for durability and consistent signal transmission. The molded DB26 connector ensures a secure fit, while the color-coded clips and clear labeling eliminate guesswork during polarity-sensitive tests. Every unit undergoes full electrical testing to confirm continuity, insulation resistance, and voltage withstand performance.

This diagnostic harness is engineered to simplify the process of interfacing DB26-equipped equipment with external power and test circuits. The split red/black leads make it easy to connect to battery terminals, power rails, or test points, reducing setup time and the risk of wiring errors.

For technicians working with specialized tools and vehicle systems, this acts as a practical vehicle diagnostic cable adapter, bridging your DB26 devices to power or signal sources without permanent modifications. It offers a reusable, reliable connection that works with a wide range of diagnostic equipment and test setups.

At FUBON, every electrical harness assembly is built with precision and attention to detail, from crimping and soldering to strain relief and labeling. This test harness reflects that commitment, with neat cable routing, durable heat-shrink protection, and clear markings to support fast, error-free use.As a versatile vehicle diagnostic cable, this adapter supports voltage checks, power supply connections, and equipment calibration in both automotive and industrial settings. Whether you’re working in a workshop or on-site, it provides the stable connection you need to get accurate results quickly.
