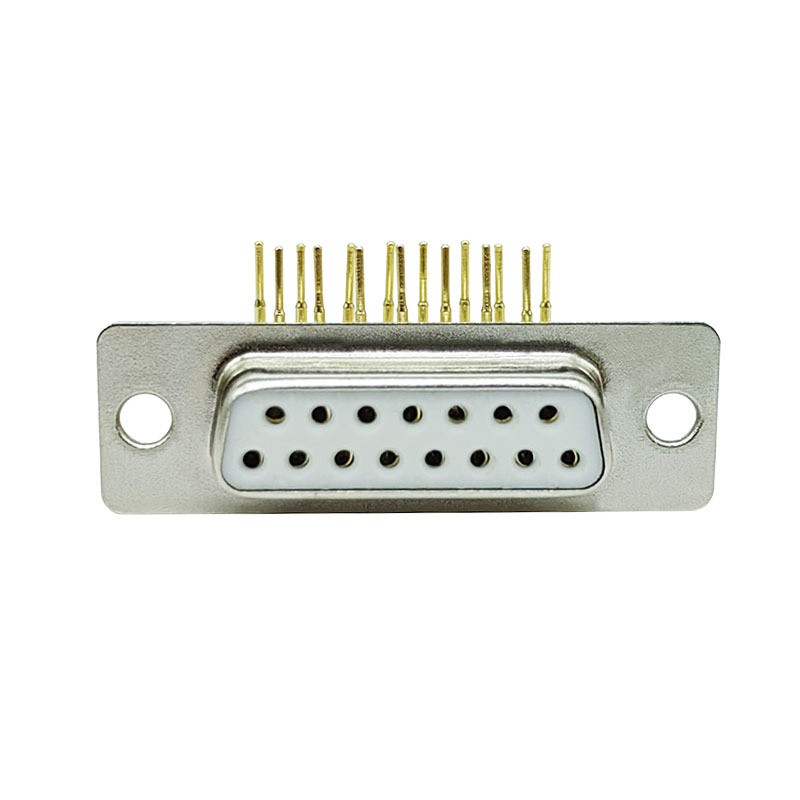

The DR15-pin standard D-subminiature connector (female) is a flagship product in our D-Sub series. Pan Di Electronic Technology Co., Ltd. is located in Dongguan City, a hub renowned for modern manufacturing. For two decades, the company has kept pace with market trends, focusing on the R&D and manufacturing of D-subminiature connectors and related products. We welcome custom product orders.

The DR15 right-angle model is a dual-row, 15-pin D-Sub connector featuring 90-degree bent contacts. Commonly used for VGA interfaces, this 15-pin connector is designed for right-angle PCB mounting; it features a metal shielding shell and screw mounting holes, distinguishing it from the HDB15 (three-row VGA) specification.

Key specifications for the 15-pin D-Sub connector:

Structure: Dual-row (7/8 pins) = 15 contacts; 90-degree right-angle (bent-leg) design

Type: Available in both male (pin) and female (socket) versions

Materials: PBT insulator (UL94-V0 grade); nickel-plated shell; phosphor bronze terminals (gold or tin plating)

Electrical Performance: Rated current 3A / 40V AC; insulation resistance ≥1000 MΩ; withstand voltage 750V AC/1 minute

Environmental & Durability: Operating temperature -55°C to +105°C; mating cycles ≥1000

Mounting Method: Right-angle PCB mount (saves vertical space; suitable for compact chassis environments)

What devices are used with this dsub connector(15 pin d sub male)

Industrial Control - PLC, Industrial Control Machine, Industrial Motherboard (Side IO)

Servo drive, frequency converter (control / signal port)

Digital control machine tool CNC, industrial robot control cabinet

Serial port servers, industrial switches, data collectors

Display / Video (non-VGA) - Industrial display, touch screen (non-VGA signal port)

Video matrix, dispenser, switcher (control port)

Instrumentation / Medical / Automotive - oscilloscopes, signal generators, test measuring instruments

Medical monitor, electrocardiogram machine (signal interface)
