FUBON is a trusted manufacturer of practical automotive connection solutions, designing splitters, adapters, and harnesses that make workshop diagnostics more efficient. We build every product to handle daily use while maintaining clear, reliable communication between tools and vehicle systems.

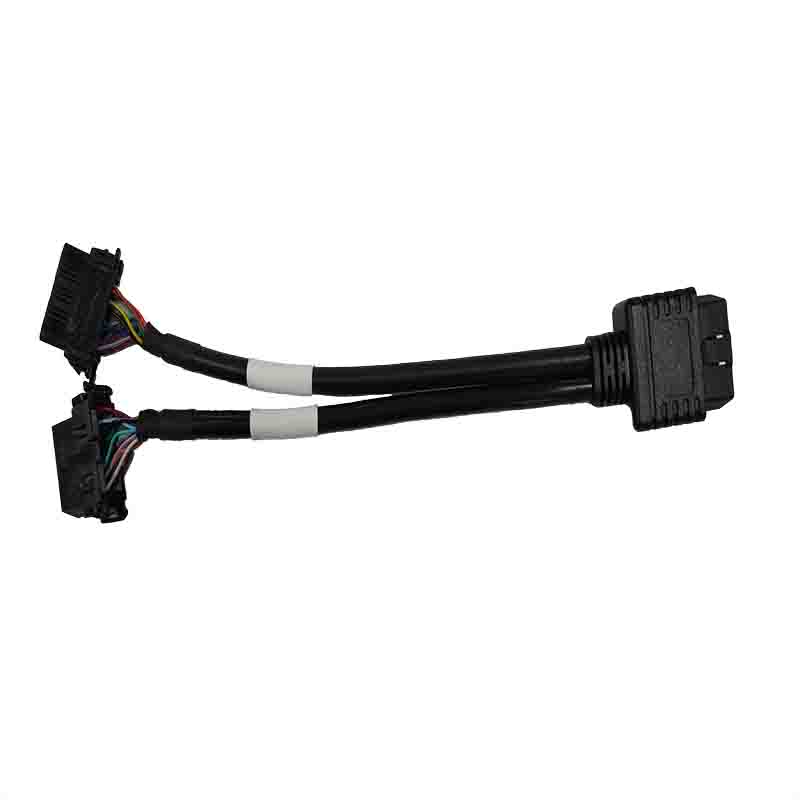

This OBDII 16P Male to Dual Female Connector Cable is a Y-shaped adapter that turns one OBD port into two, allowing you to connect multiple devices at once. With a total length of 330±10mm, it features one standard OBD male plug on one end, and two OBD female connectors on the other—one optimized for scan tools, the other for telematics modules. The labeled heat-shrink tubing makes it easy to identify which port is for which purpose.

OBDII 16P Male Connector for Dual Female Connectors

Built to simplify multi-device testing, this diagnostic harness uses color-coded conductors and durable black PVC insulation to maintain stable signal flow. The molded OBD connectors ensure a snug fit in the vehicle port, while the reinforced Y-split prevents cable damage under repeated use. Every unit undergoes full electrical testing to confirm continuity, insulation resistance, and voltage withstand performance.

As a practical vehicle diagnostic cable adapter, this splitter eliminates the need to swap cables between tools during service. You can keep both your scan tool and telematics device connected at the same time, reducing setup time and helping you work more efficiently.

Item	Description
Product Name	OBDII 16P Male Connector for Dual Female Connectors

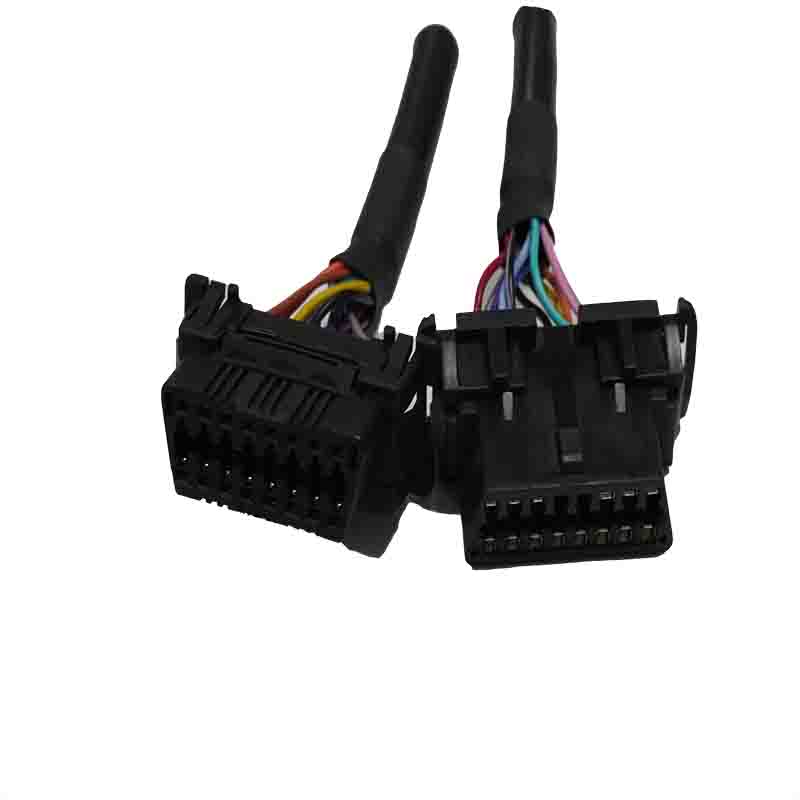

Connector Configuration	• P1: OBDII 16-pin male connector (standard OBD plug) • P2: OBDII 16-pin female connector (Modern/VOLVO style) • P3: OBDII 16-pin female connector (Toyota style)
Length	• Cut length (2x): 330 ± 10mm • Distance from split point to each female connector: 30 ± 5mm
Appearance Features	1. Cable Jacket: Black PVC outer sheath with color-coded internal wires for clear signal identification 2. Split Design: Y-shaped splitter with printed heat-shrink labels ("FOR SCAN TOOL" / "FOR TELEMATICS VOLVO + MACK") 3. Connectors: Two different OBDII 16P female housings (Toyota and Modern/VOLVO styles), both with black plastic bodies 4. Markings: White heat-shrink sleeves for identification at each branch, unprinted tubing at connector ends
Electrical Performance	• 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤2Ω • Insulation resistance: ≥10MΩ • All materials meet RoHS requirements
Application	Diagnostic and telematics Y-cable adapter, allowing one OBDII male port to connect to two separate devices (e.g., scan tool and telematics module) simultaneously

This versatile OBD diagnostic adapter is designed to work with a wide range of OBDII-compliant vehicles. The dual female ports follow industry-standard pinouts, so you can use your existing tools without worrying about compatibility issues.

While it offers expanded functionality, it’s built to the same high standards as our standard OBDII cable products. We use automotive-grade materials and strict quality checks to ensure it stands up to daily use in busy workshop environments.

As a flexible OBD Diagnostic Cable Adapter, this Y-cable is ideal for technicians who need to run diagnostics and telematics tasks in parallel. It’s a simple, reliable upgrade that helps you get more done with the ports you already have.
