Features
1 、Stable Load Design

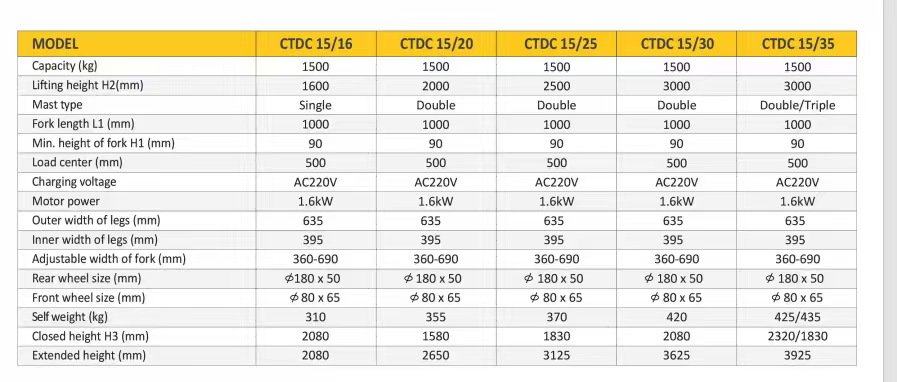

The electric pallet jack stacker has a rated capacity of 1500 kg with a load center of 500 mm, ensuring balanced lifting during operation. This structure helps maintain stability when handling standard pallets, reducing uneven force and keeping performance consistent during repeated lifting cycles in daily use.
2 、Flexible Lift Range
Lifting heights include 1600 mm, 2000 mm, 2500 mm, and 3000 mm, with extended heights reaching up to 3925 mm depending on the model. This range allows the equipment to match different storage rack levels, supporting organized stacking without requiring additional lifting tools.
3 、Standard Fork Setup
Fork length is fixed at 1000 mm, while fork width can be adjusted from 360 mm to 690 mm. This configuration allows compatibility with different pallet sizes, helping operators position goods securely and maintain consistent handling across various storage setups.
4 、Reliable Power Output
The system uses a 1.6 kW motor with AC220V charging voltage, providing stable lifting and driving performance. This setup ensures continuous operation under normal working conditions, supporting daily handling tasks without power fluctuation.
5 、Compact Structure
The self weight ranges from 310 kg to 435 kg depending on the configuration, with an outer leg width of 635 mm and inner width of 395 mm. This compact structure supports smooth movement in limited spaces while maintaining stability during lifting and transport.
Application
1 、Warehouse Stacking
The electric pallet jack stacker is used to place pallet goods onto storage racks at different heights. It helps improve warehouse organization by allowing controlled stacking without manual lifting, making inventory handling more efficient.
2 、Production Transfer
In factory environments, the equipment supports movement of palletized materials between production areas. It helps maintain steady workflow by reducing delays during material transfer and improving handling consistency.
3 、Logistics Sorting
The stacker can be used in sorting zones to position goods at designated locations. It supports structured handling processes, helping operators manage pallet goods more efficiently during sorting operations.
4 、Retail Storage
In retail and wholesale storage areas, the electric pallet jack stacker helps move goods from receiving zones to storage positions. Its adjustable fork width allows better compatibility with different pallet types used in daily operations.
5 、Loading Support
The equipment assists in positioning pallets near loading areas for transfer. It helps improve alignment accuracy and reduces manual handling effort during loading and unloading processes.
FAQ :
Q: What is the maximum load capacity of this electric pallet jack stacker?
A: The standard rated capacity is 1500 kg with a load center of 500 mm. This configuration is suitable for handling most standard pallet loads while maintaining stable lifting performance during repeated use.
Q: What lifting heights are available?
A: This model offers lifting heights of 1600 mm, 2000 mm, 2500 mm, and 3000 mm. Depending on the version, the extended height can reach up to 3925 mm, allowing it to match different rack systems.
Q: Can the fork width be adjusted for different pallet sizes?
A: Yes, the fork width is adjustable from 360 mm to 690 mm. This allows the equipment to handle various pallet types while maintaining stable positioning during lifting and transport.
Q: What type of power system does it use?
A: The machine uses a 1.6 kW motor with AC220V charging. This setup provides stable power for both lifting and movement, supporting consistent daily operation in warehouse environments.
