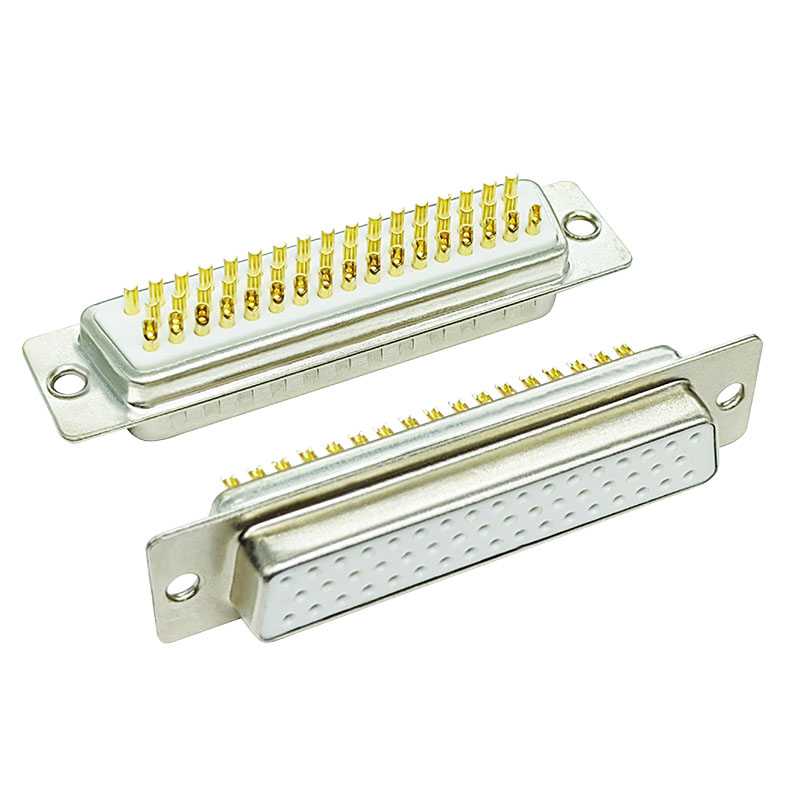

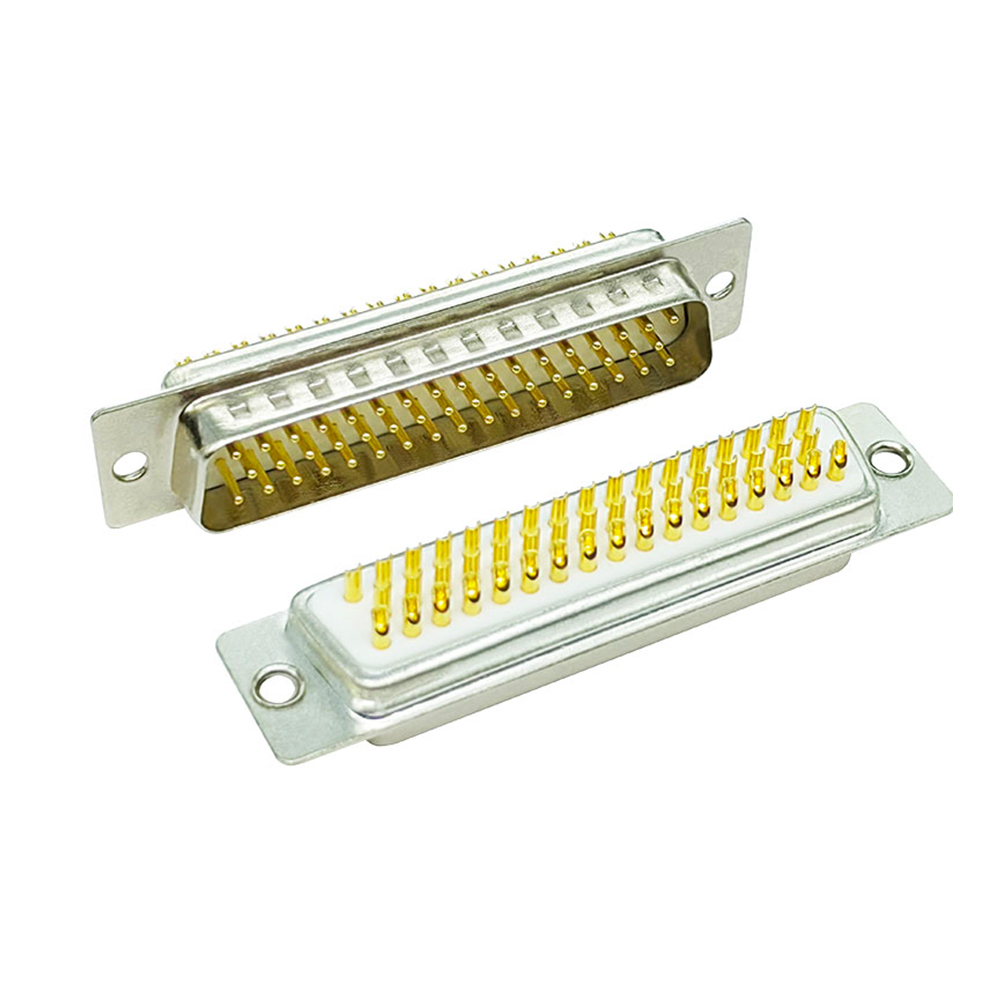

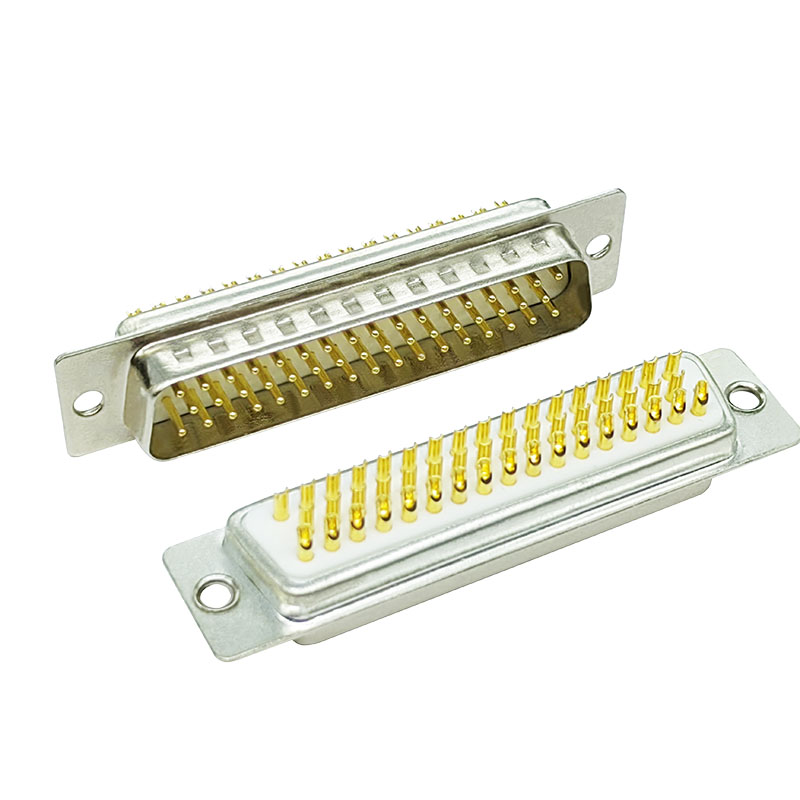

Welding Wire 50 pin d sub connector:

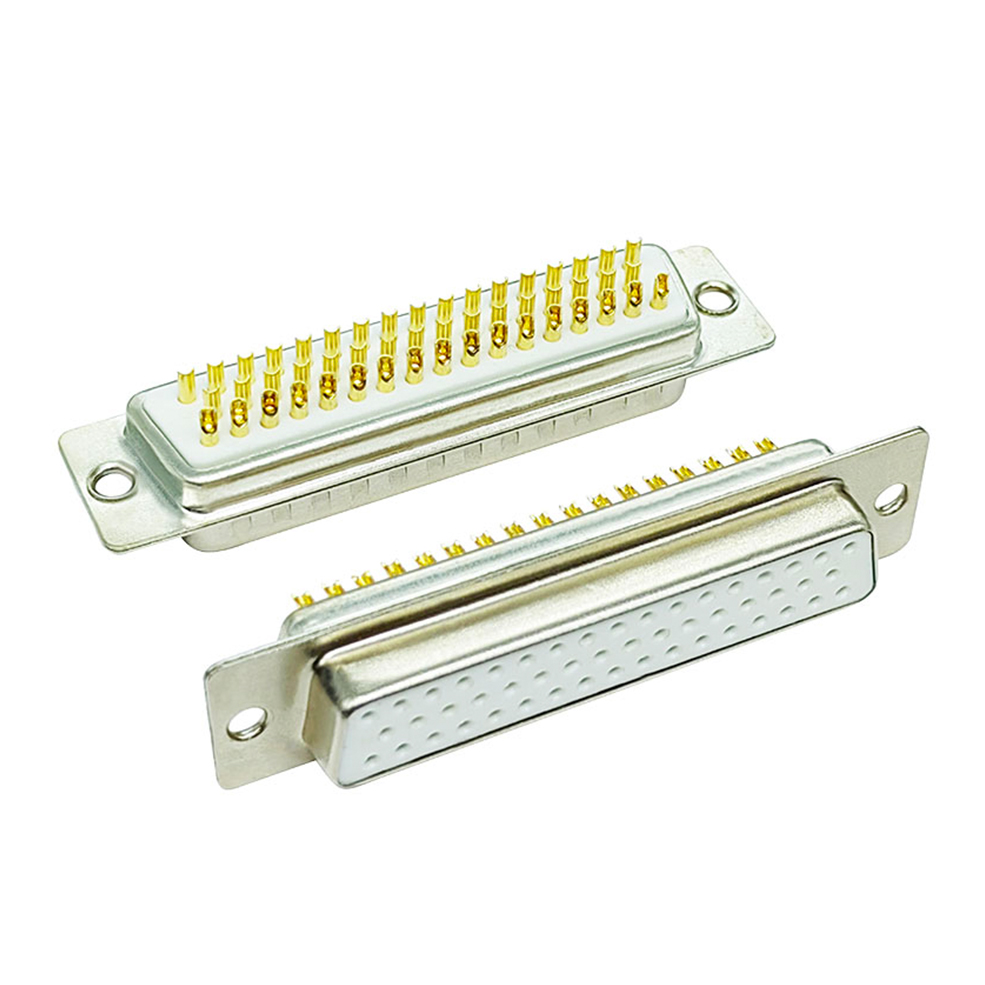

The 50 pin female connector is a core product in the high density d sub connector series, designed specifically for scenarios involving the stable transmission of multiple signals and lines. It employs a standardized soldered-wire termination structure, balancing installation flexibility, electrical connection reliability, and environmental adaptability. It is an excellent choice for achieving efficient interconnection between cables and devices in industries such as industrial control, communication equipment, and instrumentation.

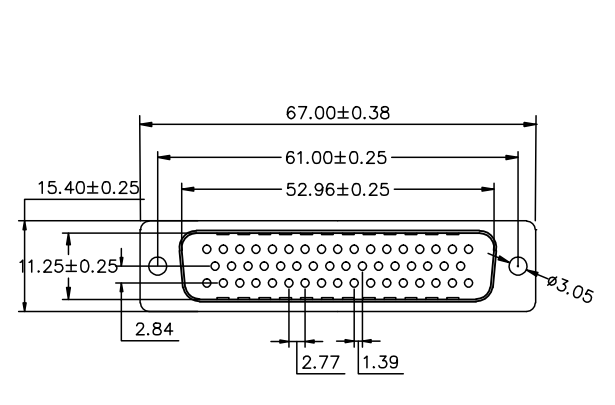

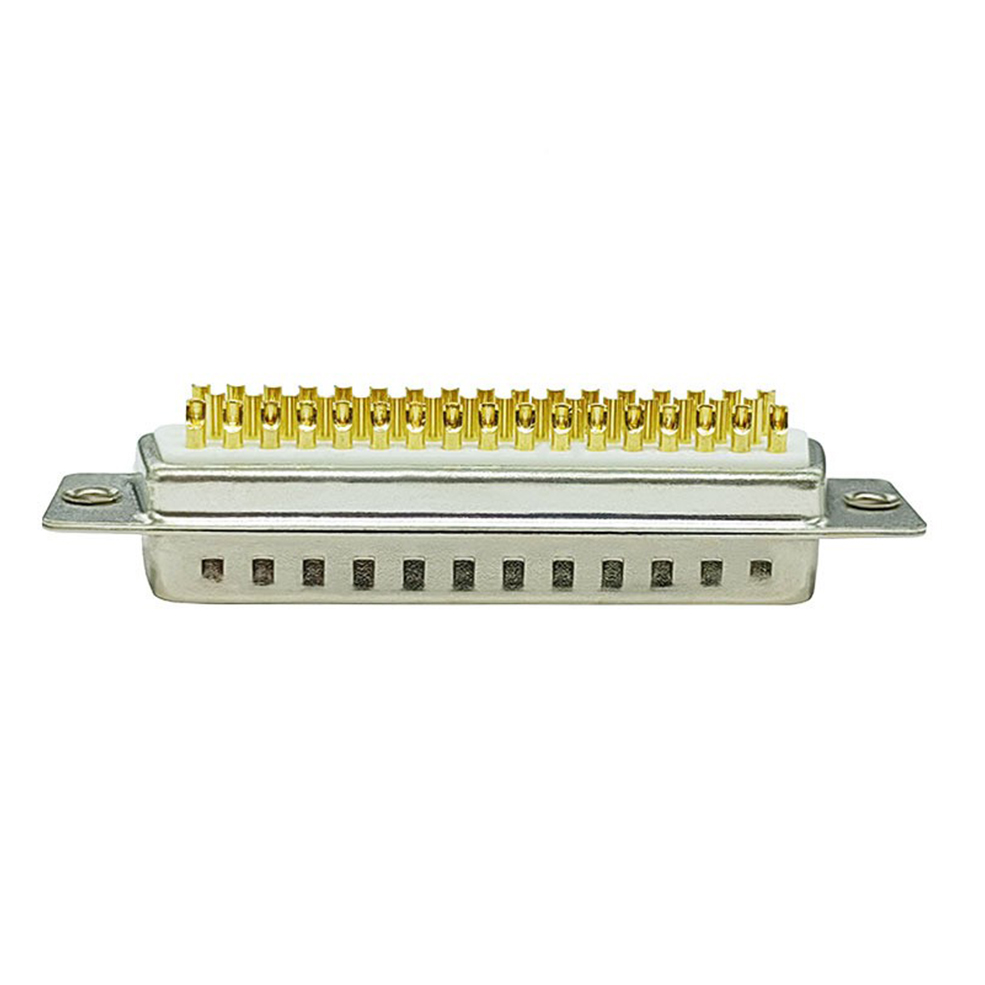

The 50 pin d sub connector features a three-row, 50 pin high density pin layout, enabling multi-channel signal synchronous transmission within a limited volume, thereby significantly reducing the space required for equipment installation. The termination method employs a specialized soldering cup design, featuring a wide and uniform soldering cup that is compatible with various standard cables. This design not only allows for welding of single-strand wires and multi-strand twisted wires but also simplifies the welding process, ensuring that the solder points are secure and do not come off, thereby significantly enhancing wiring efficiency and connection stability.

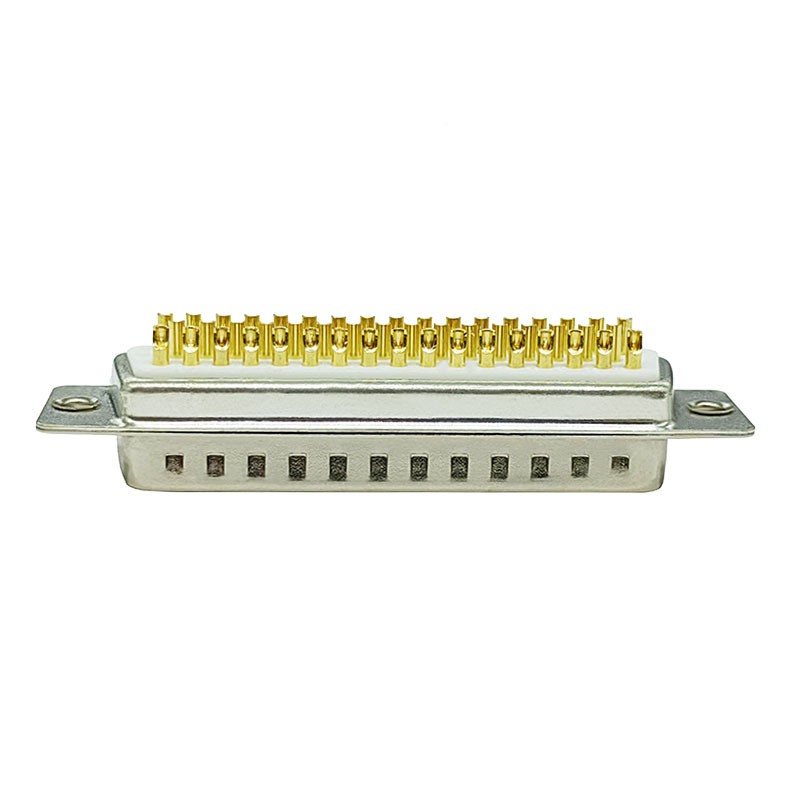

The casing of this d connector is made from high-quality galvanized steel, which boasts high mechanical strength and excellent resistance to deformation. Combined with an integrated insulating base plate, it features glass fiber-reinforced PBT material that is heat-resistant and chemically resistant. This design provides excellent insulation performance and structural stability, effectively blocking signal interference while protecting the internal contact components from external damage. The contact components are made from high-purity copper alloy, with a gold-plated and nickel-coated surface layer. This not only ensures low-resistance and low-loss signal transmission but also provides exceptional resistance to oxidation and corrosion, significantly extending the lifespan of d sub male connector 50 pin.
Core performance advantages.
1. Stable electrical performance: rated current of 3A, operating voltage compatible with AC 400V, contact resistance ≤7mΩ, insulation resistance ≥5000MΩ, withstands voltage levels up to 1250Vac RMS (1 minute), effectively preventing issues such as signal attenuation, short circuits, and electrical leakage. This ensures synchronized, precise, and stable transmission of signals across multiple channels, meeting the signal transmission requirements of high-precision equipment.
2. Tough Environmental Compatibility: The device can operate stably over a wide temperature range of –40°C to +85°C, without being affected by the material degradation and poor contact issues caused by alternating high and low temperatures. It also possesses excellent moisture and dust resistance, making it suitable for indoor and outdoor industrial settings and complex operational environments, ensuring consistent connection performance.
3. Durability and Convenience: The number of times it can be inserted and removed meets the standards for industrial-grade long-term use. The male and female connectors are precise, and the anti-mishap D-shaped housing effectively prevents incorrect insertion. The soldering wire design eliminates the need for additional accessories, making it suitable for flexible on-site wiring and customized cable assembly, catering to the wiring requirements of various devices.
4. Compatibility and versatility: Adhering to the international standard for d sub connector, it seamlessly integrates with HDB50 connectors of the same specifications, is compatible with various industrial device interfaces, and can be directly substituted without modifying the device’s structure, making it highly adaptable.
