High-Performance DB26 Male to LED Test Cable

4 month ago

7 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

FUBON is a professional manufacturer of custom test and diagnostic cables, designing solutions tailored to meet the unique interface and testing requirements of industrial and automotive systems. Every product is built for precision, reliability, and ease of use in demanding environments.

High-Performance DB26 Male to LED Test Cable

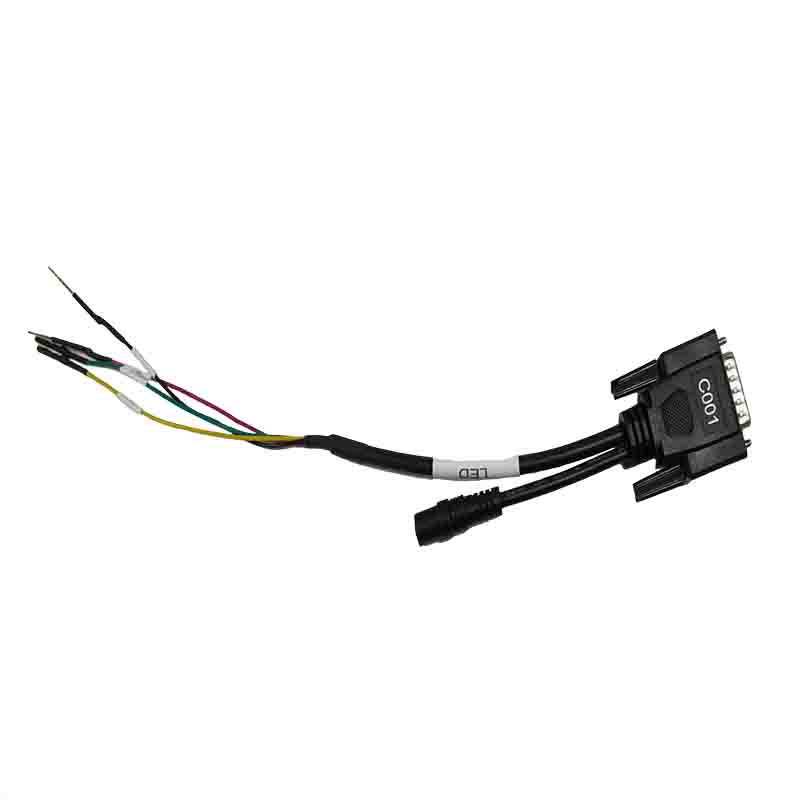

This DB26Pin Male to LED Test Cable is a purpose-built signal and power test harness designed for equipment debugging and LED circuit verification. It features a DB26 male connector on one end, a DC power jack, and four color-coded test pins on the other. With a main length of 200±10mm and test pin branches at 150±10mm, it provides a clear, organized way to connect power, ground, and signal points for quick visual LED testing.

As a specialized diagnostic harness, it is engineered for precise signal routing and easy visual feedback. The color-coded red/yellow/black/green test pins, labeled “LED_A” and “LED_K”, eliminate confusion during connection, while the molded DB26 connector ensures a stable fit with compatible devices. Every cable undergoes full electrical testing to confirm continuity, insulation resistance, and voltage performance.

Item	Description
Product Name	High-Performance DB26 Male to LED Test Cable

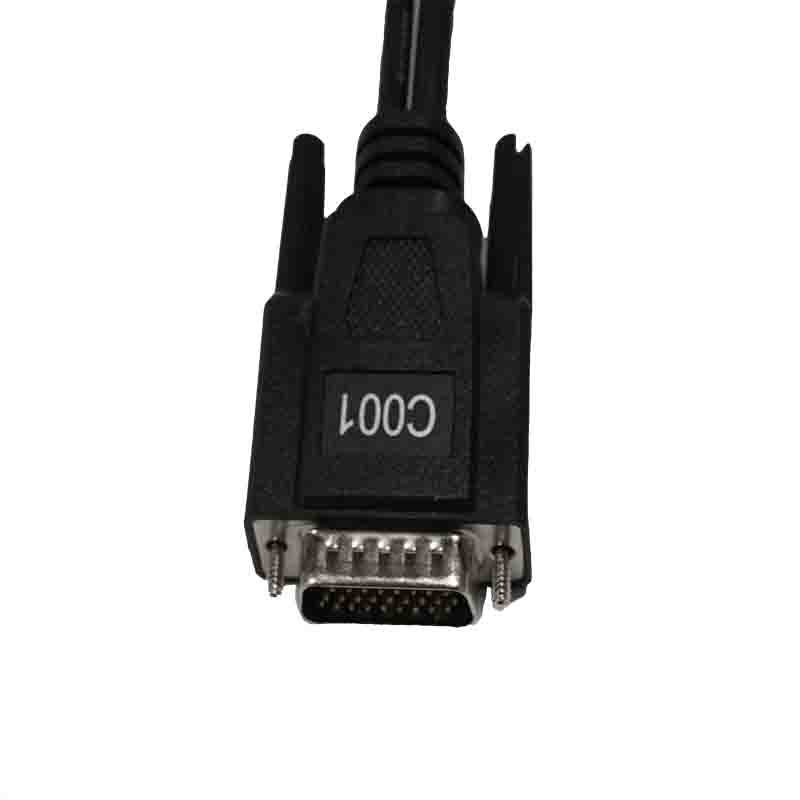

Connector Configuration	• P1: DB26P 3-row male connector (black plastic housing, nickel-plated contacts, labeled “C001”) • P2: DC 5.5*2.1mm female power jack (for power input) • P3-P6: 4 spring test pins (color-coded red/yellow/black/green, marked “LED_A” / “LED_K”)
Length	• Main cable length: 200±10mm • DC jack branch length: 150±10mm • Test pin branch length: 150±10mm (each pin)
Appearance Features	1. Connectors: DB26 male plug with “C001” label, DC power jack, and 4 color-coded spring test pins with exposed tips 2. Cable Jacket: Black PVC outer sheath, with “LED” printed white heat-shrink tubing at the split 3. Markings: Each test pin is labeled with “LED_A” or “LED_K” via heat-shrink tubing for clear identification 4. Strain Relief: Molded relief at the DB26 connector and split point for durability
Electrical Performance	• 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 0.01S • Insulation resistance: ≥20MΩ • Conduction resistance: ≤10Ω • All materials meet RoHS requirements
Application	LED signal testing, circuit debugging, and power verification for industrial or diagnostic equipment with DB26 interfaces

While designed for specific industrial test applications, it shares the same robust build philosophy as our OBD diagnostic adapter products. It uses durable black PVC-insulated wire and reinforced strain relief to withstand repeated handling in busy workshops or lab environments.

Even though it does not use a standard vehicle port, it follows the same strict quality standards as our production-grade OBDII cable lines. From crimping to labeling, every detail is controlled to ensure consistent performance, just like our automotive-grade products.

As a versatile test tool, it mirrors the user-centric design of our OBD Diagnostic Cable Adapter solutions, focusing on quick, error-free connection and reliable operation. It is built to make your testing process faster and more reliable, whether you’re working with industrial control systems or custom diagnostic setups.
