2.54mm Box Header 180° H=9.0 Add Housing

5 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

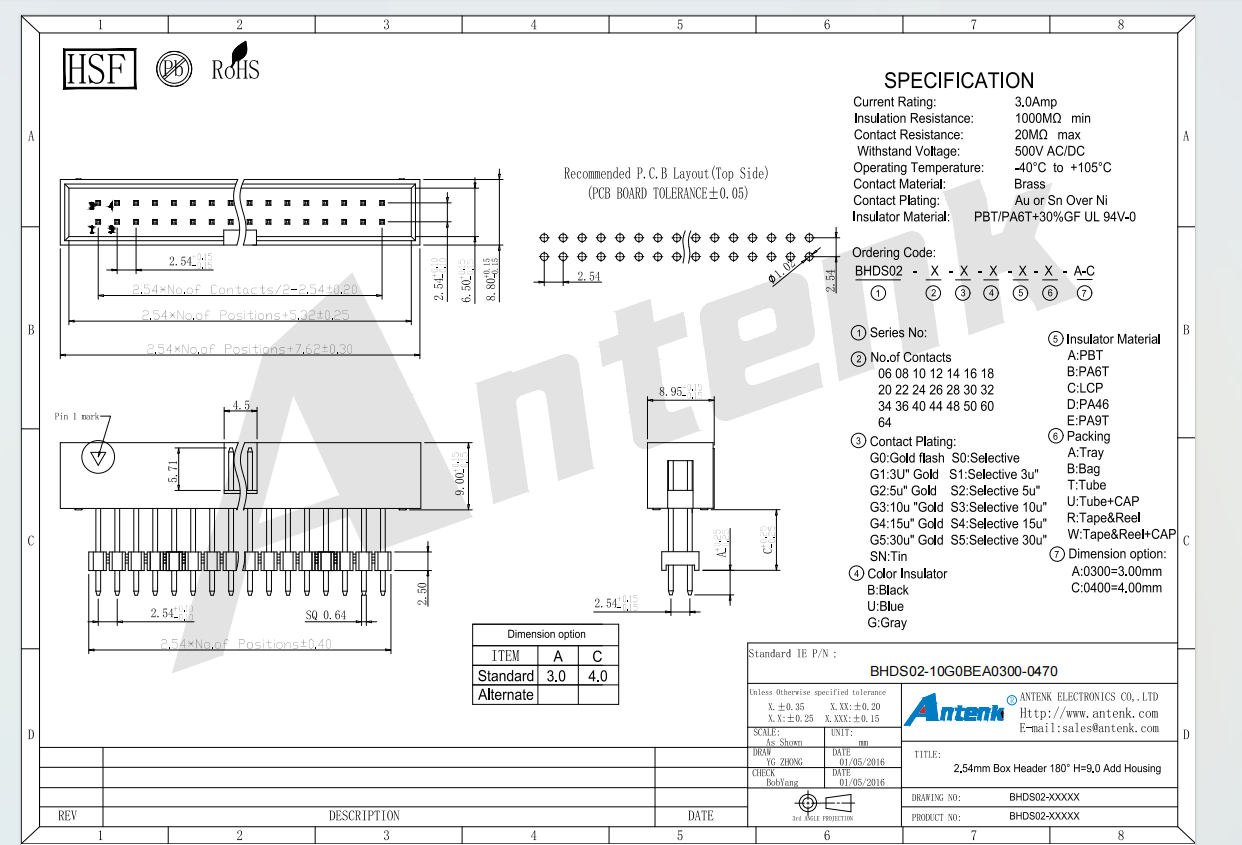

Developed and manufactured by Huizhou Antenk Electronics Co., Ltd, the BHDS02 series 2.54mm 180-degree box header with 9.0mm height add housing delivers reliable signal transmission and secure circuit connection for PCB assembly applications. This product series provides contact options ranging from 06 pins to 64 pins, with brass as contact material and multiple surface plating solutions including gold flash selective gold plating and tin over nickel plating. The insulator adopts high-performance flame retardant materials such as PBT PA6T and LCP which comply with UL94V 0 safety standard. It supports 3.0 Amp rated current, features minimum 1000MΩ insulation resistance and maximum 20MΩ contact resistance, and can withstand 500V AC DC voltage within stable operating temperature from minus 40 degrees Celsius to 105 degrees Celsius. The complete manufacturing process covers independent mold design precision terminal stamping plastic injection molding surface plating automatic assembly and comprehensive laboratory electrical testing. Supported by Taiwan high speed punching equipment and Japanese precision injection molding machines, we strictly control all PCB layout dimensional tolerances and supply two standard pin length options together with multiple color housing selections to satisfy diverse design requirements.

This 180 degree box header adopts standard through hole DIP soldering installation method compatible with both automated wave soldering and manual soldering processes. It is widely applied in industrial control equipment communication devices digital home appliances automotive electronic modules precision testing instruments computer peripherals and consumer electronic products. During operation users must follow the official recommended PCB layout dimensions for assembly avoid excessive soldering temperature to prevent plastic housing deformation and keep pin contacts away from dust moisture and corrosive substances to extend service lifespan. All products comply with EU RoHS and REACH environmental standards most items pass UL certification under certificate E472792 and our factory holds ISO9001 ISO14001 and IATF16949 quality system certifications with diversified packaging solutions including tray bag tube and tape reel for flexible bulk shipment.

Compared with other connector manufacturers Antenk owns more than 250 sets of plastic connector molds and 180 sets of precision hardware terminal molds enabling fast customization of pin count plating type housing material color packaging and pin length for this box header series. Our 10000 square meter production base equipped with 250 professional employees 180 automatic assembly machines and 20 professional testing devices ensures stable product yield and large order delivery capability. As a certified Guangdong Famous Trademark enterprise over 70 percent of our products are exported to global markets. Our full range of strict quality inspection procedures guarantees superior anti-interference stable electrical performance and durable enclosed structural design effectively reducing short circuit risks and winning long term trust from global customers across Europe America Southeast Asia and other international regions.
