2.00mm Pin Header Dual Row Double Plastic Straight Type

5 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

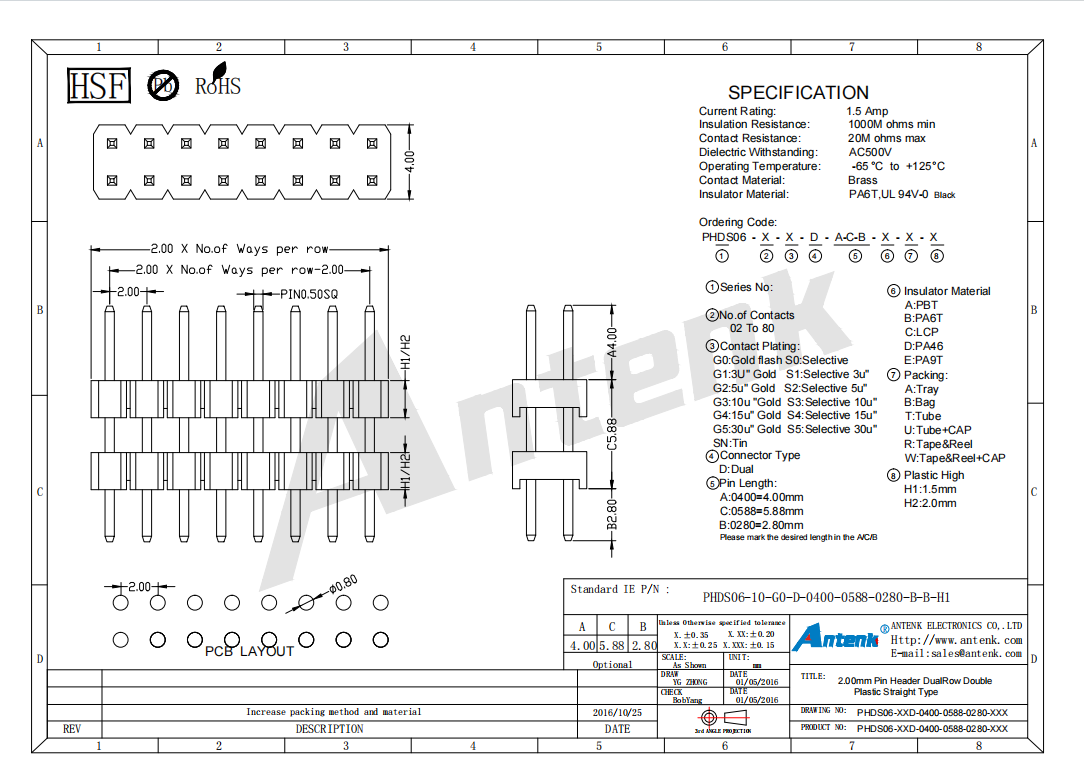

Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHDS06 series 2.00mm dual row double plastic straight pin header is designed to deliver stable power transmission and anti-interference signal connection between printed circuit boards. This connector ranges from 2 pins to 80 pins, adopting brass as conductive contact material with multiple plating options including gold flash, selective gold plating and tin over nickel plating. The insulator is made of PA6T flame retardant material meeting UL94V 0 standard, and the unique double plastic structure greatly enhances positioning stability during assembly. It supports 1.5 Amp rated current, with minimum 1000MΩ insulation resistance, maximum 20mΩ contact resistance and 500V AC dielectric withstand voltage, working reliably in the wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. The complete production flow covers independent mold research and development, precision terminal stamping, plastic injection molding, surface anti-oxidation plating, automatic assembly and comprehensive electrical performance testing. Equipped with Taiwan high-speed punching equipment and Japanese precision injection molding machines, we provide two structural types and three optional pin lengths, with strict dimensional tolerance control to fully match standard PCB layout requirements.

This dual row straight pin header applies through-hole DIP soldering installation, compatible with automated wave soldering and manual soldering processes for PCB mounting. It is widely used in industrial control devices, automotive electronic modules, communication equipment, smart home appliances, precision testing instruments, computer peripherals and consumer electronic products. During operation, users must follow the official PCB layout parameters for soldering, avoid excessive welding temperature to prevent plastic insulator deformation, and keep pin terminals away from dust, moisture and corrosive substances to extend service life. All products comply with EU RoHS and REACH environmental standards, most items pass UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 quality management system certifications, with diversified packaging choices of tray, bag, tube and tape reel to satisfy various production and shipping demands.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision hardware terminal molds, enabling flexible customization on pin count, pin length, plating type, insulating material and structural form for this pin header series. Our 10000 square meter production base with 250 skilled employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large-scale delivery capacity. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to global markets. Our multi-stage strict quality inspection system brings outstanding structural stability and high temperature resistance, effectively reducing circuit failure risks and building long-term cooperative trust with customers across Europe, America, Southeast Asia and other international regions.
