6.35mm Female Housing Connector Series

4 week ago

3 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

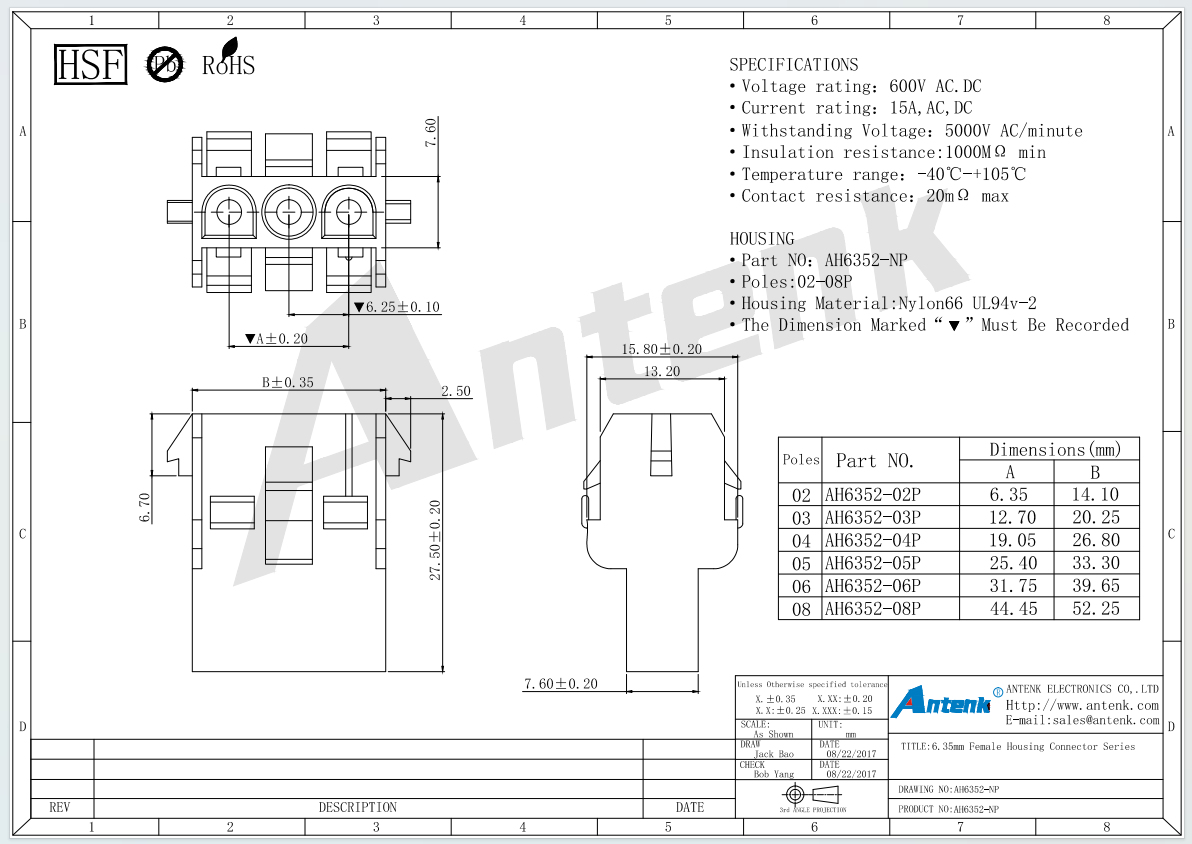

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AH6352 female housing connector series with 6.35mm pitch is designed to mate perfectly with matched male terminals, realizing safe high current power transmission and stable signal connection for wire to wire and wire to board assembly applications. This housing provides multiple specifications ranging from 2 poles to 8 poles, manufactured from premium Nylon66 material that complies with UL94V 2 flame retardant standard. It is rated for 15A current and 600V AC DC voltage, capable of enduring 5000V alternating current voltage within one minute, featuring minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, and maintains reliable working performance within the wide temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Our mature production process includes independent mold research and development, precision plastic injection molding, automatic trimming, dimensional inspection and strict electrical safety performance testing in our professional laboratory. Equipped with Japanese precision injection molding equipment, all critical dimensions are precisely controlled within specified tolerances, and the dual side locking buckle structure effectively prevents accidental disconnection during long term high load equipment operation.

This female connector housing adopts standard crimping assembly mode. Users need to crimp corresponding female terminals onto stripped wires, insert terminals into the housing cavity until fully locked, then connect with the matched male connector housing to complete circuit connection. It is widely used in industrial control equipment, automotive electrical modules, new energy power supplies, high power household appliances, communication power equipment and precision testing instruments. During operation, users must follow the rated electrical parameters to avoid overload current and voltage, forbid violent plugging and pulling to protect the locking structure, and store the housing in dry and ventilated environments to prevent plastic aging and deformation. All products comply with EU RoHS and REACH environmental regulations, most items pass UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications to guarantee stable safety and environmental performance.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pole numbers and dimensional parameters for this female housing series. Our 10000 square meter production base with 250 skilled employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large scale delivery capacity. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi stage incoming, in process and finished product inspection system delivers excellent flame retardant and anti loosening properties, greatly reducing circuit failure risks and establishing long term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
