2.54mm Straight DIP Dual In-Line Pin Header

4 week ago

3 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

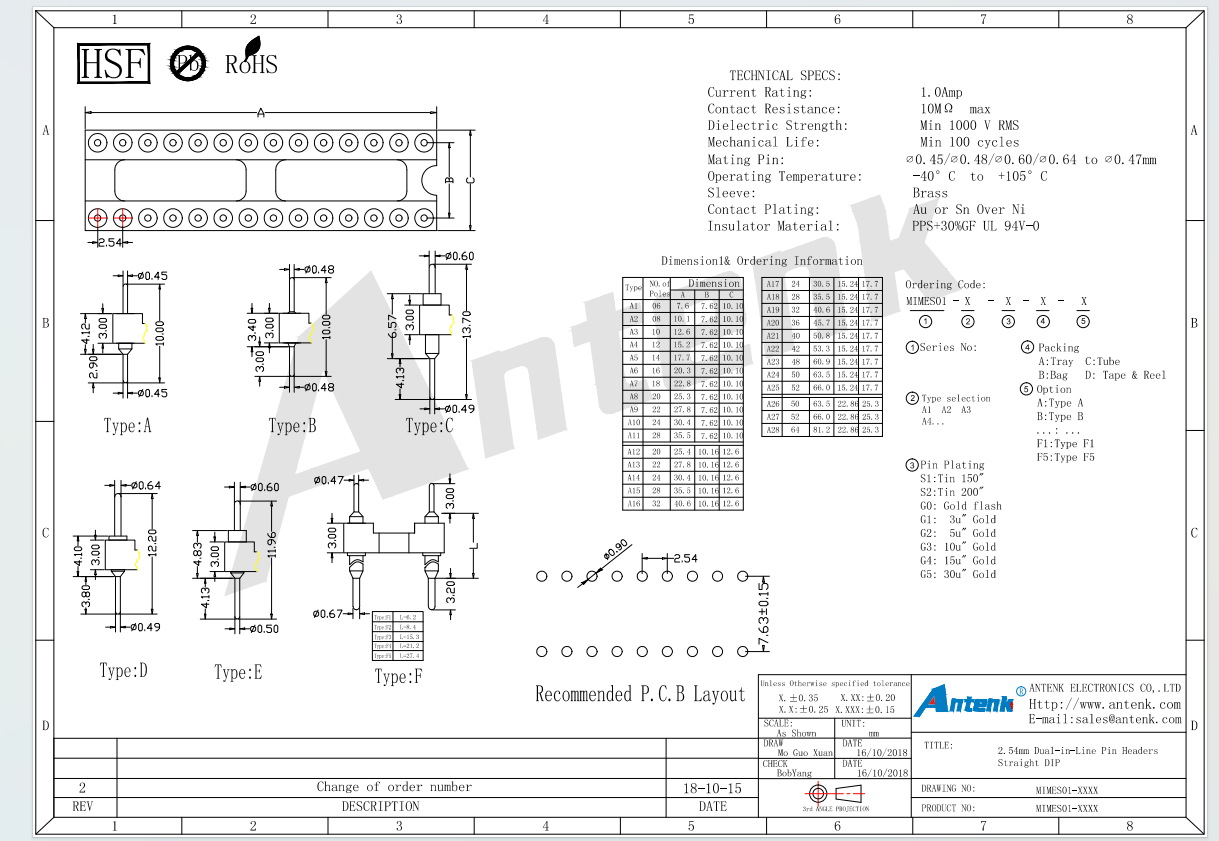

Manufactured by Huizhou Antenk Electronics Co., Ltd, the MIMES01 series 2.54mm straight DIP dual in-line pin header is a standard dual-row PCB interconnection component designed for stable low-current signal transmission. Per drawing specifications, this dual row header provides six structural variants Type A to Type F with diverse pin tail lengths and mating sleeve diameters, supporting pin quantities ranging from 06 pins up to 64 pins. The insulator is made of PPS blended with 30 percent glass fiber, complying with UL94V-0 flame retardant standard, while brass sleeves support tin over nickel and multi-grade gold plating surface finishes. It carries 1.0 Amp rated current, maximum 10MΩ contact resistance and minimum 1000V RMS dielectric strength, enduring at least 100 mating cycles and operating reliably across -40°C to +105°C. Multiple sleeve inner diameters fit mating pins from 0.45mm to 0.64mm to meet various matching demands. Our complete standardized manufacturing workflow covers independent precision mold development, high-speed brass terminal stamping, high-temperature PPS injection molding, anti-oxidation electroplating, automatic assembly and full mechanical and electrical reliability testing. Taiwan high-speed punchers and Japanese precision injection molding machines keep all PCB layout dimensions under tight unified tolerances for stable through-hole wave soldering.

This straight dual in-line pin header supports tray, bag, tube and tape reel four packaging types to match manual assembly and fully automatic DIP production lines. Operators insert straight pin tails through reserved holes on printed circuit boards following the official PCB layout diagram and complete wave soldering, then mate the header with matching dual row female sockets to build complete signal circuits. It is widely applied in industrial control modules, communication signal boards, digital cameras, household intelligent appliances, automotive auxiliary electronics, portable storage devices and precision measuring instruments. During processing and service, users need to select matching sleeve inner diameter for target male pins, control soldering temperature reasonably to prevent glass-filled PPS insulator deformation, and store unused headers in dry sealed packaging to protect brass sleeves from oxidation. All products comply with EU RoHS and REACH environmental standards, most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 automotive quality management certifications.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of pin count, structural type, sleeve plating thickness and packaging mode for this dual in-line pin header series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent batch quality and fast large-volume delivery. As a holder of Guangdong Famous Trademark qualification, more than 70 percent of our pin headers are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system delivers outstanding high and low temperature resistance and durable mating performance, effectively reducing poor contact and signal interruption risks and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
