OH2-JHEIJHFIOHA
OH2-JHE/JHF/OHA Single-StageCantilevered Chemical Process Pump
The JHE/JHF series comply with API610-10thand DIN/IS0/VDMA24927 standardsthe OHA series meet API610-11 standards

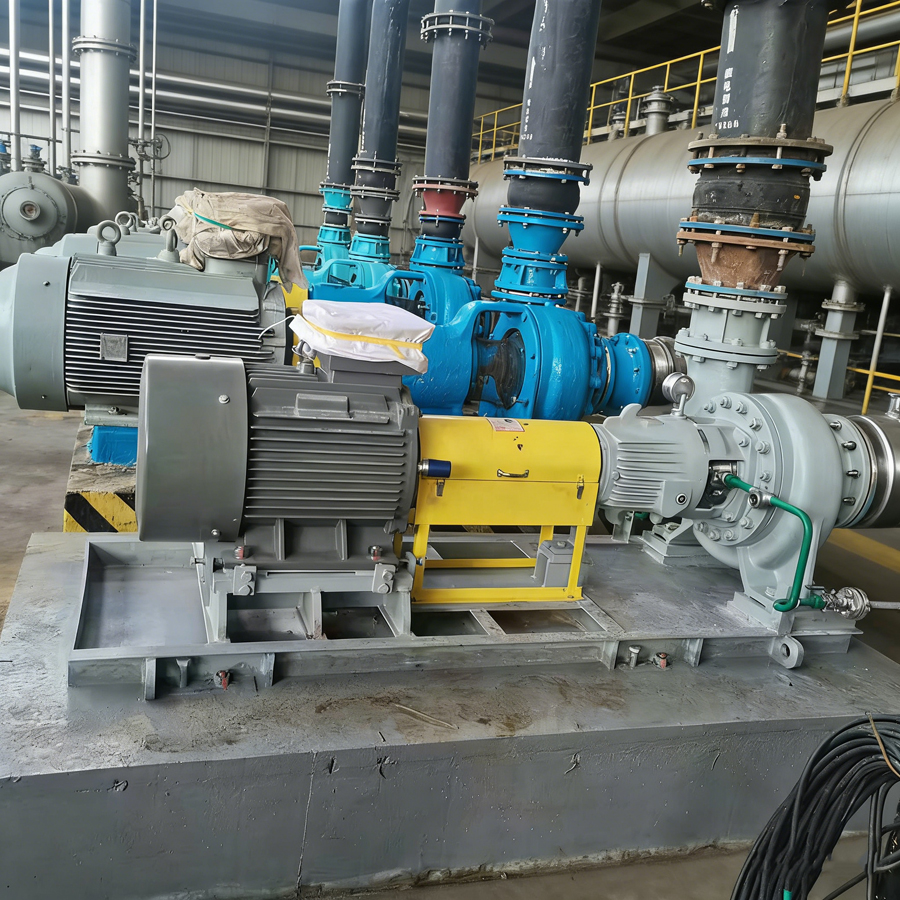

The JHE/JHF/OHA series are single-stage, single-suction, radially split,centerline-mounted, cantilevered centrifugal pumps. The JHE/JHF seriescomply with API610-10th and DIN/ISO/VDMA24927 standards; the OHAseries meet API610-11 standards. Its optimized design performance andstructure accommodate both light and heavy-duty applications, whilemodular construction enhances pump interchangeability.
Application Scope:
Suitable for conveying various clean or slightly particulate-laden media,low-temperature or high-temperature, medium-pressure or high-pressure,neutral or corrosive substances. Used in refineries, petrochemical plants,ethylene facilities, cryogenic engineering, coal chemical plants, finechemical plants, and other related fields.
High-efficiency intelligent pump
High EnergyEfficiency
Energy saving rate
10~50%
Reliability
Low axial deflection index,conforming to API 610 11th,reinforced center supportdesign, reinforced pump coverdesign, and reinforced basesupport for the pump head.
Highly ModularIntegrated Design
The entire series includes 5 specificationsof bearing housings, which can becustomized according to user requirements.
Intelligent upgrade,long-term operation
We provide innovative predictivemaintenance solutions to reducequipment operation and maintenancecosts, minimize unplanned downtimelosses, extend bearing life, enableintelligent product upgrades,and ensure long-termequipment operation.
Product Advantages
High-efficiency energy-saving pump
Performanceparameters
Diameter: 25~400mmFlow rate:~2600m2/hHead:~300mPressure: ~5.0MPaTemperature: -80°C~+450°C
Applicationareas
PetrochemicalsNatural GasPower IndustryCoal Chemical Industry
Pressure-bearing components:Self-venting, centerline outletLarge-size (DN80) pumpsall feature a double volute casing;Thickened intermediate support designfor the pump body to meetAPI610 nozzle load requirements.
Imported:Baffle design prevents liquid fromforming turbulence and improvescavitation resistance.
Flange:Custom designs available upon request.
Standard configuration HG/T 20615 CL300 RF;
Cavity:
API 682 standardMeets SPTS-RE04-T001/T002Sealing type:Cartridge-type mechanical seal design
Bearing Assembly:
Radial: Deep groove ball bearing
Thrust: Angular contact ball bearing,a-to tacagmarcage
Coupling:
Extended section design
Impeller:Employs a low-NPSHr closedimpeller with a high-efficiencyhydraulic design and precision casting.
Residual liquid drainage structure:The flange-type residual liquid drainage systemis the standard structure. To meet user specifications,the residual liquid drainage system can be equippedwith corresponding supports.
Pump seal:Controlled compressionspiral wound gasket
Shaft:Heavy-duty, large-diameterlow-deflection designensures the service lifeof bearings and seals.
Bearing Housing:Multi-functional design: temperaturemeasurement vibration measurementheating/cooling Only 5 specificationsin the entire series Multiple coolingmethods: air cooling, wind cooling,water cooling.Large heat dissipationfinsOil bath heating for low-temperature environments Optionaloil mist lubrication design.
Lubrication methods:Oil slinger lubrication, oil bath lubrication,oil mist lubricationOilseals:Bearingisolators
The OH2-JHE variant targets refineries, fine chemical factories and synthetic ammonia plants worldwide that operate with low-solid, weakly corrosive process liquids, with a working temperature bandwidth spanning -80°C cryogenic light hydrocarbon up to 320°C high-temperature neutral solvent media. Its streamlined single volute closed impeller hydraulic layout delivers superior energy efficiency for steady full-load circulation tasks such as tower reflux, feedstock transfer and general cooling water loops, a major selling point for European and Southeast Asian chemical facilities with strict carbon emission reduction policies. Standard wetted material for export JHE units is duplex stainless steel, with optional Hastell alloy configurations available for weak phosphoric acid and organic solvent export orders. The API 682 fully standardized seal chamber accommodates all internationally recognized mechanical seal flush plans (Plan 11, 21, 23, 32), enabling direct compatibility with seal suppliers local to each client’s country and avoiding long lead times for specialized sealing component cross-border shipments. Back pull-out disassembly design eliminates pipeline detachment during overhaul – a vital feature for remote industrial zones in Central Asia and Africa with limited professional maintenance teams, as field technicians can complete impeller and wear plate replacement within one shift without heavy pipeline dismantling work. Export-ready JHE pump units ship with bilingual English-Russian operation manuals, full API material test certificates and hydraulic performance curve reports to pass local industrial safety customs clearance and factory audit requirements smoothly.
