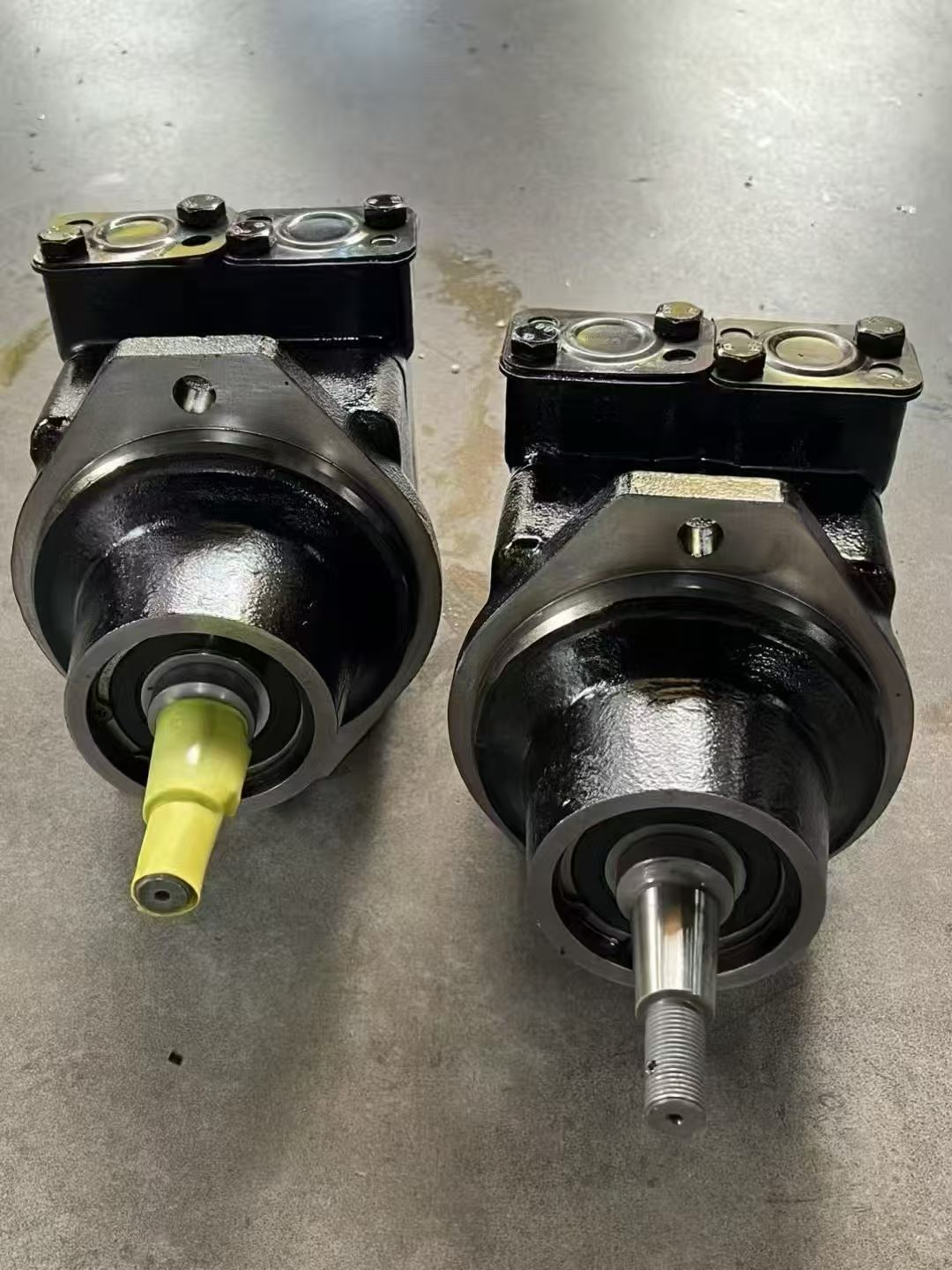

Hitachi ZX450-3 Hydraulic Fan Motor Full Specification

1. Product Introduction

This is an OEM axial piston hydraulic cooling fan motor specially fitted for Hitachi ZX450-3 large excavator, originally manufactured by KYB Japan. It drives the radiator cooling fan to control engine coolant temperature and hydraulic oil temperature, interchangeable with ZX470-3, ZX500-3 series excavators.

OEM Part Numbers

Main PN: 4634936

Alternative PN: 4634947, 4659032, YA00005829

2. Construction & Materials

- Type: Fixed displacement axial piston swash plate hydraulic motor

- Body: High-strength cast steel integral casting, anti-vibration & impact resistance

- Internal components: Piston & slipper assembly, valve plate, swash plate, needle roller bearing, FKM high-pressure oil-resistant seal kit

- Output Shaft: Involute spline shaft, directly coupled with fan hub, lock nut positioning

- Mounting: Triangular 3-lug flange bolt mounting, original standard bolt holes for direct replacement

- Ports: Dual horizontal inlet/outlet ports + top drain port

3. Technical Parameters

Item Specification

Compatible Models Hitachi ZX450-3, ZX450LC-3, ZX470-3, ZX500-3

Displacement 34cc/rev

Rated Working Pressure 21MPa

Max Peak Pressure 28MPa

Variable Speed Range 0~1400rpm (ECU electronic stepless speed regulation)

Max Output Torque 485 N·m

Compatible Hydraulic Oil ISO VG46 / VG68 anti-wear hydraulic oil

Operating Temperature -20℃ ~ +95℃

Rotation Direction Clockwise (view from shaft end)

Built-in Feature Integral overload relief valve for anti-jam protection

Net Weight 18.5KG

4. Working Principle

Supplied by independent hydraulic oil from main pump, regulated by ECU via water temperature & hydraulic oil temperature sensors:

- Low temperature: Low flow & low speed to save power & reduce noise

- High load & high temperature: Full flow & max speed for intensive cooling

- Built-in relief valve automatically relieves pressure if fan stuck, protecting motor and main hydraulic pump

5. Product Versions for Supply

1. Japan Original New Unit: KYB genuine OEM, full original spare parts, 12-month warranty

2. Brand New Chinese Replacement Unit: Full dimensional replication, precision internal machining, cost-effective for foreign trade

3. Remanufactured Original Unit: Reused original housing with brand-new piston & seal assembly, cost balanced

6. Features & Application

- High volumetric efficiency, stable speed regulation, low internal wear in long service

- Bolt-on direct replacement without pipe or bracket modification

- Heavy-duty dustproof seals, durable for mining & dusty construction sites

- Overload pressure relief design, avoid main pump breakdown under fan blocking

- Application: Mining heavy-duty excavation, earthmoving continuous operation, high-temperature tropical working conditions; Replacement for faulty motor with slow fan speed, internal leakage, shaft oil leakage, spline wear & abnormal noise
