Impro Orbital Hydraulic Motor Part No.11246625 Specification

1. Product Overview

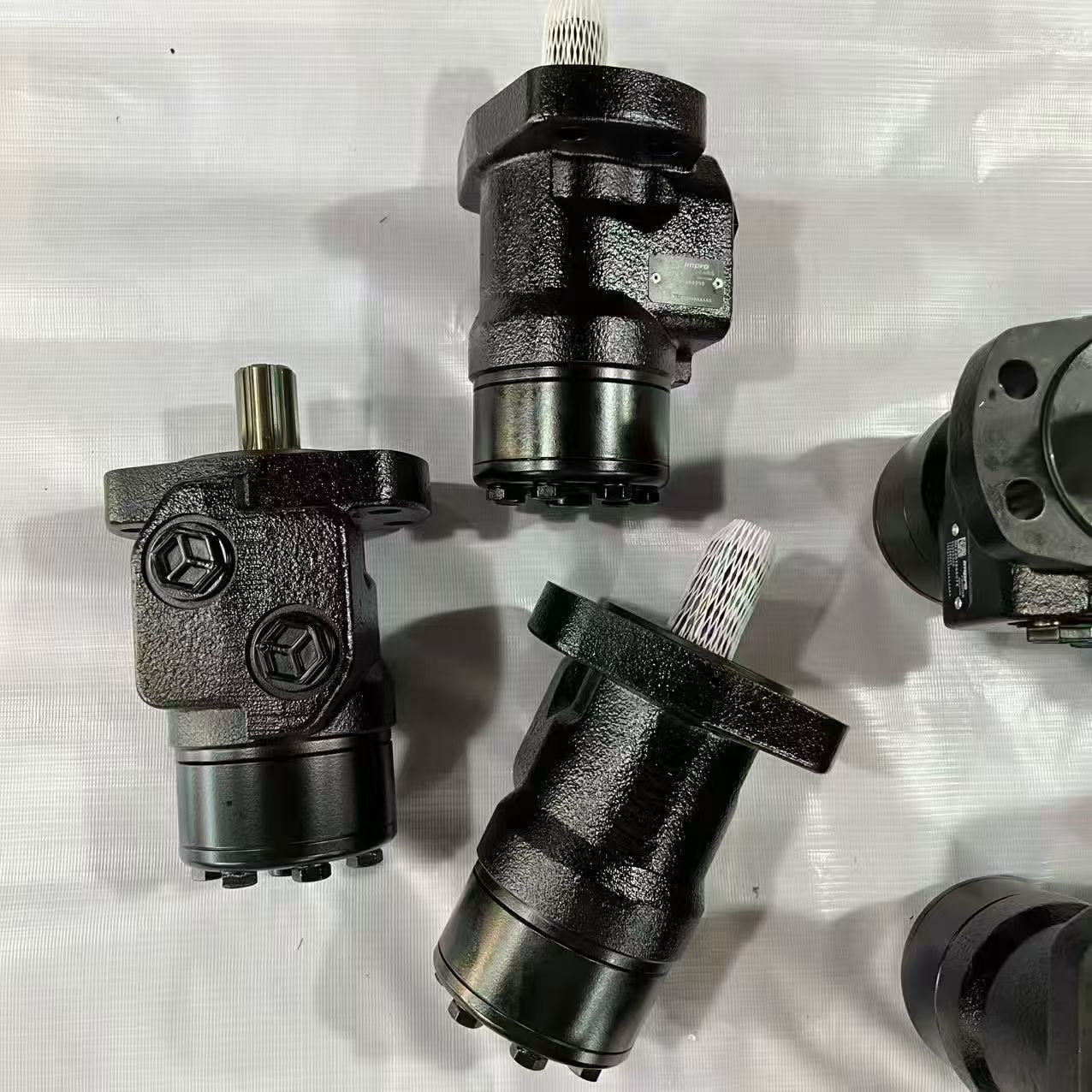

Impro Orbital Hydraulic Motor with part number 11246625 is a low-speed high-torque hydraulic motor adopting internal meshing cycloid rotor-stator structure. It acts as a key executive component in the complete hydraulic system, which can be matched with various Hydraulic valve including multi-way valves and relief valves to form integrated hydraulic drive circuits. It serves as an economical interchange replacement for well-known brand orbital motors, widely used in agricultural machinery, sanitation equipment and light construction machinery.

2. Working Principle

High-pressure hydraulic oil delivered from the hydraulic system drives the cycloid rotor to perform planetary rotation inside the stator, converting hydraulic energy into mechanical torque output. Equipped with integrated distribution assembly, wear-resistant plates and heavy-duty seals, this hydraulic motor runs smoothly at ultra-low speed without crawling and supports reversible rotation.

3. Main Specifications

Rated pressure:16MPa, peak pressure:21MPa, working speed 5-200rpm, compatible with ISO VG46/VG68 hydraulic oil, operating temperature -25℃~+85℃, flange mounting design.

4. Features & Application

It features compact size, strong dirt resistance and easy installation without modifying original hydraulic system. Widely applied as drive hydraulic motor for harvesters, road sweeper rollers, small winches and conveyor rollers in agricultural, sanitation and light engineering industries. Replace the whole unit once there is insufficient power, abnormal noise or oil leakage caused by worn rotor and stator.
